Small Size Gas Sealing Stainless Steel Band Hydraulic Hose Clamps
  • Small Size Gas Sealing Stainless Steel Band Hydraulic Hose Clamps
  • Small Size Gas Sealing Stainless Steel Band Hydraulic Hose Clamps
  • Small Size Gas Sealing Stainless Steel Band Hydraulic Hose Clamps
  • Small Size Gas Sealing Stainless Steel Band Hydraulic Hose Clamps
  • Small Size Gas Sealing Stainless Steel Band Hydraulic Hose Clamps
  • Small Size Gas Sealing Stainless Steel Band Hydraulic Hose Clamps
Small Size Gas Sealing Stainless Steel Band Hydraulic Hose ClampsSmall Size Gas Sealing Stainless Steel Band Hydraulic Hose ClampsSmall Size Gas Sealing Stainless Steel Band Hydraulic Hose ClampsSmall Size Gas Sealing Stainless Steel Band Hydraulic Hose ClampsSmall Size Gas Sealing Stainless Steel Band Hydraulic Hose ClampsSmall Size Gas Sealing Stainless Steel Band Hydraulic Hose Clamps

Small Size Gas Sealing Stainless Steel Band Hydraulic Hose Clamps

Product Introduction:
  • Generally used in small diameter applications such as air & fuel lines

  • The perfect clamp for automobiles, plumbing, home and garden

  • Assists with high speed assembly on production lines

  • Especially suited to industrial applications

Product Details

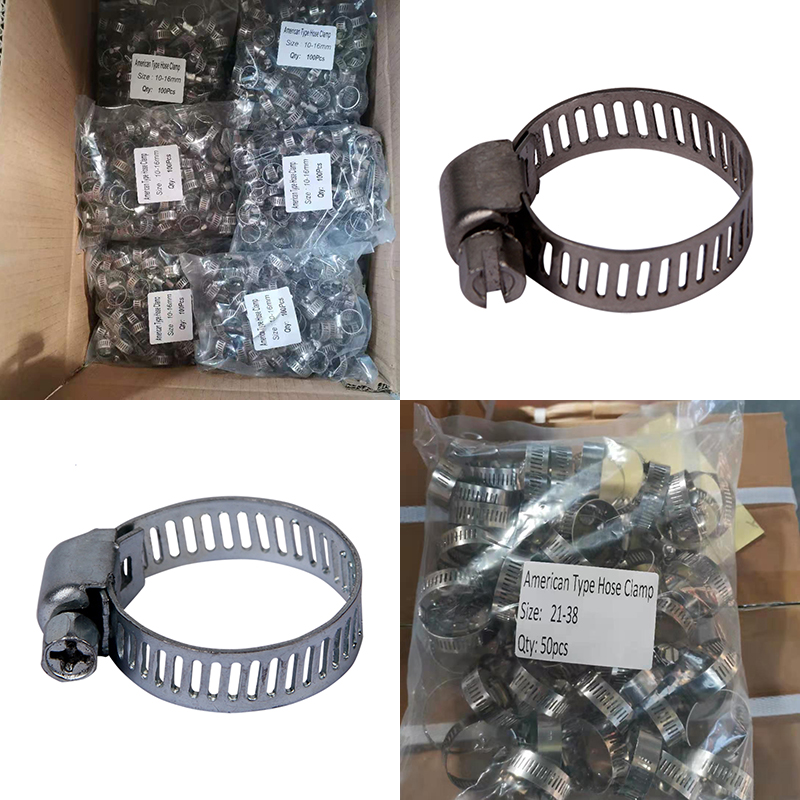

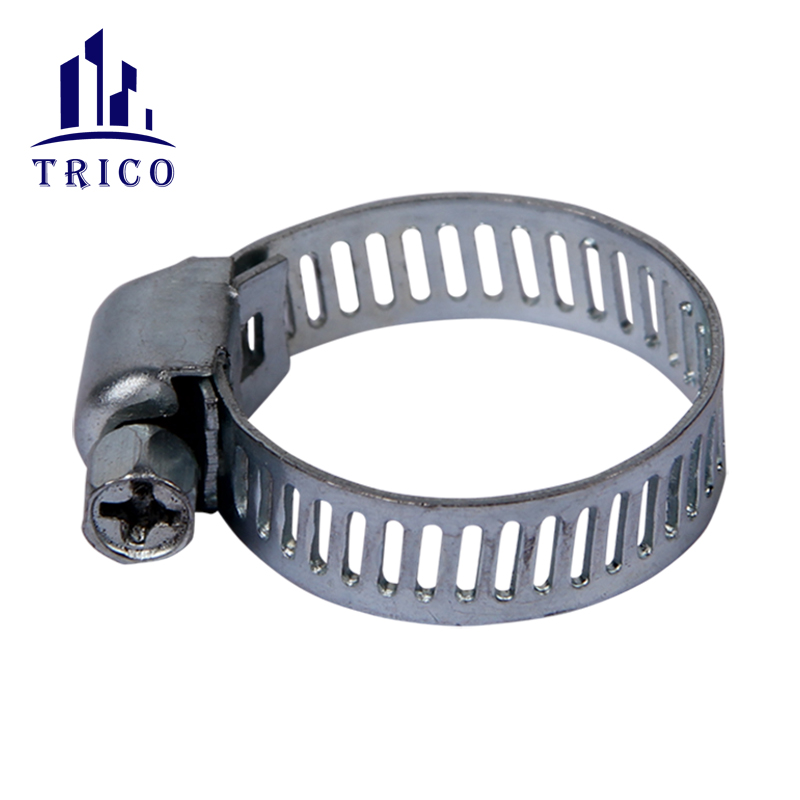

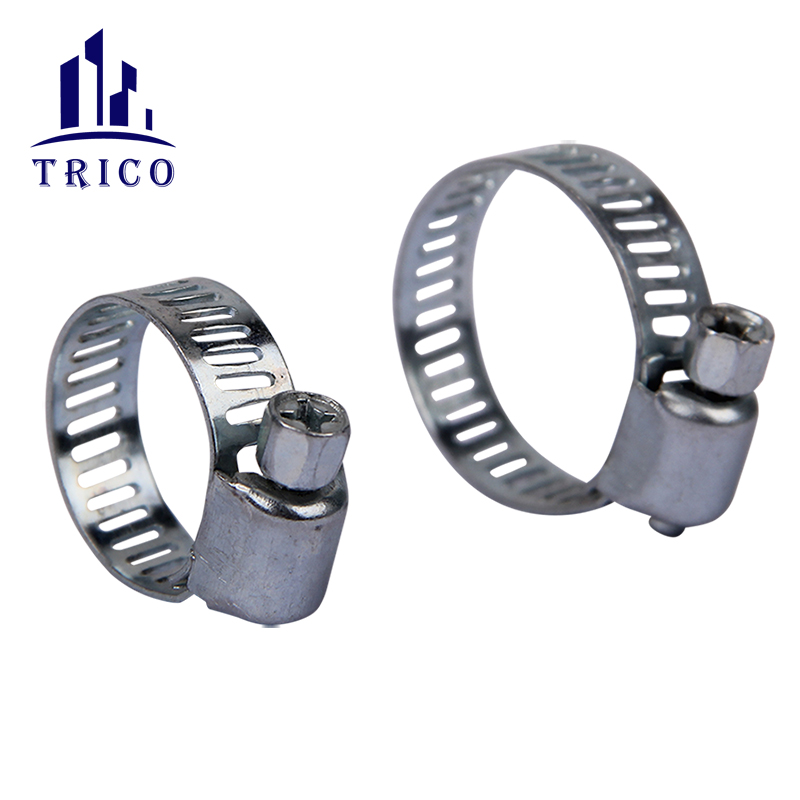

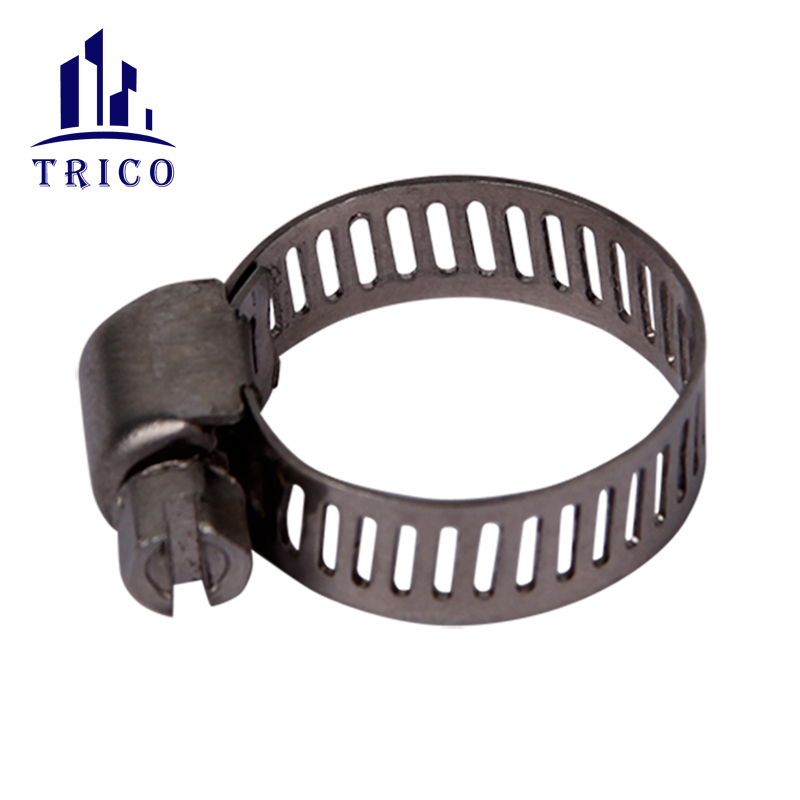

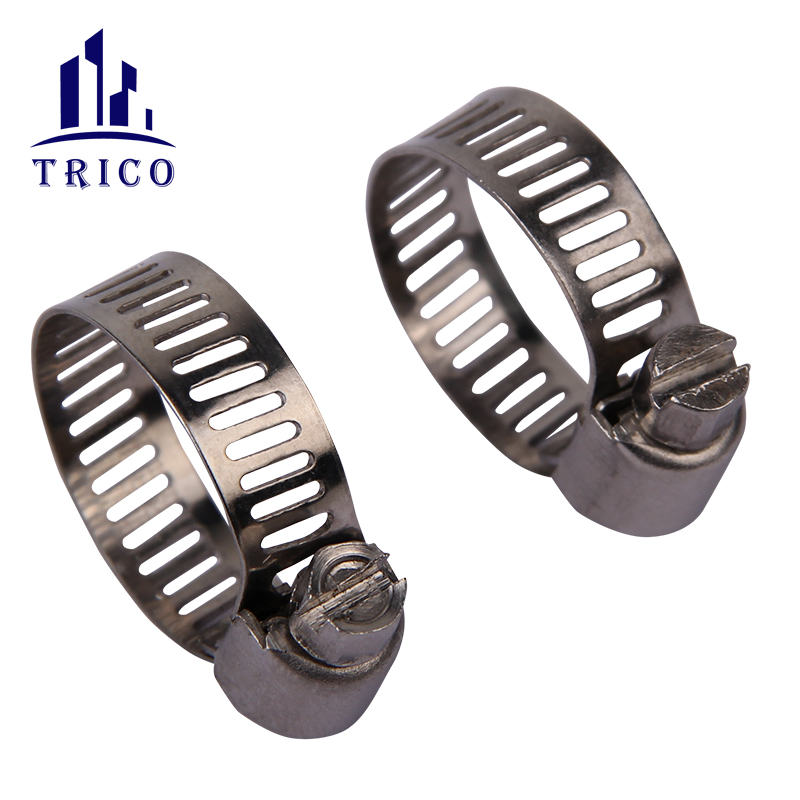

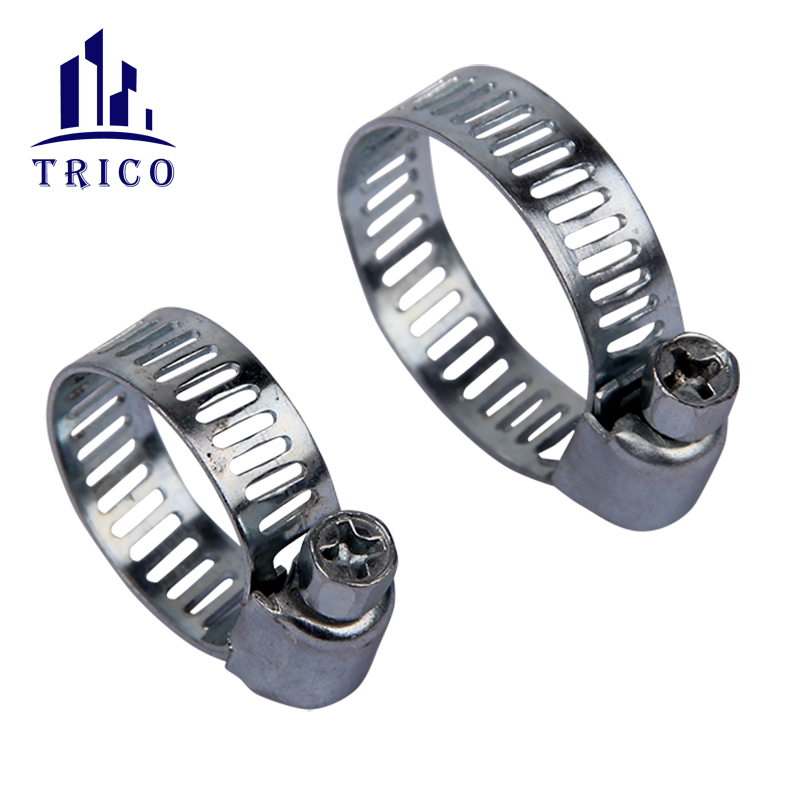

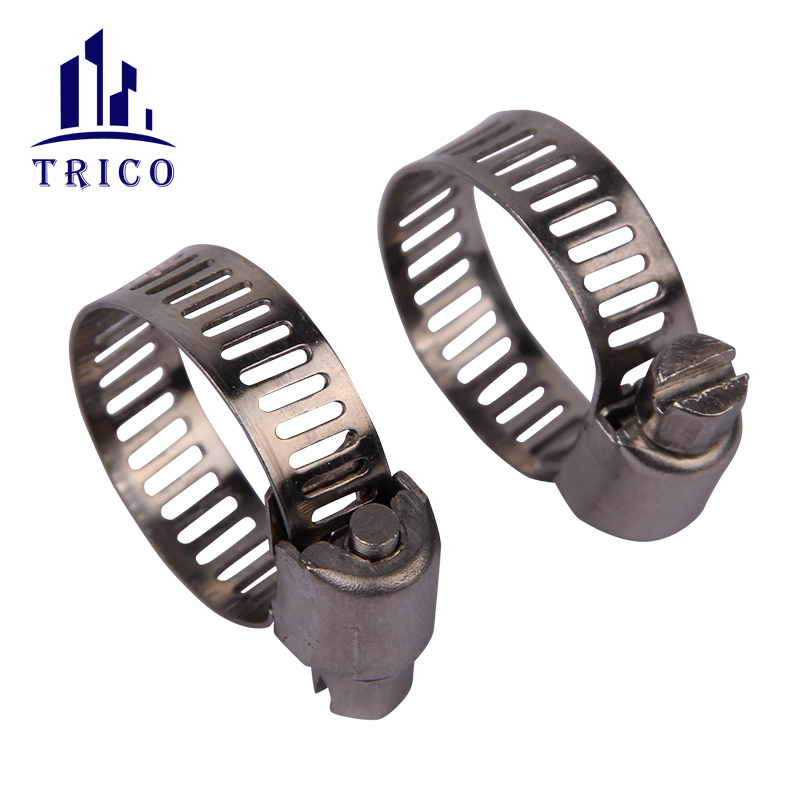

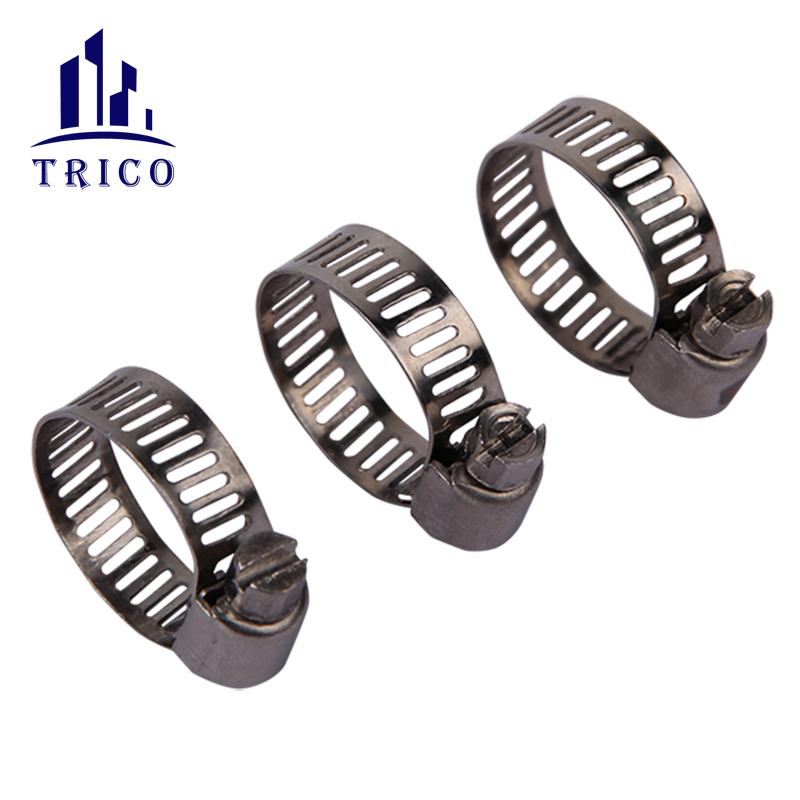

American Type Hose Clamp

American hose clamps: with band thread through-hole, and teeth of the screw fitted in, they have more powerful locking. and accurate Occlusal. Also,american hose clamps can be used in non-circular objects, they can bundle the square columnar objects, such as flue, electric vehicle batteries,etc.

                                               American Type Hose Clamp - 8mm & 12.7mm

:Matrial

  • W1 series -- all the parts are carbon steel

  • W2 series -- the band and housing are SS200 or 300, screw is carbon steel

  • W4 series -- all the parts are SS200 or 300

  • W5 series -- all the parts are SS316

Size

Bandwidth *

Thckness

(mm)

Pcs/BagPcs/Ctn

G.W./Ctn

(kg)

Ctn Size

(cm)

Torque

(N. m)

mminch
8-121/2"8*0.6100200011.8038*27*14≥2
10-165/8"8*0.6100200012.6038*27*19≥2
13-193/4"8*0.6100200013.2038*27*19≥2
13-237/8"8*0.6100200013.8038*27*21≥2
16-251"8*0.6100200014.4038*27*21≥2
18-321-1/4"12.7*0.6100100021.0036*28*30≥7
21-381-1/2"12.7*0.6100100022.136*28*32≥7
21-441-3/4"12.7*0.65050012.3036*28*29≥7
27-512"12.7*0.650
50012.7536*29*27≥7
33-572-1/4"12.7*0.65050013.4036*28*32≥7
40-632-1/2"12.7*0.65050014.0036*28*34≥7
46-702-3/4"12.7*0.65050014.4536*28*38≥7
52-763"12.7*0.65050015.4042*34*33≥7
59-823-1/4"12.7*0.65050015.6042*34*35≥7
65-893-1/2"12.7*0.6252508.6339*28*32≥7
72-953-3/4"12.7*0.6252508.9539*28*34≥7
78-1014"12.7*0.6252007.5038*27*24≥7
84-1084-1/4"12.7*0.6252007.6038*27*29
≥7
105-1275"12.7*0.6202009.5036*29*41≥7
117-1405-1/2"12.7*0.6202009.7236*30*43≥7
130-1536"12.7*0.6202009.8036*30*45≥7
142-1656-1/2"12.7*0.62020010.4036*30*47≥7
155-178
7"
12.7*0.62020011.2036*30*49≥7

Small Size Gas Sealing Stainless Steel Band Hydraulic Hose Clamps

                                                                American Type Hose Clamp - 10mm

Material:

  • W1 series -- all the parts are carbon steel

  • W2 series -- band and housing are SS200 or 300, screw is carbon steel

  • W4 series -- all the parts are SS200 or 300

  • W5 series -- all the parts are SS316

Size (mm)

Bandwidth *

 Thickness(mm)

Pcs/BagPcs/CtnCtn Size (cm)G.W. / Ctn (kg)Torque (N.m)
10-1610*0.6100100038*27*1111.20≥2
14-2410*0.6100100038*27*1511.30≥2
18-2810*0.6100100038*27*1711.40≥2
24-3610*0.6100100038*27*1912.40≥2
21-4410*0.65050038*27*156.70≥3.5
27-5110*0.65050038*27*177.00≥3.5
33-5710*0.65050038*27*208.30≥3.5
40-6310*0.65050038*27*218.50≥3.5
46-7010*0.62550038*27*248.60≥3.5
52-7610*0.62550038*27*349.80≥3.5
59-8210*0.62550036*30*4310.40≥3.5
65-8910*0.62550036*30*4310.60≥3.5
72-9510*0.62550036*30*4510.90≥3.5
78-10110*0.62550036*30*4911.10≥3.5
84-10810*0.62525038*27*305.80≥3.5
91-11410*0.62525038*27*346.10≥3.5
105-12710*0.62525038*27*346.50≥3.5
117-14010*0.62525040*37*276.90≥3.5
130-15310*0.62525040*37*307.20≥3.5
142-16510*0.62525040*37*347.50≥3.5
155-17810*0.62525040*37*377.80≥3.5

Small Size Gas Sealing Stainless Steel Band Hydraulic Hose Clamps
