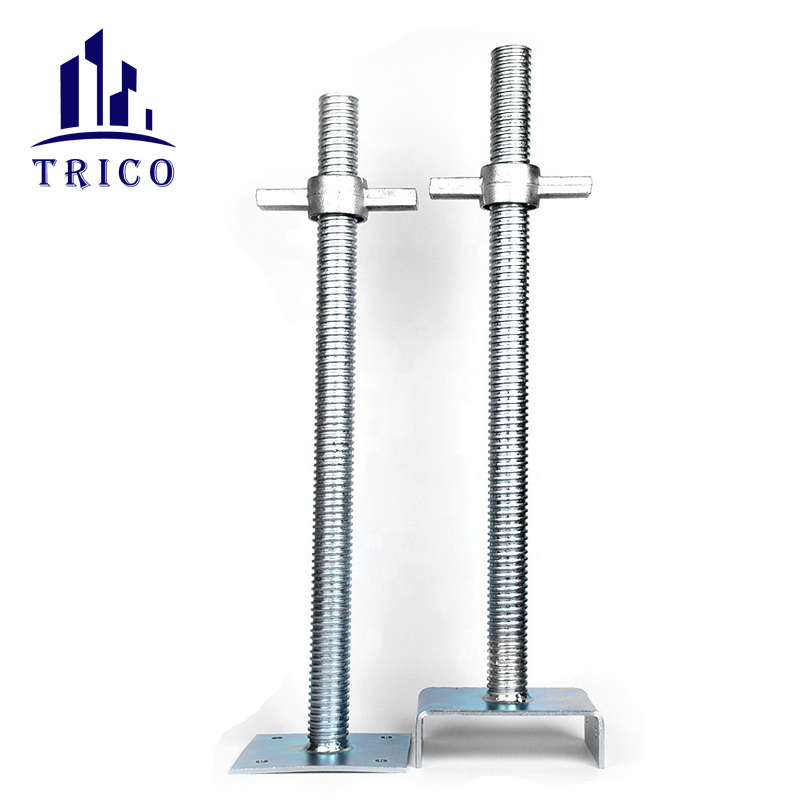

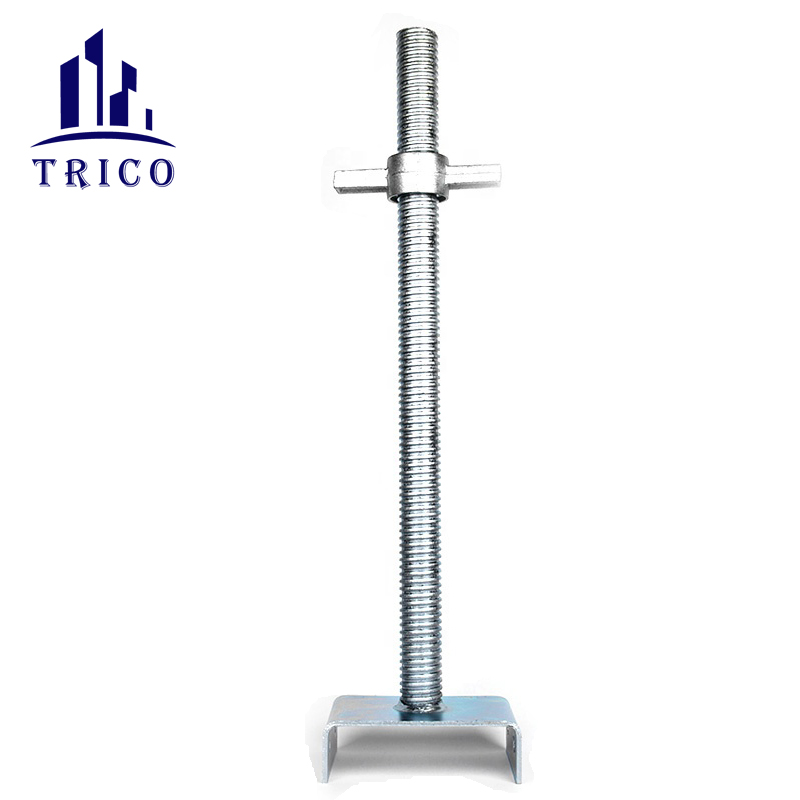

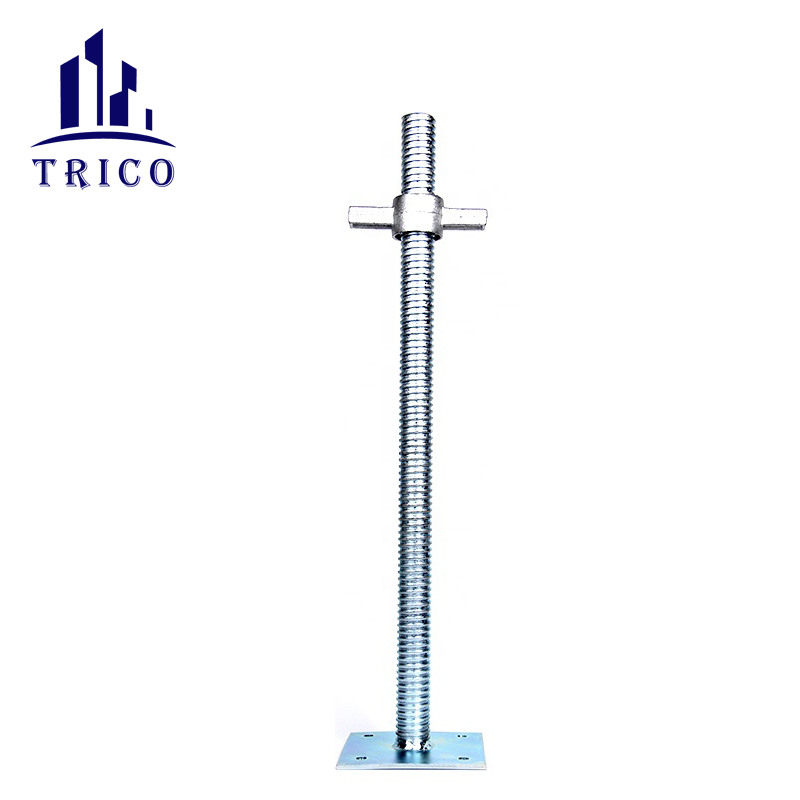

Scaffolding Adjustable Shoring Screw Base Jack
  • Scaffolding Adjustable Shoring Screw Base Jack
  • Scaffolding Adjustable Shoring Screw Base Jack
  • Scaffolding Adjustable Shoring Screw Base Jack
  • Scaffolding Adjustable Shoring Screw Base Jack
Scaffolding Adjustable Shoring Screw Base JackScaffolding Adjustable Shoring Screw Base JackScaffolding Adjustable Shoring Screw Base JackScaffolding Adjustable Shoring Screw Base Jack

Scaffolding Adjustable Shoring Screw Base Jack

Product Introduction:

Screw jack is used as a starting base for scaffolding. It has an adjustable height to allow for compensation on uneven grades so that a level scaffold is always attainable. Different diameter sand length are available. Solid or hollow type supplying.



Product Details

Scaffolding Adjustable Shoring Screw Base Jack

Material:Q235 round bar,seamless/ERW pipe.

Diameter:30mm/32mm/34mm/38mm/48mm or as your request

Adjustable Length:from 100 yo 1000mm as your request

Type:Solid/Hollow

Surface treatment:Paint/Galvanized

Main components:Threaded bar,cast nut and base pate

Certificate:ISO 9001,SGS

Package:By Pallet suitable for sea transportation or as request

OEM service available

Samples are available

 TypesU headJack baseSwivel Jack baseScaffolding base plate
Sample Hot sales boutique scaffolding screw jack base Hot sales boutique scaffolding screw jack baseHot sales boutique scaffolding screw jack base Hot sales boutique scaffolding screw jack base
Weight1-5kg1-5kg1-5kg1-3kg
MaterialQ235 or 20# SteelQ235 or 20# SteelQ235 or 20# SteelQ235 or 20# Steel
Diameter

28/30/32/34

/35/38/48MM

28/30/32/34

/35/38/48MM

28/30/32/34

/35/38/48MM

28/30/32/34/

35/38/48MM

Length

200/280/600/760MM

 or customized

200/280/600

/760MM

or customized

200/280/600

/760MM

or customized

100MM,150MM

or customized

Floor size

120*120*50*4MM

120*120*50*5MM

150*150*50*4MM

150*150*50*5MM

or customized

120*120*5MM

150*150*5MM

or customized

20*120*5MM

150*150*5MM

 or customized

20*120*5MM

150*150*5MM

or customized

Surface treatment

Natural ,painted, Electric galvanized,

HDG

Natural ,painted,

 Electric galvanized,

HDG

Natural ,painted,

Electric galvanized,

HDG

Natural ,painted,

Electric galvanized,

HDG


Scaffolding Adjustable Shoring Screw Base Jack
