Formwork Coil Tie with Plastic Cone

Product Introduction:

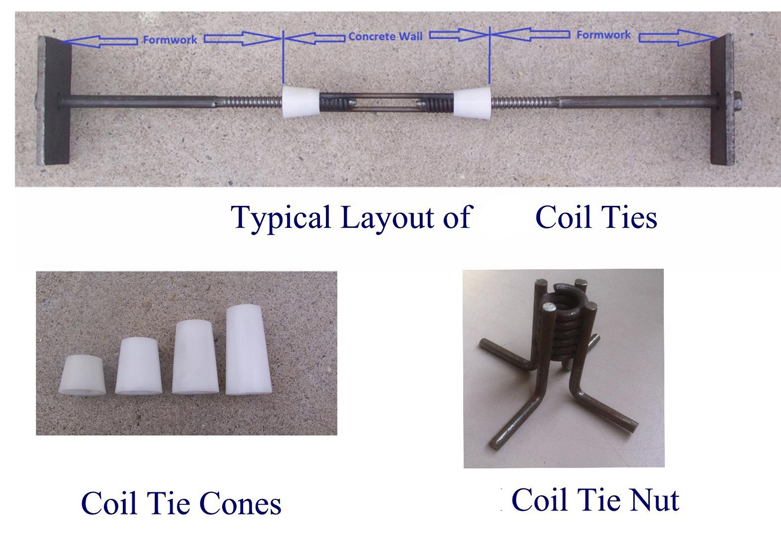

Conefast Coil Ties are one of the most economical and versatile Form Tie Systems available. They are commonly used with self cleaning Coil Rod or Coil Bolts/ Bolt Coil Tie. The Conefast Coil Ties have extended coils that protrude beyond the end of the struts allowing for a Conefast (Screw On) cone to be attached. The main parts are Coil Tie, Bolt Coil Tie, Coil Tie Cone.

Send inquiry now

Product Details

Formwork Coil Tie with Plastic Cone

Seq. No.

Product


Specification

Packing

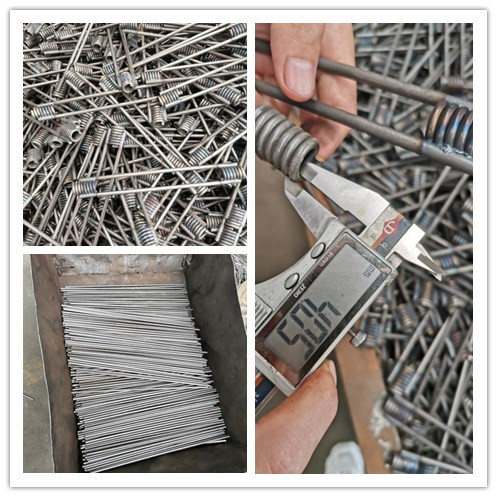

Coil Tie(Self Color)

Formwork Coil Tie with Plastic Cone

WT150MM

STRUT 80MM

112g/pc;100pcs/bag

WT200MM

STRUT 130MM

133g/pc;100pcs/bag

WT250MM

STRUT 130MM

153g/pc;100pcs/bag

WT275MM

STRUT 205MM

165g/pc;100pcs/bag

WT300MM

STRUT 230MM

175g/pc;100pcs/bag

WT350MM

STRUT 280MM

195g/pc;100pcs/bag

WT400MM

STRUT 330MM

215g/pc;100pcs/bag

WT450MM

STRUT 380MM

237g/pc;50pcs/bag

WT500MM

STRUT 430MM

258g/pc;50pcs/bag

WT550MM

STRUT 480MM

277g/pc;50pcs/bag

WT600MM

STRUT 530MM

298g/pc;50pcs/bag

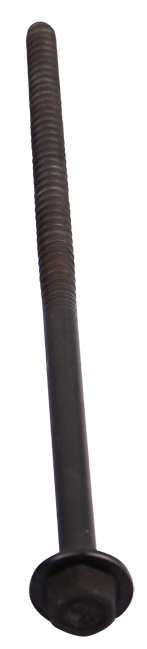

Bolt Coil Tie

40CR,300MM,in balck

100pcs/carton

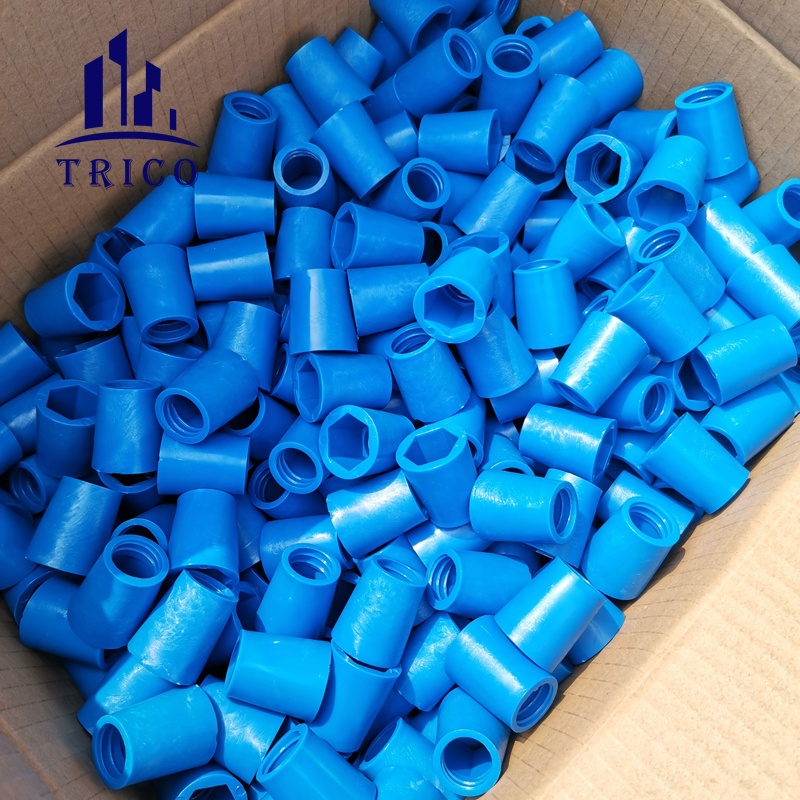

PVC Cone 35mm

Blue,35mm

500pcs/carton

Formwork Coil Tie with Plastic Cone

Packing Detail:

Formwork Coil Tie with Plastic Cone
