Product Introduction:

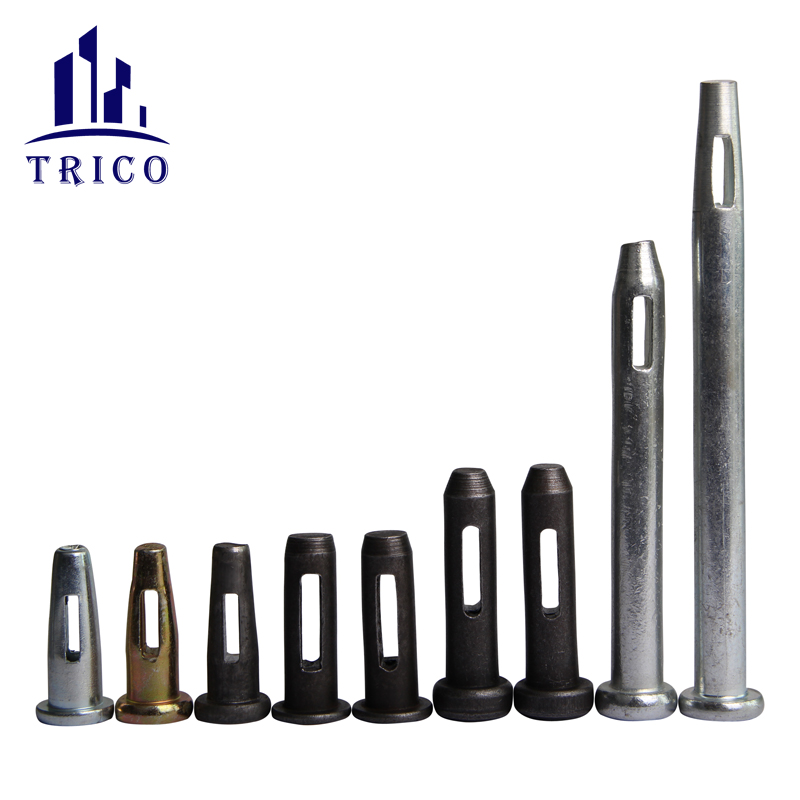

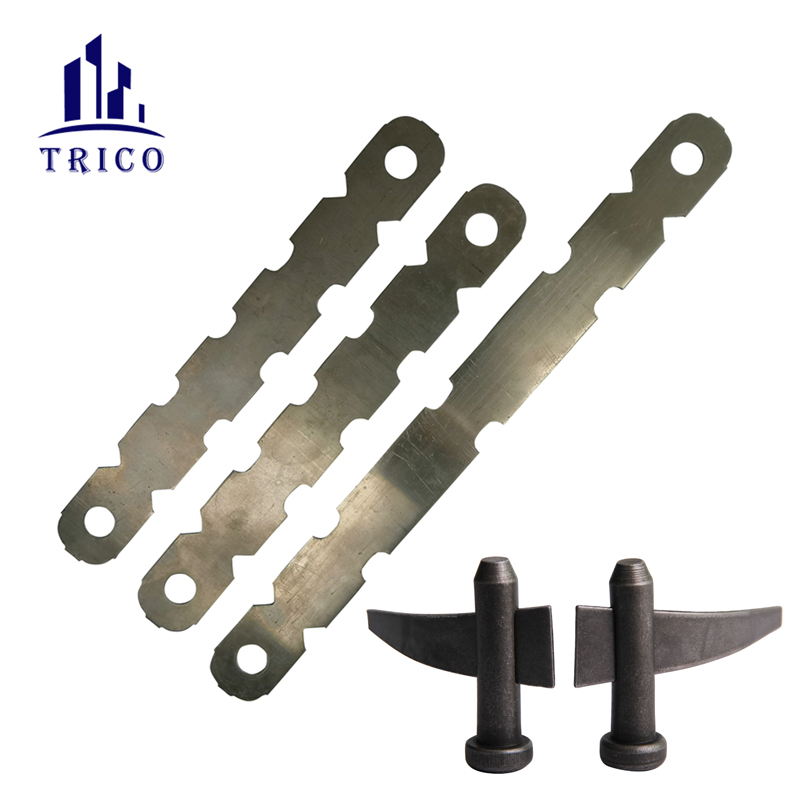

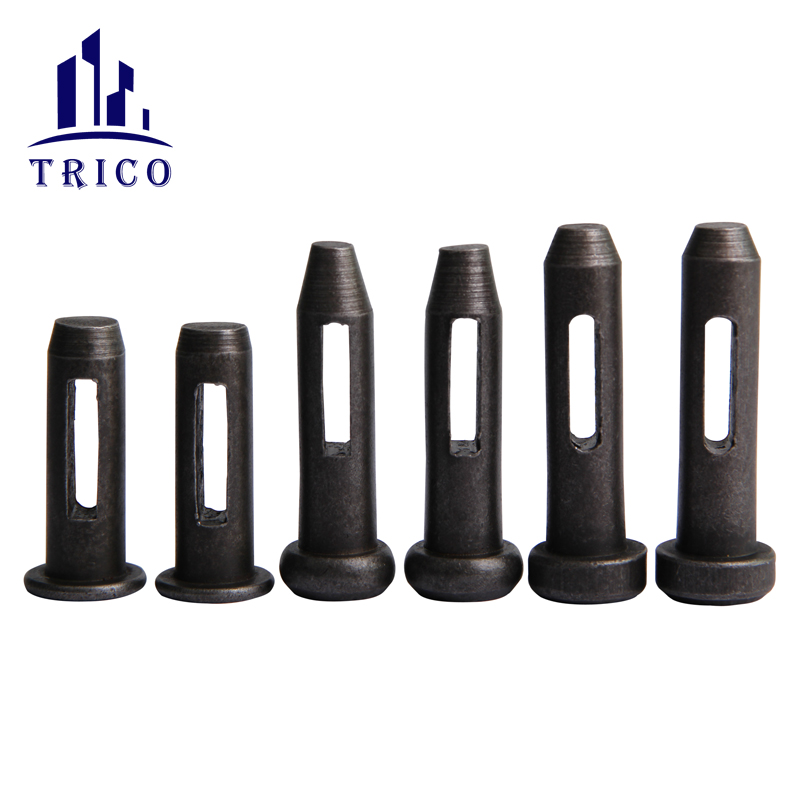

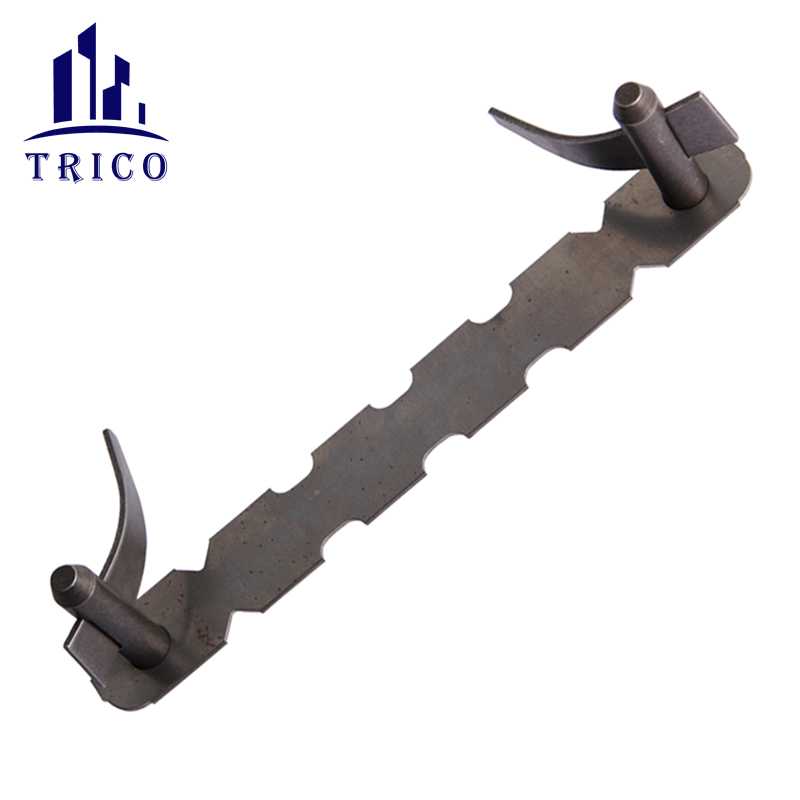

The America Aluminium Formwork is normally fixed by Nominal Wall Tie or Full Wall Tie. The main parts to fix the formwork include the Wedge and Pin. There are three kinds of Pins can be chosen. One kind is the Flat Head Pin, the second is the Round Head Pin and the third one is the Combo Filler Pin. There are two different kinds of Wedges to be used. One is the Flat Wedge and another is the Curved Wedge.


Product Details



Aluminum Forming Systems, Wall Ties, Pins, Wedges


Commodity


Weight

Material

Production Progress

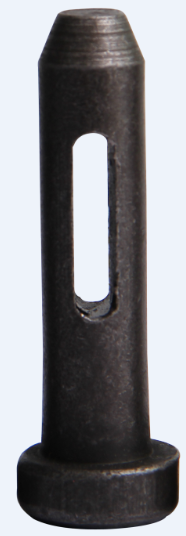

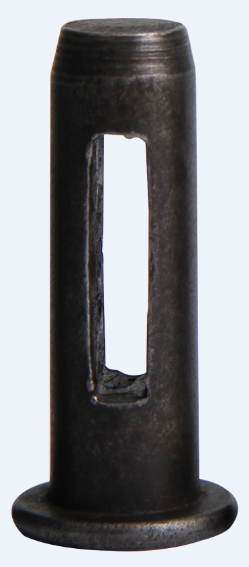

Flat Head Pin

Aluminum Forming Systems, Wall Ties, Pins, Wedges

71 g

0.1565 lbs

45# steel

heat treatment

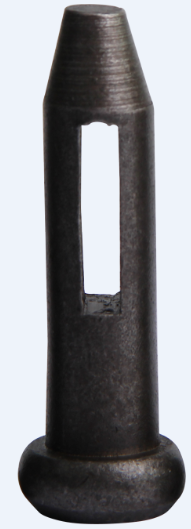

Round Head Pin

Aluminum Forming Systems, Wall Ties, Pins, Wedges

103 g

0.2270 lbs

Round Head Pin

Aluminum Forming Systems, Wall Ties, Pins, WedgesAluminum Forming Systems, Wall Ties, Pins, Wedges

110 g

0.2425 lbs

Comobo Pin

Aluminum Forming Systems, Wall Ties, Pins, Wedges

178 g

0.3924 lbs


Commodity


weight

Material

Production Process

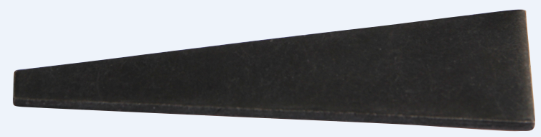

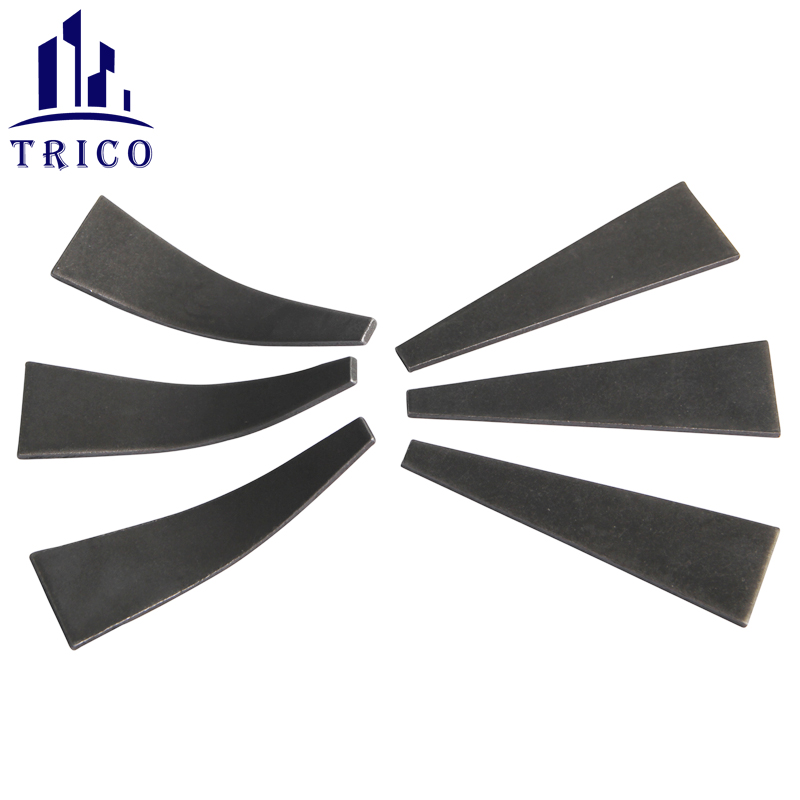

Straight Wedge

Aluminum Forming Systems, Wall Ties, Pins, Wedges

49.2 g

0.1085 lbs

45#steel

heat treatment

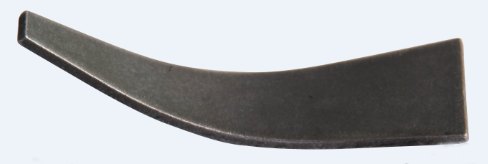

Curved Wedge

Aluminum Forming Systems, Wall Ties, Pins, Wedges

49.4 g

0.1089 lbs

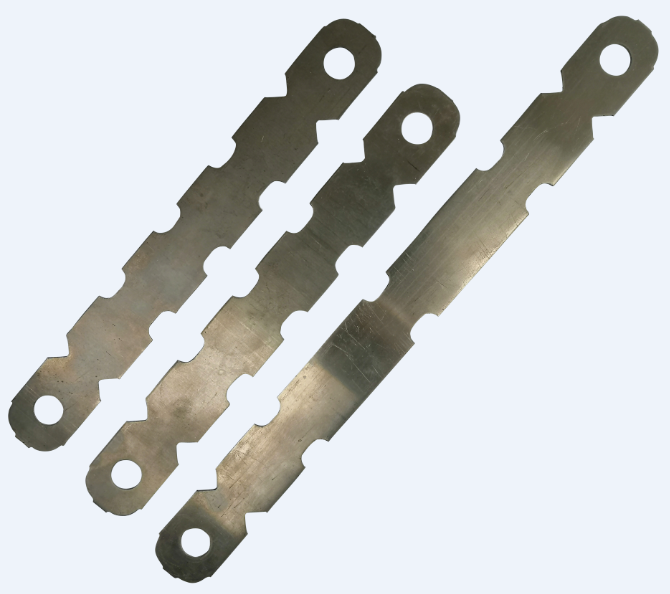

Commodity


Wall Size

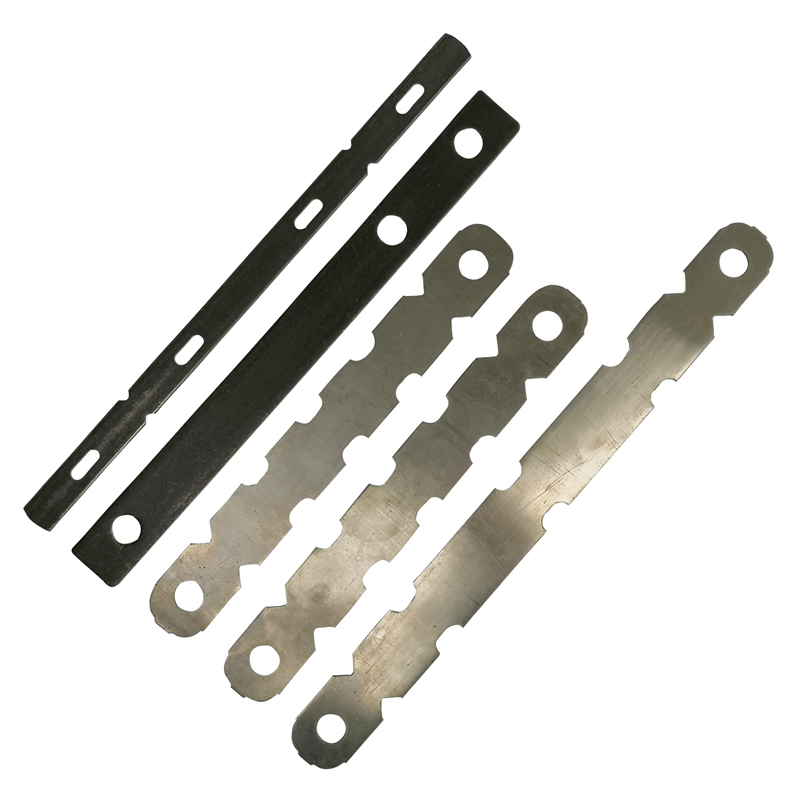

Full Tie Round Head

 Aluminum Forming Systems, Wall Ties, Pins, Wedges

6",8"'9"10"12"

Nominal TIe Round Head

6",8"10"12"


The America Aluminium Formwork is normally fixed by Nominal Wall Tie or Full Wall Tie. The main parts to fix the formwork include the Wedge and Pin. There are three kinds of Pins can be chosen. One kind is the Flat Head Pin, the second is the Round Head Pin and the third one is the Combo Filler Pin. There are two different kinds of Wedges to be used. One is the Flat Wedge and another is the Curved Wedge.
