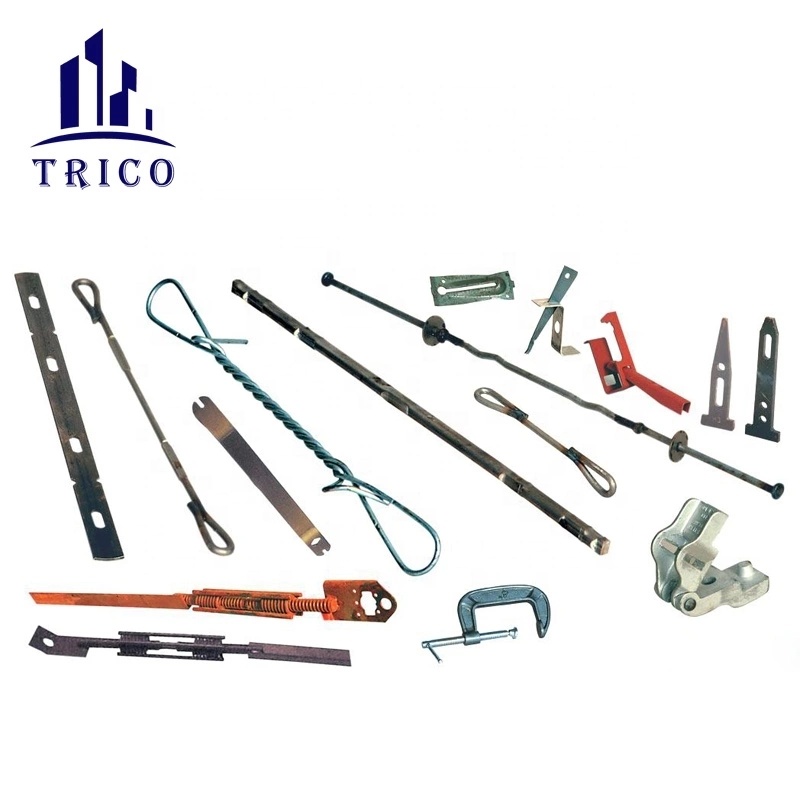

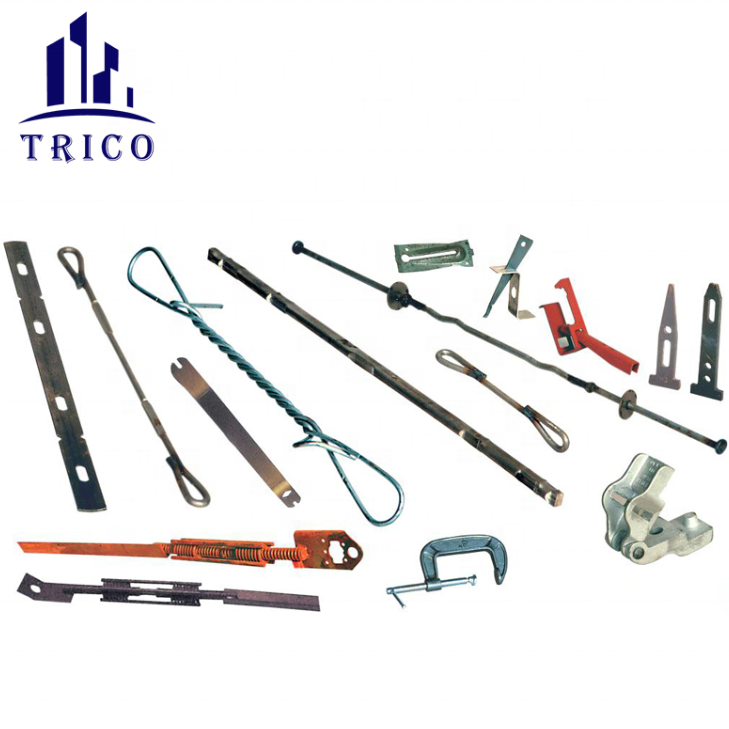

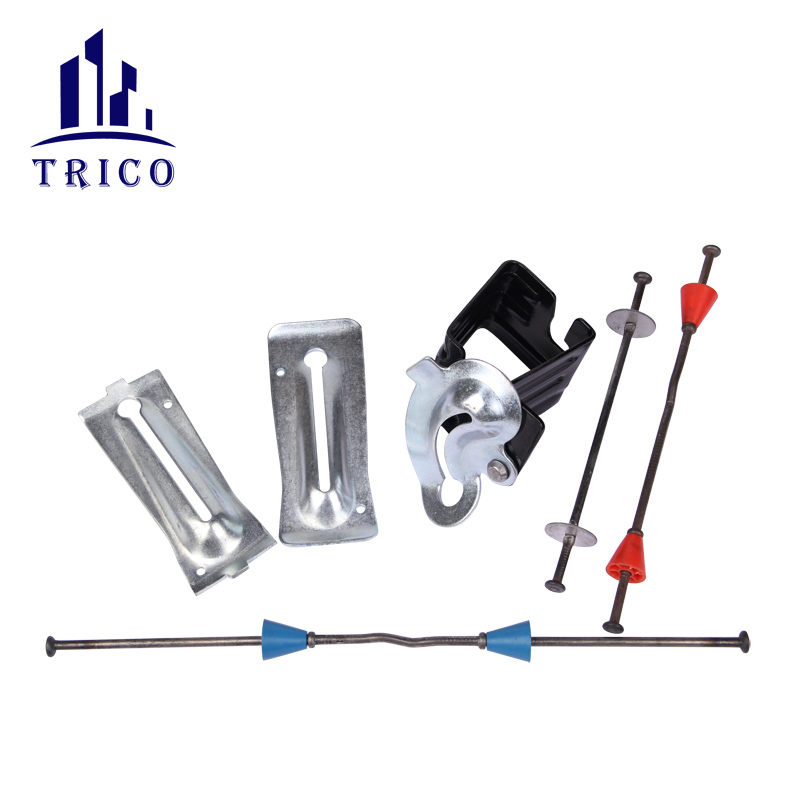

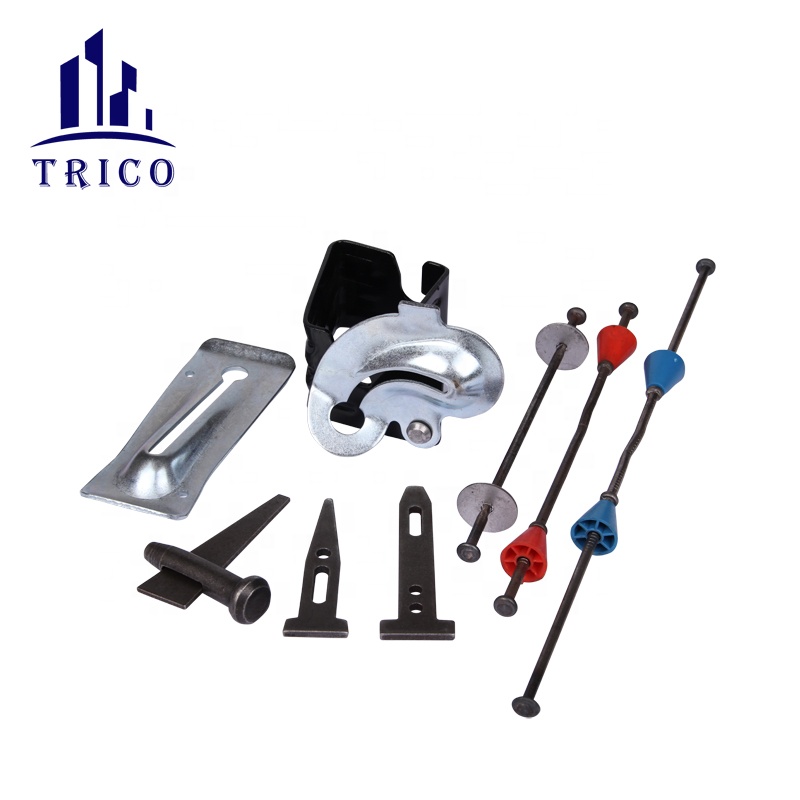

Wedge pins are used with flat tie to tighten adjoining concrete forms, securing the flat tie and concrete form in place. The full set of the Symons Formwork Accessories including the Wedge Bolt, Long Bolt, Short Bolt, X-Flat Tie, One Piece Waler Clamp, Z Tie Holders & Waler Tie, J-Strongback Hooks and Strongback Ties, Scaffold Brackets and Turnbuckles.
Steel Plywood Forming System Wall Tie X Flat Tie Waler Tie
As a pre-engineered concrete forming system, Symons Forms have been used in some of the most iconic buildings around the world. These systems are factory built with impressive reusability, making it an ideal choice for the construction of a variety of structures.
As a complete solution for all your projects, the Symons Forming system can be used to quickly build concrete walls, haunches, stoops, and even pedestals. Available in a wide range of sizes, it can be combined to form a number of structures in any dimensions.

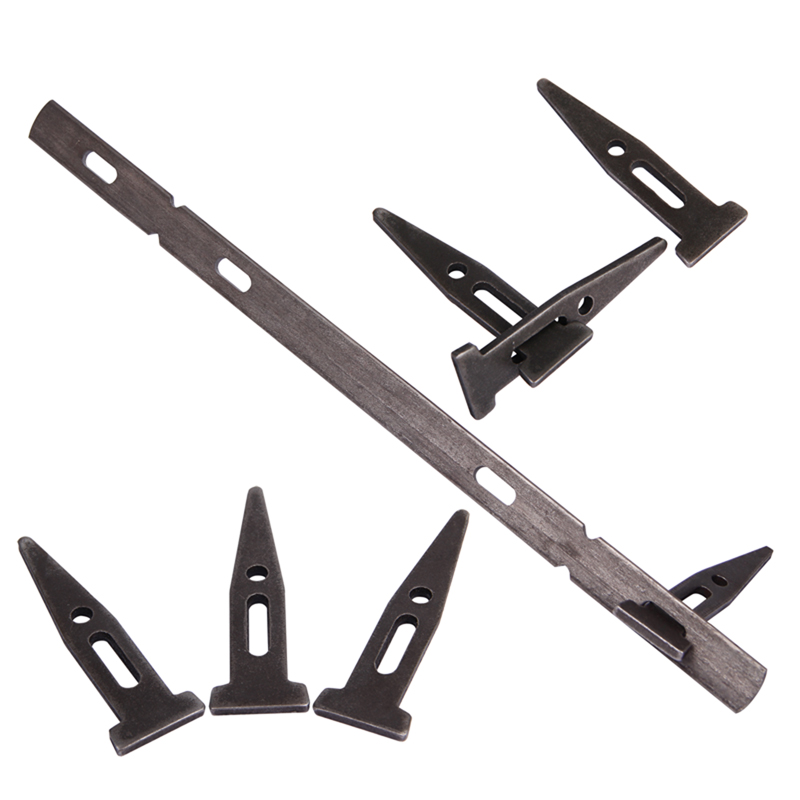

Wedge bolts connect panels and ties together, eliminating the need for special tools or equipment in the set up process. Two identical wedge bolts work as a single lock-bolt set, connecting and clamping together. However, additional bolts may be needed for walker attachments, scaffold brackets, etc.
imilar to a wedge bolt, these long bolts connect the 1, 1 ½, and 2-inch steel fillers, and are punched with two ¼ inch holes to make room for 16, or 20, D nails.
Short Bolts are used to attach the pilaster form to a steel ply form. They eliminate the need for short stop wedge bolts and, upon proper installation, make stripping much easier.

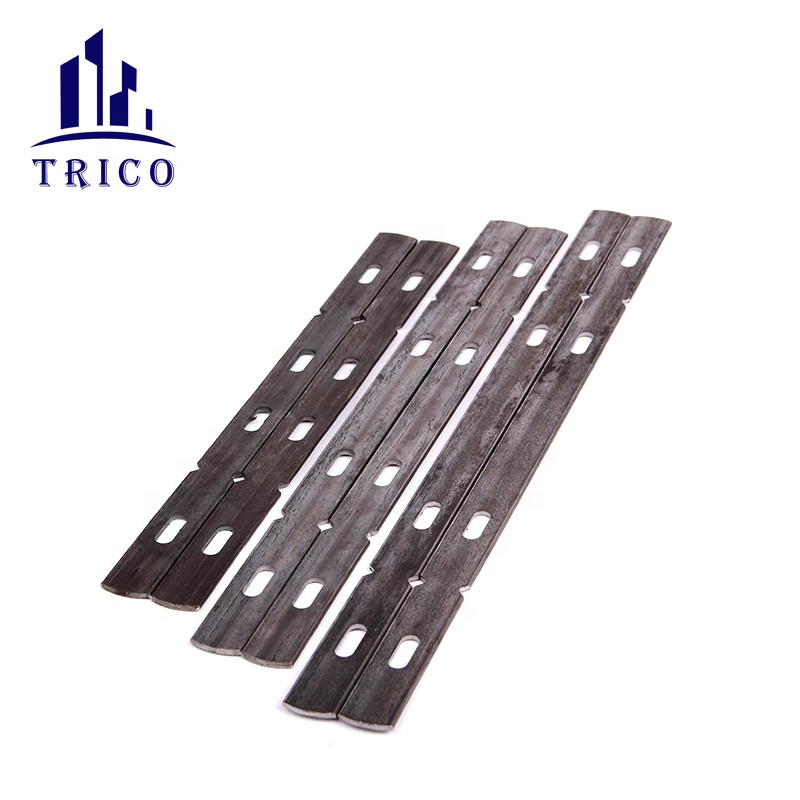

X Flat Ties are used with Wedge Bolts to secure and space modular forms. X Flat ties are available in 6″ up to 84″ in 1/2″ increments. Standard breakback is 1/4″.
One Piece Waler Clamps attach through the wedge bolt slot of modular type forms to provide wedge action aligning with single or double lumber.
Z Tie Holders are used in conjunction with Waler Ties to secure double 2x lumber wales to modular type forms. The Waler Tie is available in two sizes to accommodate 2 x 4 and 2 x 6 lumber.
Trico offers the full set of the Symon Formwork accessories with high quality and competitive price. Please contact us for more detals.
