Korea Steel Formwork System include the Wedge Pin, Flat Tie, L Hook, Spa Tie and etc. Formwork for concrete structures is more important in order to get perfect dimensions of structural parts. Accessories used in formwork will also play a key role in it. Form ties are the important accessories of formwork.
Korea Formwork Wedge Standard Wedge Bolt Hebei Concrete Form Flat Tie
Euro Form Accessories | ||||
Commodity | Type | Specification | Packing | Main Market |

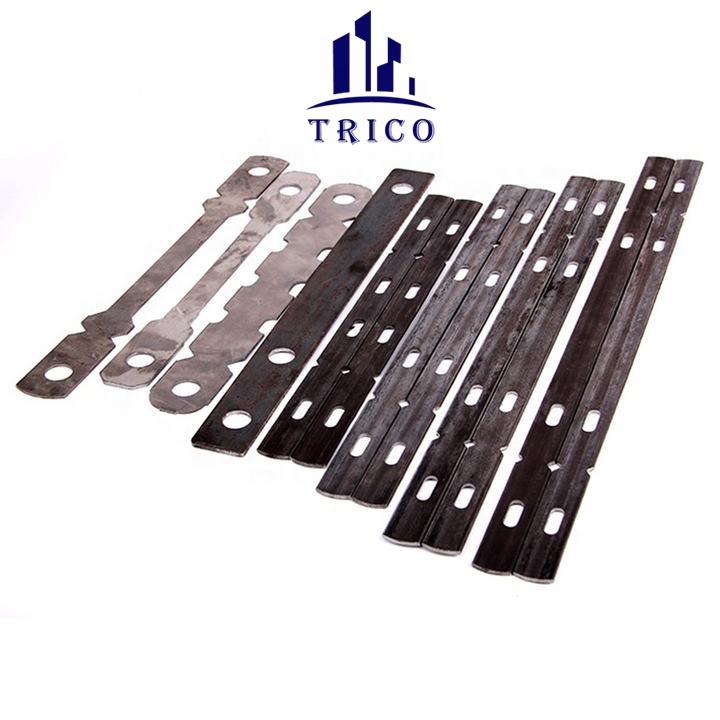

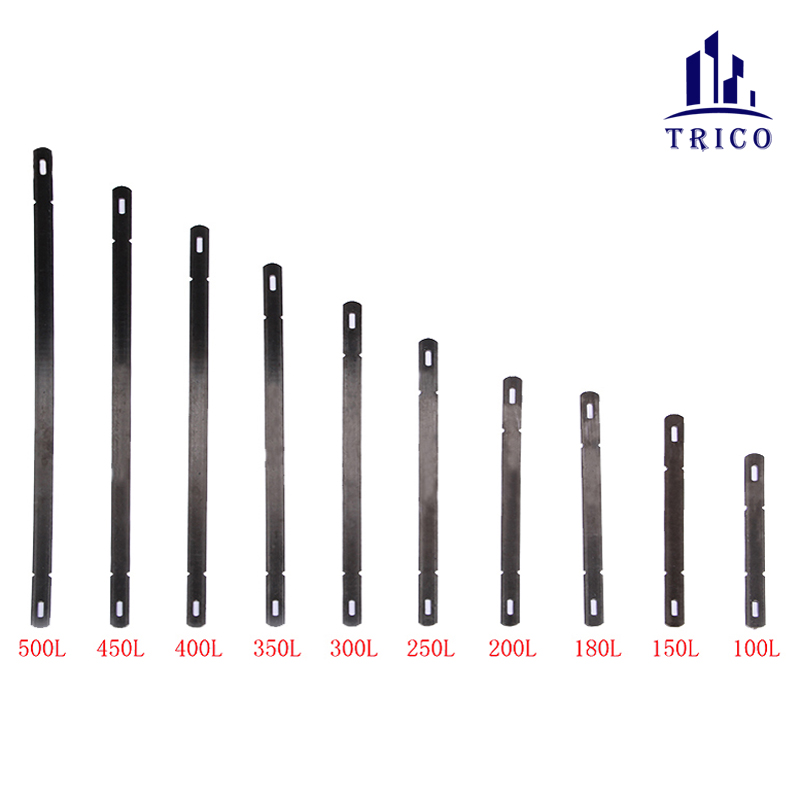

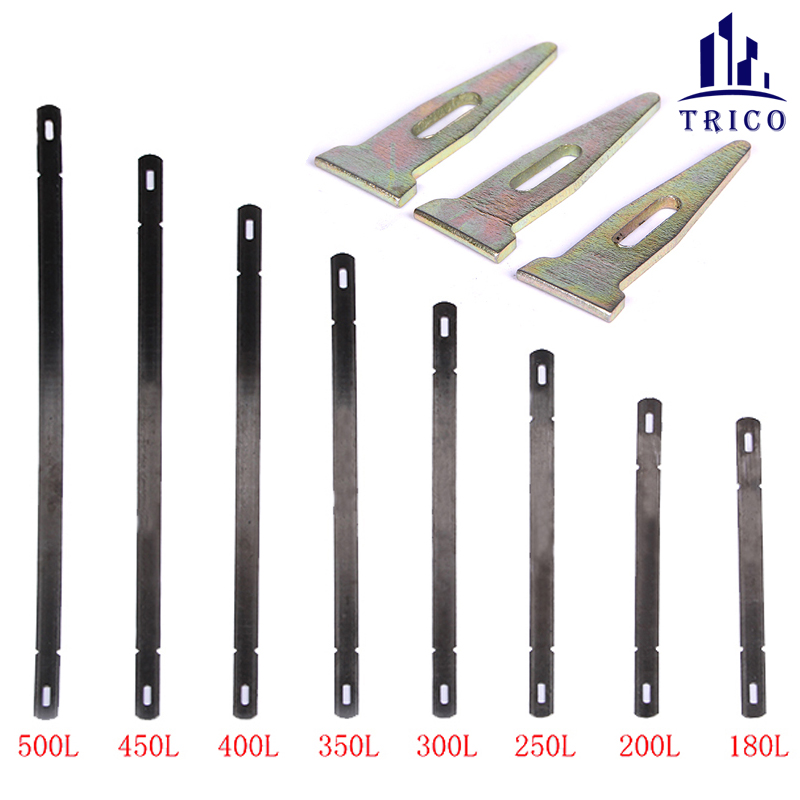

Flat Tie | Length:100L-1200L Thickness:1.6mm-2.5mm
Other Sizes Available | Bundle+Pallet | Korea/Middle Asia | |

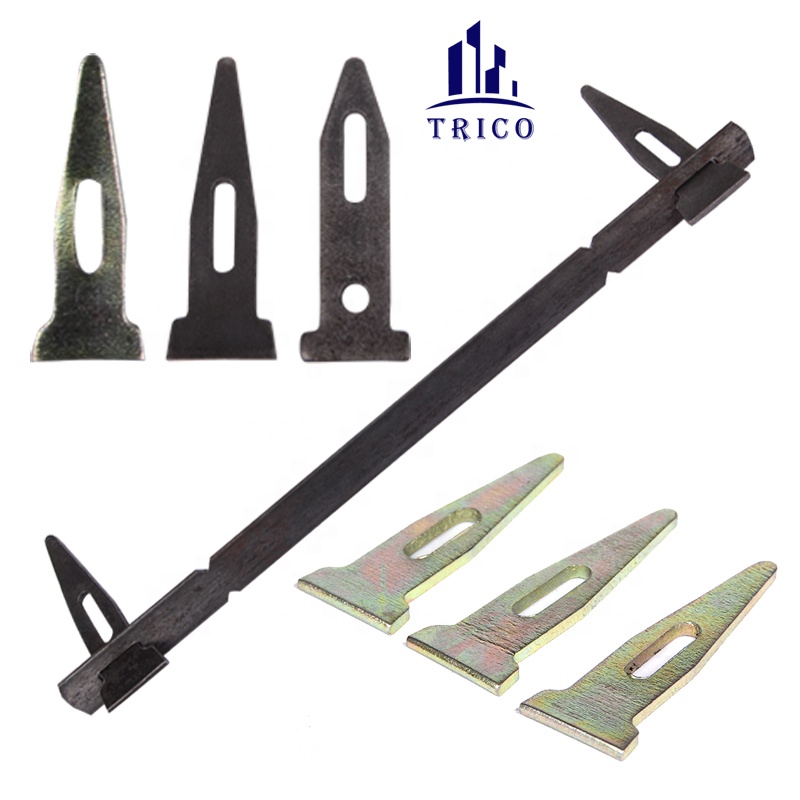

Wedge Pin | Length 76mm/79mm Other Sizes Available | Small Bag+Ton Bag | Korea/Middle Asia | |
Hooks | Round Type Square Type | Small Bag+Ton Bag | Widely Using | |
X Flat Tie | Standard Flat Tie 4"-48" Ultimate 6000lbs
Heavy Duty Flat Tie 4"-48" Ultimate 7000lbs
Other Sizes Available | Bundle+Pallet | America/Europe | |
Wedge Bolt | Short Wedge Bolt Standard Wedge Bolt Long Wedge Bolt Adjustable Wedge Bolt | Pail+Pallet | America/Europe | |
Related Products | Aluminum Formwork System, Plywood Snap Tie System |
Korea Steel Formwork System includes the Wedge Pin, Flat Tie, L Hook, Spa Tie and etc. Formwork for concrete structures is more important in order to get perfect dimensions of structural parts. Accessories used in formwork will also play a key role in it. Form ties are important accessories of formwork.
American X Flat Tie Steel plywood Formwork Accessories - Wall Ties and Wedge Bolt Wedge pins are used with flat tie to tighten adjoining concrete forms, securing the flat tie and concrete form in place. The full set of the Symons Formwork Accessories including the Wedge Bolt, Long Bolt, Short Bolt, X-Flat Tie, One Piece Waler Clamp, Z Tie Holders & Waler Tie, J-Strongback Hooks and Strongback Ties, Scaffold Brackets and Turnbuckles.
Euro Form Formwork System | |||
Item | Material | Specification | Surface Treatment |
F Profile | Steel #45 | F100 | Self Color |
F200 | |||
F250 | |||
F300 | |||
F350 | |||
F400 | |||
F500 | |||
F600 | |||
F1200 | |||
F1500 | |||
F1800 | |||
Euro Form (Korean Type or American Type) | Steel #45 | 600*1200mm & 1800mm | Painted |
550*1200mm & 1800mm | |||
500*1200mm & 1800mm | |||
450*1200mm & 1800mm | |||
400*1200mm & 1800mm | |||
350*1200mm & 1800mm | |||
300*1200mm & 1800mm | |||
250*1200mm & 1800mm | |||
200*1200mm & 1800mm | |||
600*900mm & 1500mm | |||
550*900mm & 1500mm | |||
500*900mm & 1500mm | |||
450*900mm & 1500mm | |||
400*900mm & 1500mm | |||
350*900mm & 1500mm | |||
300*900mm & 1500mm | |||
250*900mm & 1500mm | |||
200*900mm & 1500mm | |||
Inside Corner
| Steel #45 | 100*100*900mm | Painted |
100*100*1200mm | |||
100*100*1500mm | |||
100*150*1200mm | |||
100*150*1500mm | |||
100*200*900mm | |||
100*200*1200mm | |||
100*200*1500mm | |||
150*150*900mm | |||
150*150*1200mm | |||
150*200*900mm | |||
150*200*1200mm | |||
150*200*1500mm | |||
200*200*900mm | |||
200*200*1200mm | |||
200*200*1500mm | |||
Outside Corner | Steel #45 | 63*63*900mm | Painted |
63*63*1200mm | |||
63*63*1500mm | |||
63*63*1800mm | |||
63*63*2400mm | |||
63*63*3000mm |
Conveniently located handles make set up, stripping and handling easier.With proper care contractors can expect that forms will be able to be reused up to 200 times before plywood needs to be replaced.Compatible with all other industry standard modular handset systems.All sizes of heavy duty loop ties, x-flat ties, wedge bolts, and accessories to offer the complete system.

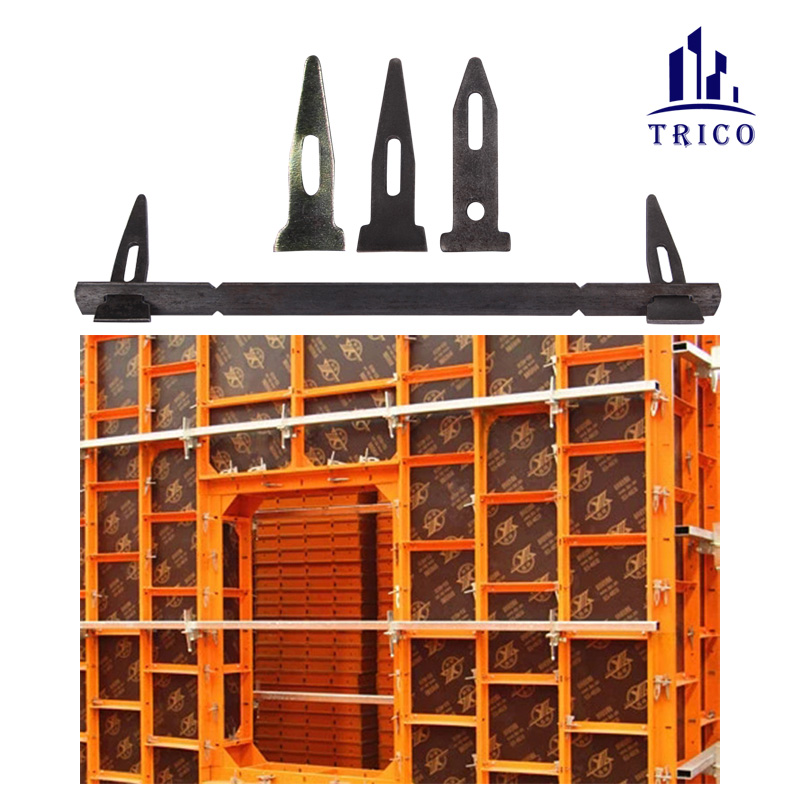

Steel Ply Forming System is very popular for wall concrete construction.

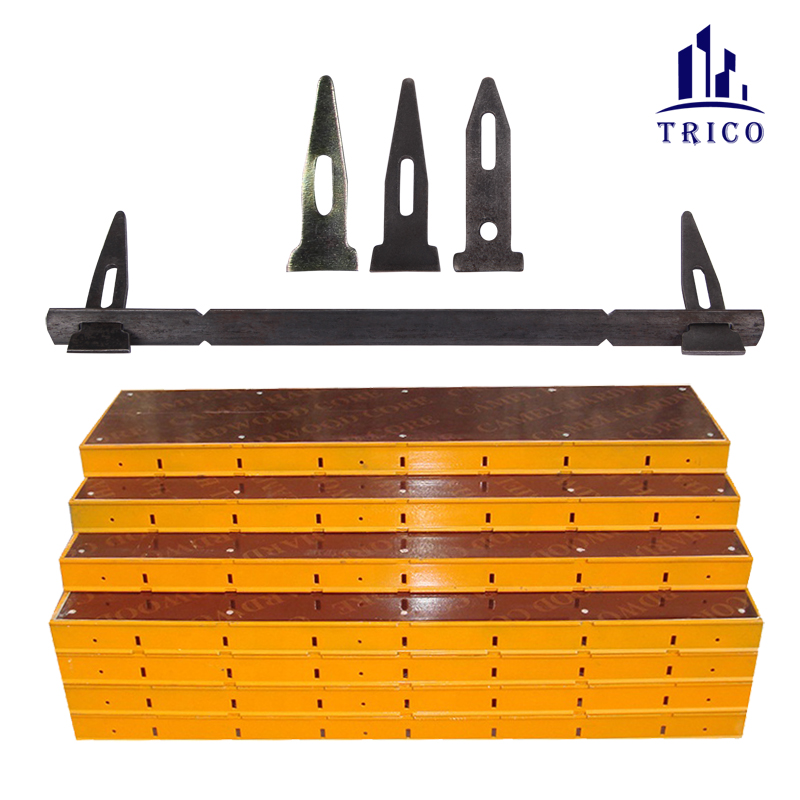

We are offering steel framed formwork system. the full name of 63 steel frame formwork system is 63 steel frame plywood build-up formwork system, its stiffness is high and the surface is smooth, could be braced and dismantle wholly or separately. 63 steel frame formwork system is made up by steel frame, reinforcing rib and waterproof plywood. Frame is the f steel with retainer rib of surface, there are holes at the edges. The reinforcing rib uses the angle iron, the material of steel frame and reinforcing rib is 45# steel. The corner oblique iron and reinforcing place joint with the surface panel by plow bolts. Surface panel uses the 12mm thickness waterproof plywood. Lateral pressure coefficient is 50kn/m2.
