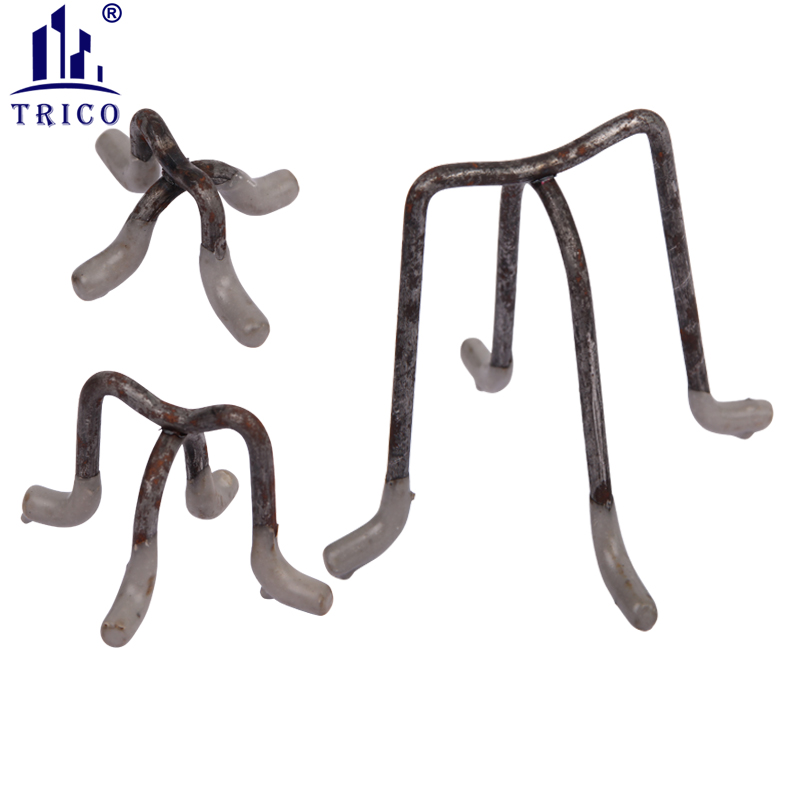

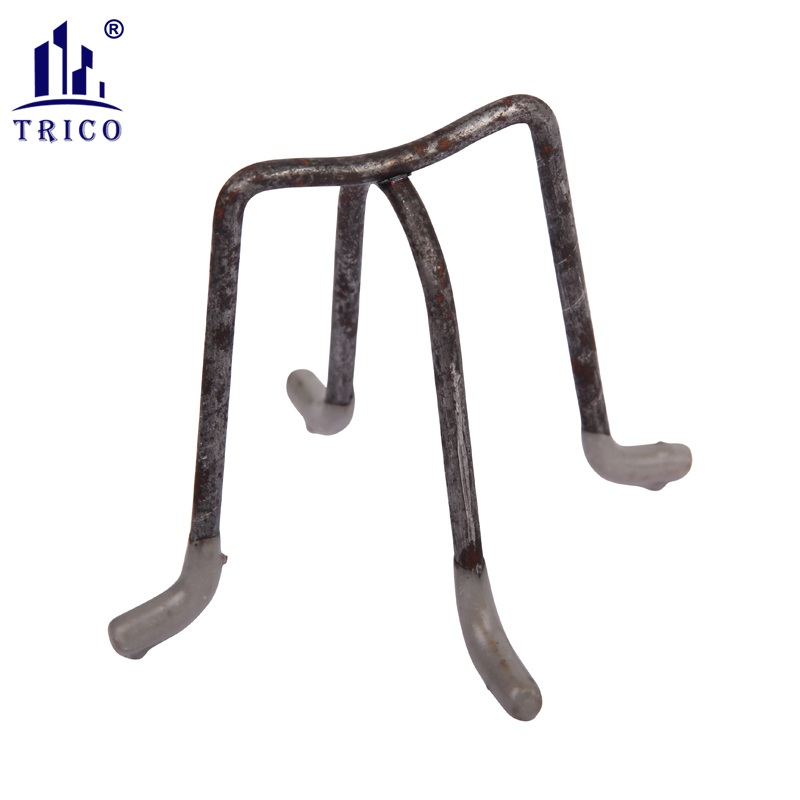

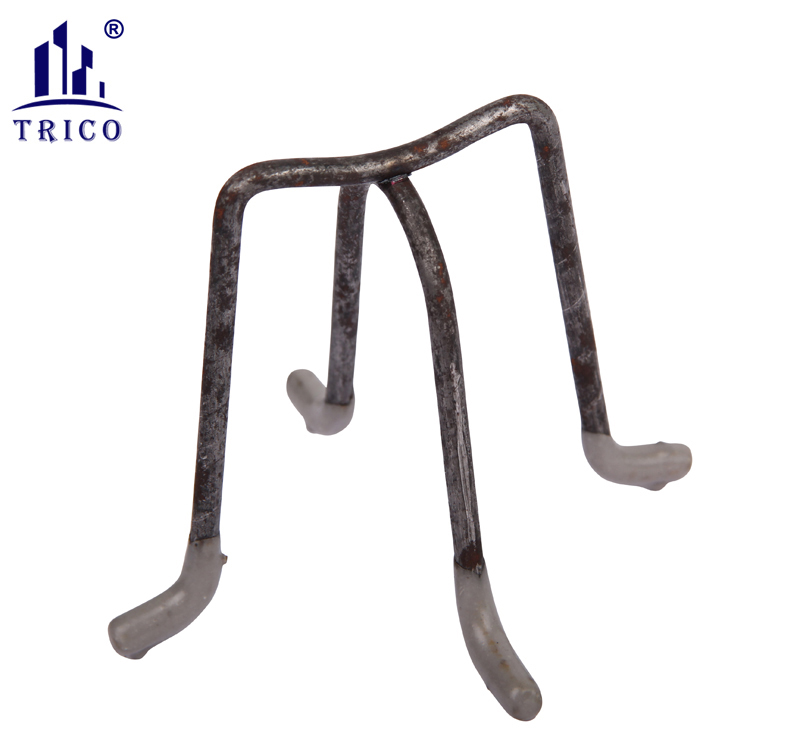

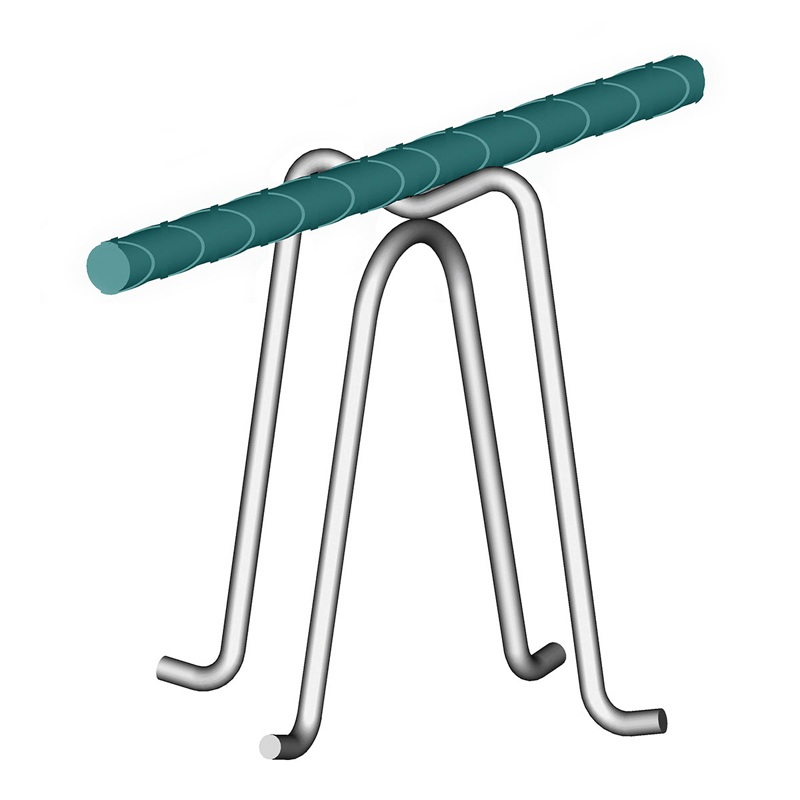

2" to 6" Rebar Individual High Chair with Plastic Tipped for Concrete Construction

Product Introduction:

To support reinforcing bar or wire mesh during concrete placement in Flat Slab, Tilt Wall Panel, Elevated Slabs, Precast Panels projects, to maintain proper concrete coverage.


Product Details



2" to 6" Rebar Individual High Chair with Plastic Tipped for Concrete Construction

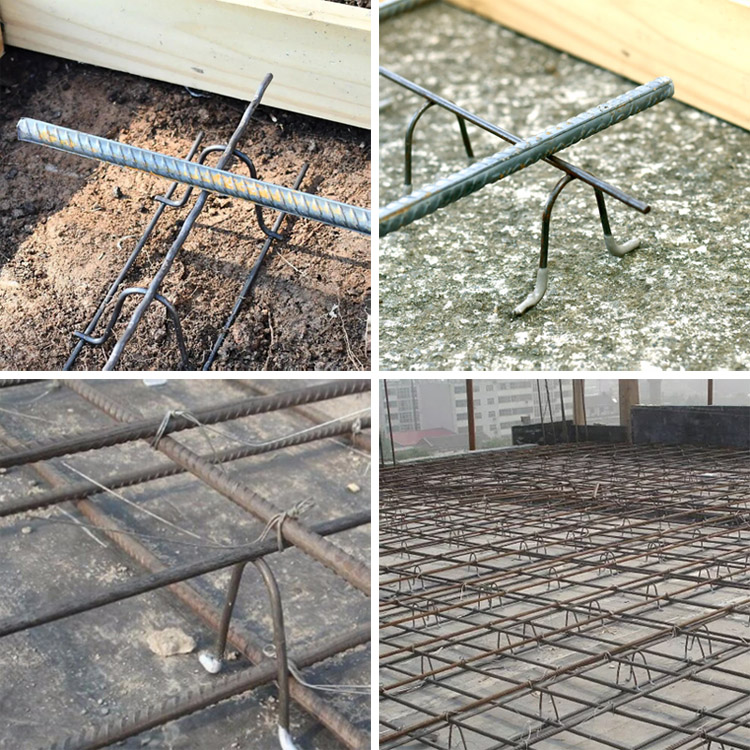

Individual High Chair metal bar supports are used in commercial concrete projects to help support reinforcing steel in elevated concrete decks, footings, slab on metal deck, bridge decks and other applications.

2


ItemHeightWeight(lbs) Box Qty
IHC200 2" 0.21100
IHC250 2-1/2" 0.21
IHC300 3" 0.21
IHC350 3-1/2" 0.26
IHC400 4" 0.26
IHC450 4-1/2" 0.30
IHC500 5" 0.30
IHC600 6" 0.47

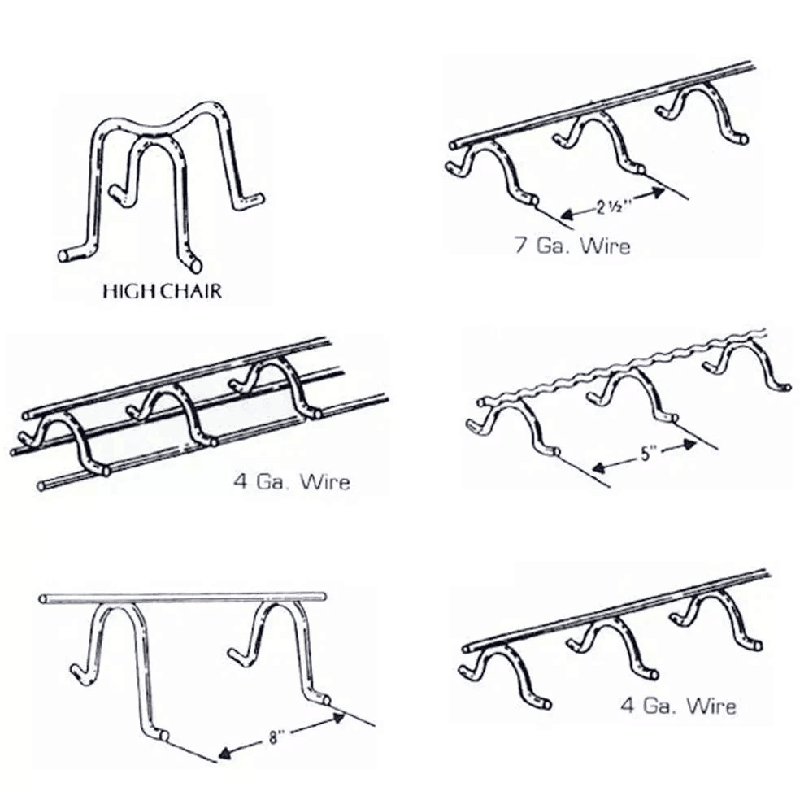

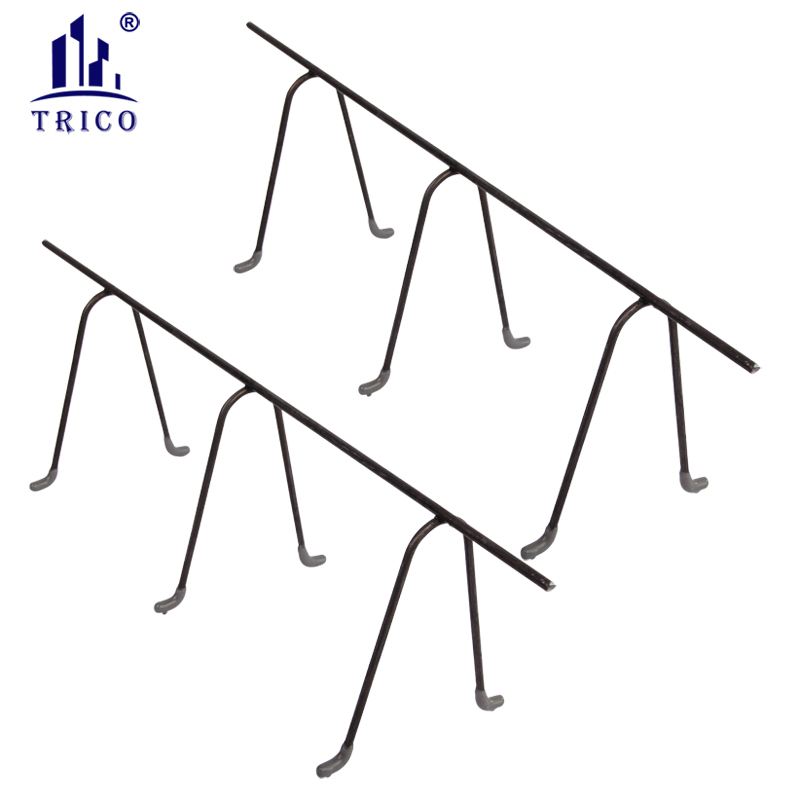

                    Concrete Plain Slab Bolster Upper With Gray Plastic Coated Legs - Continuous Rebar Chairs

Beam bolster supports are used in commercial concrete projects to support reinforcing steel in elevated concrete decks, footings, slabs on metal decks, bridge decks, and other applications.

Material: carbon steel or stainless steel.

Finish: Galvanized, plastic protected, or epoxy coated.

Type: beam pad, upper beam pad, beam pad with the plate.

Concrete Plain Slab Bolster Upper With Gray Plastic Coated Legs - Continuous Rebar Chairs

Slab Bolsters UppersDescriptionBdle / PalletPallets / 40'Pcs / 40'
SBU343/4" X 5' Slab Bolster (20 pcs/bdl)50 35 1750
SBU11" X 5' Slab Bolster (20 pcs/bdl)50 35 1750
SBU1121-1/2" X 5' Slab Bolster (20 pcs/bdl)50 32 1600
SBU22" X 5' Slab Bolster (20 pcs/bdl)50 30 1500
SBU2122-1/2" X 5' Slab Bolster (20 pcs/bdl)40 30 1200
SBU33" X 5' Slab Bolster (20 pcs/bdl)40 30 1200
SBU44" X 5' Slab Bolster (20 pcs/bdl)40 32 1280
SBU55" X 5' Slab Bolster (20 pcs/bdl)25 35 875
SBU66" X 5' Slab Bolster (20 pcs/bdl) 20 35 700

Slab Bolsters UppersDescription Bdle / PalletPallets / 40'Pcs / 40'
SBU343/4" X 5' Slab Bolster (20 pcs/bdl)150 22 3300
SBU11" X 5' Slab Bolster (20 pcs/bdl)150 22 3300
SBU1121-1/2" X 5' Slab Bolster (20 pcs/bdl)100 30 3000
SBU22" X 5' Slab Bolster (20 pcs/bdl)100 27 2700
SBU2122-1/2" X 5' Slab Bolster (20 pcs/bdl)100 26 2600
SBU33" X 5' Slab Bolster (20 pcs/bdl)60 34 2040
SBU3123-1/2" X 5' Slab Bolster (20 pcs/bdl)60 24 1440
SBU44" X 5' Slab Bolster (20 pcs/bdl)60 22 1320
Slab Bolsters UppersDescription Bdle / PalletPallets / 40'Pcs / 40'
SBU343/4" X 5' Slab Bolster (20 pcs/bdl)150 22 3300
SBU11" X 5' Slab Bolster (20 pcs/bdl)150 22 3300
SBU1121-1/2" X 5' Slab Bolster (20 pcs/bdl)100 30 3000
SBU22" X 5' Slab Bolster (20 pcs/bdl)100 27 2700
SBU2122-1/2" X 5' Slab Bolster (20 pcs/bdl)100 23 2300
SBU33" X 5' Slab Bolster (20 pcs/bdl)60 28 1680
SBU44" X 5' Slab Bolster (20 pcs/bdl)60281680
SBU55" X 5' Slab Bolster (20 pcs/bdl) 60281680
SBU66" X 5' Slab Bolster (20 pcs/bdl)50281680

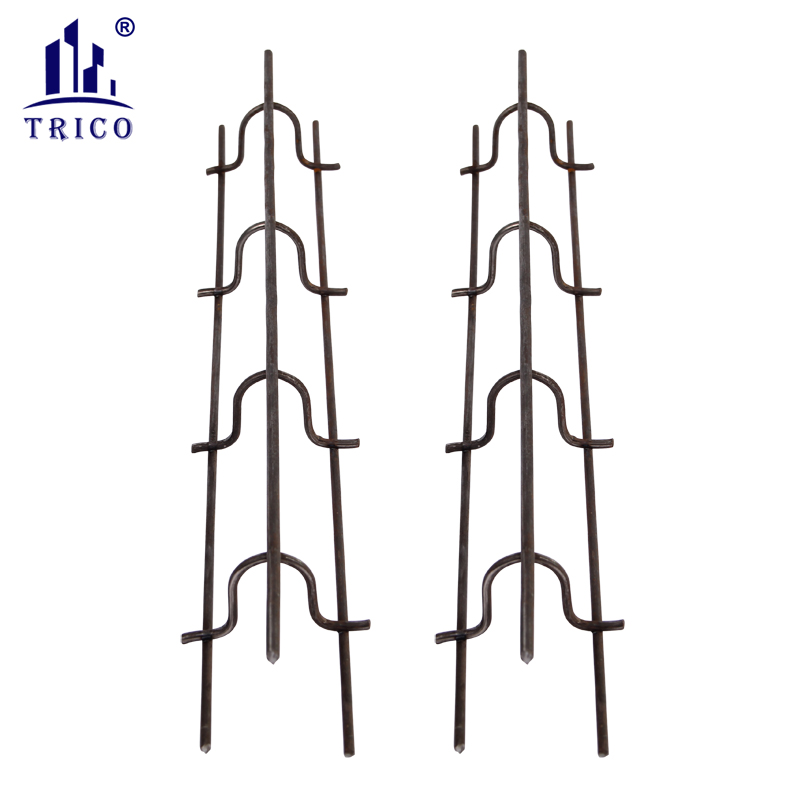

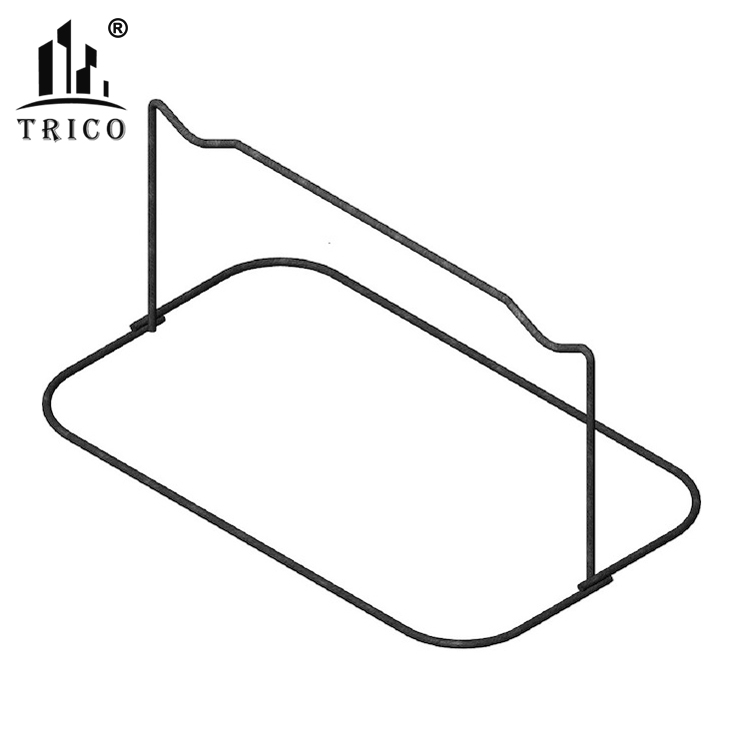

 Rebar Double Rod Chair for Concrete Footings - Double Rod Capacity

The #2 Rod Chairs 3 in. x 6 in./8 in. (100-Pack) is a durable rebar support system that is ideal for concrete applications. The chair is designed to hold up to 2-pieces of rebar and allows the rebar to sit above the ground while concrete is poured. Rebar ties are needed to secure rebar to basket to ensure rebar stays in place.Rebar Individual High Chair with Plastic Tipped for Concrete Construction.

Concrete Plain Slab Bolster Upper With Gray Plastic Coated Legs - Continuous Rebar Chairs


Part No.DescriptionWeight lbsBox Quantity
RC2-368Rod Chair 2 Bar, 3" Height, 6" Bar Spacing, 8"Wide0.15100
RC3-3516Rod Chair 3 Bar, 3" Height, 5" Bar Spacing, 16" Wide0.48
RC3-3720Rod Chair 3 Bar, 3" Height, 7" Bar Spacing, 20" Wide0.50
RC3-16WPBRod Chair 3 Bar, 3" Height, 5" Bar Spacing, 16" Wide -West Palm Beach0.48
RC3-20WPBRod Chair 3 Bar, 3" Height, 5" Bar Spacing, 20" Wide -West Palm Beach0.50
