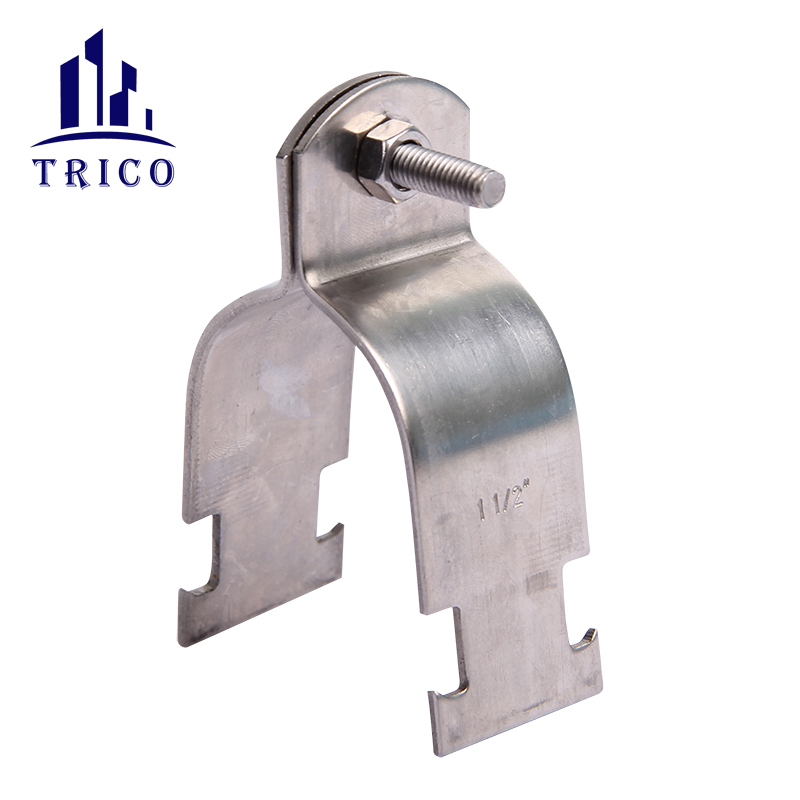

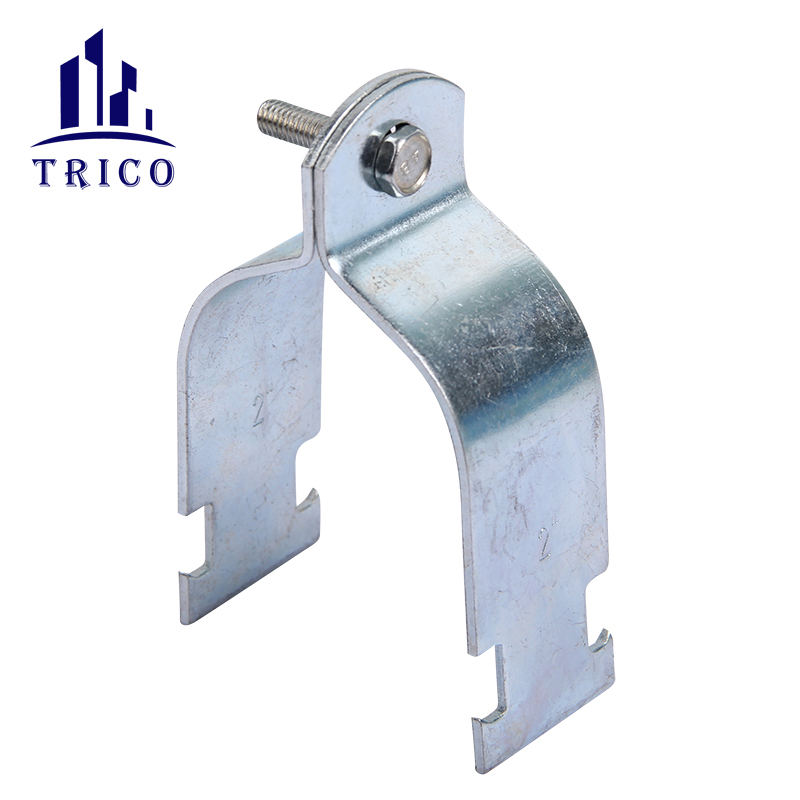

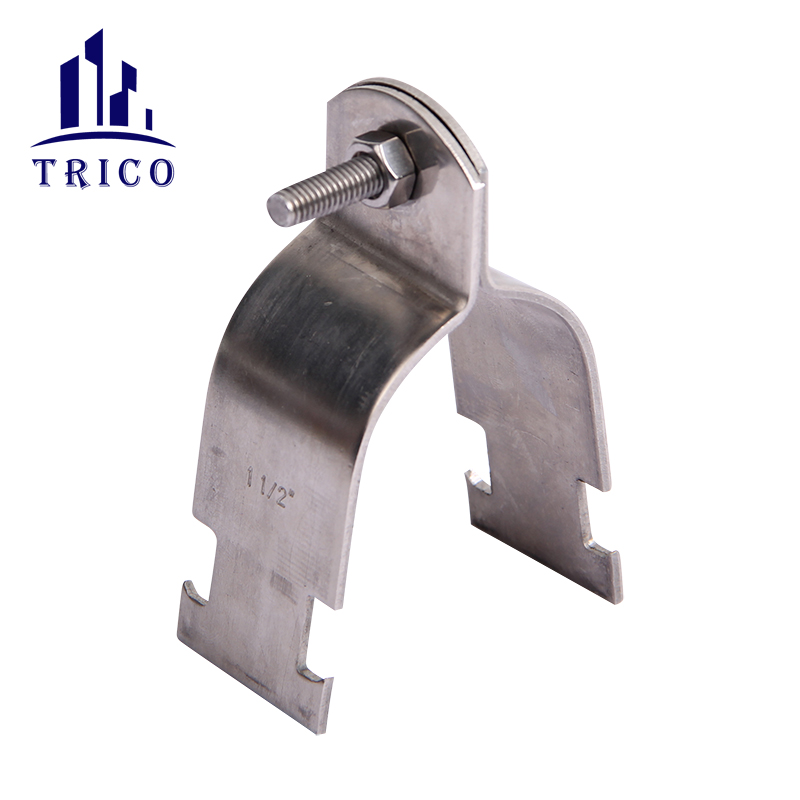

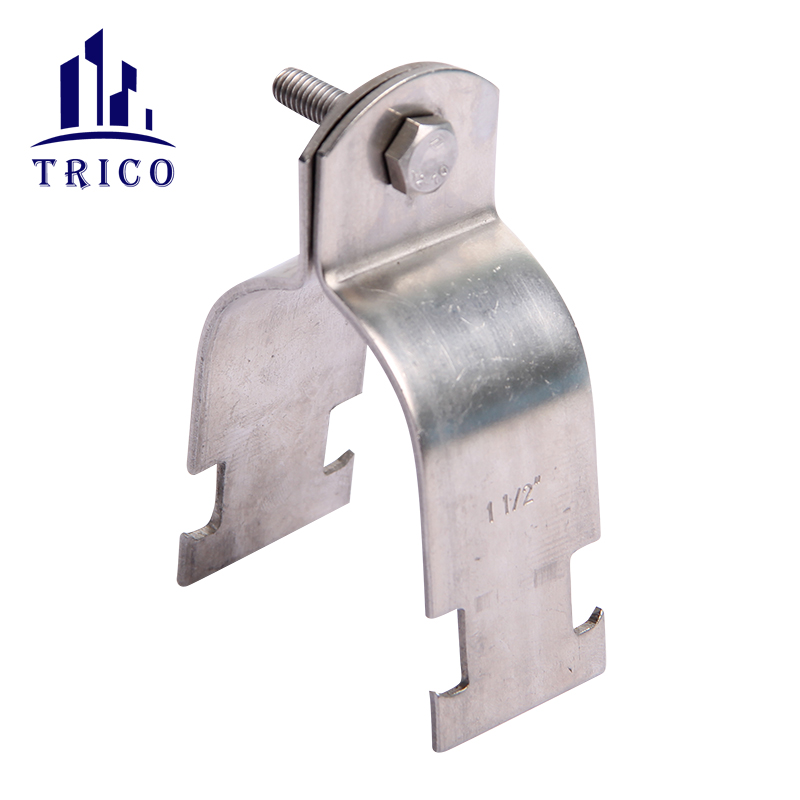

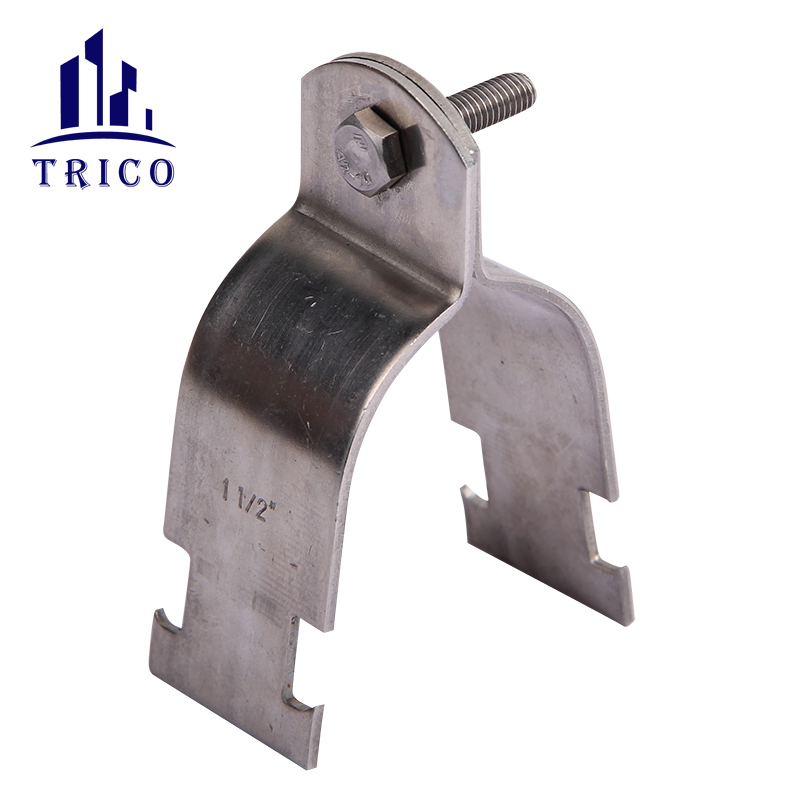

Strut Channel Clamp
Designed to support and tighten pipe to struts; Mounting pierce screw point to penetrate metal studs
Easy to installation; With captive combo head machine screw
Secures tube firmly to strut channel; Interlock edges and channel locator legs help to ensure that pipe remains in place
Strut channel pipe clamp are ideal for pipes, tubes, and hoses. Designed to eliminate metal-on-metal contact between fluid connectors and clamps, they help to reduce noise, shock, and vibration caused by fluid surges in tubes, pipes, and hoses used in the construction of stationary and mobile equipment. They are resistant to most fuels, oils, gases, greases, solvents, mineral acids, and other harsh materials.plastic containers and bottles in all shapes.
This clamps we use to secure pipe, tube, and conduit to Unistrut framing channel, as well as two unique clamps for flat surface applications. Minimizing or eliminating vibration, shock, surge, galvanic corrosion and unwanted noise are important considerations when installing pipe or tube. Improperly clamped pipes and tubes can create a host of problems, ranging from annoying clanks and noise to line failures. toughest pipe installation challenges.

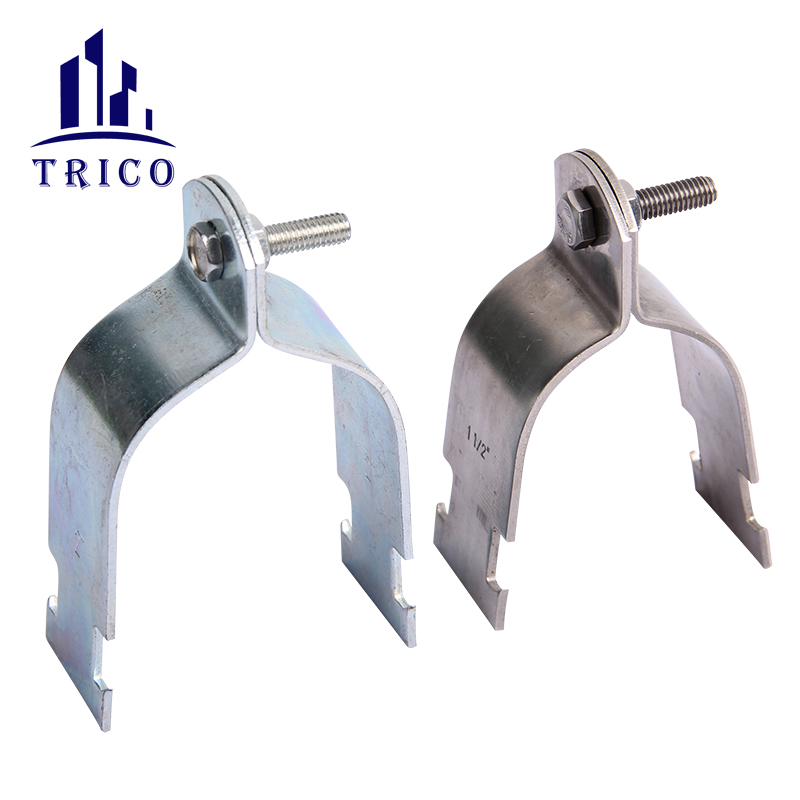

Strut Channel Clamp Material: W1 Series (All the parts are carbon steel) W4 Series (All the parts are SS200 or 300) W5 Series (All the parts are SS316) | |||||
Size (inch) | Bandwidth*Thickness (mm) | Screw | Pcs/Ctn | Ctn Size (cm) | G . W./Ctn (kg) |
1/2" | 32*1.7 | M6*32 | 200 | 38*27*11 | 12.60 |
3/4" | 32*1.7 | M6*32 | 200 | 32*27*13 | 13.20 |
1" | 32*1.7 | M6*32 | 200 | 38*27*15 | 14.90 |
1-1/4" | 32*2.0 | M6*32 | 200 | 38*27*15 | 16.30 |
1-1/2" | 32*2.0 | M6*32 | 200 | 38*27*15 | 18.20 |
2" | 32*2.0 | M6*44 | 100 | 32*27*15 | 14.30 |
2-1/2" | 32*2.0 | M6*44 | 100 | 38*27*17 | 16.50 |
3" | 32*2.5 | M6*44 | 100 | 38*27*17 | 18.30 |
4" | 32*2.5 | M8*44 | 50 | 38*27*13 | 12.85 |
5" | 32*2.5 | M8*44 | 50 | 38*27*13 | 15.90 |
6" | 32*2.5 | M8*44 | 50 | 38*27*15 | 18.60 |
8" | 32*2.5 | M8*44 | 25 | 38*27*17 | 10.56 |
10" | 32*2.5 | M8*44 | 25 | 38*27*13 | 11.60 |
12" | 32*2.5 | M8*44 | 20 | 38*27*13 | 10.40 |
