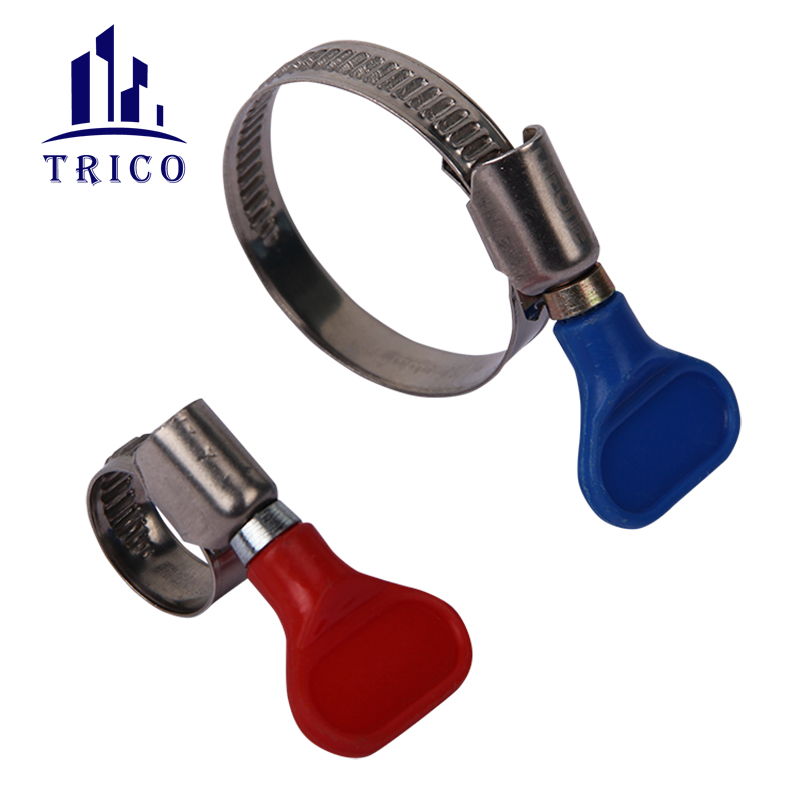

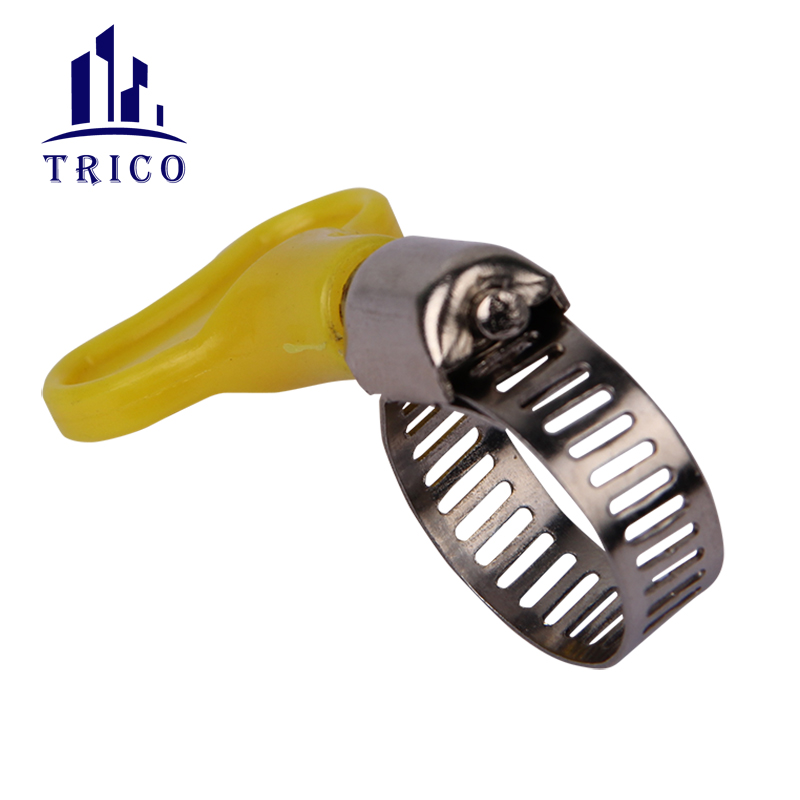

American Type Hose Clamp with Handle is widly used on the connection of all kinds of hosepipe. It does not need special tool, just turning the key by hand for fastening. It is easy to remove and replace.
The advantages are as below:
Innovative design installs with a simple hand twist, no tool needed
Easy to remove and replace
Pull off the screw cap for a temper-resistant connection
American Type Hose Clamp with Handle
American Type Hose Clamp with Handle is widly used on the connection of all kinds of hosepipe. It does not need special tool, just turning the key by hand for fastening. It is easy to remove and replace.
The advantages are as below:
Innovative design installs with a simple hand twist, no tool needed
Easy to remove and replace
Pull off the screw cap for a temper-resistant connection
American Hose Clamp with Handle -- 8mm | ||||||
Material: W2 series -- band and housing are SS200 or 300, screw is carbon steel W4 series -- all the parts are SS200 or 300 W5 series -- all the parts are SS316 | ||||||
Advantages: Safe and reliable, light and effortless in use Anti-corrosion and Anti-rust Band is pierced, strong fastening force No need any tool to tighten or loosen Use for fuel hose clamps, vacuum hose clamps, air hose clamp, securing hoses around pipes or for automotive use | ||||||
Size (mm) | Bandwidth * Thickness (mm) | Pcs / Bag | Pcs/ Ctn | Ctn Size (cm) | G.W. / Ctn (kg) | Torque (N. m) |
8-12 | 8*0.6 | 100 | 2000 | 38*27*27 | 15.00 | ≥2.5 |
10-16 | 8*0.6 | 100 | 2000 | 38*27*27 | 15.50 | ≥2.5 |
13-19 | 8*0.6 | 100 | 2000 | 38*27*27 | 15.90 | ≥2.5 |
16-25 | 8*0.6 | 100 | 2000 | 38*27*34 | 16.80 | ≥2.5 |
19-29 | 8*0.6 | 100 | 1000 | 38*27*24 | 9.40 | ≥2.5 |
22-32 | 8*0.6 | 100 | 1000 | 36*27*29 | 11.05 | ≥2.5 |
25-38 | 8*0.6 | 100 | 500 | 38*27*15 | 5.90 | ≥2.5 |
32-44 | 8*0.6 | 100 | 500 | 38*27*19 | 6.15 | ≥2.5 |
27-51 | 8*0.6 | 100 | 500 | 38*27*21 | 6.30 | ≥2.5 |
38-57 | 8*0.6 | 50 | 500 | 38*27*27 | 7.12 | ≥2.5 |
44-64 | 8*0.6 | 50 | 500 | 38*27*34 | 7.98 | ≥2.5 |
51-70 | 8*0.6 | 50 | 500 | 40*37*28 | 8.64 | ≥2.5 |
64-76 | 8*0.6 | 50 | 500 | 40*37*35 | 9.12 | ≥2.5 |
70-89 | 8*0.6 | 50 | 250 | 38*27*29 | 6.01 | ≥2.5 |
76-92 | 8*0.6 | 25 | 250 | 38*27*29 | 7.23 | ≥2.5 |
80-100 | 8*0.6 | 25 | 250 | 38*27*34 | 8.45 | ≥2.5 |
American Type Hose Clamp with Handle -- 10mm | ||||||
Material: W2 series -- band and housing are SS200 or 300, screw is carbon steel W4 series -- all the parts are SS200 or 300 | ||||||
Size (mm) | Bandwidth * Thickness (mm) | Pcs / Bag | Pcs / Ctn | Ctn Size (cm) | G. W. / Ctn (kg) | Torque (N. m) |
8-12 | 10*0.6 | 100 | 2000 | 38*27*16 | 16.00 | ≥2.5 |
10-16 | 10*0.6 | 100 | 2000 | 38*27*19 | 16.50 | ≥2.5 |
11-20 | 10*0.6 | 100 | 1000 | 36*27*26 | 17.80 | ≥2.5 |
13-23 | 10*0.6 | 100 | 1000 | 36*28*28 | 18.20 | ≥2.5 |
14-27 | 10*0.6 | 100 | 1000 | 36*28*30 | 19.00 | ≥2.5 |
18-32 | 10*0.6 | 100 | 1000 | 36*28*30 | 20.30 | ≥2.5 |
21-38 | 10*0.6 | 50 | 1000 | 36*28*32 | 21.40 | ≥2.5 |
21-44 | 10*0.6 | 50 | 500 | 36*28*30 | 11.50 | ≥2.5 |
27-51 | 10*0.6 | 50 | 500 | 36*29*30 | 12.30 | ≥2.5 |
33-57 | 10*0.6 | 50 | 500 | 36*28*32 | 13.40 | ≥2.5 |
40-63 | 10*0.6 | 50 | 500 | 36*30*34 | 14.00 | ≥2.5 |
46-70 | 10*0.6 | 25 | 500 | 36*28*38 | 14.60 | ≥2.5 |
52-76 | 10*0.6 | 25 | 500 | 42*34*33 | 15.20 | ≥2.5 |
59-82 | 10*0.6 | 25 | 500 | 42*33*35 | 16.00 | ≥2.5 |
65-89 | 10*0.6 | 25 | 250 | 39*28*32 | 9.00 | ≥2.5 |
72-95 | 10*0.6 | 25 | 250 | 39*30*34 | 10.20 | ≥2.5 |
78-101 | 10*0.6 | 10 | 200 | 51*28*22 | 8.20 | ≥2.5 |
84-108 | 10*0.6 | 10 | 200 | 51*28*27 | 8.80 | ≥2.5 |
91-114 | 10*0.6 | 10 | 200 | 38*27*37 | 9.30 | ≥2.5 |
105-127 | 10*0.6 | 10 | 200 | 36*31*41 | 10.10 | ≥2.5 |
117-140 | 10*0.6 | 10 | 200 | 36*30*43 | 11.30 | ≥2.5 |
130-153 | 10*0.6 | 10 | 200 | 38*30*45 | 12.00 | ≥2.5 |
142-165 | 10*0.6 | 10 | 200 | 38*30*47 | 12.80 | ≥2.5 |
155-178 | 10*0.6 | 10 | 200 | 38*30*49 | 13.50 | ≥2.5 |
