Product Introduction:

The German type hose clamp with non-perforated design helps to avoid scratching the hose surface during installation. The effect of protecting to avoid gas or liquid leaking from the tube. The width of German type hose clamp is 12mm&9mm. It is with higher torque than American type hose clamp.

Product Details

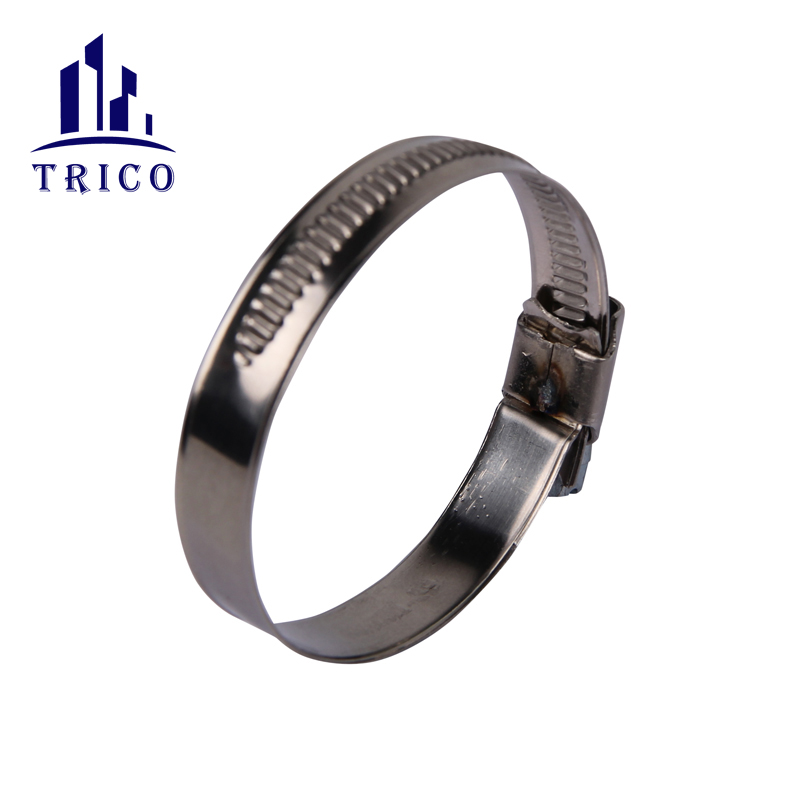

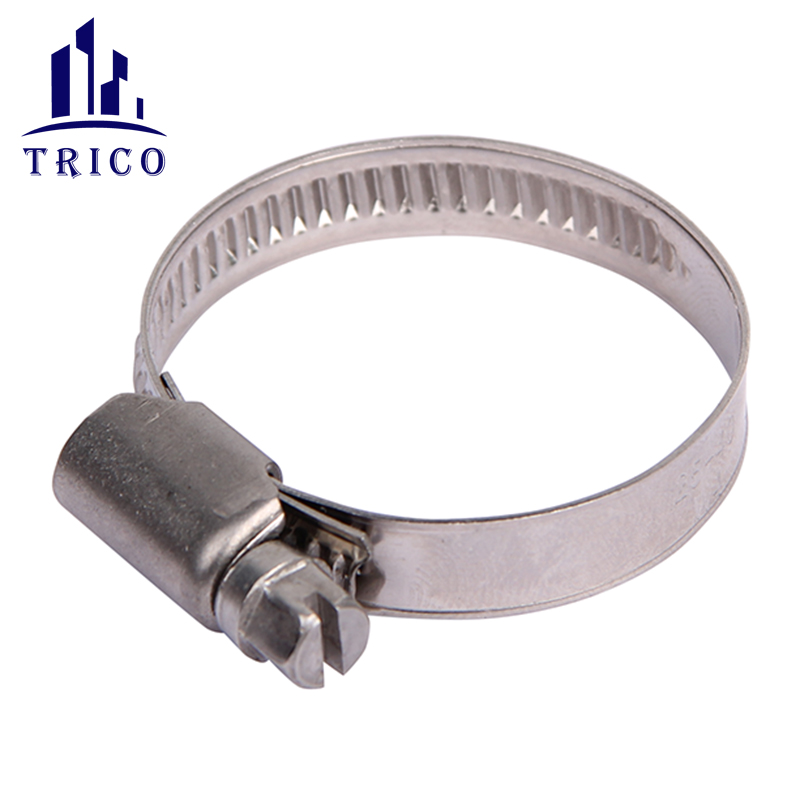

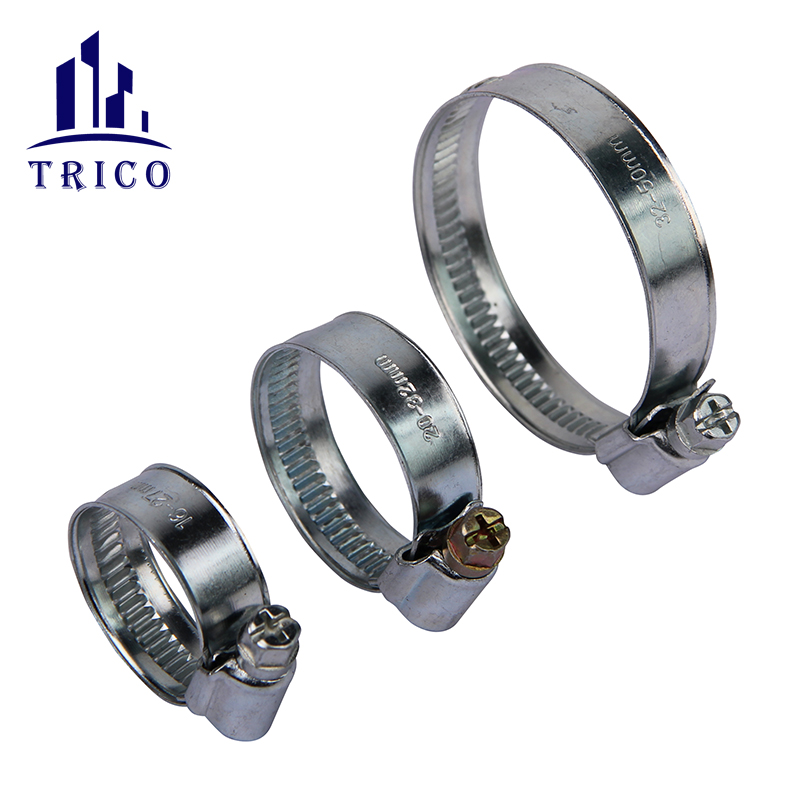

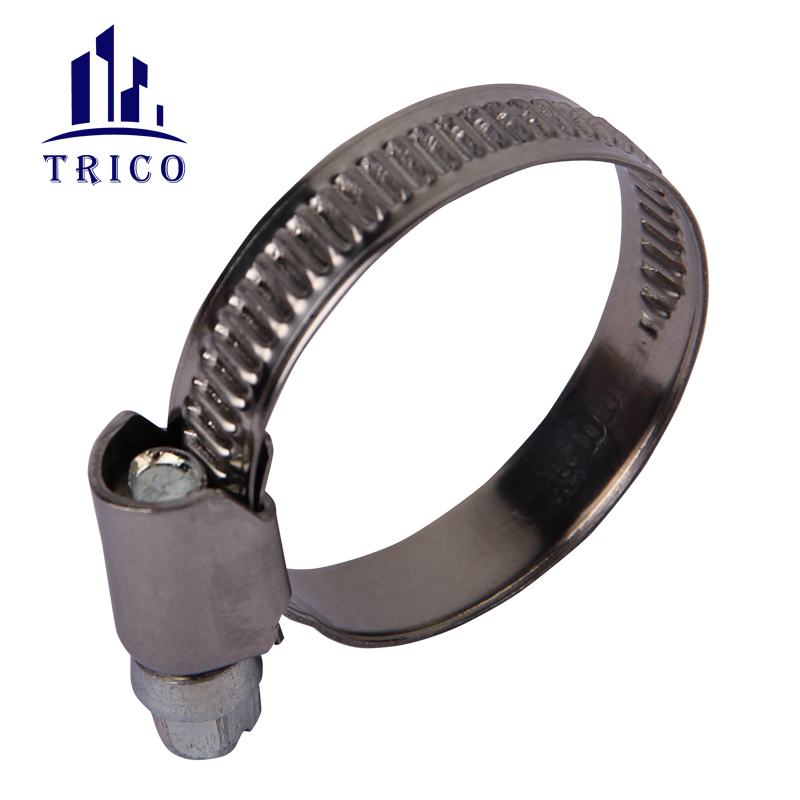

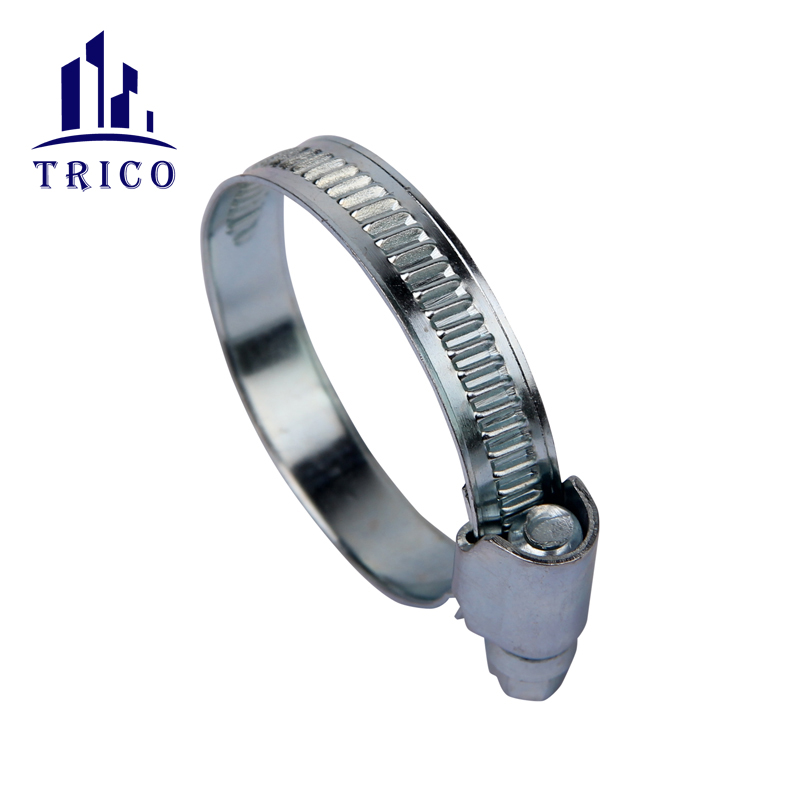

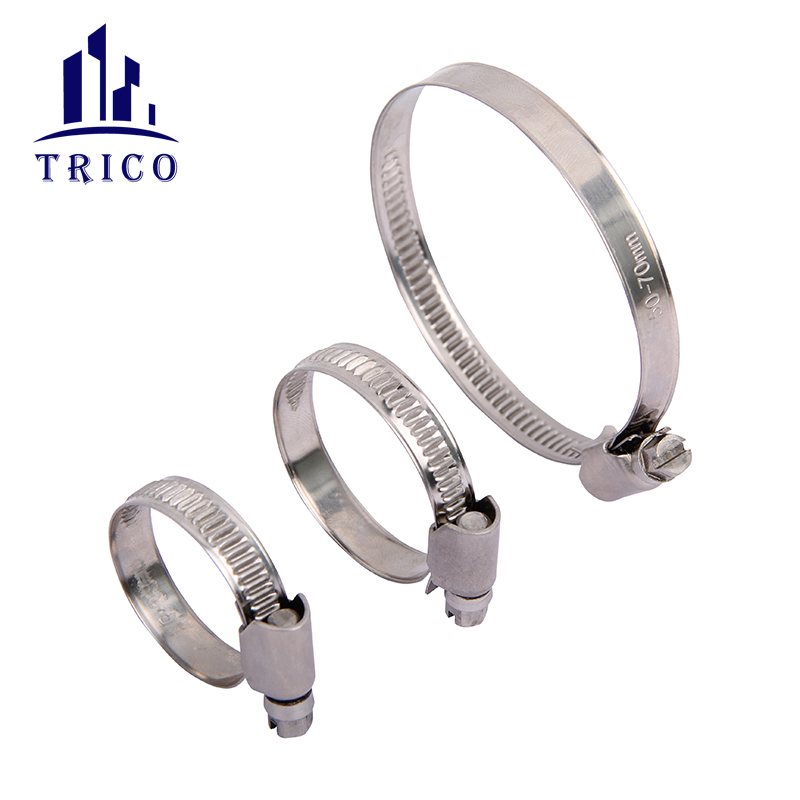

Germany Type Hose Clamp

The German type hose clamp with non-perforated design helps to avoid scratching the hose surface during installation. The effect of protecting to avoid gas or liquid leaking from the tube. The width of German type hose clamp is 12mm&9mm. It is with higher torque than American type hose clamp.

Durable steel galvanized German Type Worm Gear Gas Tube Connection Hose Clamps

Advantages of the Germany Type Hose Clamp

  • The width of German type hose clamp is 12mm&9mm

  • Higher torque than American type hose clamp.

  • Material : SS 300 grade / SS 400 grade / All zinc plated carbon steel

  • The band has Germany type wolf teeth designed for reduce clamping chafing and damage

  •  All Stainless steel perfect for applications requiring greater resistance to corrosion

                                                                 Germany Type Hose Clamp 9mm

Material:

  • W1 series -- all the parts are carbon steel

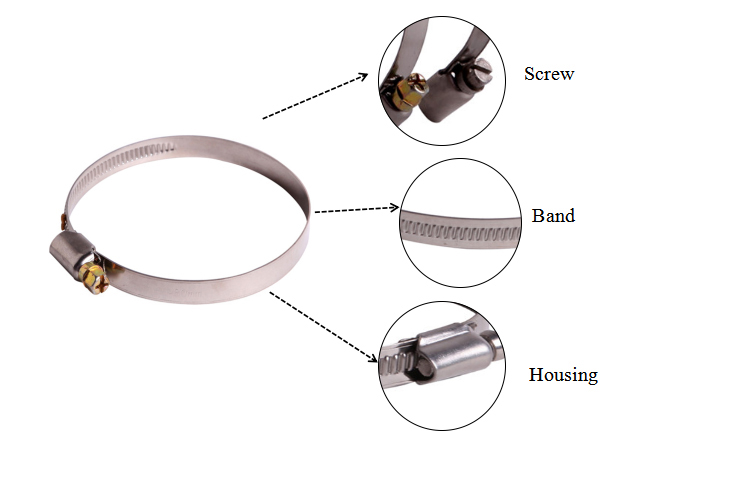

  • W2 series -- band and housing are SS200 or 300, screw is carbon steel

  • W4 series -- all the parts are SS200 or 300

  • W5 series -- all the parts are SS316

Size

(mm)

Bandwidth *

Thickness

(mm)

Pcs / BagPcs / Ctn

Ctn Size

(cm)

G.W. / Ctn

(cm)

Torque

(N.m)

8-129*0.6/0.7100100032*27*1112.00≥6
10-169*0.6/0.7100100032*27*1312.50≥6
12-209*0.6/0.7100100038*27*1512.80≥6
16-259*0.6/0.7100100038*27*1613.50≥6
20-329*0.6/0.750100038*27*2415.70≥6
25-409*0.6/0.75050038*27*199.20≥6
30-459*0.6/0.75050038*27*199.30≥6
32-509*0.6/0.75050038*27*199.50≥6
40-609*0.6/0.72050038*27*2710.60≥6
50-709*0.6/0.72050038*27*3411.50≥6
60-809*0.6/0.72050040*37*2712.10≥6
70-909*0.6/0.72050040*37*3012.50≥6
80-1009*0.6/0.72020038*27*216.10≥6
90-1109*0.6/0.72020038*27*246.30≥6
100-1209*0.6/0.72020038*27*276.50≥6
110-1309*0.6/0.72020038*27*296.80≥6
120-1409*0.6/0.72020038*27*347.10≥6
130-1509*0.6/0.72020041*32*327.30≥6
140-1609*0.6/0.71020041*32*327.90≥6
150-1709*0.6/0.71020041*32*328.10≥6
160-1809*0.6/0.71020041*32*328.50≥6
170-1909*0.6/0.71020041*32*328.90≥6
180-200
9*0.6/0.71010040*37*285.00≥6
   Germany Type Hose Clamp 12mm

Material:

  • W1 series -- all the parts are carbon steel

  • W2 series -- band and housing are SS200 or 300, screw is carbon steel

  • W4 series -- all the parts are SS200 or 300

  • W5 series -- all the parts are SS316

Size

(mm)

Bandwidth *

Thickness

(mm)

Pcs /  BagPcs / Ctn

Ctn Size

(cm)

G. W. / Ctn

(kg)

Torque

(N. m)

10-1612*0.6/0.7100100038*27*1715.20≥6.5
12-2012*0.6/0.7100100038*27*1915.80≥6.5
16-2512*0.6/0.7100100038*27*2116.40≥6.5
20-3212*0.6/0.750100038*27*2917.90≥6.5
25-4012*0.6/0.750100038*27*3419.40≥6.5
30-4512*0.6/0.75050038*27*219.38≥6.5
32-5012*0.6/0.75050038*27*299.87≥6.5
40-6012*0.6/0.72050038*27*3411.85≥6.5
50-7012*0.6/0.72050040*37*3012.50≥6.5
60-8012*0.6/0.72050040*37*3513.80≥6.5
70-9012*0.6/0.72050048*40*3114.70≥6.5
80-10012*0.6/0.72050048*40*3115.60≥6.5
90-11012*0.6/0.72025040*37*288.75≥6.5
100-12012*0.6/0.72025040*37*308.78≥6.5
110-13012*0.6/0.72025040*37*309.23≥6.5
120-14012*0.6/0.72025040*37*3510.00≥6.5
130-15012*0.6/0.72025048*40*3110.45≥6.5
140-16012*0.6/0.71020040*37*289.98≥6.5
150-17012*0.6/0.71020040*37*3010.51≥6.5
160-18012*0.6/0.71020040*37*3510.96≥6.5
170-19012*0.6/0.71020040*37*4011.40≥6.5
180-20012*0.6/0.71020040*37*4011.84≥6.5
