Steel ply forms is the most widely accepted, pre-engineered, modular formwork system in use today. It can be reused 200 times after timely replacement of plywood, and is compatible with all other industry standard formwork forming systems. The symons formwork is designed for maximum versatility and can be used to form virtually any concrete structure. Steel-Ply specialty forms are used for bulkhead forming, haunch forming, pilaster, adjustable pilaster forms, and culvert forms.
Symons Concrete Forms are known for their durability, versatility, and efficiency in construction projects. Symons Forms is a brand associated with concrete forming systems. Concrete forms are structures used in the construction industry to shape and support freshly poured concrete until it sets and gains sufficient strength to stand on its own. Symons Forms, or simply Symons, is known for its formwork products and systems.
Concrete forms are essential for creating various structures such as walls, columns, beams, and other concrete elements in construction projects. We offers a range of Symons Forms formwork solutions, including form panels, shoring systems, and accessories that help contractors efficiently and safely create concrete structures.
Symon Forms steel formwork video
Steel-Ply is the most widely accepted, pre-engineered, modular formwork system in use today. It can be reused 200 times after timely replacement of plywood, and is compatible with all other industry standard formwork forming systems. It is designed for maximum versatility and can be used to form virtually any concrete structure. Steel-Ply specialty forms are used for Bulkhead Forming, Haunch Forming, Pilaster, Adjustable Pilaster Forms, and Culvert Forms. Contact us!
Product | Picture | Size(Inch) | Size(Inch) | Size(Inch) |

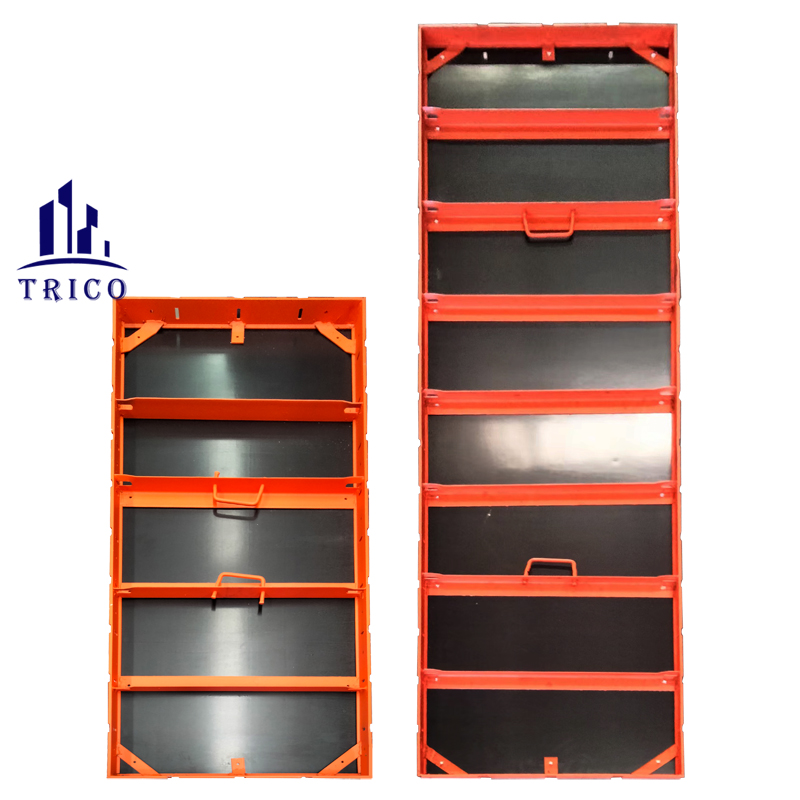

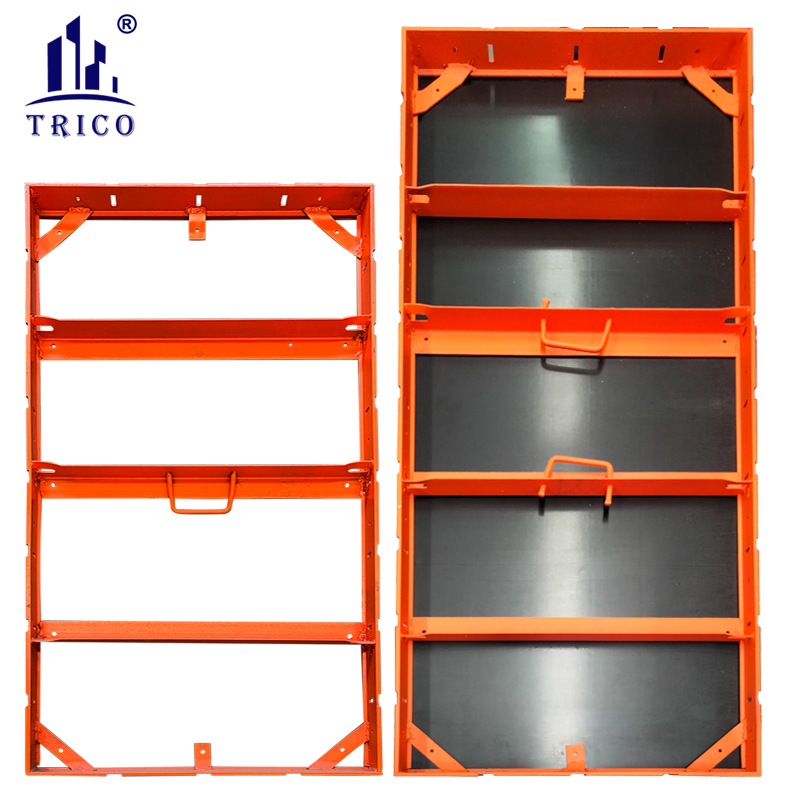

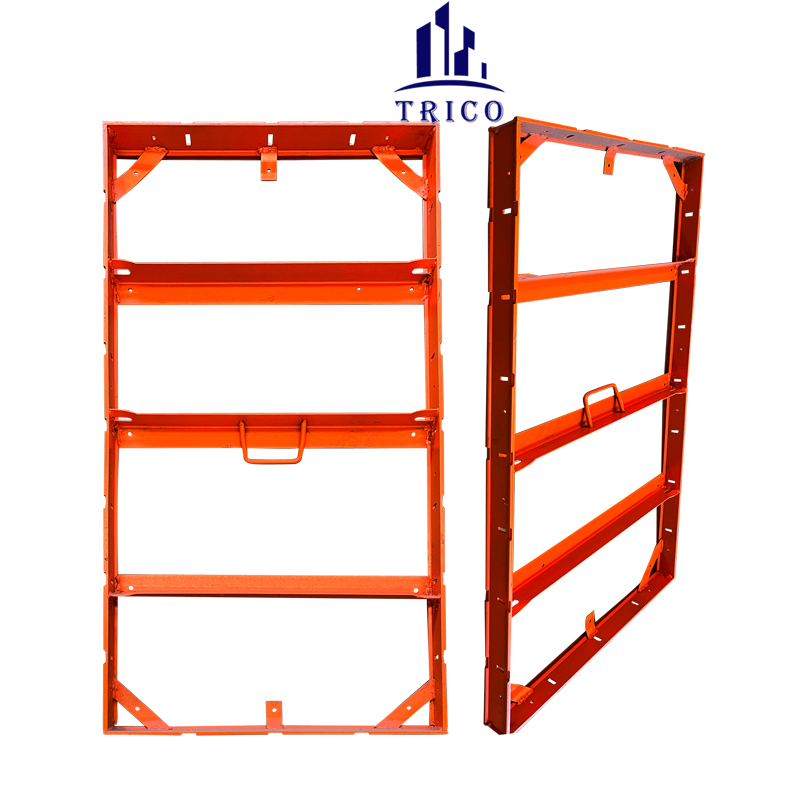

Symons Formwork
| 2"x4' | 2"x6' | 2"x8' | |
4"x4' | 4"x6' | 4"x8' | ||
6"x4' | 6"x6' | 6"x8' | ||
8"x4' | 8"x6' | 8"x8' | ||
10"x4' | 10"x6' | 10"x8' | ||
12"x4' | 12"x6' | 12"x8' | ||
14"x4' | 14"x6' | 14"x8' | ||
16"x4' | 16"x6' | 16"x8' | ||
18"x4' | 18"x6' | 18"x8' | ||
20"x4' | 20"x6' | 20"x8' | ||
22"x4' | 22"x6' | 22"x8' | ||
24"x4' | 24"x6' | 24"x8' | ||
American Standard Available |
Product | Picture | Size(Inch) | Size(Inch) |
Inside Corner
| 4"x4"x3' | 6"x6"x3' | |
4"x4"x4' | 6"x6"x4' | ||
4"x4"x5' | 6"x6"x5' | ||
4"x4"x6' | 6"x6"x6' | ||
4"x4"x7' | 6"x6"x7' | ||
4"x4"x8' | 6"x6"x8' | ||
Product | Picture | Size(Inch) | Size(Inch) |
Outside Corner
| 2.5"x2.5"x3' | 2.5"x2.5"x4' | |
2.5"x2.5"x5' | 2.5"x2.5"x6' | ||
2.5"x2.5"x7' | 2.5"x2.5"x8' | ||
Product | Picture | Size(Inch) | Size(Inch) |
Punching F Steel Bar
|
F4" F6" F8" F10" F12" F14" F16"
| F18" F20" F22" F24" F48" F60" F72" |
Steel Ply Forming System Accessories | ||||
Product | Picture | Specification | Material | Feature |
X Flat Tie | Wall Tickness 6"-48" Other Sizes Support | Steel #45
| Ultimate Load 6000lbs | |

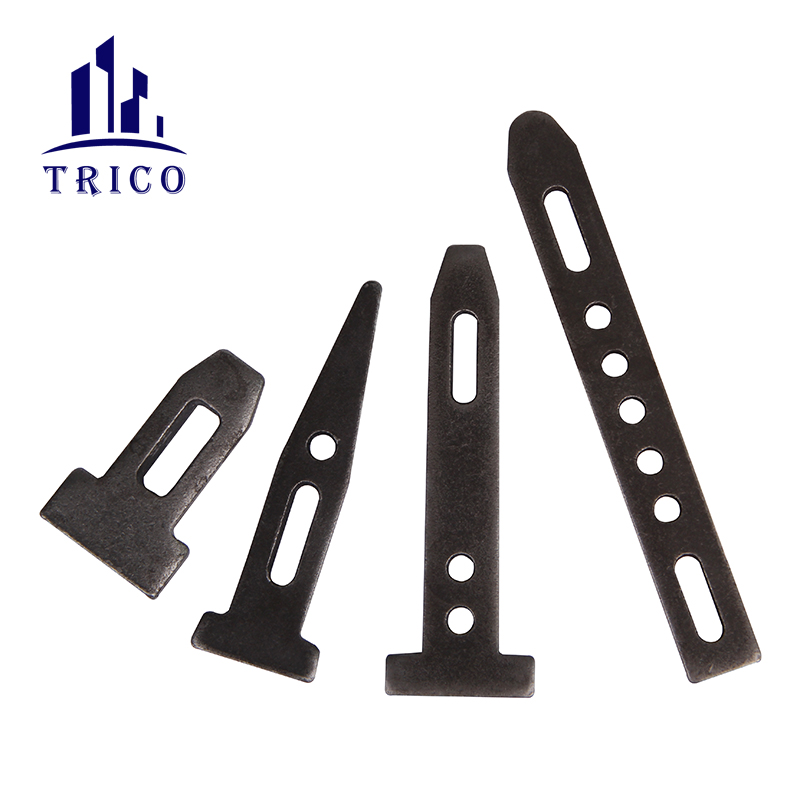

Wedge Bolt | Short Wedge Bolt | Steel #45 | Heat Treatment | |
Standard Wedge Bolt | ||||
Long Wedge Bolt | ||||
ADJ Wedge Bolt | ||||
Ply Spacer | 3/4", 1-1/8" 6-12" | Carbon Steel | High Quality | |
Shore Clamp | 4*4, Painted | Carbon Steel | High Quality | |

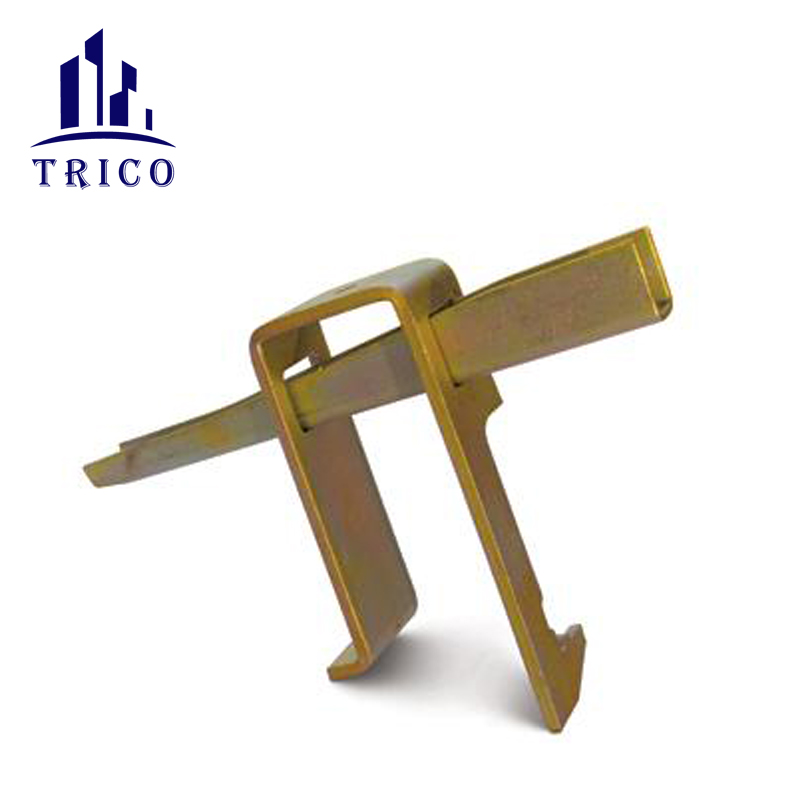

One Piece Waler Clamp | 837g, Galvanized | Carbon Steel | High Quality | |
Z Tie Holder | 325g, Red Painted | Carbon Steel | High Quality | |
Turnbuckle Aligner | 1.Standard Type /Heavy Duty Type 2. Bend Head/Flat Head | Carbon Steel | Steel Angel /Four Steel Bar | |

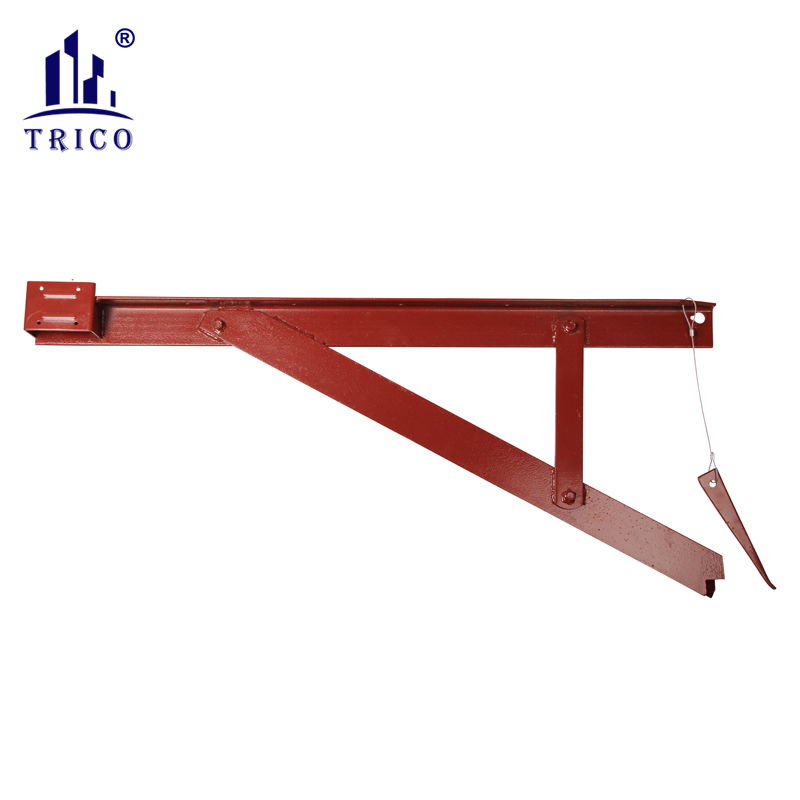

Scaffolding Bracket | 7.2kg | Painted | Pallet | |
Other Formwork System | Formwork Tie Rod System | |||
Aluminum Formwork System | ||||
Snap Tie System |
Versatility: Symons steel-ply forms are designed to be versatile, accommodating various concrete construction needs, including walls, columns, beams, and other structural elements.
High-Quality Materials: Symons forming system typically uses high-quality materials, such as steel and aluminum, to ensure the durability and longevity of their concrete forms.
Panel Systems: Symons concrete wall forms offers different panel systems, including modular form panels that can be assembled and adapted to different shapes and sizes. These panels are often designed for easy handling and efficient construction.
Adjustability: Many Symons Steel Frame Plywood Panels are adjustable, allowing for flexibility in creating different formwork configurations. This adaptability is useful when dealing with complex architectural designs or non-standard structures.
Easy Assembly and Disassembly: Symons steel-ply forms are engineered to be user-friendly, facilitating quick and efficient assembly as well as disassembly. This feature helps save time and labor costs during construction.
Shoring Systems: Symons panels provide shoring systems to support the formwork during the concrete curing process. These systems are essential for ensuring the structural integrity of the concrete until it reaches the required strength.
Safety Features: Symons concrete forms are designed with safety in mind. This includes features like built-in handrails, walkways, and other safety components to ensure a secure working environment for construction crews.
Reusability: Symons steel-ply forms are often designed for multiple uses, promoting sustainability and cost-effectiveness over the long term.
Custom Solutions: Symons steel-ply forming may offer custom formwork solutions to meet the specific requirements of unique construction projects. This can include tailored designs and configurations to address specific challenges.
Symons Formwork Advantages:
• Designed to form both straight and radius walls
• No special tools required - just a hammer
• System may be handset or assembled into gangs
• Most popular concrete forming system in the America

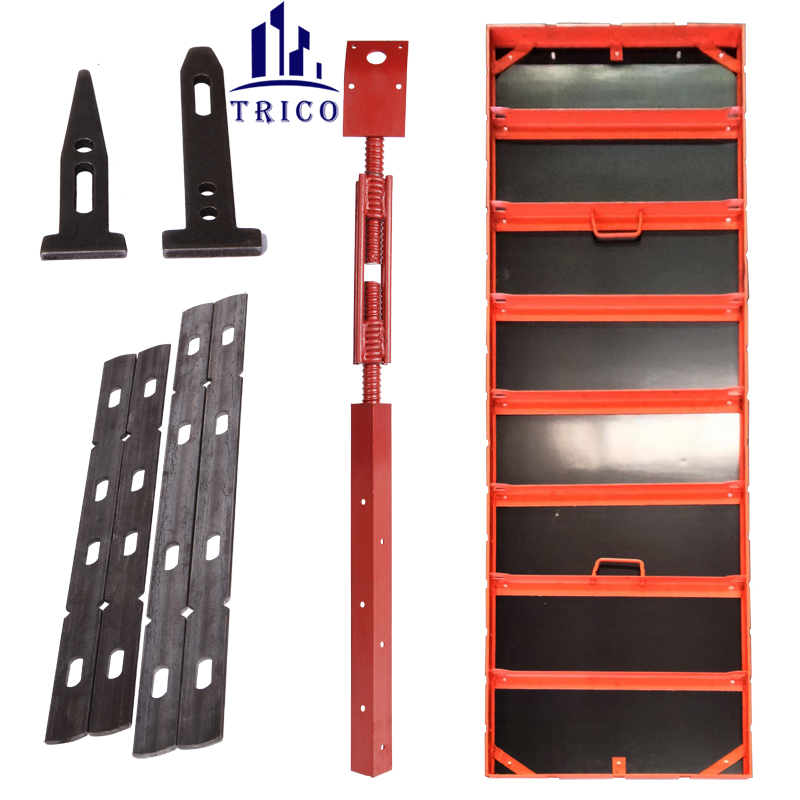

TRICO is steel-ply forming system formwork manufacturer in China. You can find all parts & accessories of the steel-ply forming system in our factory. Related accessories include x flat tie, wedge bolt,turnbuckle form aligner and Clamp.
The steel-ply formwork is a pre-engineered, factory-built, reusable concrete forming system. It may be used in handset or gang form applications, for commercial or residential structures. The Steel-Ply forming system can form walls of almost any shape or size, with accessories for special structures and details. This symons seel ply forms system is more productive and economical than job-built plywood formwork or other forming methods.
Steel-Ply Saves Time The Steel-Ply forming system saves time because it is easy to set up and strip. No measuring, sawing, drilling, or nailing is required. Minimal training is needed, so workers are quickly up to maximum efficiency. The only tool required for setup and stripping is a hammer.
The steel ply forms is equally ideal for commercial or residential structures. It uses standard sizes that can be combined to form almost any dimension. With more than 80 panel and filler sizes, this system offers maximum versatility no matter how they are combined. They can be handset or gang-formed horizontally or vertically. They can also be used for curved walls. This flexibility enables contractors to conserve materials and benefit from savings.
