American Ladder Frame Scaffold H Frame Ladder Scaffolding For Building Construction
Frame scaffolding is also called tubular steel frame scaffolding, door style frame scaffolding, is a long established modular frame scaffolding system serving as working platform for construction and decoration purposes, which is composed of main frames, catwalk or walk board, braces or cross braces, brackets, coupling pins of spigot, guardrails and sometimes casters, etc.
Name | Frame Scaffold |

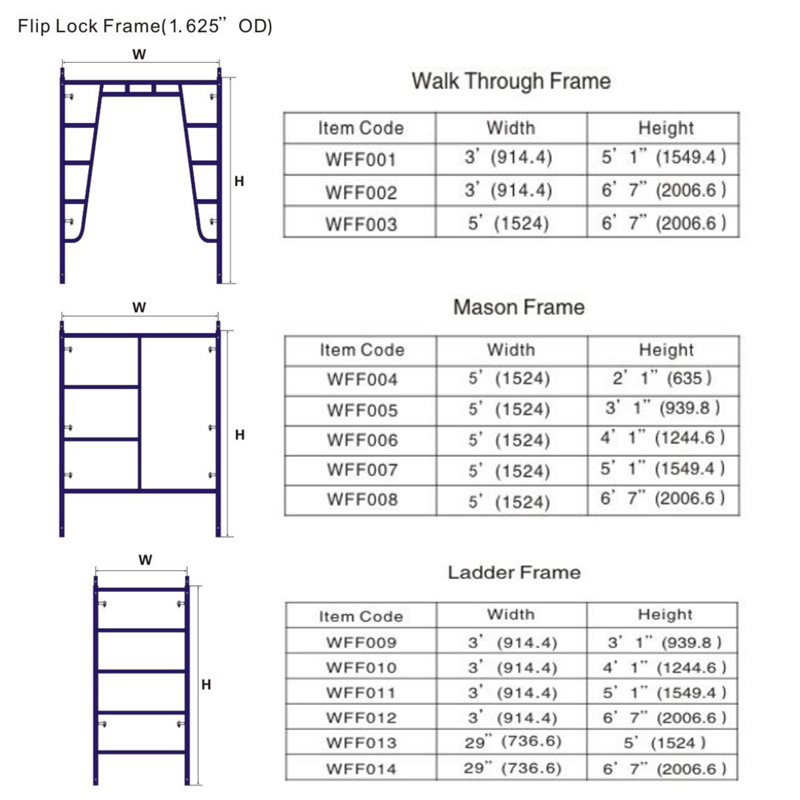

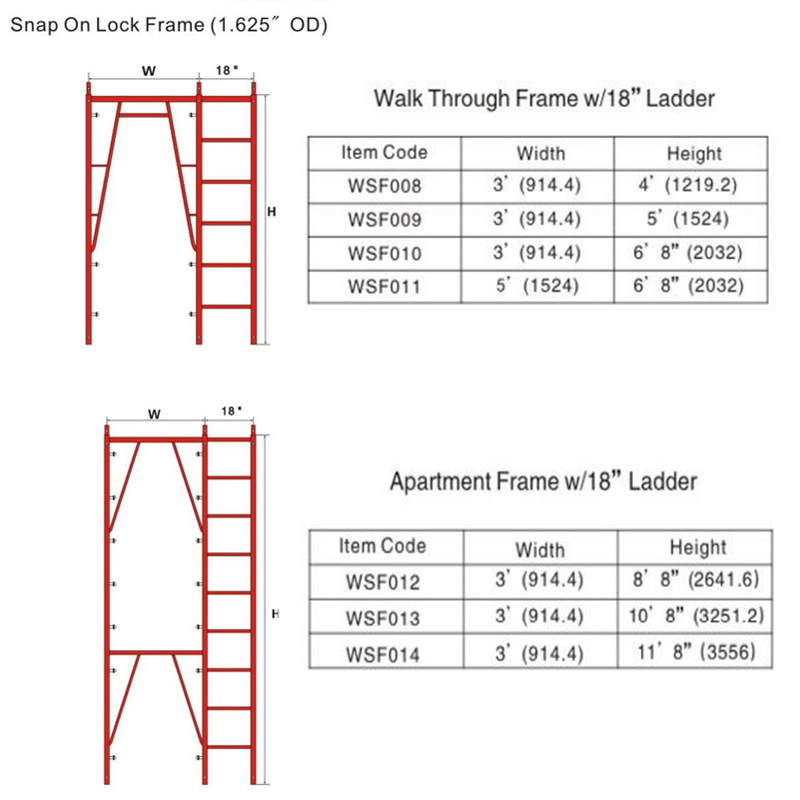

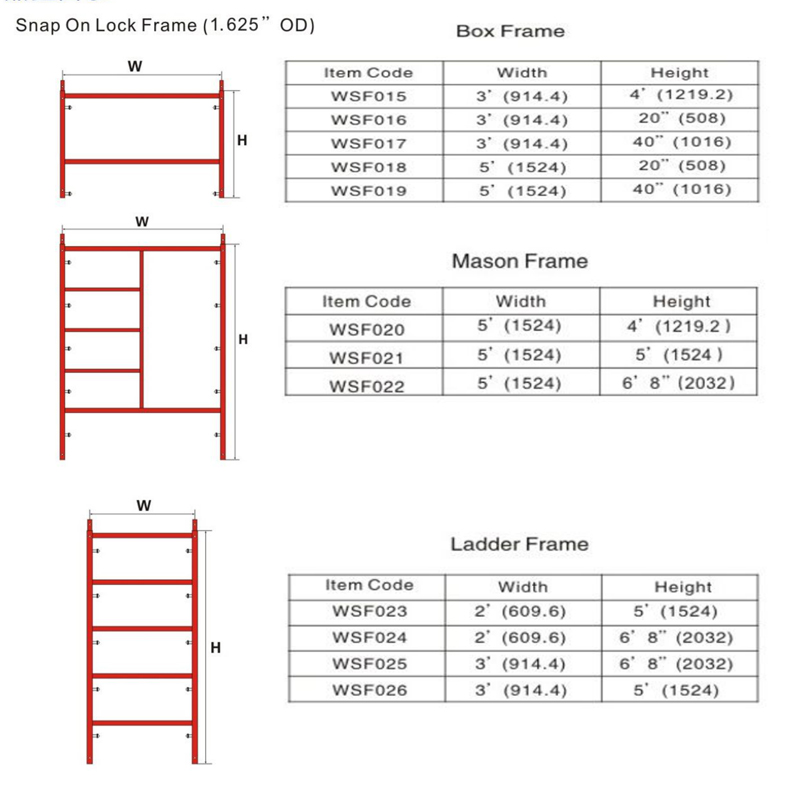

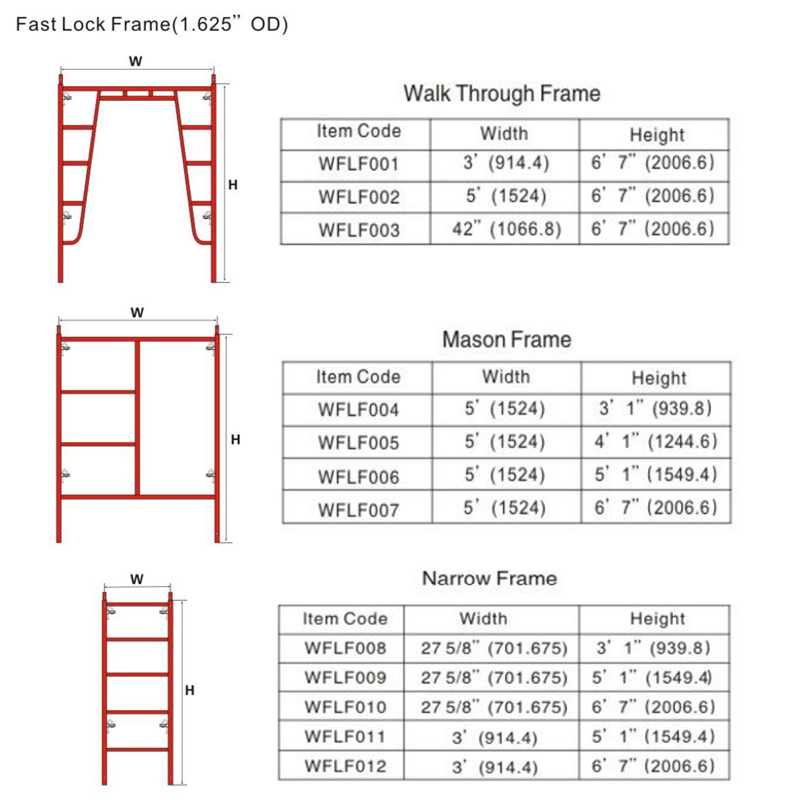

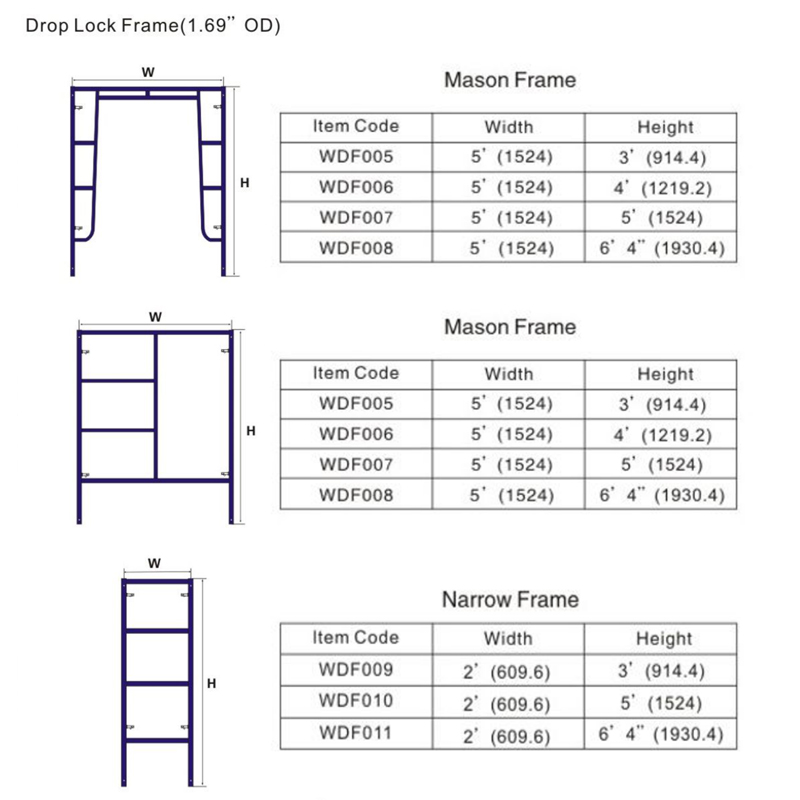

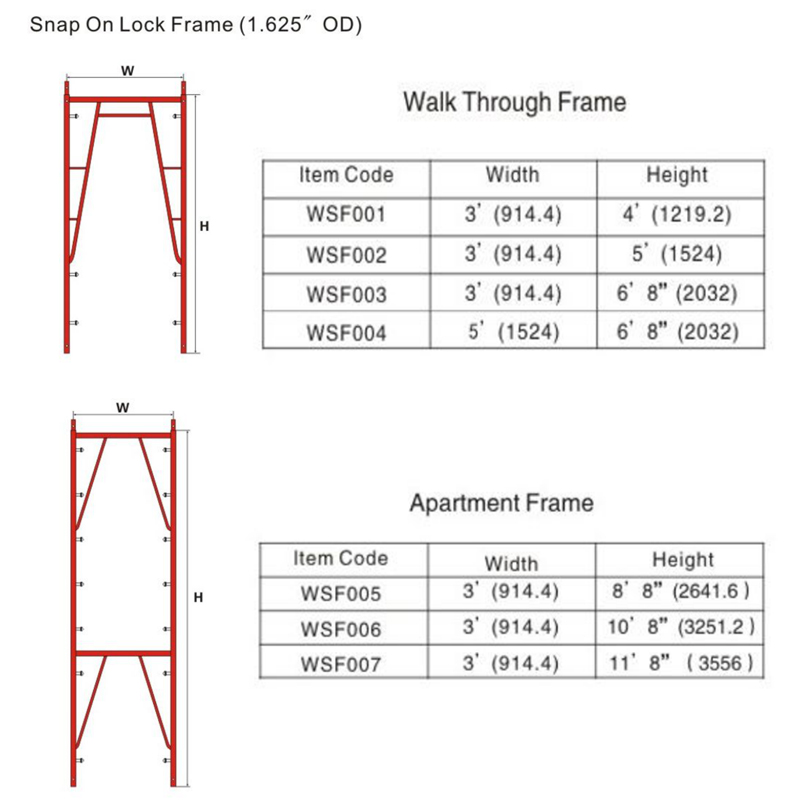

Types | Ladder Frame/Step Frame/Mason Frame/Walkthrough Frame/Euro Frame |
Material | Q235/Q345 |

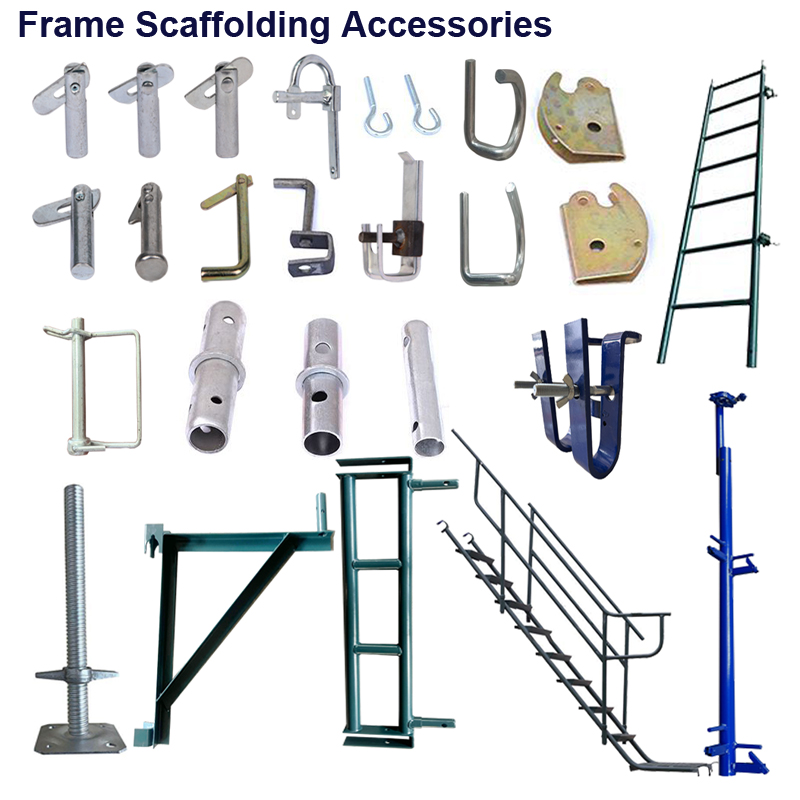

Component | Frame,Cross Brace,base Jack,Coupling pin |
Surface Treatment | Hot dip galvanized/Powder Coated |
Pallet | In Bundle or customized |
Pipe Diameter Thickness(mm) | Width & Height(mm) | Weight (kg) |
φ41.3*2.3/φ32*2 | 914*2641 | 20.3 |
φ41.3*2.3/φ32*2 | 609*3251 | 22.2 |
φ41.3*2.3/φ32*2 | 914*3251 | 24.8 |
φ41.3*2.3/φ32*2 | 609*1524 | 12.3 |
φ41.3*2.3/φ32*2 | 914*1219 | 10.9 |
φ41.3*2.3/φ32*2 | 914*1524 | 13.2 |
φ42.7*2.3/φ32*2 | 914*2032 | 15.9 |
φ41.3*2.3/φ32*2 | 609*2032 | 15 |
φ41.3*2.3/φ32*2 | 1524*2286 | 25.5 |
φ41.3*2.3/φ32*2 | 914*2006 | 18.5 |
φ41.3*2.3/φ32*2 | 1524*2006 | 21.6 |
φ41.3*2.3/φ32*2 | 1524*2032 | 19.2 |
φ41.3*2.3/φ32*2 | 609*2641 | 18.9 |
φ41.3*2.3/φ32*2 | 1524*1930 | 23.5 |
Feature:
Suitable for working in limited space.
Easy to access through standard doorways and stairways.
Light and compact to store in small vans & trucks.
