Concrete Steel Formwork Wall Tie X Flat Tie

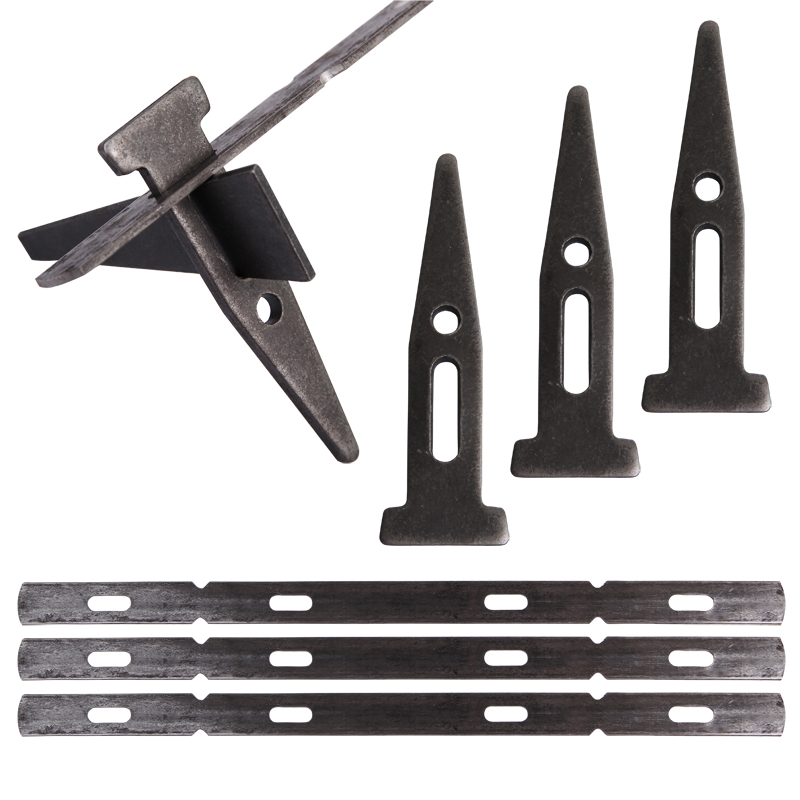

X-Flat Tie: X-Flat Tie are used with Wedge Bolt to secure and space modular forms. X Flat Ties are available from 4" to 24". And other sizes can be produced according to clients' demand.
Wedge Bolts: Wedge Bolt connect panels and ties together,eliminating the need for special tools or equipment in the set up process. Two idential wedge bolts work as a single lock-bolt set, connecting and clamping together. However, additional bolts may be needed for walker attachment, scaffold brackets and etc.
Long Bolts: similar to a wedge bolt, these Long Bolt connect the 1, 1-1/2 and 2 inch steel fillers, and are punched with two 1/4 inch hole to make room for 16 or 20 D nails.
Short Bolts: short bolts are used to attach the pilaster form a steel ply form. They eliminate the need for short stop wedge bolt, and upon proper installation, make stripping much easier.
One Piece Waler Clamp: One Piece Waler Clamps attach through the wedge bolt slot of modular type forms to provide wedge action aligning with single or double lumber.
Z Tie Holder & Waler Ties: Z Tie Holders are used in conjunction with Waler Ties to secure double 2 x lumber wales to modular type forms. The Waler Tie is available in two sizes to accomodate 2x4, 2x6 lumber.
| Formwork X-Flat Tie Forming System | ||||||
| Photo | Size | Ultimate Load | Qty/Bundle | Qty/Pallet | Unit Weight | |
| g | LBS | |||||
| 4" | 6000LBS | 100pcs | 10000pcs | 103.97 | 0.2292 | |
| 5" | 100pcs | 10000pcs | 111.90 | 0.2467 | ||
| 6" | 100pcs | 10000pcs | 119.81 | 0.2641 | ||
| 8" | 100pcs | 10000pcs | 141.21 | 0.3113 | ||
| 9" | 100pcs | 10000pcs | 151.91 | 0.3349 | ||
| 10" | 100pcs | 10000pcs | 162.61 | 0.3585 | ||
| 12" | 100pcs | 10000pcs | 184.01 | 0.4057 | ||
| 14" | 100pcs | 5000pcs | 205.41 | 0.4528 | ||
| 15" | 100pcs | 5000pcs | 216.11 | 0.4764 | ||
| 16" | 100pcs | 5000pcs | 226.81 | 0.5000 | ||
| 18" | 50pcs | 5000pcs | 248.21 | 0.5472 | ||
| 20" | 50pcs | 2500pcs | 269.61 | 0.5944 | ||
| 22" | 50pcs | 2500pcs | 291.01 | 0.6416 | ||
| 24" | 50pcs | 2500pcs | 312.42 | 0.6888 | ||
