Concrete Form Snap Ties are basically tension members. They are designed to resist the lateral pressure of fresh concrete on vertical forms.When properly fitted with cones or other they hold the wall forms at the proper distance to create the desired concrete wall thickness. The cones allow the snap tie to be broken off inside the concrete for surface patching.
Features
2,250 lbs. SWL
Available in any length from 6" to 48"

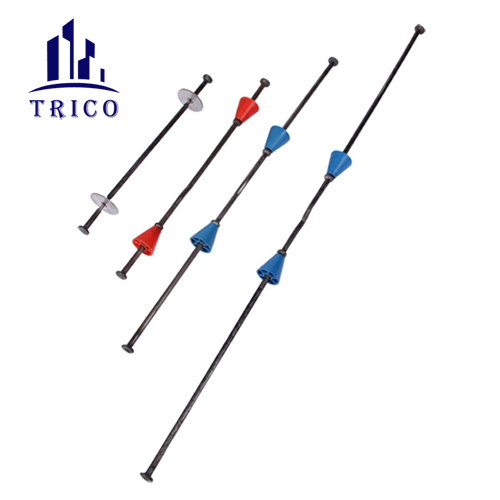

Available with plastic cone, metal cone, metal spreader, flat fixed washer or cupped loose washer
Can be manufactured with a tight fitting neoprene washer located near the center of tie to eliminate water seepage along the tie
Installation
1. Drill holes in plywood 1/8" larger than the snap tie head (usually 5/8" diameter drill bit will be required
2. Place the ends of snap ties through the holes in the plywood

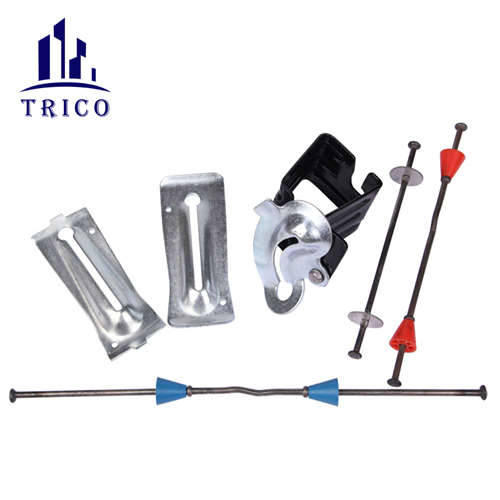

3. Place the bracket (Jahn "A", Jahn "C" or snap wedge) on the tie
4. The proper tie head position is at the midpoint or higher of the Omni wedge slot. Correct spacing between double wales is 5/8" to 3/4"
5. Jahn "A" bracket is utilized to hold a single wale and can be installed before or after the wales have been positioned
