Product Advantages:
1. Very fast, it can complete the docking of two steel bars in 10-15 seconds.
2. No need for machine process rebar, simplifying work processes.
3.Meets ISO 15835 and CCC standards for global reliability. Designed to ensure that the connector does not break first under extreme tensile forces, but rather the rebar itself yields, providing structural safety.

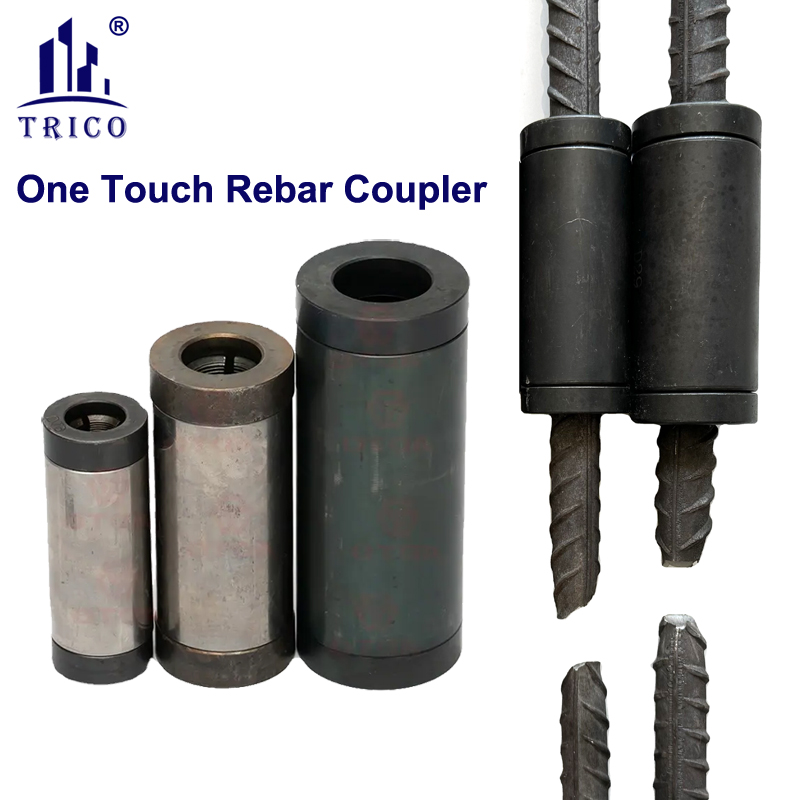

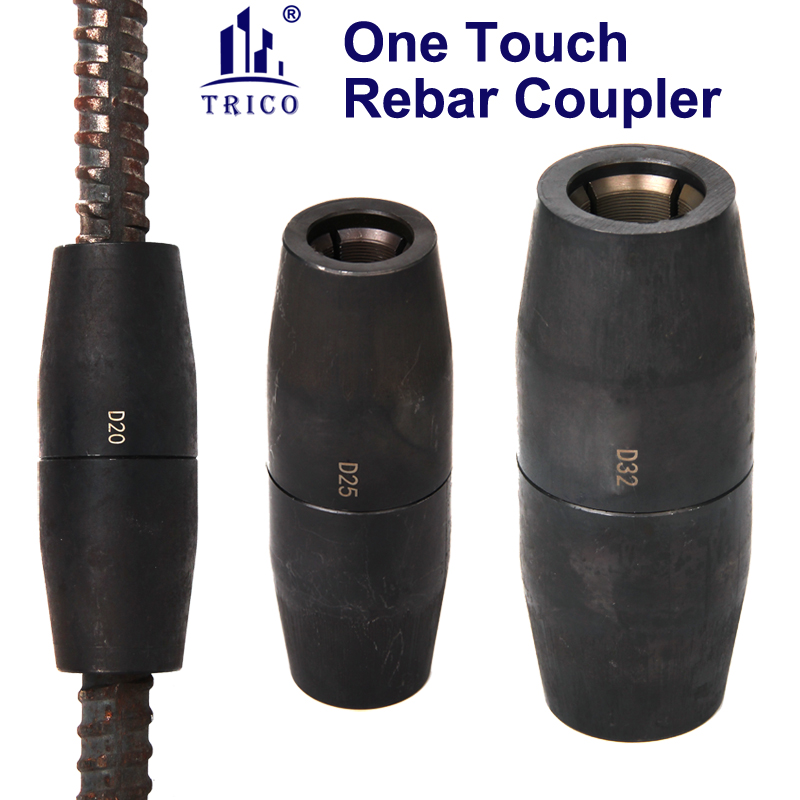

One Touch Rebar Coupler For Concrete Construction Rebar Splicing Coupler
Product Information

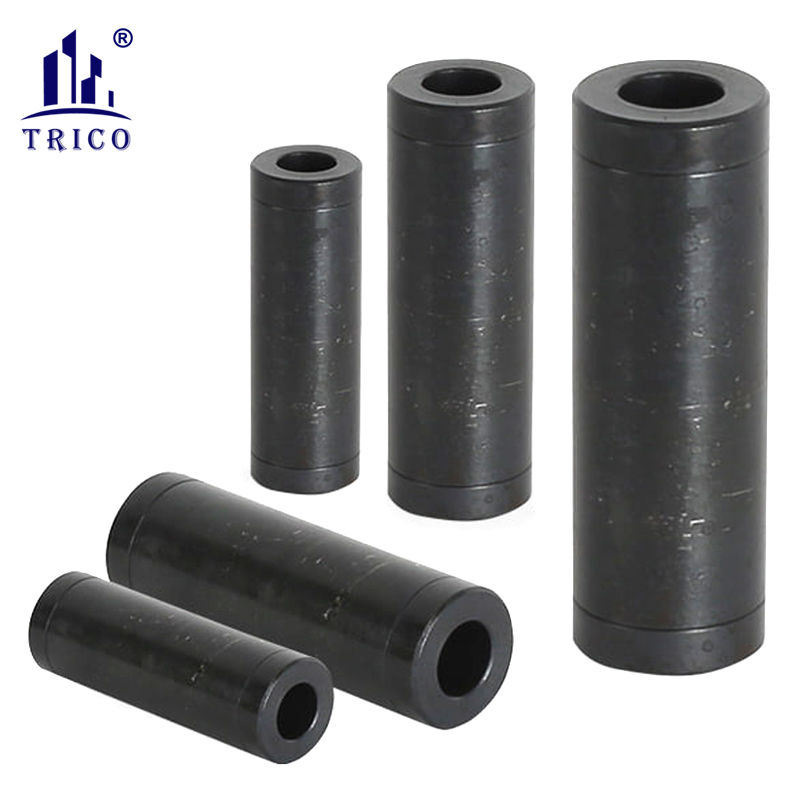

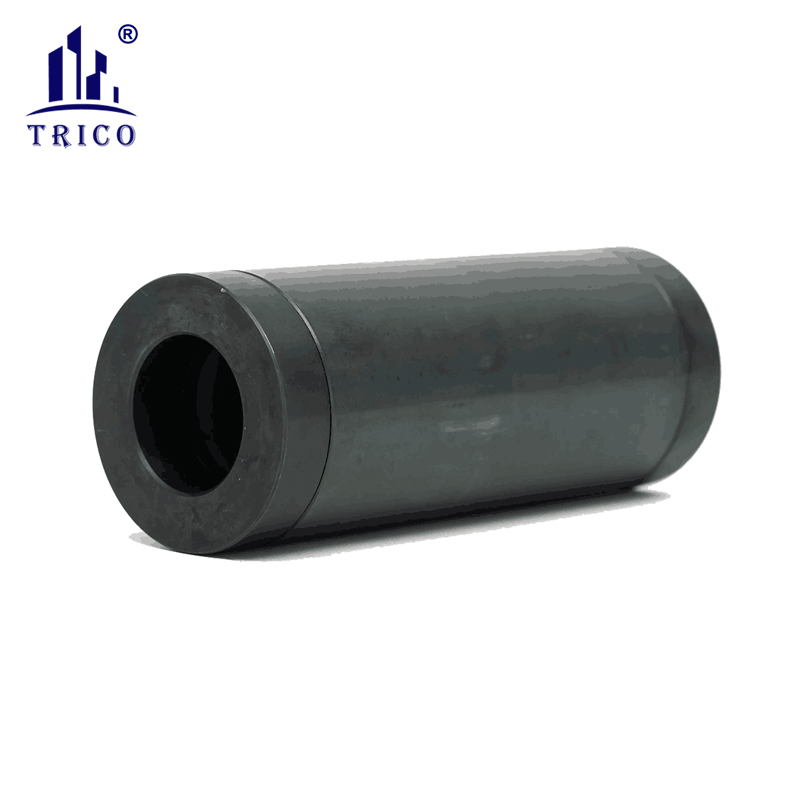

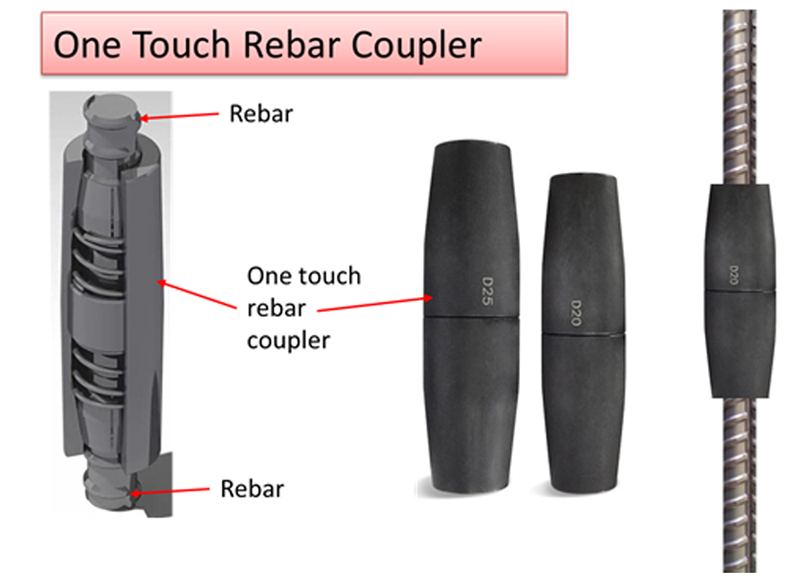

Trico's one touch rebar coupler , as the world’s first one-touch rebar coupler, it can complete the docking of two steel bars in 10-15 seconds without any process, it is the fastest construction speed among site coupling types.

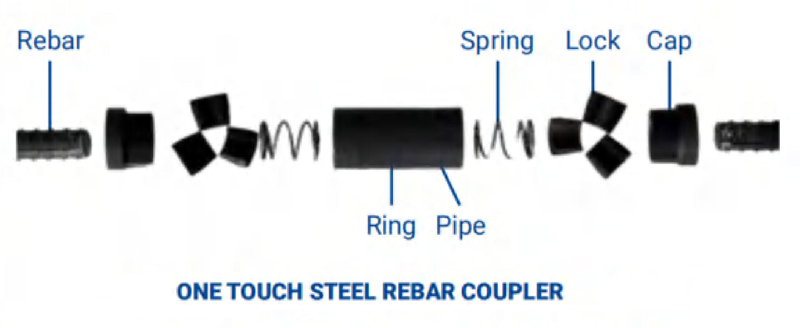

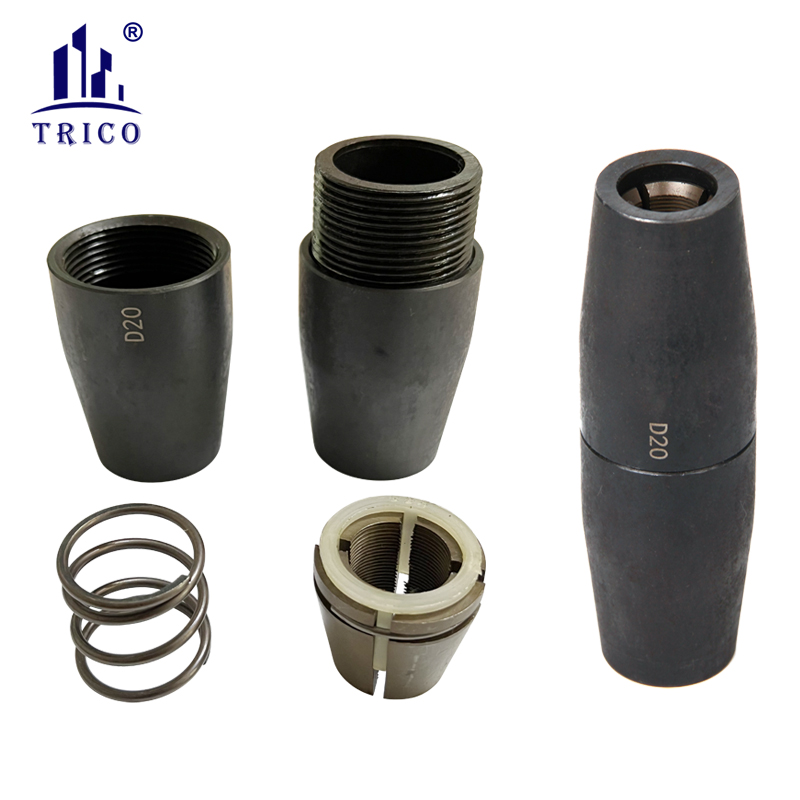

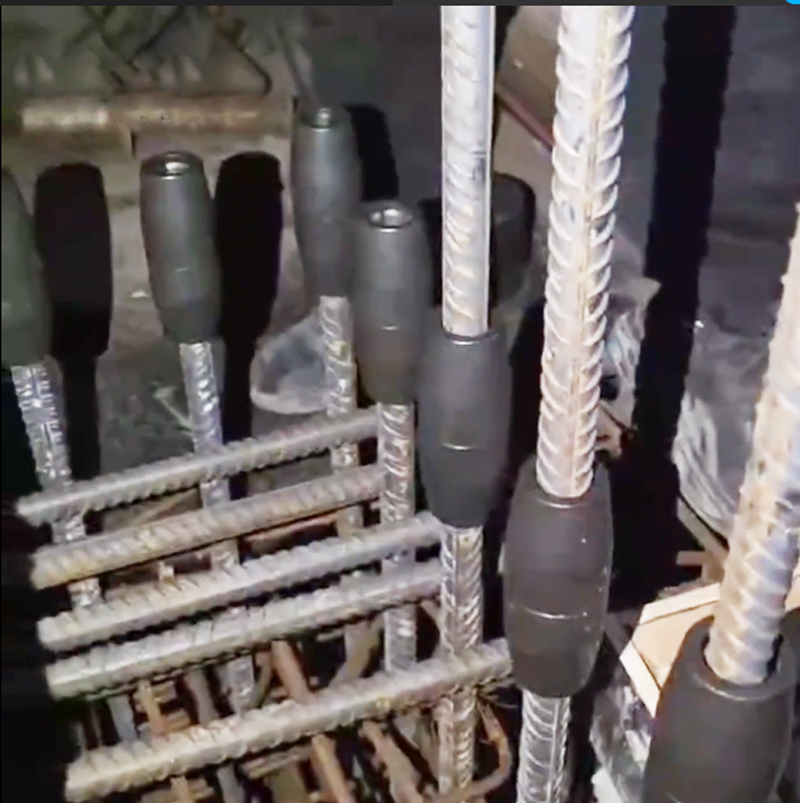

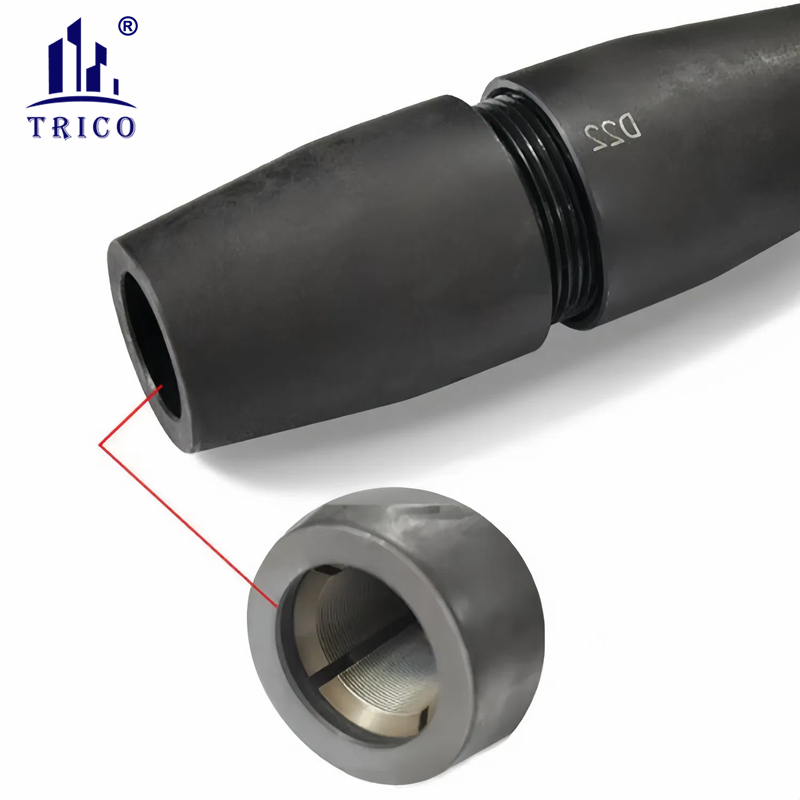

As an innovative connection device in the field of construction, Trico's one touch coupler is designed for fast and convenient splicing of steel bars. No tedious threading or welding operations are required, and no specialized tools are needed. With just a simple touch, steel bar connections can be completed. In the construction industry, especially in concrete structure construction, it relies on reliable performance to help create strong, efficient, and seamless steel bar splicing nodes, laying a solid foundation for the stability of building structures, greatly improving construction efficiency, simplifying work processes, and becoming a powerful assistant for optimizing steel bar connection links in modern construction.

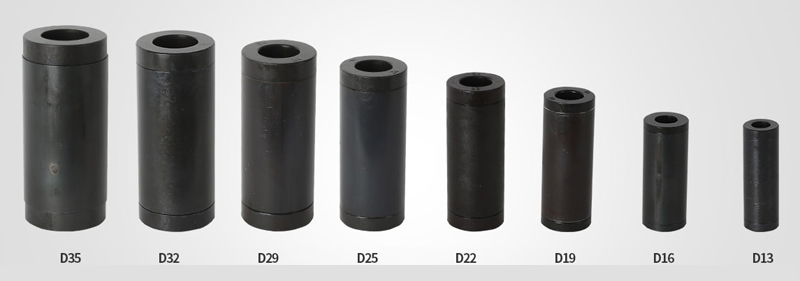

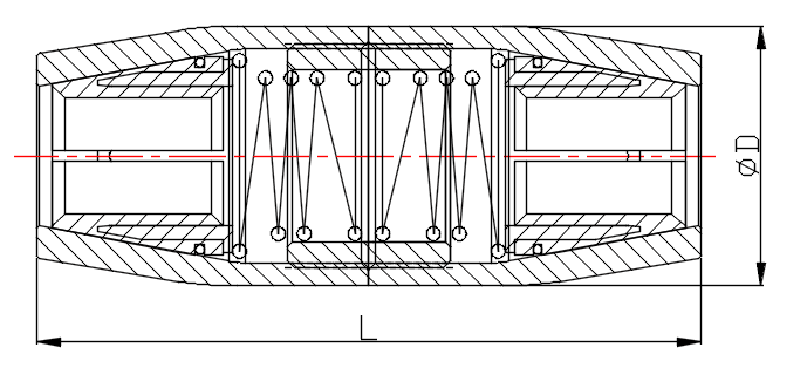

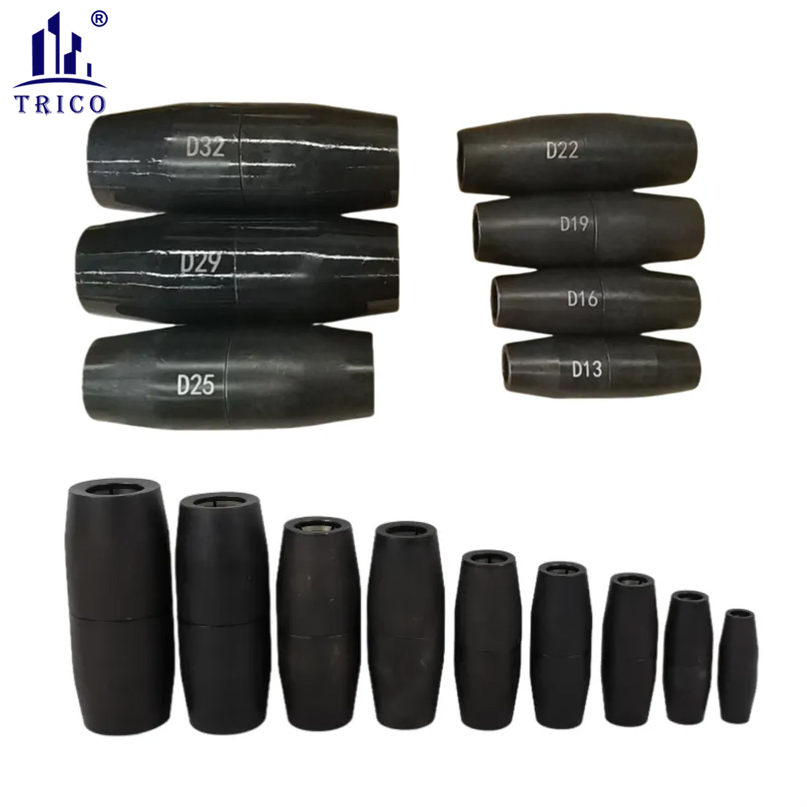

Model | Outside Diameter D(mm) | Length L(mm) | Weight (kg) |
D12 | 35 | 100 | 0.27 |
D13 | 35 | 100 | 0.528 |
D14 | 40 | 106 | 0.546 |
D16 | 40 | 106 | 0.54 |
D18 | 46 | 123 | 0.78 |
D20 | 46 | 123 | 0.78 |
D19 | 46 | 123 | 0.79 |
D22 | 51 | 133 | 1.06 |
D25 | 56 | 143 | 1.42 |
D28 | 65 | 166 | 2.13 |
D29 | 65 | 166 | 2.23 |
D32 | 70 | 170 | 2.7 |
D36 | 78 | 190 | 3.52 |
D40 | 83 | 200 | 4.72 |
Product Advantages
Fast installation:

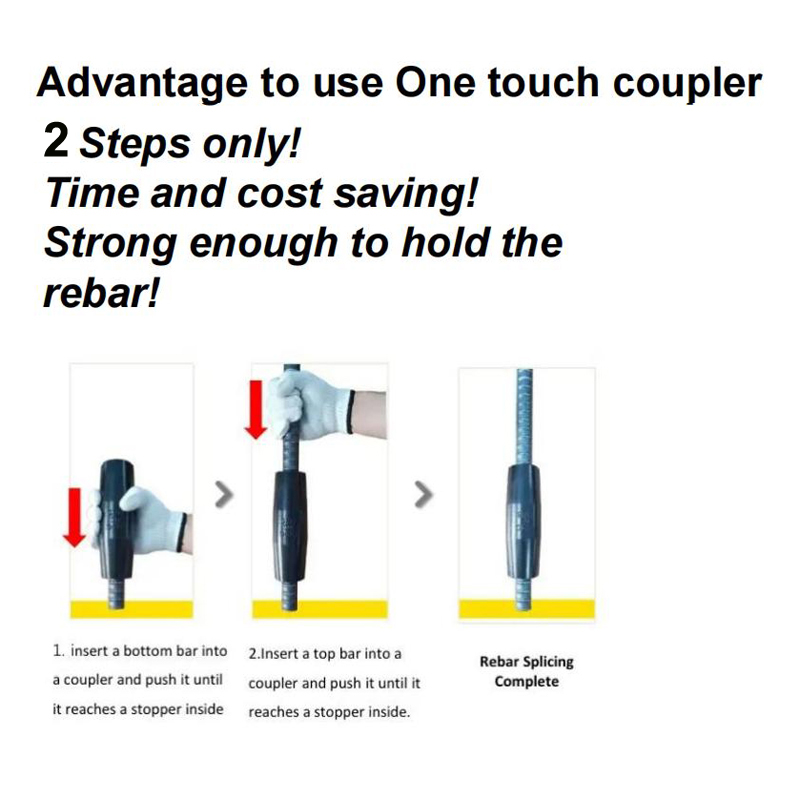

User-friendly design allows for quick, secure connections. Installation time is 10-15 seconds, which is about 80% more efficient than traditional methods (1-2 minutes for threaded connections).
Compatibility:

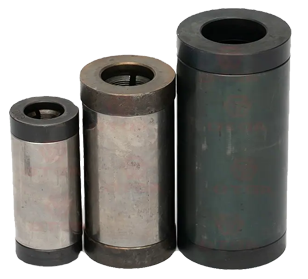

Supports a wide range of rebar standards for different diameters. Available for rebar diameters from 12mm to 40mm. Customizable to meet specific project needs.
Durable and safe:

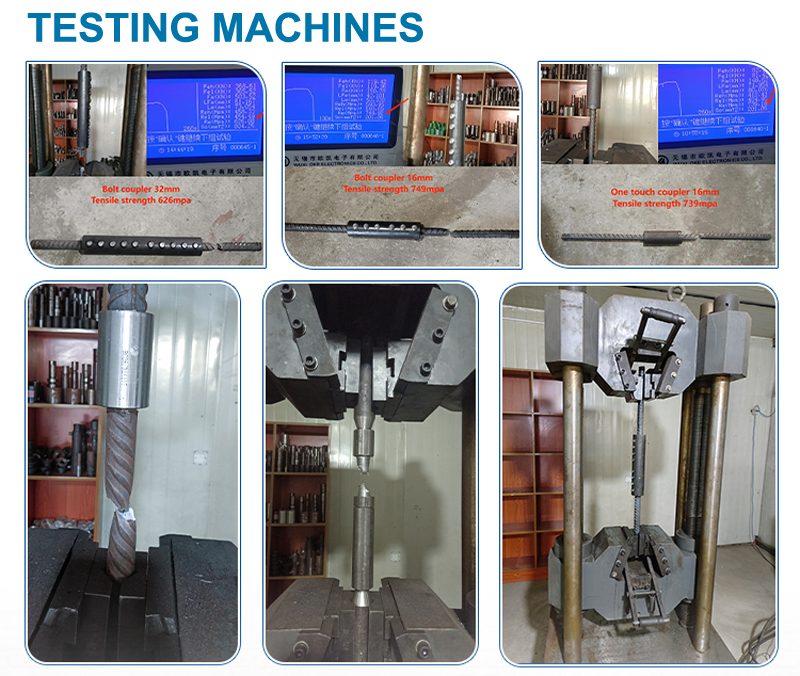

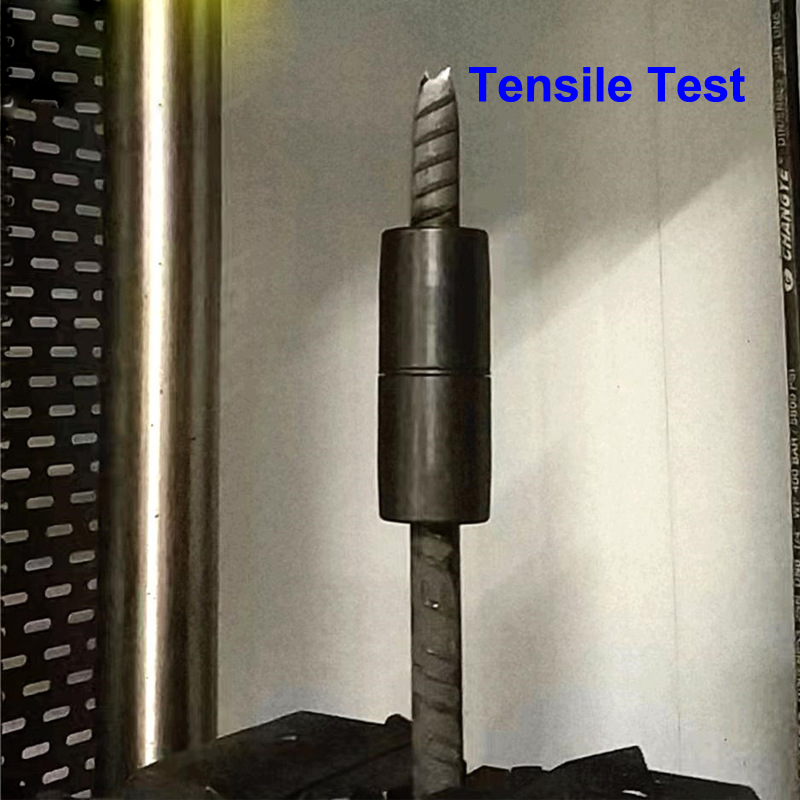

Meets ISO 15835 and CCC standards for global reliability. Designed to ensure that the connector does not break first under extreme tensile forces, but rather the rebar itself yields, providing structural safety.
Environmental Adaptability:
Requires no heat or external power supply, making it suitable for freezing, wet or hot construction environments.
