British Type Scaffolding Forged Coupler
  • British Type Scaffolding Forged Coupler
  • British Type Scaffolding Forged Coupler
  • British Type Scaffolding Forged Coupler
  • British Type Scaffolding Forged Coupler
  • British Type Scaffolding Forged Coupler
  • British Type Scaffolding Forged Coupler
British Type Scaffolding Forged CouplerBritish Type Scaffolding Forged CouplerBritish Type Scaffolding Forged CouplerBritish Type Scaffolding Forged CouplerBritish Type Scaffolding Forged CouplerBritish Type Scaffolding Forged Coupler

British Type Scaffolding Forged Coupler

Product Introduction:

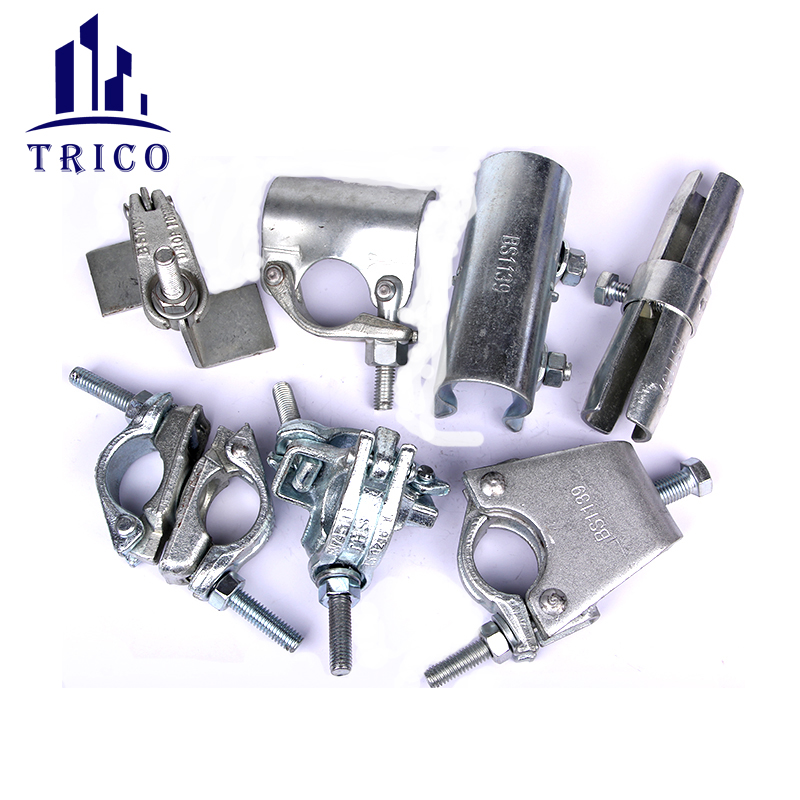

Scaffolding Coupler or scaffolding clamp is the main part of the tubular scaffolding system, it plays a fasten and connection functions in system. Simple structure and big loading power, make couplers easier and widely used on construction project. Scaffolding couplers include swivel and fixed coupler, forged and pressed coupler, etc. Different couplers have their own unique characteristics and be used in different construction situations.

Product Details

Constrcution Scaffolding Coupler Specifications

CommodityStandardTypeSizeWeight

JIS Pressed Swivel Scaffolding Coupler

JIS/Korea

Pressed

Swivel Coupler

48.6*48.6mm

48.6*60mm

560g/580g

600g/630g

JIS Pressed Swivel Scaffolding Coupler

JIS/Korea

Pressed

Fixed Coupler

Double Coupler

48.6*48.6mm

48.6*60mm

560g/580g

600g/630g

JIS Pressed Swivel Scaffolding Coupler

JIS/Korea

Pressed

Single Coupler48.6*48.6mm300g
JIS Pressed Swivel Scaffolding Coupler

BS1139/EN74

Pressed

Swivel Coupler48.3*48.3mm0.98-1.0kg
JIS Pressed Swivel Scaffolding Coupler

BS1139/EN74

Pressed

Fixed Coupler

Double Coupler

48.3*48.3mm0.8-0.85kg
JIS Pressed Swivel Scaffolding Coupler

BS1139/EN74

Drop Forged

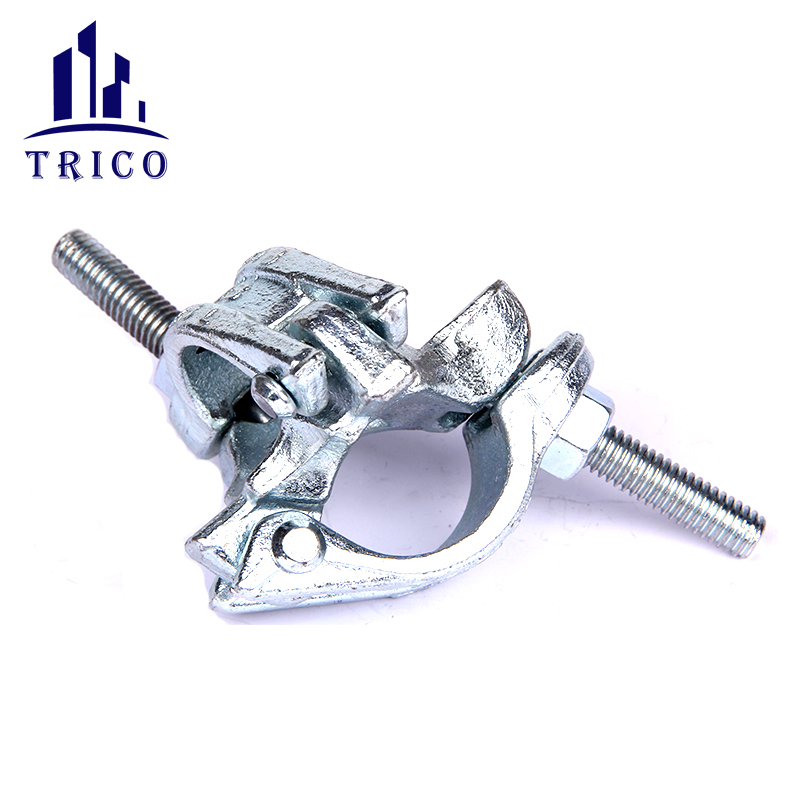

Swivel Coupler48.3*48.3mm1.12-1.15kg
JIS Pressed Swivel Scaffolding Coupler

BS1139/EN74

Drop Forged

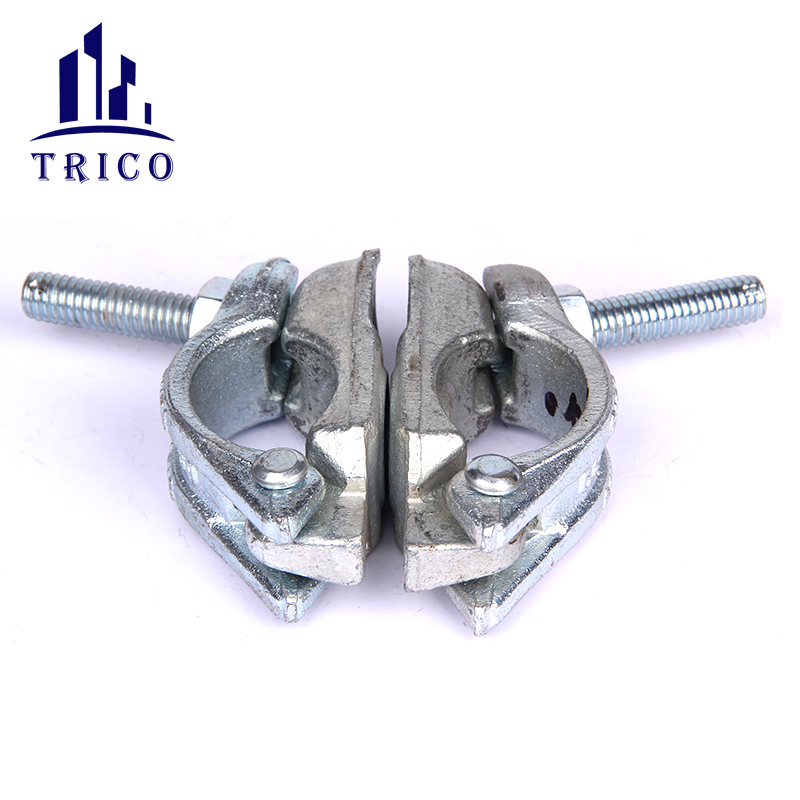

Fixed Coupler

Double Coupler

48.3*48.3mm0.98-1.0kg
JIS Pressed Swivel Scaffolding Coupler

BS1139/EN74

Drop Forged

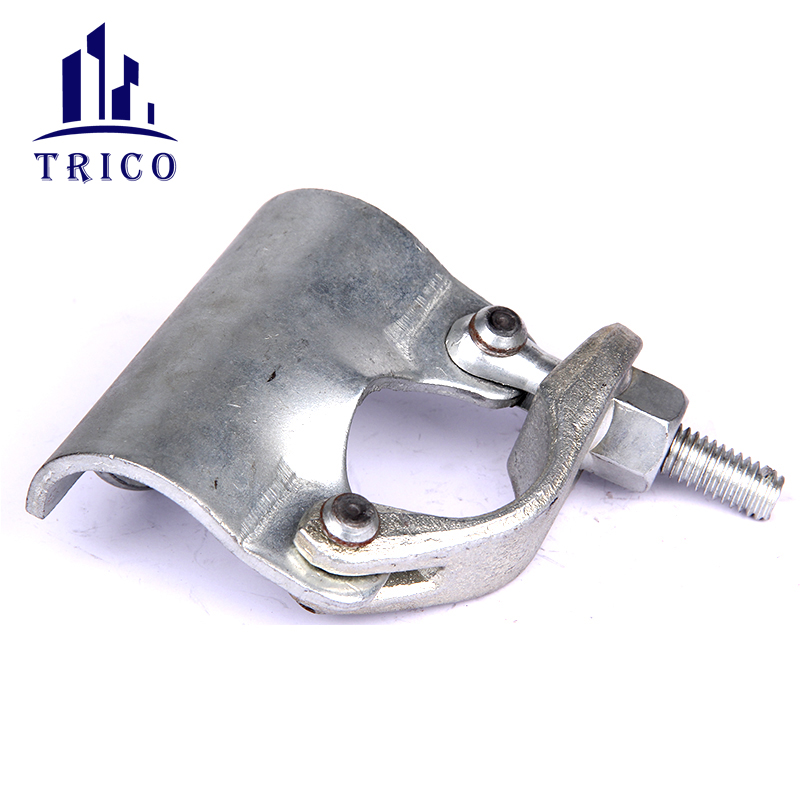

Board Retainning Coupler48.3*48.3mm0.6-0.63kg
JIS Pressed Swivel Scaffolding Coupler

BS1139/EN74

Drop Forged

Putlog Coupler48.3*48.3mm0.6-0.63kg
JIS Pressed Swivel Scaffolding Coupler

BS1139/EN74

Drop Forged

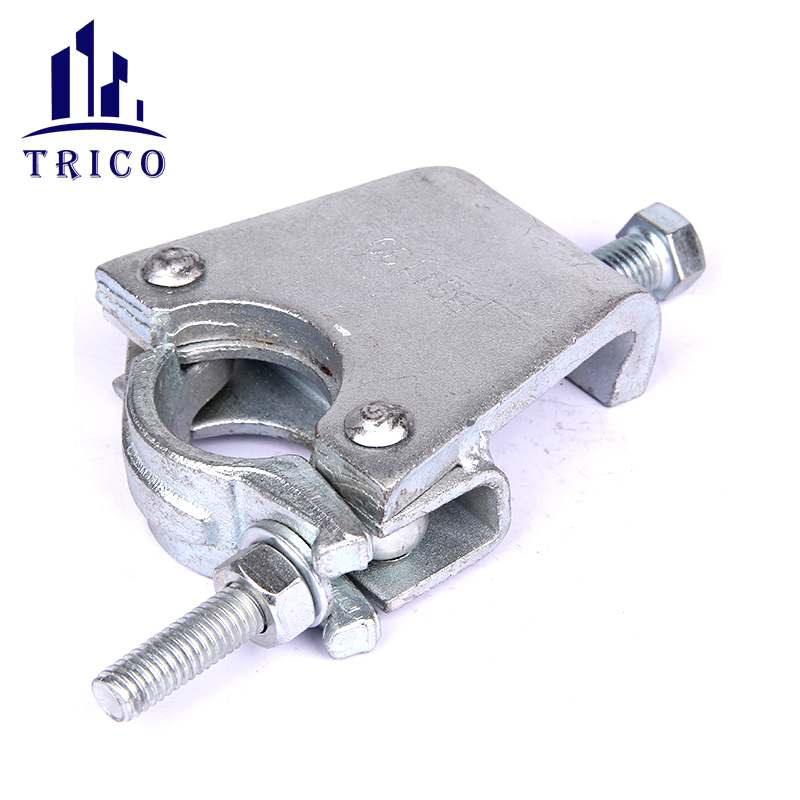

Girder Coupler48.3*48.3mm1.45-1.5kg
JIS Pressed Swivel Scaffolding Coupler

BS1139/EN74

Pressed

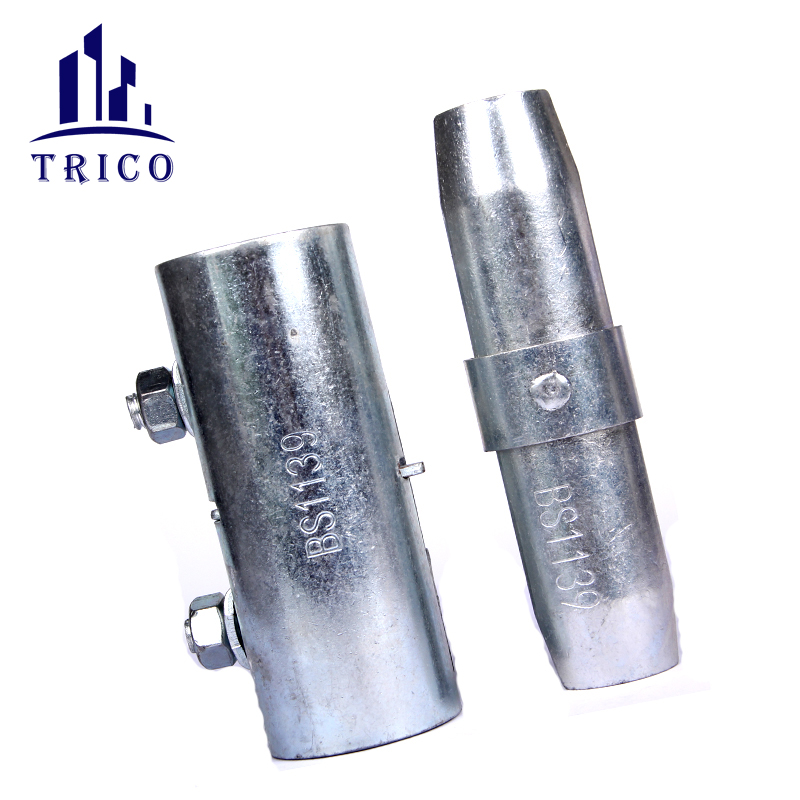

Sleeve Coupler&

Joint Pin Coupler

48.3*48.3mm

0.92-0.98kg

0.62-0.65kg

JIS Pressed Swivel Scaffolding Coupler

BS1139/EN74

Pressed

Ladder Coupler
48.3*48.3mm0.46-0.5kg
JIS Pressed Swivel Scaffolding CouplerCasting IronSwivel Coupler48.6*48.6mm

0.75kg/0.8kg/0.9kg

/1.0kg/1.1kg

JIS Pressed Swivel Scaffolding CouplerCasting Iron

Fix Coupler

Double Coupler

48.6*48.6mm

0.75kg/0.8kg/0.9kg

/1.0kg/1.1kg

JIS Pressed Swivel Scaffolding CouplerCasting IronJoint Coupler48.6*48.6mm

0.75kg/0.8kg/0.9kg

/1.0kg/1.1kg

All of our scaffolding couplers are zinc plated for longer life, manufactured to BS1139 & EN74 & JIS and tested to ensure the highest level of quality control.

This fitting is the cornerstone of any scaffold framework used together with single, sleeve and swivel couplers.

Besides, we also supply scaffolding frames, steel plank, screw base jack and u jack and ringlock scaffolding system.

Korea Type Pressed Scaffolding Coupler

Five Promises:

1.Quality: Strictly control the quality through three levels. First level, quality test on the producing line. Second level, quality test during warehousing. Third level, quality test before loading.

2.Timeliness: 24 hours online.Provide consulting and quotation services for customers all the time.

3.Veracity: Strictly follow the customer standard to ensure the tolerance range and meet customer's requirement.

4.Integrity: If The customer complains about the quality of the products, our company will actively cooperate with them to solve the problem. If it is the responsibility of our company, we will bear the corresponding responsibility and compensation.

5.Longevity: Establish good long-term relationship with customers.
