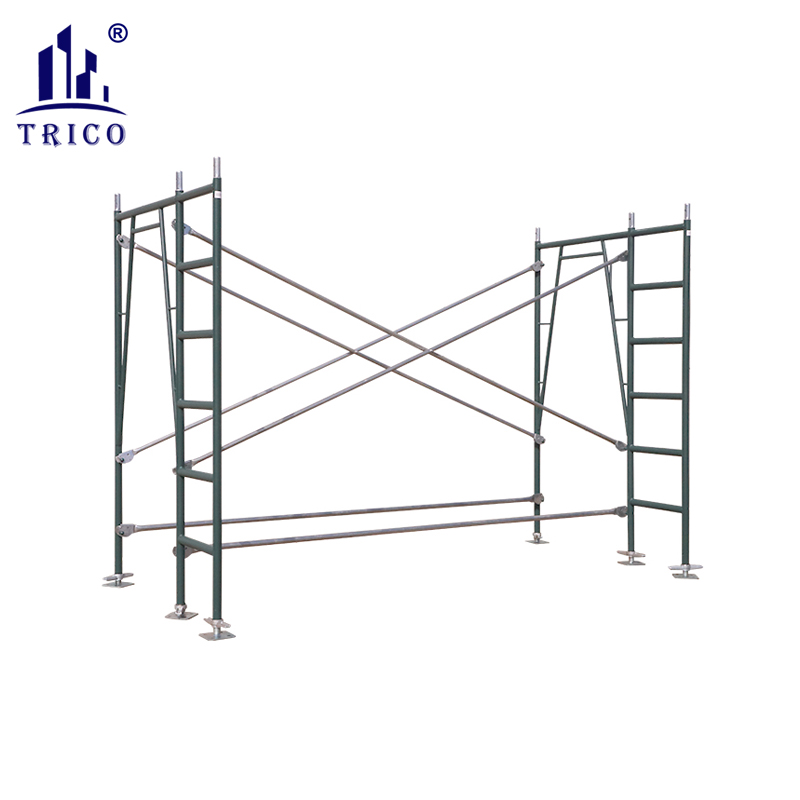

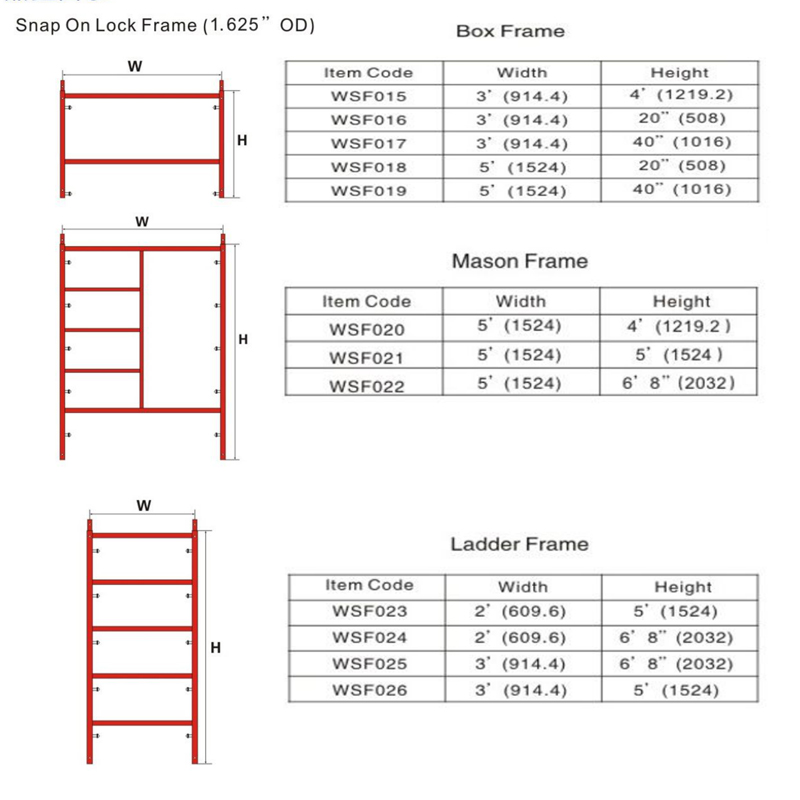

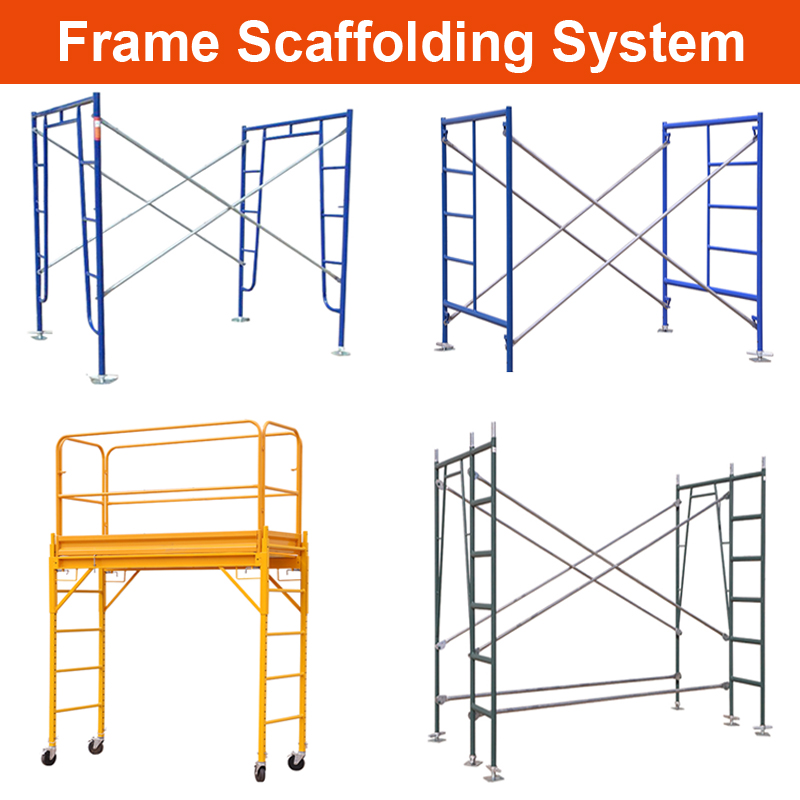

Snap-On Lock Series Frames are popular in California, USA, especially in Los Angeles. Trico's American Snap-On Frame Scaffolding System include Apartment Frames, Box Frames, Walk-Thru Frames and Ladder Frames, meet all scaffolding industry standards.

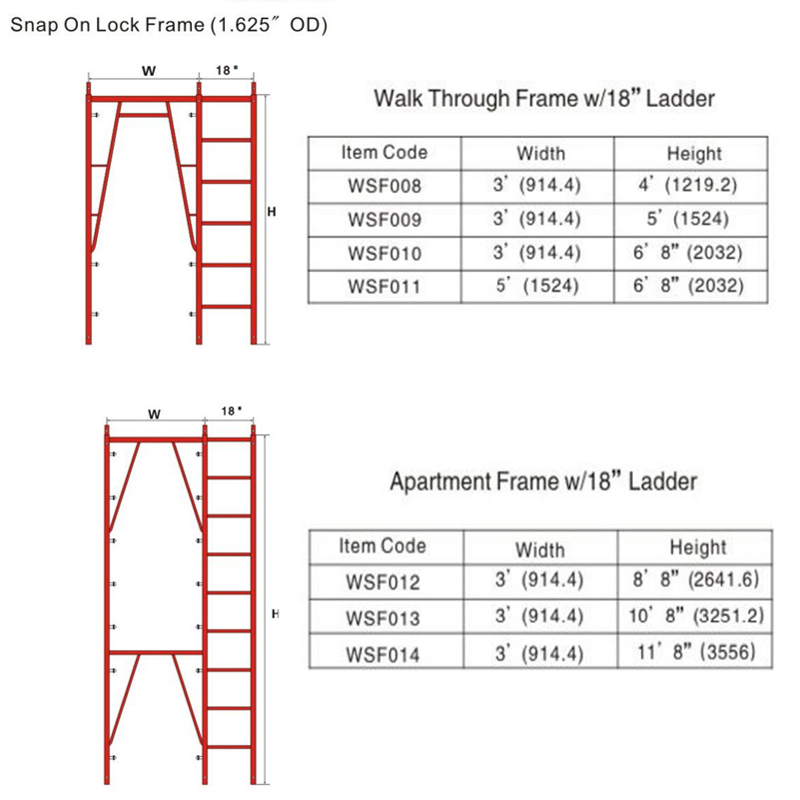

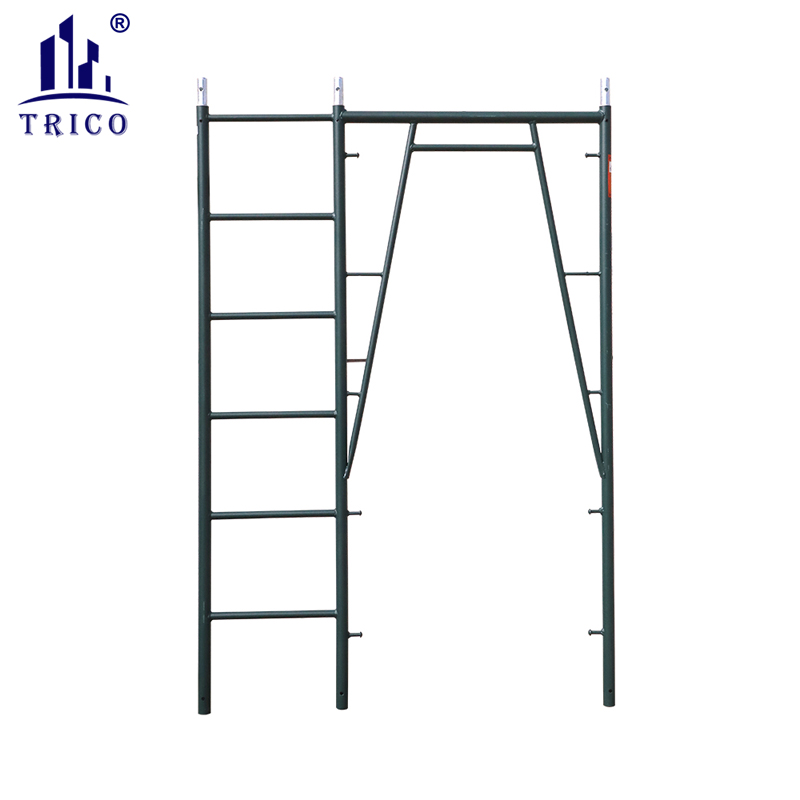

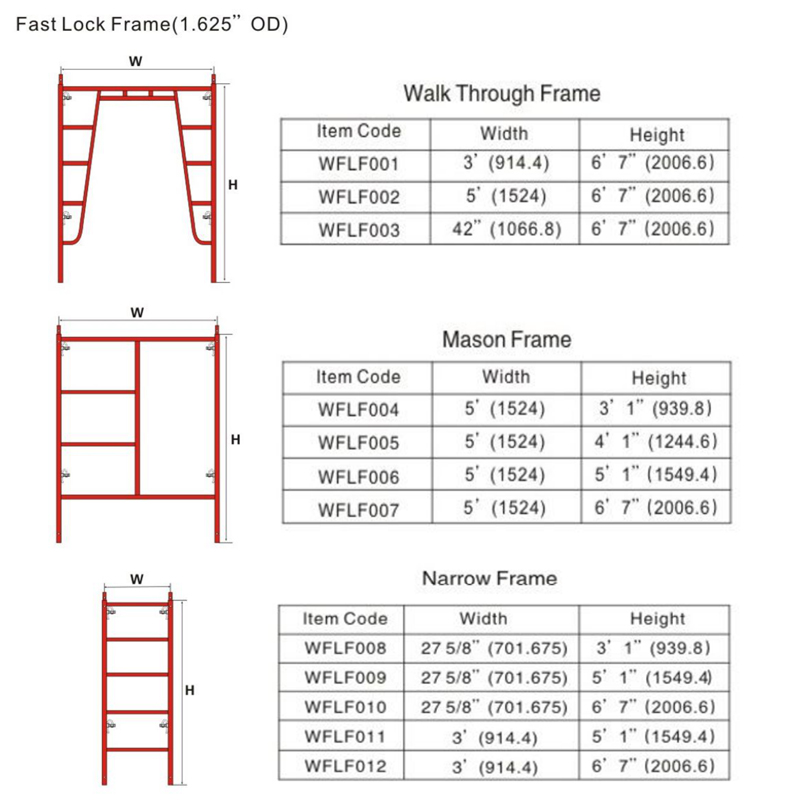

American Walk-Thru Snap-On Lock Scaffolding Frame with External Ladder
The Snap-On Frames have an external ladder built into the frame. This frame is designed to be integrated with our 3ft by 6ft 8in Walk-Thru snap on frames. When stacked, this frame give you ladder access to multiple levels of scaffolding without having to use a bolt-on ladder. The advantages of this frame are increased stability, faster construction and fewer parts for you to keep up with.
Item | Value |
Type of Scaffolding | Frame Scaffolding |
Warranty | 3 Years |
After-Sale Service | Online Technical Support |
Project Solution Capability | Graphic Design, 3d Model Design, Total Solution for Projects |
Application | Commercial/Residential Building, Access Scaffolding Platform |
Design Style | Modern |
Brand Name | Trico |
Place of Origin | Hebei, China |
Material | Q235/Q345 Steel |
Tubes and Thickness | Frame Leg: O.D 42mm, Thickness 2.3mm (O.D 1.625"X0.09"T) |
Frame Width | 3', 4', 5', 6' |
Type of Welding | C02 Protected Welding |
Surface Treatment | Painted, Powder Coated, Galvanized |
