Frame scaffolding is one of the most widely used scaffolding. Main components inculidng : frame scaffold, joint pin, cross brace, jack base, etc.

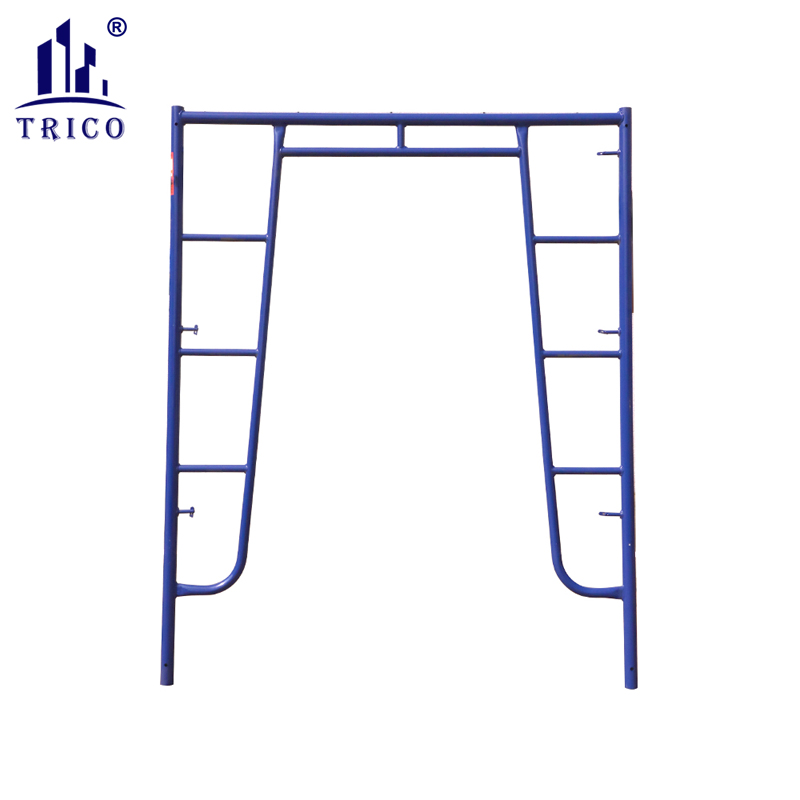

Walk Through Frame Scaffolding - Building Construction Scaffolding Manufacturer in China

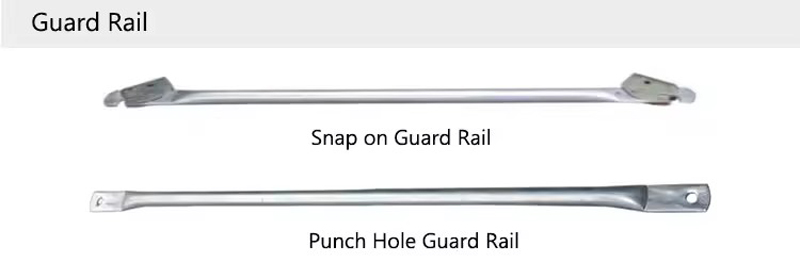

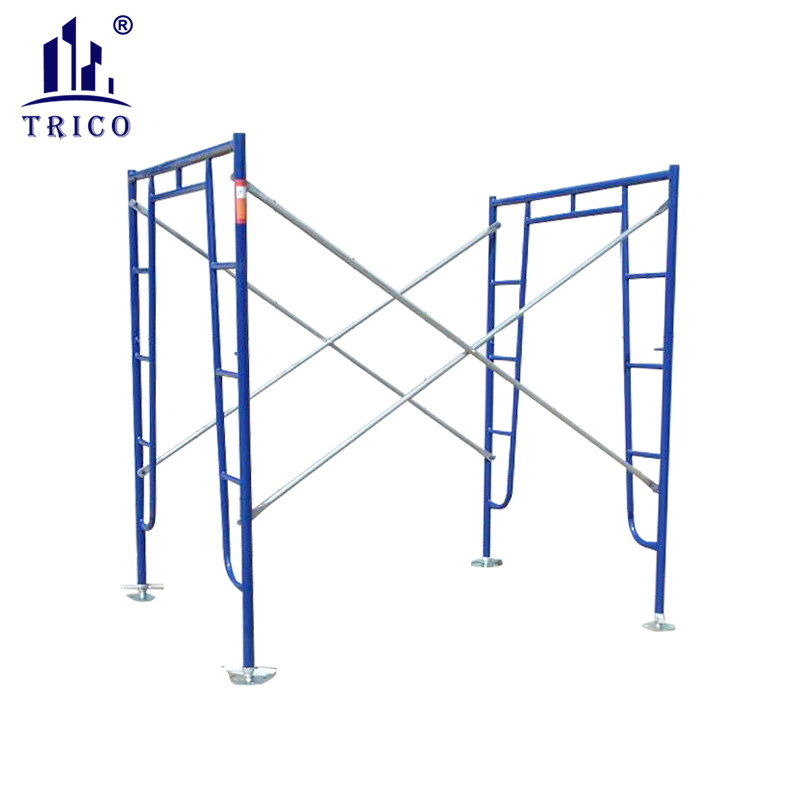

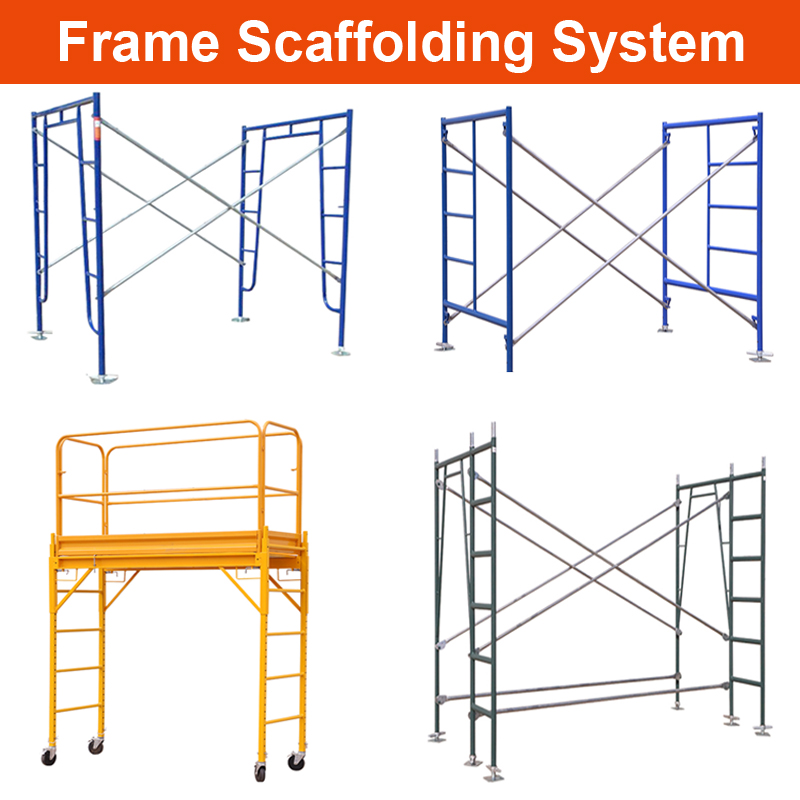

Frame scaffolding is also called tubular steel frame scaffolding, door style frame scaffolding, is a long established modular frame scaffolding system serving as working platform for construction and decoration purposes, which is composed of main frames, catwalk or walk board, braces or cross braces, brackets, coupling pins of spigot, guardrails and sometimes casters, etc
Frame Scaffolding is mainly used for building support, high-rise building external wall construction, formwork support, indoor and outdoor decoration. Easy on installation, and widely as movable towers with castors.
Name | Frame Scaffold |

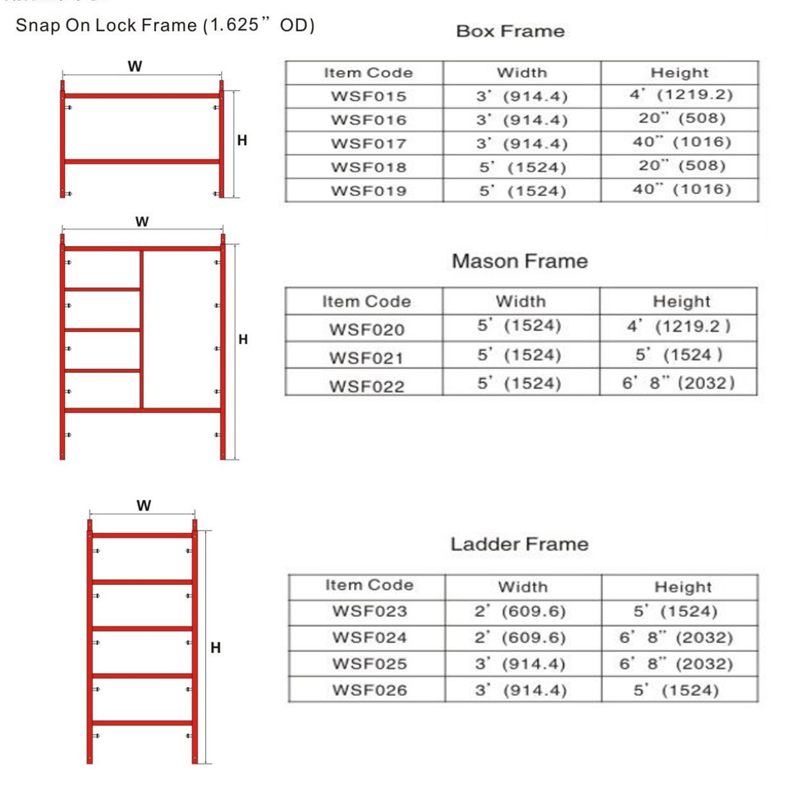

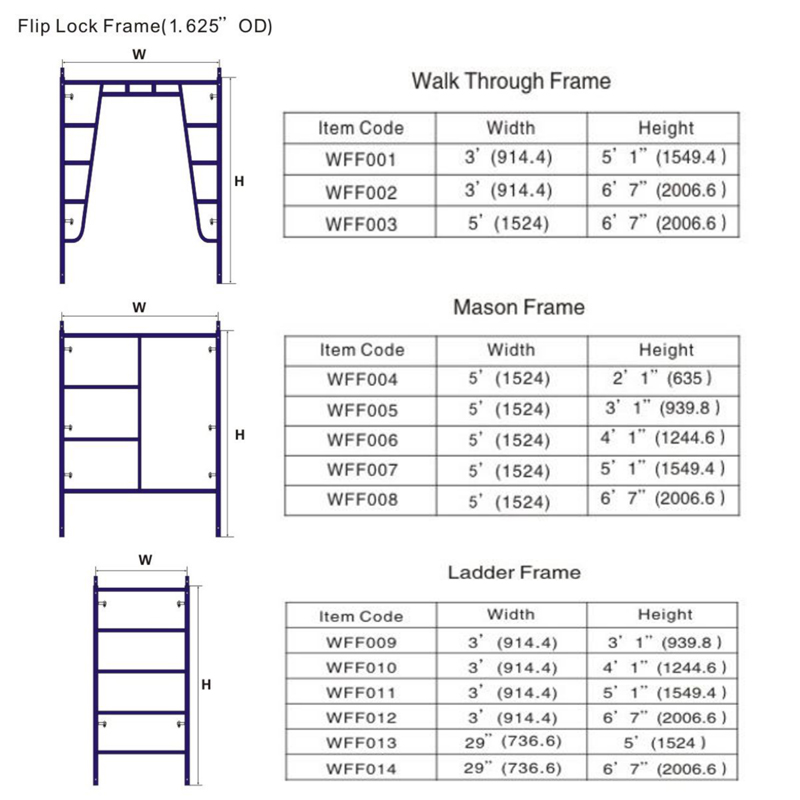

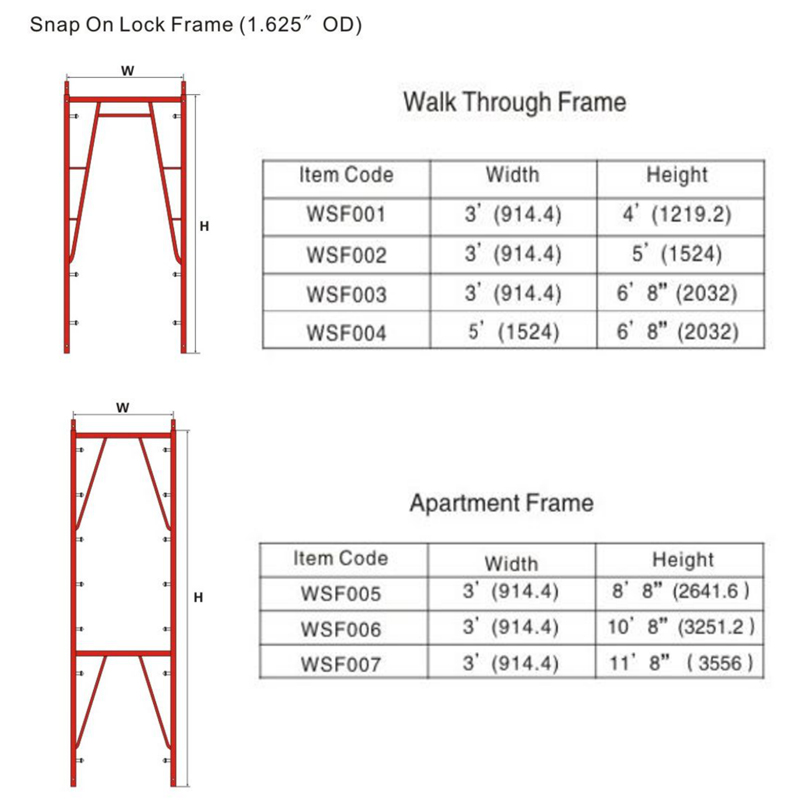

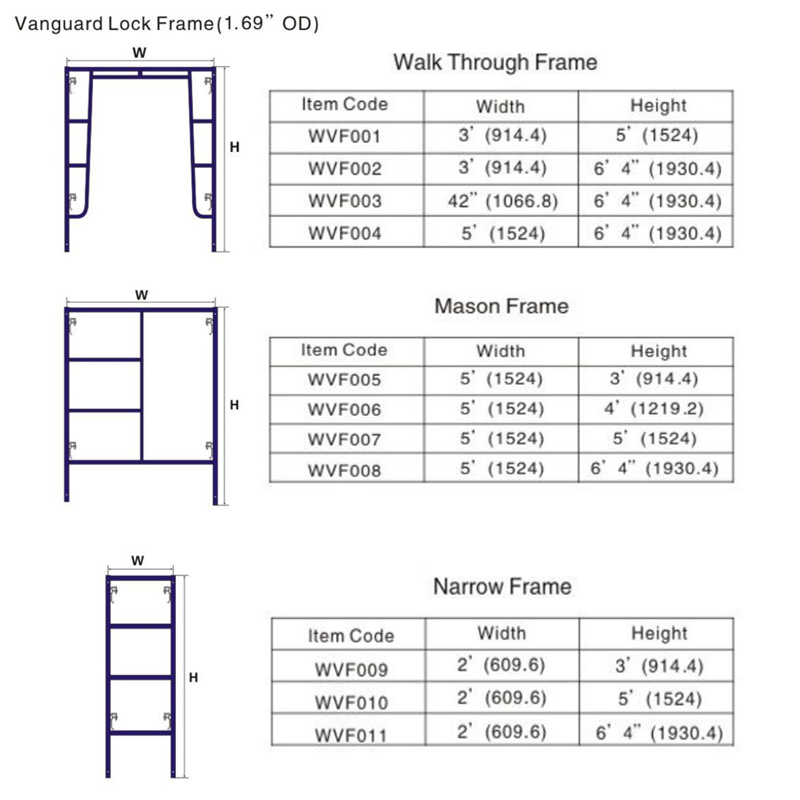

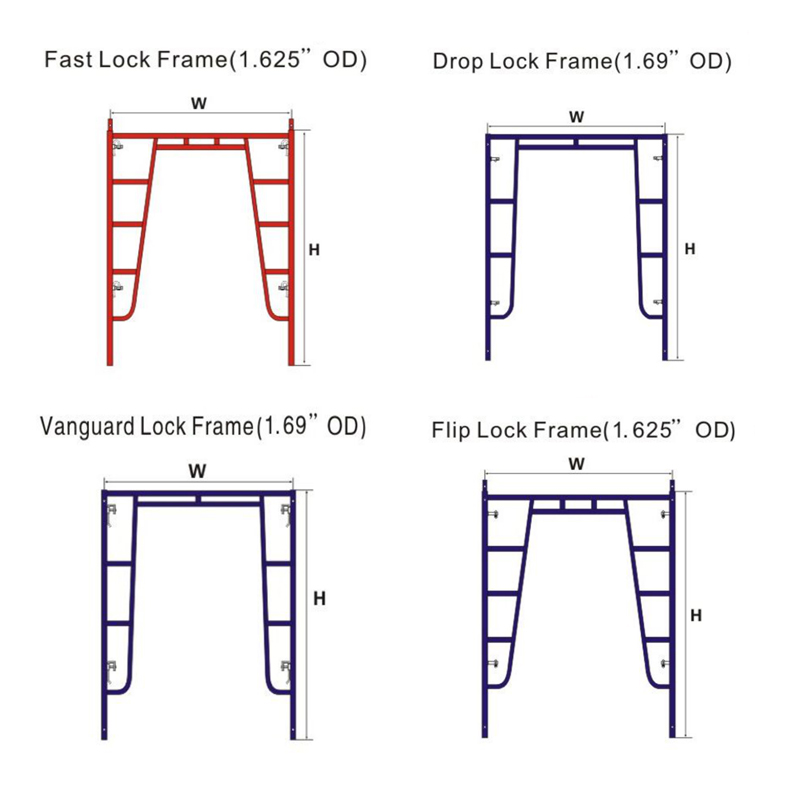

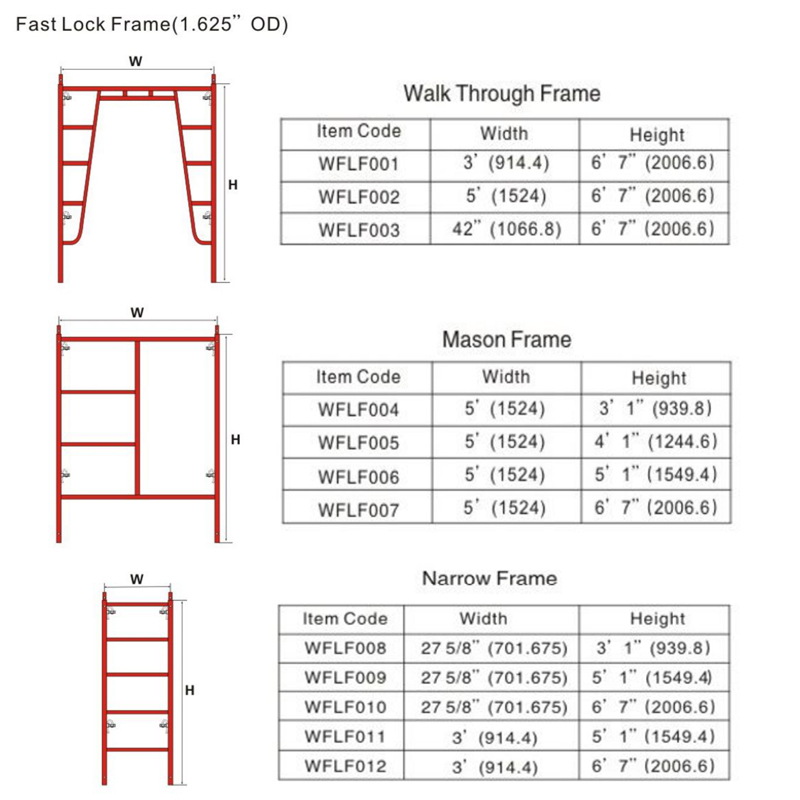

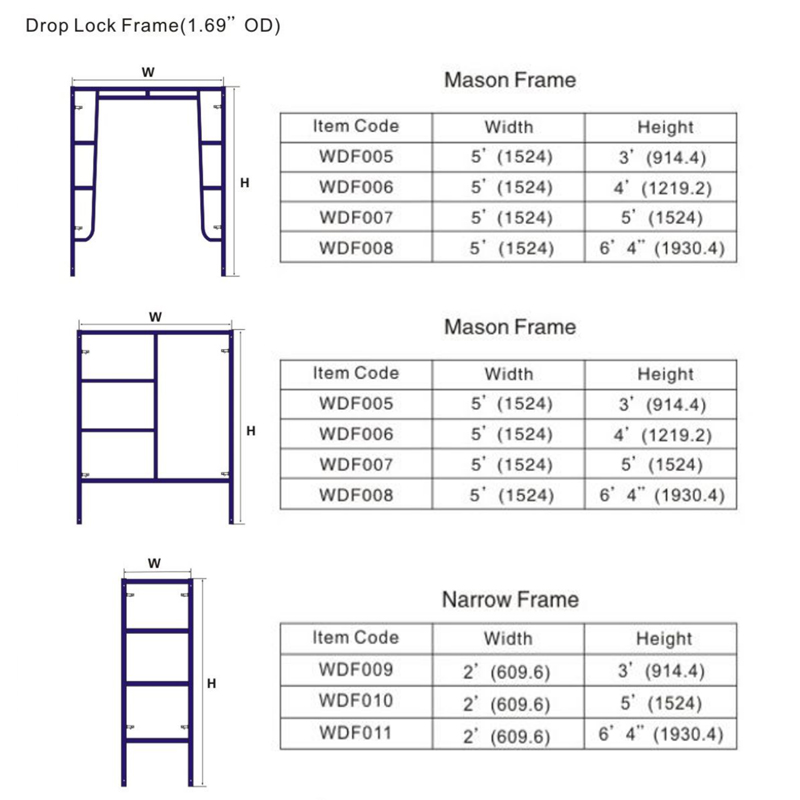

Types | Ladder Frame/Step Frame/Mason Frame/Walkthrough Frame/Euro Frame |
Material | Q235/Q345 |

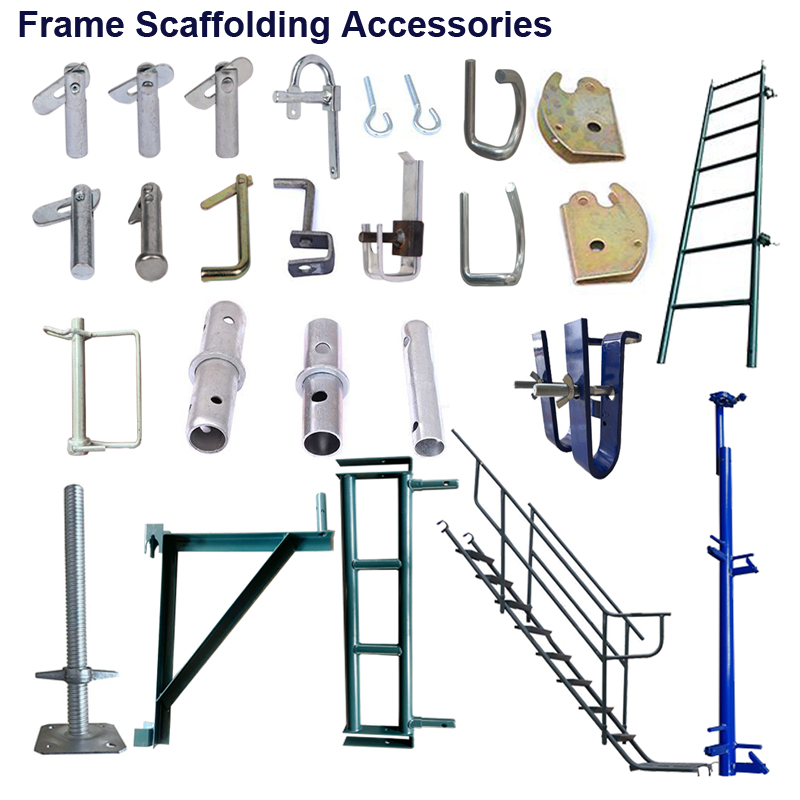

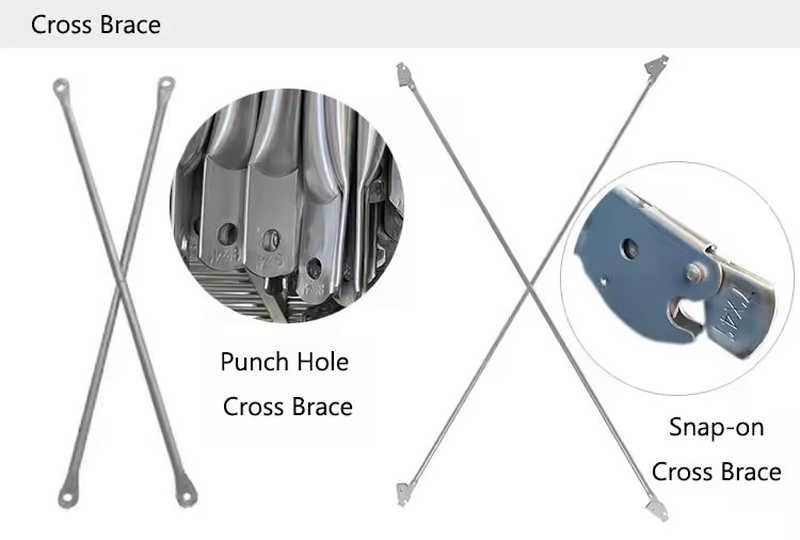

Component | Frame,Cross Brace,base Jack,Coupling pin |
Surface Treatment | Hot dip galvanized/Powder Coated |
Pallet | In Bundle or customized |

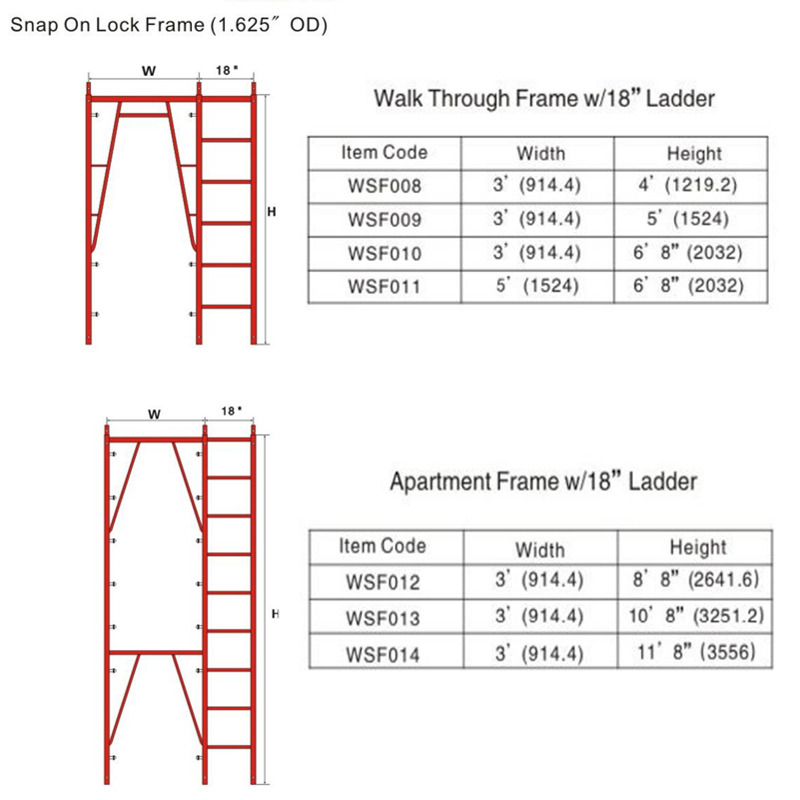

Pipe Diameter Thickness(mm) | Width & Height(mm) | Weight (kg) |
φ41.3*2.3/φ32*2 | 914*2641 | 20.3 |
φ41.3*2.3/φ32*2 | 609*3251 | 22.2 |
φ41.3*2.3/φ32*2 | 914*3251 | 24.8 |
φ41.3*2.3/φ32*2 | 609*1524 | 12.3 |
φ41.3*2.3/φ32*2 | 914*1219 | 10.9 |
φ41.3*2.3/φ32*2 | 914*1524 | 13.2 |
φ42.7*2.3/φ32*2 | 914*2032 | 15.9 |
φ41.3*2.3/φ32*2 | 609*2032 | 15 |
φ41.3*2.3/φ32*2 | 1524*2286 | 25.5 |
φ41.3*2.3/φ32*2 | 914*2006 | 18.5 |
φ41.3*2.3/φ32*2 | 1524*2006 | 21.6 |
φ41.3*2.3/φ32*2 | 1524*2032 | 19.2 |
φ41.3*2.3/φ32*2 | 609*2641 | 18.9 |
φ41.3*2.3/φ32*2 | 1524*1930 | 23.5 |
Frame scaffolding features:
1, widely used, indoor and outdoor decoration, store billboards, Bridges, building support, wall scaffolding and so on.
2, multi-function can be single use, double use, can move, simple and fast to use.
3, high efficiency, flexible, fast disassembly and assembly, no screws, has achieved twice the efficiency with half the effort.
4. Large bearing capacity and good stability.

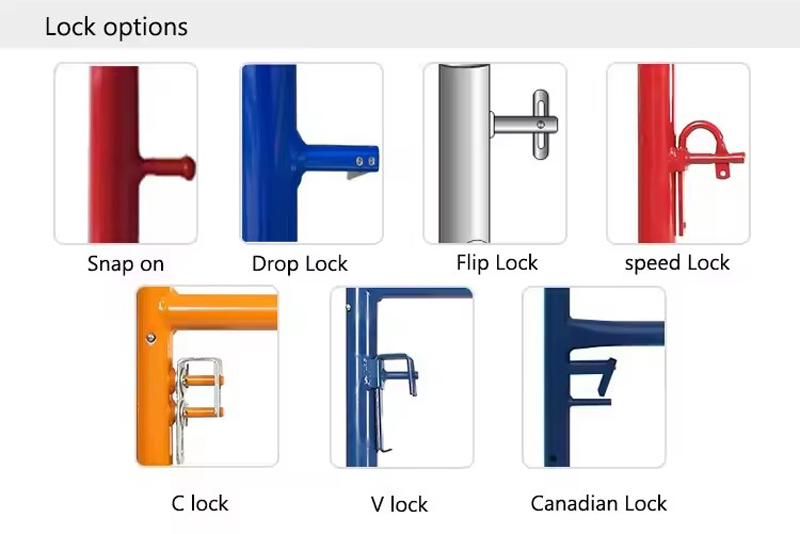

5, safe and reliable, joint self-locking ability is good, series standardization.
6, easy to manage, stacked neatly.
7, economical and practical, low cost, small space, long use time.
