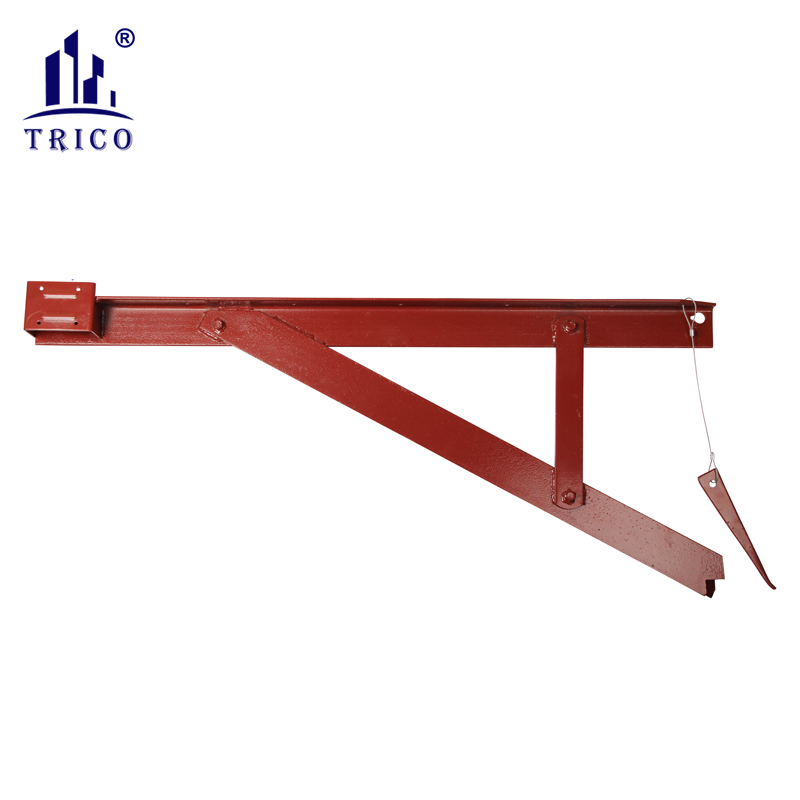

TRICO, Inc's Hand-Set Scaffolding Bracket is used to support walkways. To use, place a wedge bolt into the slot into the scaffolding bracket, lock the wedge bolt with the s-wedge, and make sure the clevis at the bottom of the bracket straddles the side rails for proper bearing and alignment.
Steel-Ply is the most widely accepted, pre-engineered, modular formwork system in use today. It can be reused 200 times after timely replacement of plywood, and is compatible with all other industry standard formwork forming systems. It is designed for maximum versatility and can be used to form virtually any concrete structure. Steel-Ply specialty forms are used for Bulkhead Forming, Haunch Forming, Pilaster, Adjustable Pilaster Forms, and Culvert Forms.

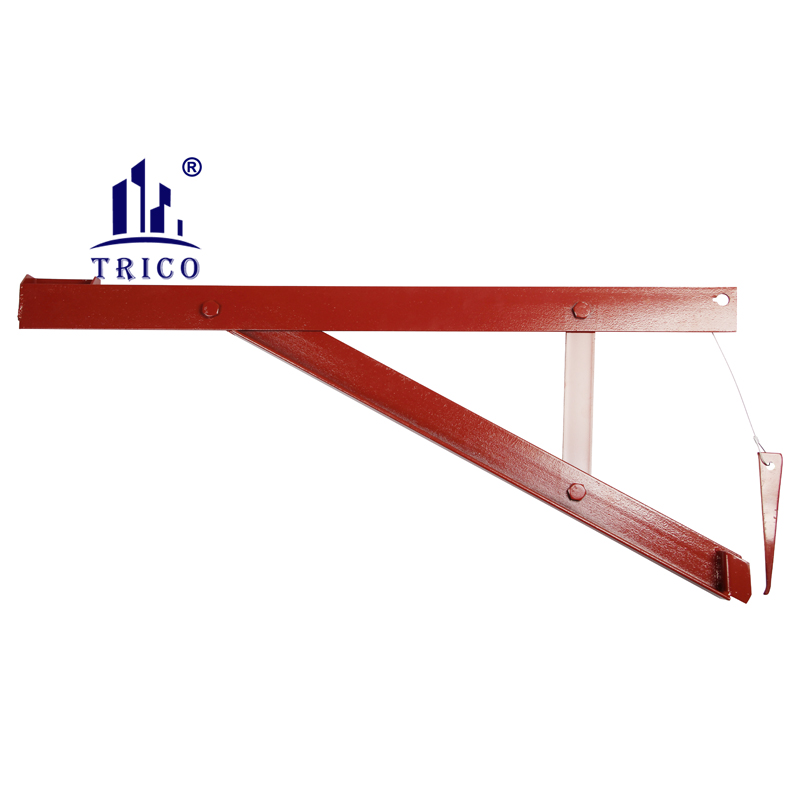

Scaffolding Bracket
TRICO, Inc's Hand-Set Scaffolding Bracket is used to support walkways. To use, place a wedge bolt into the slot into the scaffolding bracket, lock the wedge bolt with the s-wedge, and make sure the clevis at the bottom of the bracket straddles the side rails for proper bearing and alignment.
Easy assembly
Safe working load: 500 lbs.
Made from high strength steel.
| Product | Picture | Weight | Surface | Packing |
| Scaffolding Bracket |  | 7.2kg | Painted | Pallet |
| Product | Picture | Size(Inch) | Size(Inch) | Size(Inch) |
Symons Formwork
|
| 2"x4' | 2"x6' | 2"x8' |
| 4"x4' | 4"x6' | 4"x8' | ||
| 6"x4' | 6"x6' | 6"x8' | ||
| 8"x4' | 8"x6' | 8"x8' | ||
| 10"x4' | 10"x6' | 10"x8' | ||
| 12"x4' | 12"x6' | 12"x8' | ||
| 14"x4' | 14"x6' | 14"x8' | ||
| 16"x4' | 16"x6' | 16"x8' | ||
| 18"x4' | 18"x6' | 18"x8' | ||
| 20"x4' | 20"x6' | 20"x8' | ||
| 22"x4' | 22"x6' | 22"x8' | ||
| 24"x4' | 24"x6' | 24"x8' | ||
| American Standard Available | ||||
| Product | Picture | Size(Inch) | Size(Inch) |
Inside Corner
|  | 4"x4"x3' | 6"x6"x3' |
| 4"x4"x4' | 6"x6"x4' | ||
| 4"x4"x5' | 6"x6"x5' | ||
| 4"x4"x6' | 6"x6"x6' | ||
| 4"x4"x7' | 6"x6"x7' | ||
| 4"x4"x8' | 6"x6"x8' | ||
| Product | Picture | Size(Inch) | Size(Inch) |

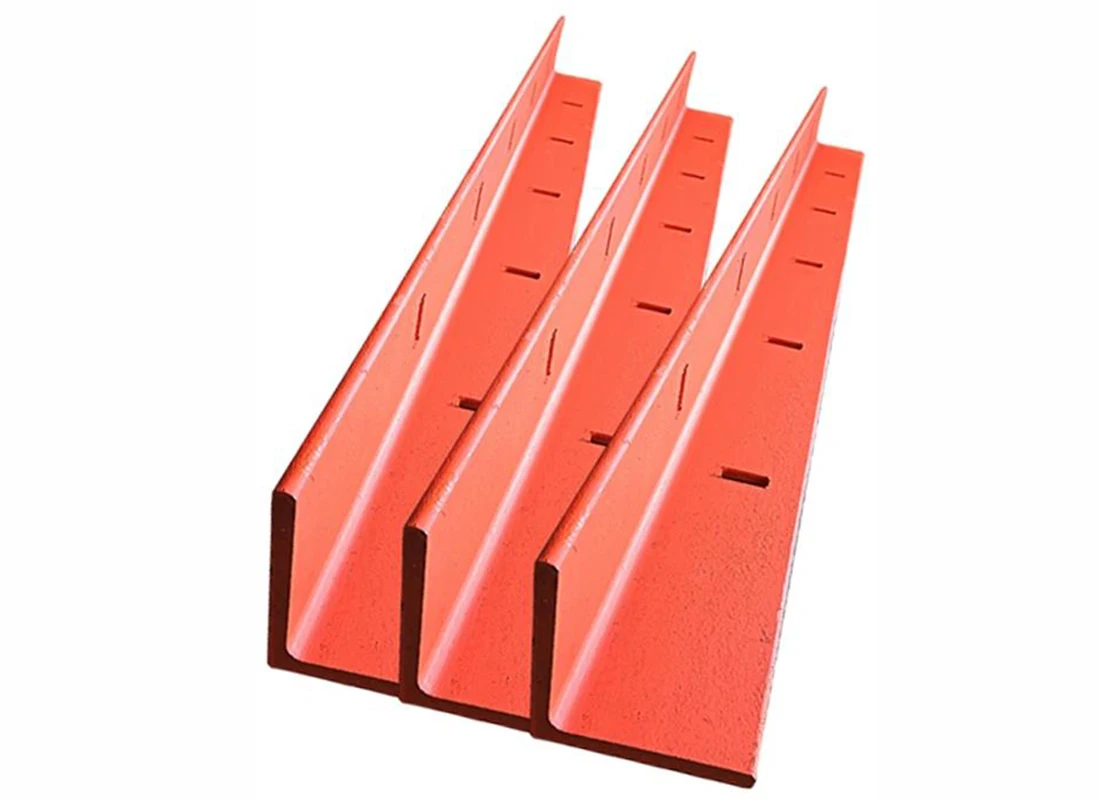

Outside Corner
|  | 2.5"x2.5"x3' | 2.5"x2.5"x4' |
| 2.5"x2.5"x5' | 2.5"x2.5"x6' | ||
| 2.5"x2.5"x7' | 2.5"x2.5"x8' | ||
| Product | Picture | Size(Inch) | Size(Inch) |

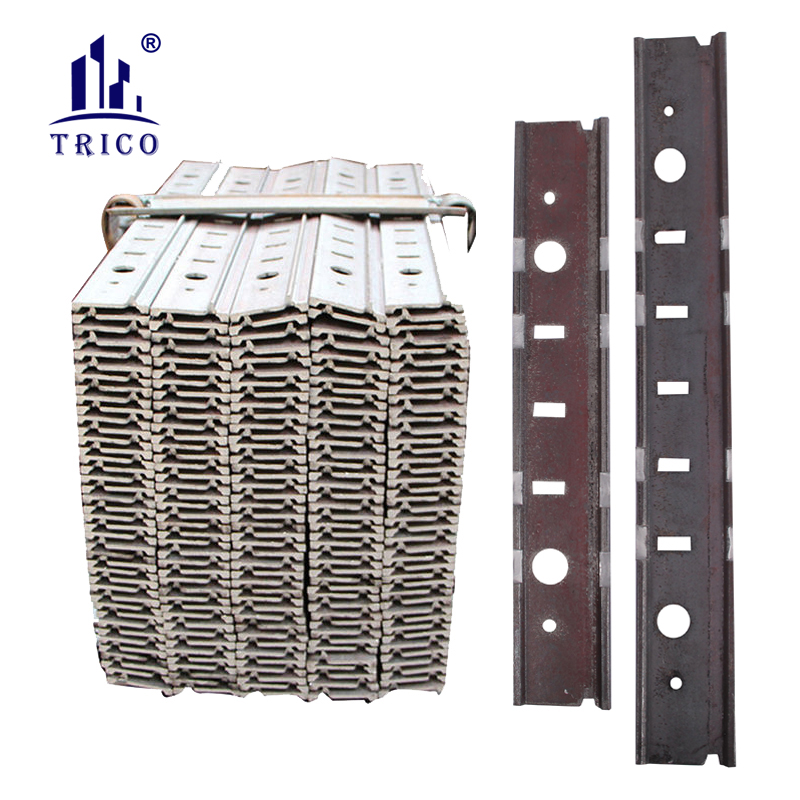

Punching F Steel Bar
|  |
F4" F6" F8" F10" F12" F14" F16"
| F18" F20" F22" F24" F48" F60" F72" |
| Steel Ply Forming System Accessories | ||||
| Product | Picture | Specification | Material | Feature |
| X Flat Tie |  | Wall Tickness 6"-48" Other Sizes Support | Steel #45
| Ultimate Load 6000lbs |
| Wedge Bolt |  | Short Wedge Bolt | Steel #45 | Heat Treatment |
| Standard Wedge Bolt | ||||
| Long Wedge Bolt | ||||
| ADJ Wedge Bolt | ||||
| Ply Spacer |  | 3/4", 1-1/8" 6-12" | Carbon Steel | High Quality |
| Shore Clamp |  | 4*4, Painted | Carbon Steel | High Quality |
| One Piece Waler Clamp |  | 837g, Galvanized | Carbon Steel | High Quality |
| Z Tie Holder |  | 325g, Red Painted | Carbon Steel | High Quality |
| Turnbuckle Aligner |  | 1.Standard Type /Heavy Duty Type 2. Bend Head/Flat Head | Carbon Steel | Steel Angel /Four Steel Bar |
| Other Formwork System | Formwork Tie Rod System | |||
| Aluminum Formwork System | ||||
| Snap Tie System | ||||
Symons Formwork Advantages:
• Designed to form both straight and radius walls
• No special tools required - just a hammer
• System may be handset or assembled into gangs
• Most popular concrete forming system in the America

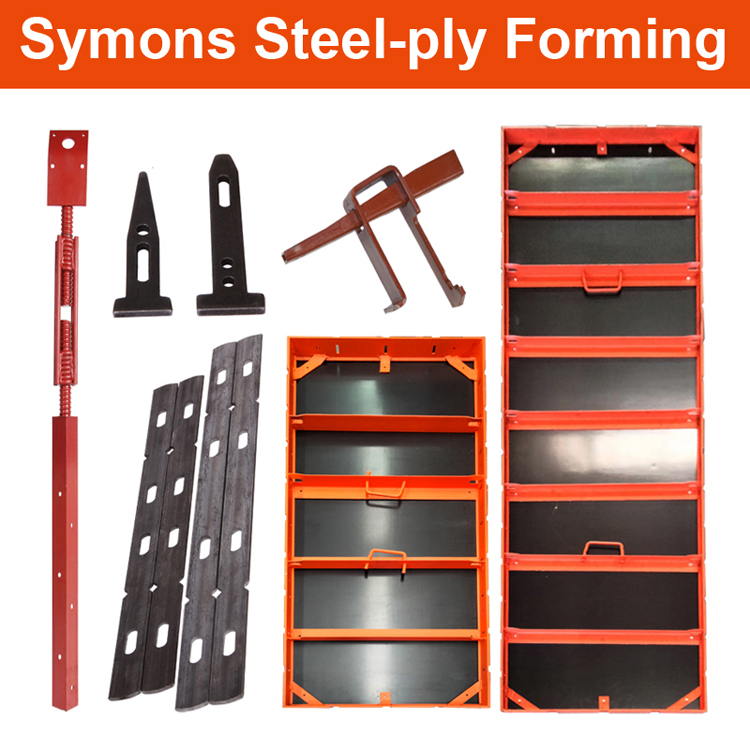

TRICO is steel-ply forming system formwork manufacturer in China. You can find all parts & accessories of the steel-ply forming system in our factory. Related accessories include x flat tie, wedge bolt,turnbuckle form aligner and Clamp.
The steel-ply formwork is a pre-engineered, factory-built, reusable concrete forming system. It may be used in handset or gang form applications, for commercial or residential structures. The Steel-Ply forming system can form walls of almost any shape or size, with accessories for special structures and details. This symons seel ply forms system is more productive and economical than job-built plywood formwork or other forming methods.
Steel-Ply Saves Time The Steel-Ply forming system saves time because it is easy to set up and strip. No measuring, sawing, drilling, or nailing is required. Minimal training is needed, so workers are quickly up to maximum efficiency. The only tool required for setup and stripping is a hammer.
The steel ply forms is equally ideal for commercial or residential structures. It uses standard sizes that can be combined to form almost any dimension. With more than 80 panel and filler sizes, this system offers maximum versatility no matter how they are combined. They can be handset or gang-formed horizontally or vertically. They can also be used for curved walls. This flexibility enables contractors to conserve materials and benefit from savings.
