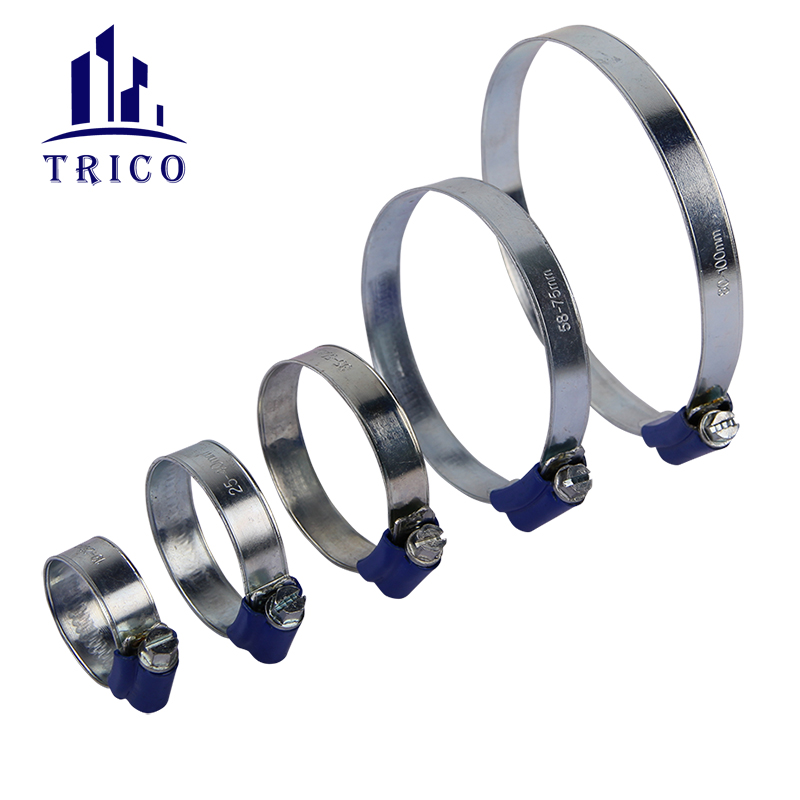

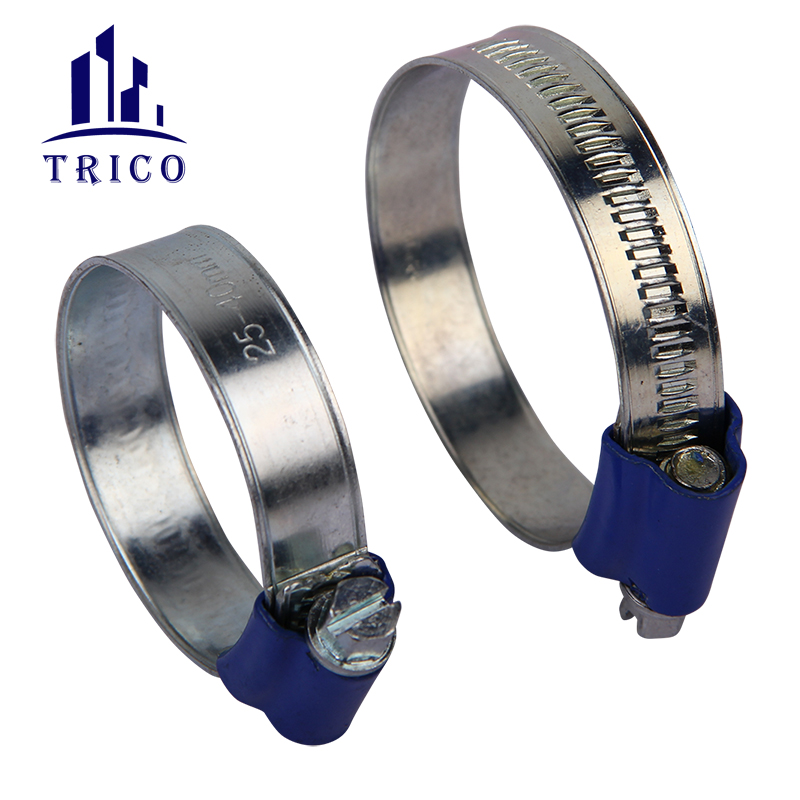

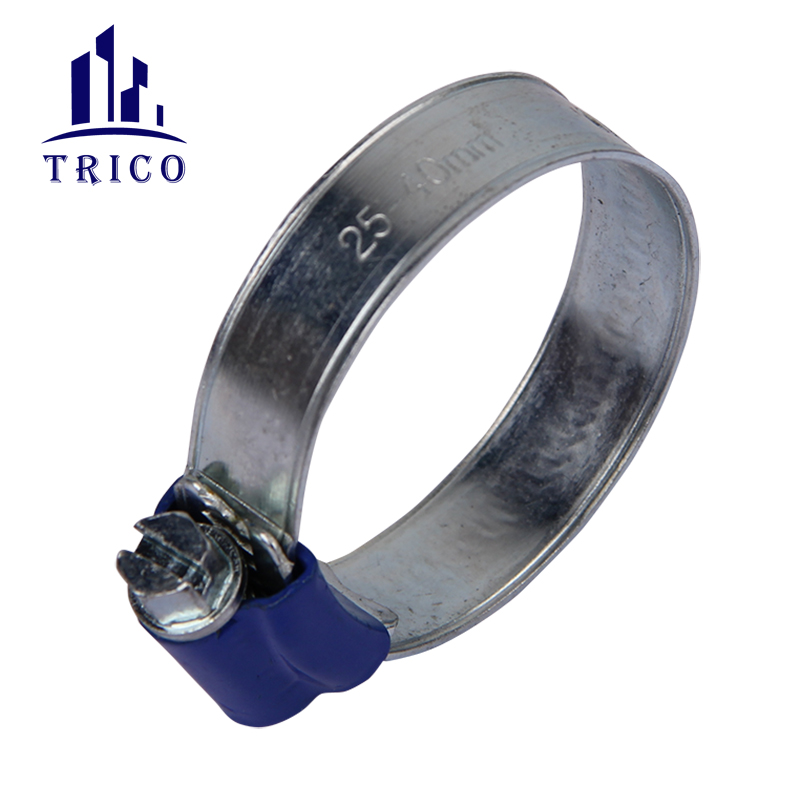

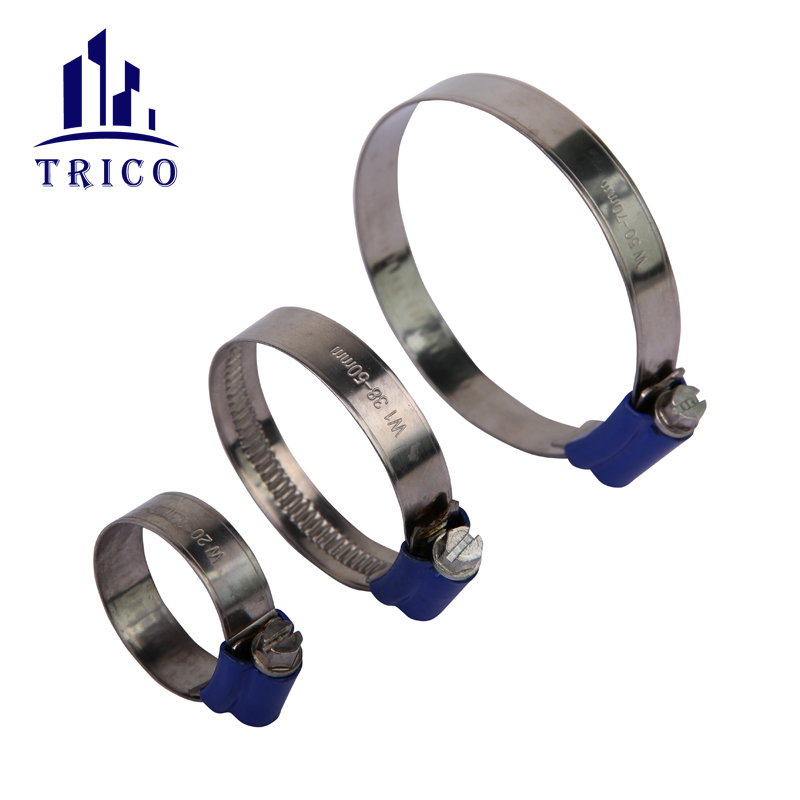

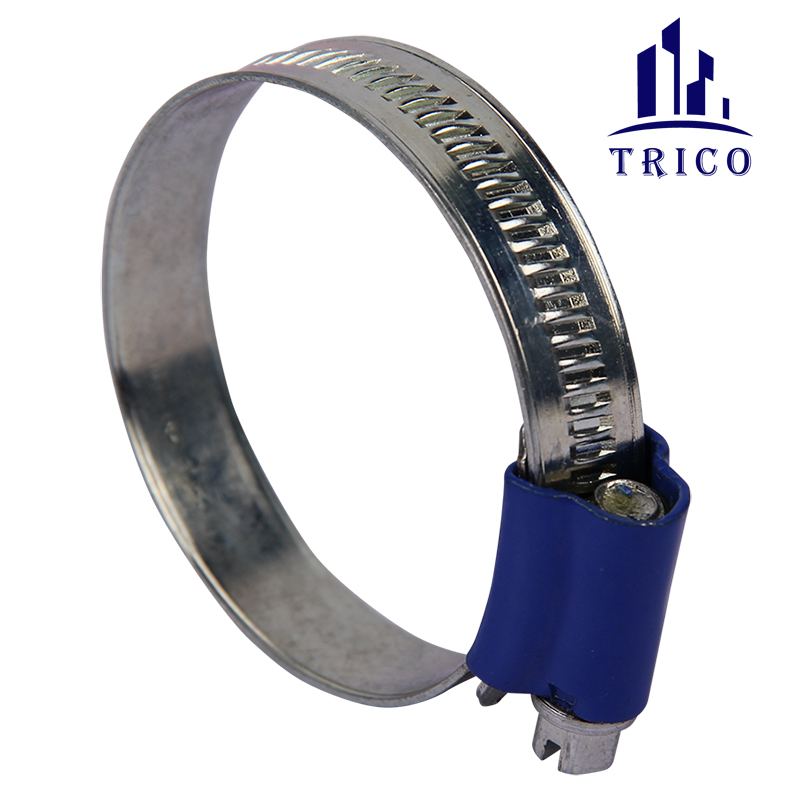

Blue Housing British Type Hose Clamp
  • Blue Housing British Type Hose Clamp
  • Blue Housing British Type Hose Clamp
  • Blue Housing British Type Hose Clamp
  • Blue Housing British Type Hose Clamp
  • Blue Housing British Type Hose Clamp
Blue Housing British Type Hose ClampBlue Housing British Type Hose ClampBlue Housing British Type Hose ClampBlue Housing British Type Hose ClampBlue Housing British Type Hose Clamp

Blue Housing British Type Hose Clamp

Product Introduction:

British Type Hose Clamp with Blue Hosing

Rolled-up bang edges anf a non-perforated (embossed) band that protects the hose; Features high clamping force and high durability torque ; A non-perforated band with rolled up edges eliminates hose damage while increasing clamping force;

For salt water and many other highly corrosive environments


Product Details

Blue Housing British Type Hose Clamp

Blue Hosing British Type Hose Clamp

Material:  W1 Series (All the parts are carbon steel)

               W2 Series (Band is SS200 or 300,housing and screw is

               carbon steel)

               W4 Series (All the parts are SS200 or 300)

               W5 Series (All the parts are SS316)

Size

(mm)

Bandwidth*Thickness

 (mm)

Pcs/BagPcs/Ctn

Ctn Size

(cm)

G. W./Ctn

(kg)

Torque

(N .m)

9.5-129.7*0.8100100031*24*1910.55≥4
10-169.7*0.8100100031*24*1911.40≥4
13-199.7*0.8100100031*24*2411.65≥4
16-259.7*0.8100100031*24*2412.05≥4
19-2911.7*0.9100100040*27*2920.01≥6.5
22-3211.7*0.950100040*27*2920.50≥6.5
25-3811.7*0.95050040*27*2712.00≥6.5
32-4411.7*0.95050040*27*2713.20≥6.5
35-5111.7*0.95050038*27*2915.00≥6.5
38-5711.7*0.95050038*27*2415.50≥6.5
44-6411.7*0.92550040*37*2816.50≥6.5
51-7011.7*0.92525040*27*299.89≥6.5
64-76
11.7*0.92525040*27*2910.25≥6.5
70-8911.7*0.91025038*27*3411.50≥6.5
76-9211.7*0.91025038*27*3411.82≥6.5
85-100
11.7*0.91025045*30*3012.85≥6.5
90-11011.7*0.91025040*37*3514.00≥6.5
100-12011.7*0.91020040*37*3512.10≥6.5
110-13011.7*0.91020040*37*3512.80≥6.5
120-140
11.7*0.91020040*37*3513.60≥6.5
120-15011.7*0.91020040*37*4014.20≥6.5
135-16511.7*0.91020040*37*4015.50
≥6.5
