Steel formwork refers to the use of steel panels, frames, and props to create a temporary mold or framework for pouring concrete structures. It is a popular choice for constructing large and complex structures such as high-rise buildings, bridges, and tunnels.
Trico is a steel formwork supplier in China. Our steel formwork is strong and easy to assemble. You can find uniform sizes of the steel formwork.

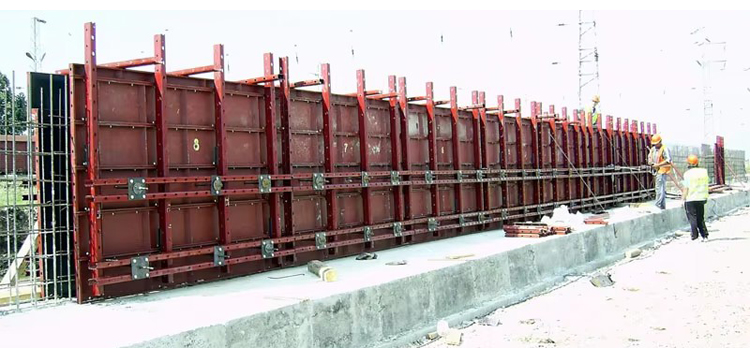

The steel formwork system is popularly used in heavy civil construction as a temporary structure frame for concrete pouring.
As a formwork and scaffolding manufacturer supplier with 35 years of experience, we offer high-quality steel formwork & accessories for your concrete formwork slabs, walls, and columns.
You can find complete components & parts of the steel formwork system in one stop. Send us your steel formwork and metal panel requirements to get an immediate price.
Type | Steel Formwork For Concrete Construction |
Color | The regular color is red, other colors are available |

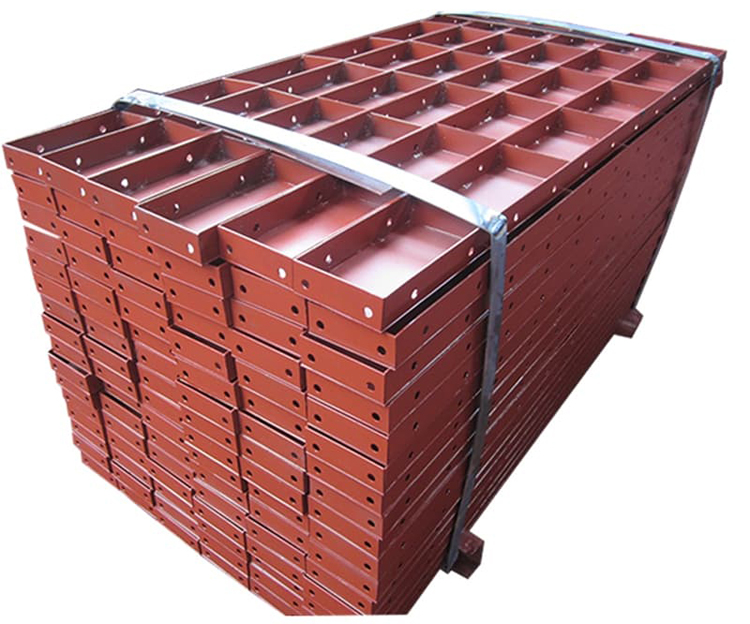

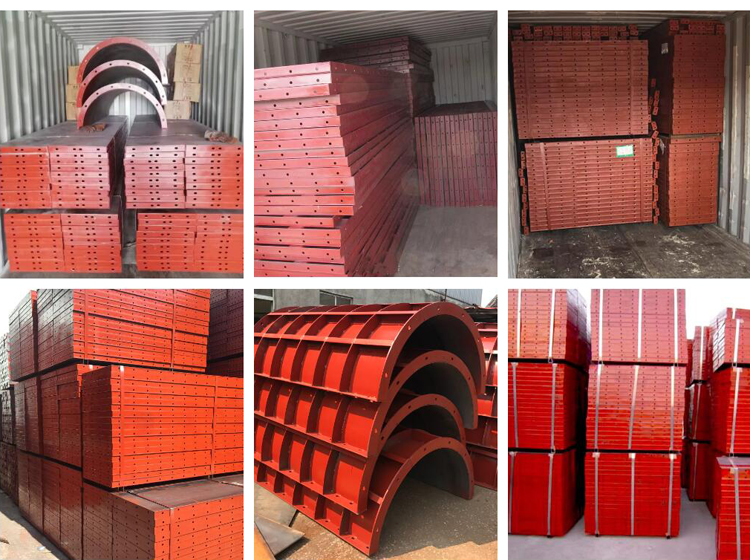

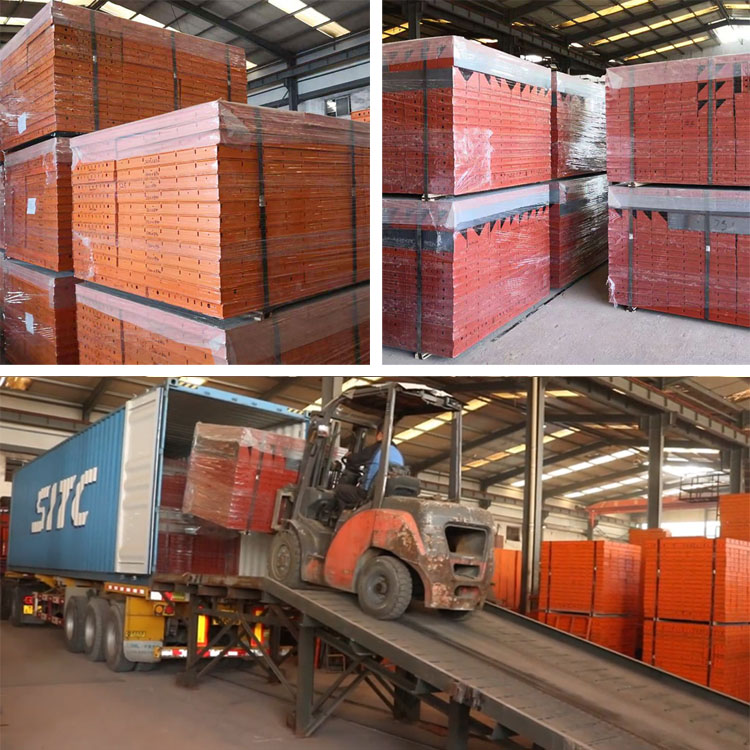

Packing | 1*20ft: about 20tons (regular type steel formwork) |
Material | Q235 steel |
Thickness | 3mm |
Width of Rib | 55mm |
Surface Treatment | Painted |
Production Capacity | 1000 tons per month |

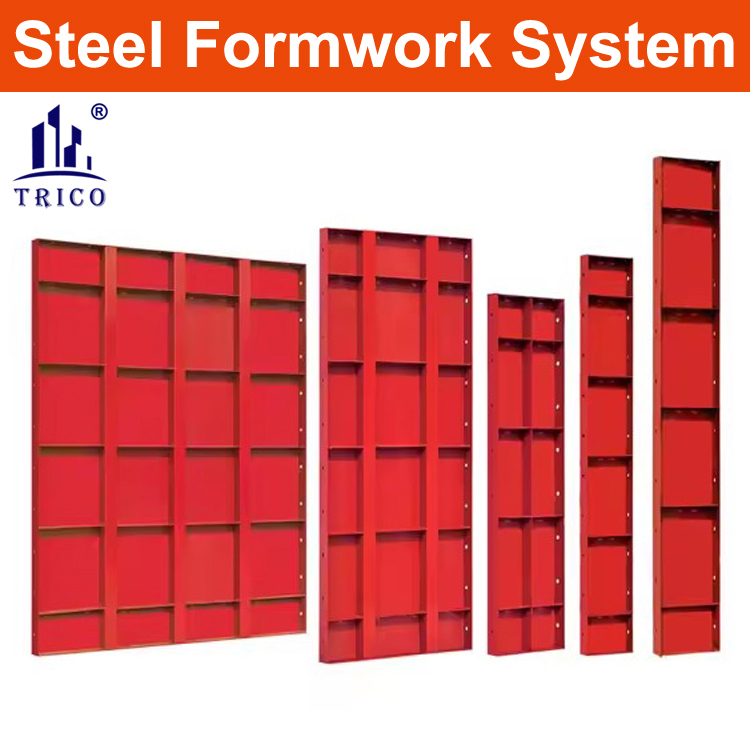

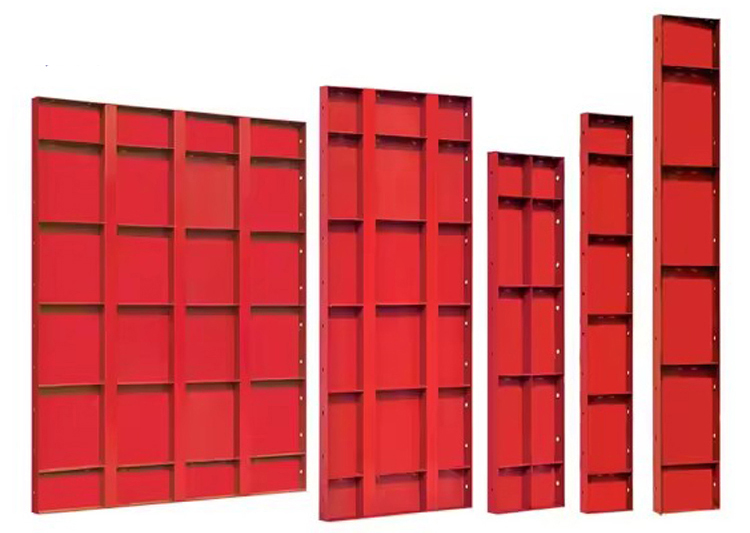

Steel Formwork Flat Panel (Metal Forms)
Flat Forms - These are used for forming plane surfaces. They are fabricated into rectangular panels of various standard widths and lengths.
Code No. | Size and Specifications (mm) | Code No. | Size and Specifications (mm) |
TRFP3018 | 300mmx1800mm | TRFP2018 | 200x1800mm |
TRFP3015 | 300mmx1500mm | TRFP2015 | 200x1500mm |
TRFP3012 | 300mmx1200mm | TRFP2012 | 200x1200mm |
TRFP3009 | 300mmx900mm | TRFP2009 | 200x900mm |
TRFP3007 | 300mmx750mm | TRFP2007 | 200x750mm |
TRFP3006 | 300mmx600mm | TRFP2006 | 200x600mm |
TRFP1518 | 150x1800mm | TRFP1218 | 125x1800mm |
TRFP1515 | 150x1500mm | TRFP1215 | 125x1500mm |
TRFP1512 | 150x1200mm | TRFP1212 | 125x1200mm |
TRFP1509 | 150x900mm | TRFP1209 | 125x900mm |
TRFP1507 | 150x750mm | TRFP1207 | 125x750mm |
TRFP1506 | 150x600mm | TRFP1206 | 125x600mm |
TRFP1018 | 100x1800mm | TRFP1009 | 100x900mm |
TRFP1015 | 100x1500mm | TRFP1007 | 100x750mm |
TRFP1012 | 100x1200mm | TRFP1006 | 100x600mm |
Steel Formwork Panel Outer Corner Form
These are used for forming external angles by combining 2 flat forms into a right-angled corner.
Picture | Code No. | Size and Specifications (mm) | Code No. | Size and Specifications (mm) |
TRCF5518 | 150x150x1800mm | TRCF0518 | 100x150x1800mm | |
TRCF5515 | 150x150x1500mm | TRCF0515 | 100x150x1500mm | |
TRCF5512 | 150x150x1200mm | TRCF0512 | 100x150x1200mm | |
TRCF5509 | 150x150x900mm | TRCF0509 | 100x150x900mm | |
TRCF5507 | 150x150x750mm | TRCF0507 | 100x150x750mm | |
TRCF5506 | 150x150x600mm | TRCF0506 | 100x150x600mm | |
TRCF0503 | 100x150x300mm |

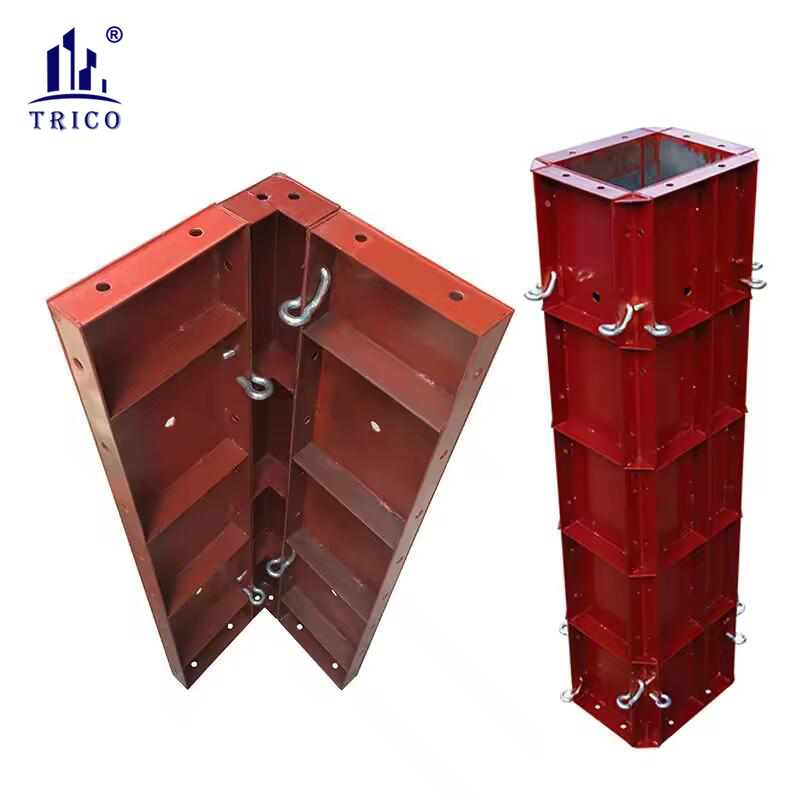

Steel Formwork Panel Square Forms (Inner Corner)
Inner Corner Forms - These are used for forming inner right-angled corners of a structure
Picture | Code No. | Size and Specifications (mm) | Code No. | Size and Specifications (mm) |
TRCF5518 | 150x150x1800mm | TRCF0518 | 100x150x1800 | |
TRCF5515 | 150x150x1500mm | TRCF0515 | 100x150x1500 | |
TRCF5512 | 150x150x1200mm | TRCF0512 | 100x150x1200 | |
TRCF5509 | 150x150x900mm | TRCF0509 | 100x150x900 | |
TRCF5507 | 150x150x750mm | TRCF0507 | 100x150x750 |
Concrete Shuttering Works Metal Form Conner Angle
Corner Angles - These are used for forming external angles by combining 2 flat forms into a right-angled corner.
Picture | Code No. | Size and Specifications (mm) |
TRCA0015 | 1500mm | |
TRCA0012 | 1200mm | |
TRCA0009 | 900mm | |
TRCA0007 | 750mm | |
TRCA0006 | 600mm |

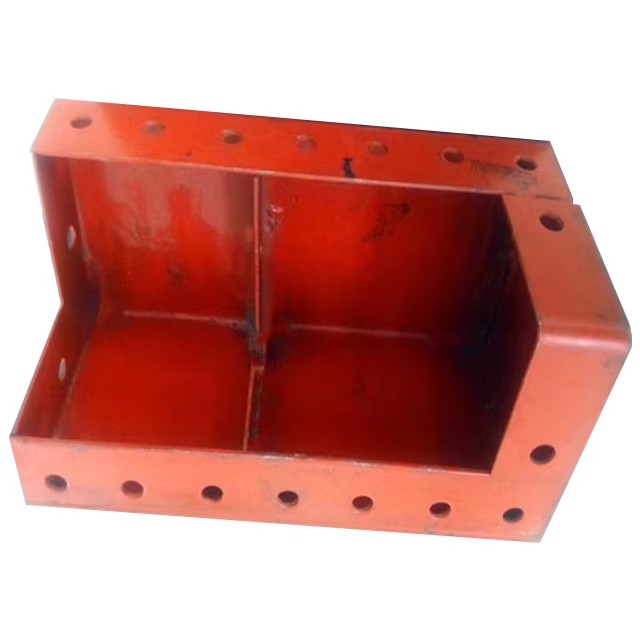

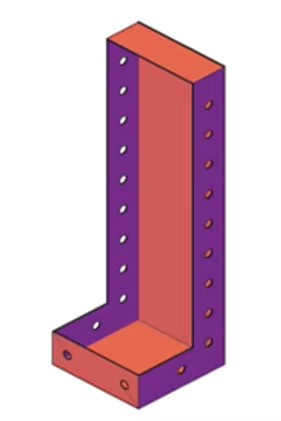

L-Shape Forms Parameters
These are short inner corner forms for forming and short lengths of right-angle corners of the structure. They consist of two form faces of various dimensions.
Picture | Code No. | Size and Specifications (mm) |
TRL1015A | 100*300*150mm | |
TRL1015B | 100*350*150mm | |
TRL1015C | 100*400*150mm | |
TRL1015D | 100*450*150mm | |
TRL1015E | 100*500*150mm | |
TRL1515A | 150*300*150mm | |
TRL1515B | 150*350*150mm | |
TRL1515C | 150*400*150mm | |
TRL1515D | 150*450*150mm |
Square Corner Forms
These are used for connecting inner corner forms of L-shaped forms (S-Forms) at the intersection of 3 surfaces.
Picture | Code No. | Size and Specifications (mm) |
TRS1515A | 150*300*150mm | |
TRS1515B | 150*350*150mm | |
TRS1515C | 150*400*150mm | |
TRS1515D | 150*450*150mm | |
TRS1515AA | 100*325*150mm | |
TRS1515BB | 100*375*150mm | |
TRS1515CC | 100*425*150mm | |
TRS1515DD | 100*475*150mm |
Trico Steel Formwork

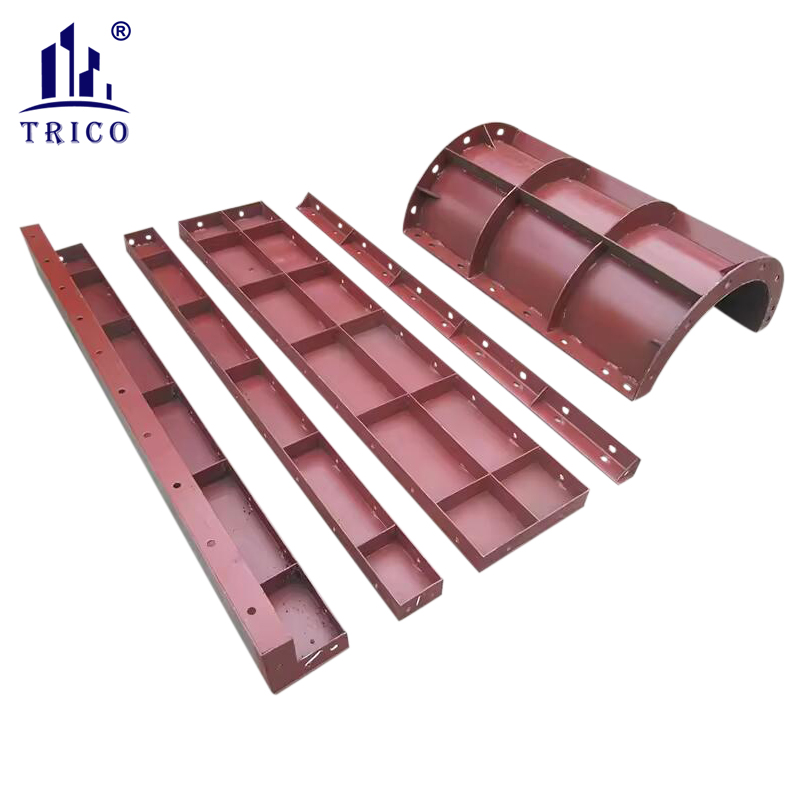

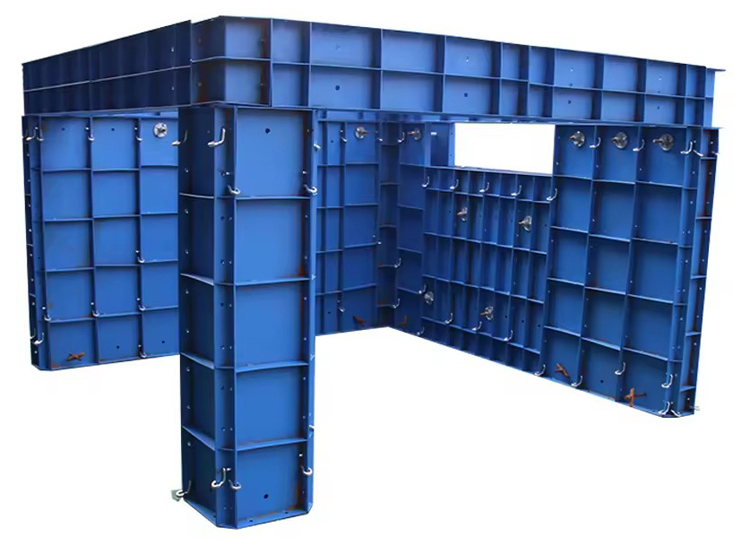

Trico’s steel formwork is a modular formwork system with uniform sizes of metal formwork flat panels, inside and outside corners, steel angels, etc.
Steel formwork U clips are the components connected by steel formwork panels together with formwork accessories like couples and bars.
We test the steel formwork materials and components from start till finished products to ensure all of our steel formwork materials are work safety and stable in construction concrete slab and wall forming.

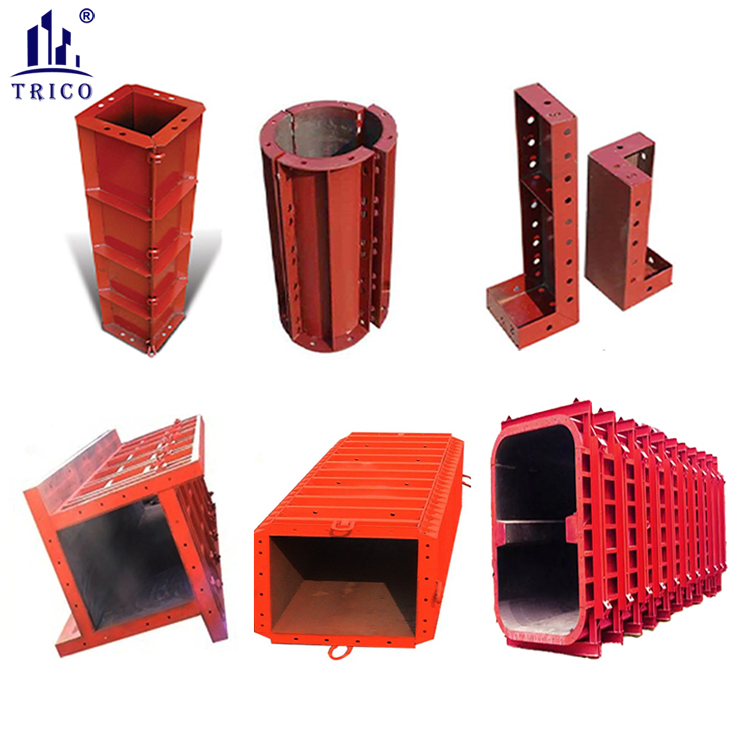

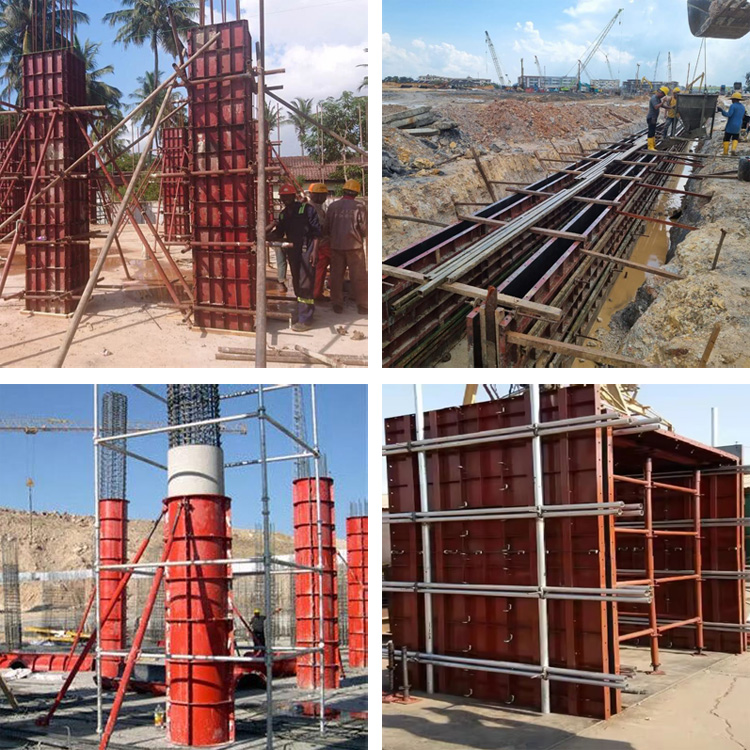

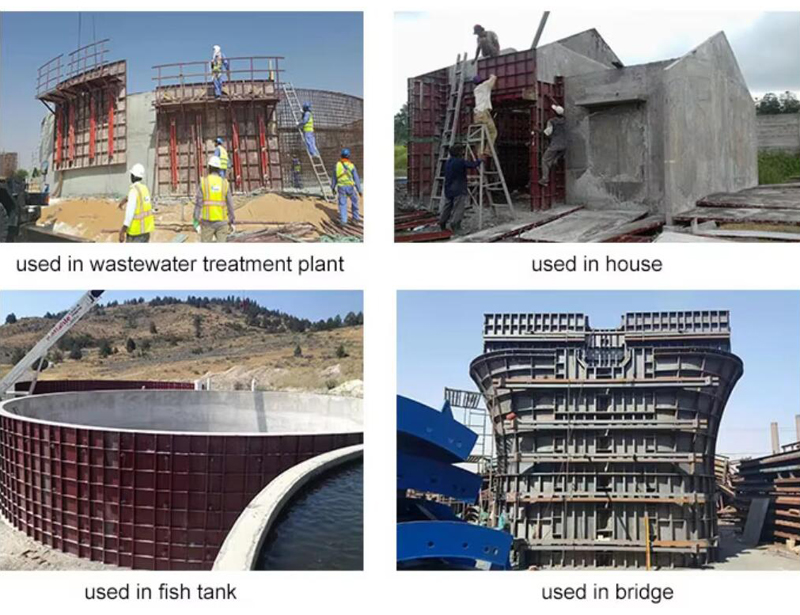

Our steel formwork panels are used in all types of formwork construction concrete & shuttering. Include Wall Formwork, Beam Formwork, Slab Formwork, and Column Formwork.

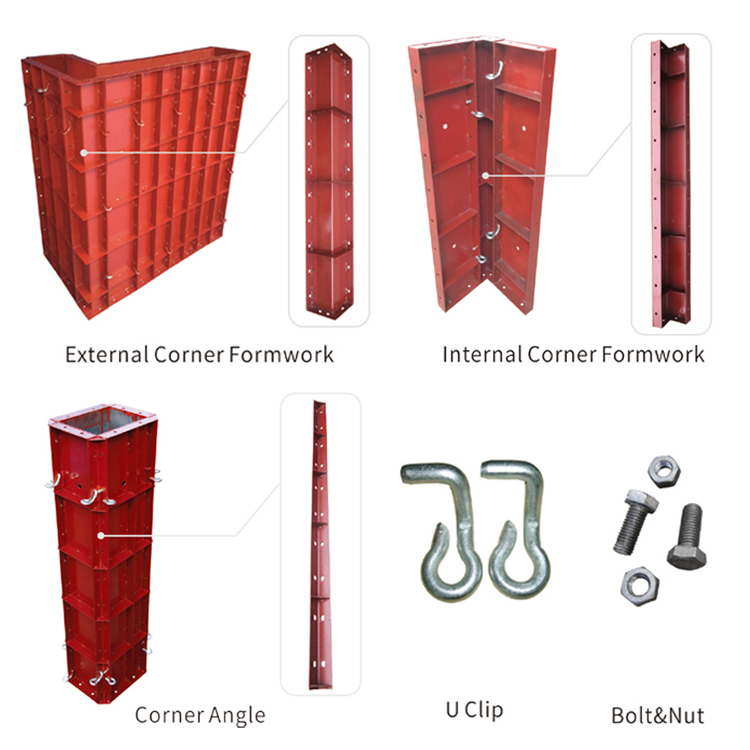

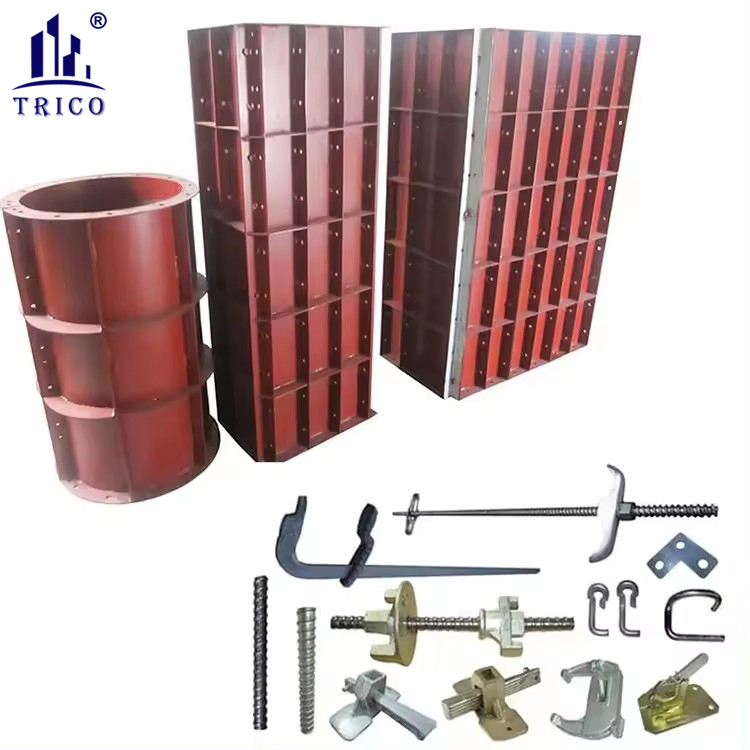

You can find from Trico the complete parts of the steel formwork system. Include flat metal panels, inside and outside corners, steel angles, u clips and butterfly nuts, tie bars, etc.
Falsework products like push-pull props and scaffolding material are able to be used together with the steel formwork system that supplies additional support for concrete formwork.
The use of steel formwork offers several advantages over traditional formwork materials like wood or plywood. Steel is more durable and long-lasting, making it a cost-effective choice for larger construction projects. It is also reusable, which helps reduce construction waste and increases efficiency. Steel formwork can be easily assembled and disassembled, making it a convenient option for construction sites that require frequent changes.
Details of Concrete Metal Formwork/Steel Formwork
1. Concrete metal formwork is made of a Q235 steel plate which is a heavy/light-duty formwork system for concrete walls, beams, slabs, and columns.
2. There are some ribs in the middle of the metal formwork which can strengthen the formwork more steadily.
3. Coined edge can help to form a perfect concrete finish without bubbles.
4. Metal formwork is spray painted against rustiness which can be reusable many times.
5. Metal formwork is the all-around panel for many construction areas.
Ideal for all big and small construction sites' requirements Metal Formwork Features: Strong build: to support heavy weight and high quality finish compatible: compatible to suit any flat surface architectural and structural features Reusable: can be re-used up to 300 times Recyclable: can be 100% recyclable.
