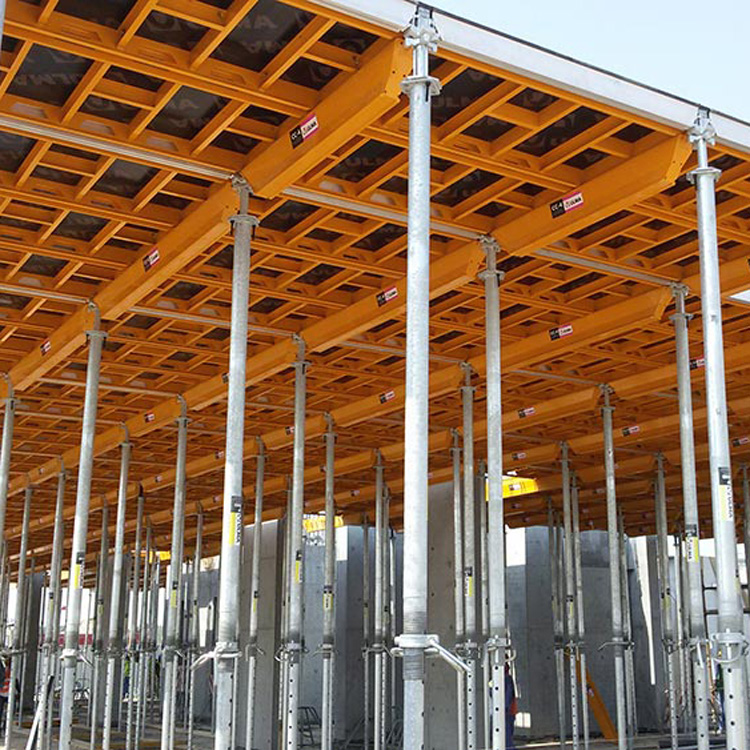

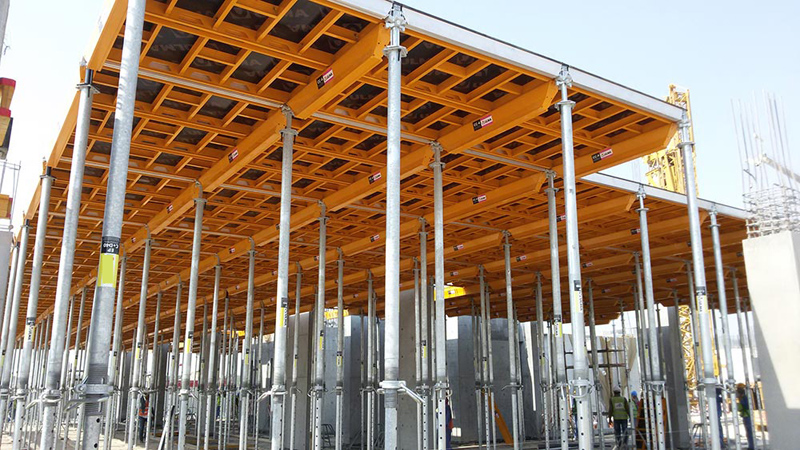

In the construction project, the formwork support structure used for concrete cast-in-place construction, generally adopts steel shoring props to build scaffolding to form bracket support, and cooperate with steel formwork for concrete construction.
Heavy Duty Adjustable Scaffolding Steel Formwork Construction Jack

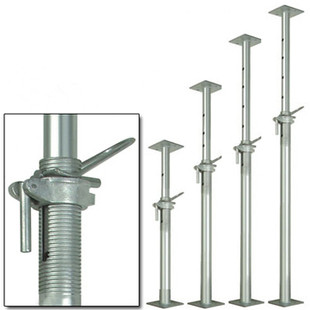

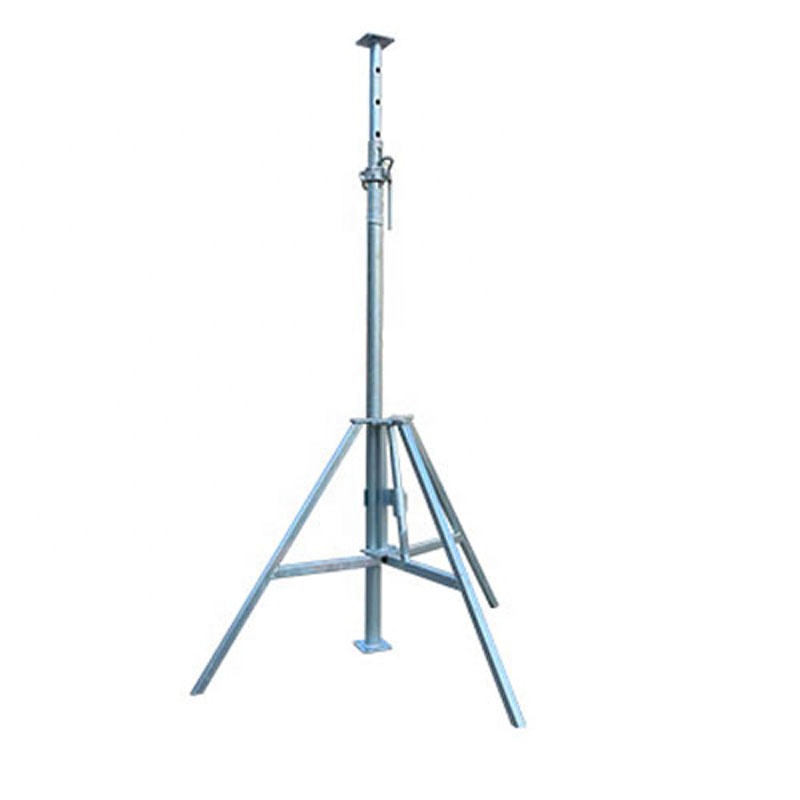

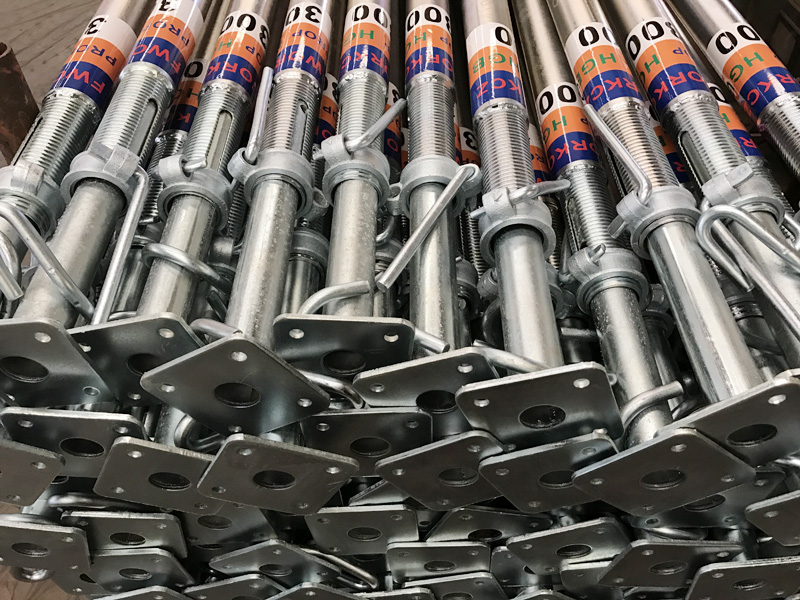

(1)Steel prop is mainly made of bottom plate, outer tube, inner tube, swivel nut,cotter pin, upper plate and the accessories of folding treipod, head jack, the structure is simple and flexible.
(2)The structure of steel prop is simple, so it is easy to assemble and disassemble.
(3)Steel prop is adjustable because the inner tube can extend and shrink in the outer tube, so it can be adjusted according to the required height.
(4) The steel prop can be reused. Even though it is out of work, the material can also be recycled.
(5)Steel prop can be adjusted according to the different height of the construction.
Item | Adjustable steel prop |
Type | Heavy duty / Light duty |
Inner pipe/ Outer pipe | 48/60mm, 40/48mm, 48/56mm |
Pipe thickness | 1.6-4.0mm |
Normal length | 1.7-3m / 2.1-3.8m / 2.2-4m / 2.7-5m |

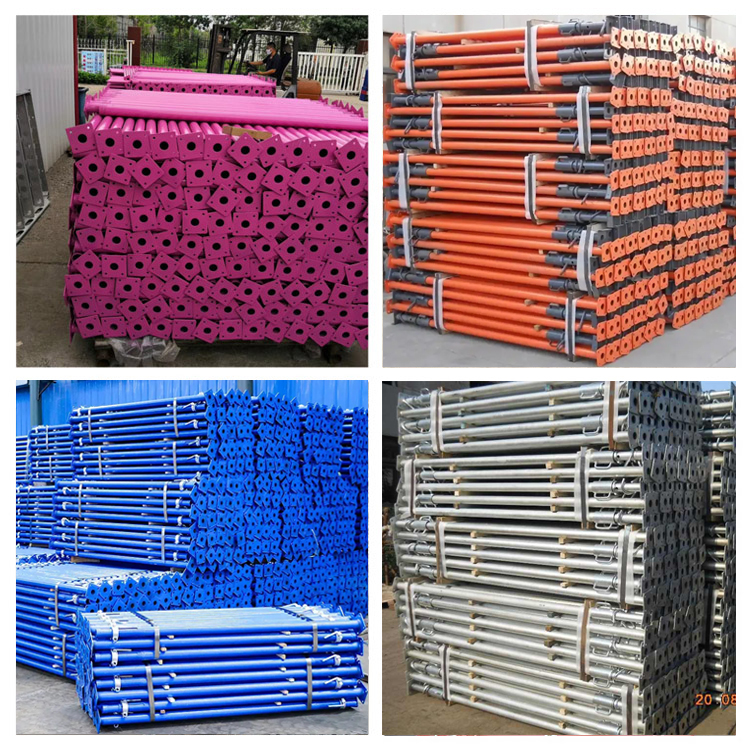

Surface treatment | Pre-galvanized/ painted/powder coated/hot dip galvanized |
Material | Q235 |
Application | Construction |

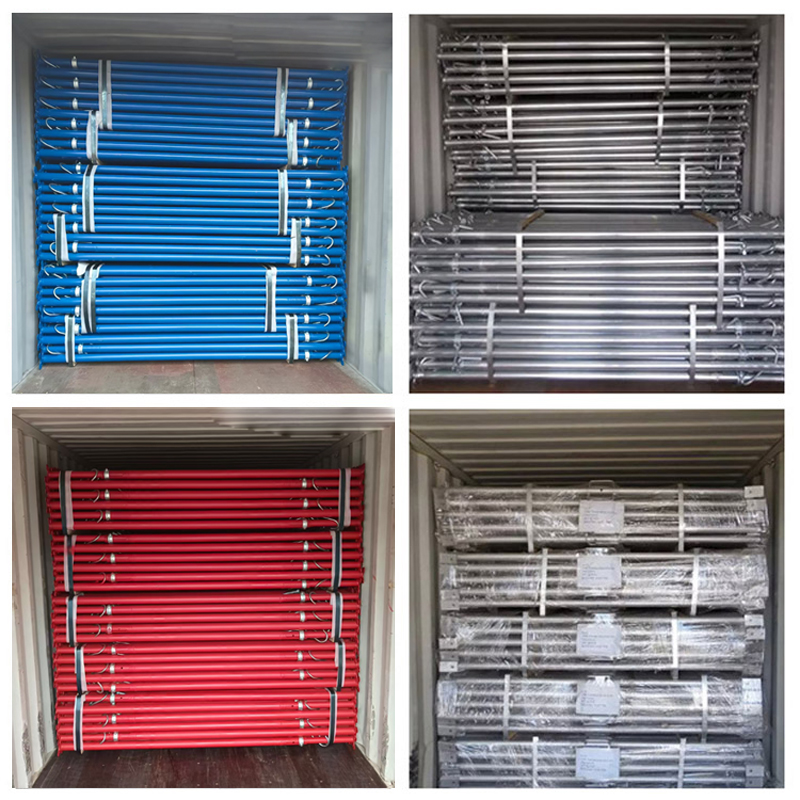

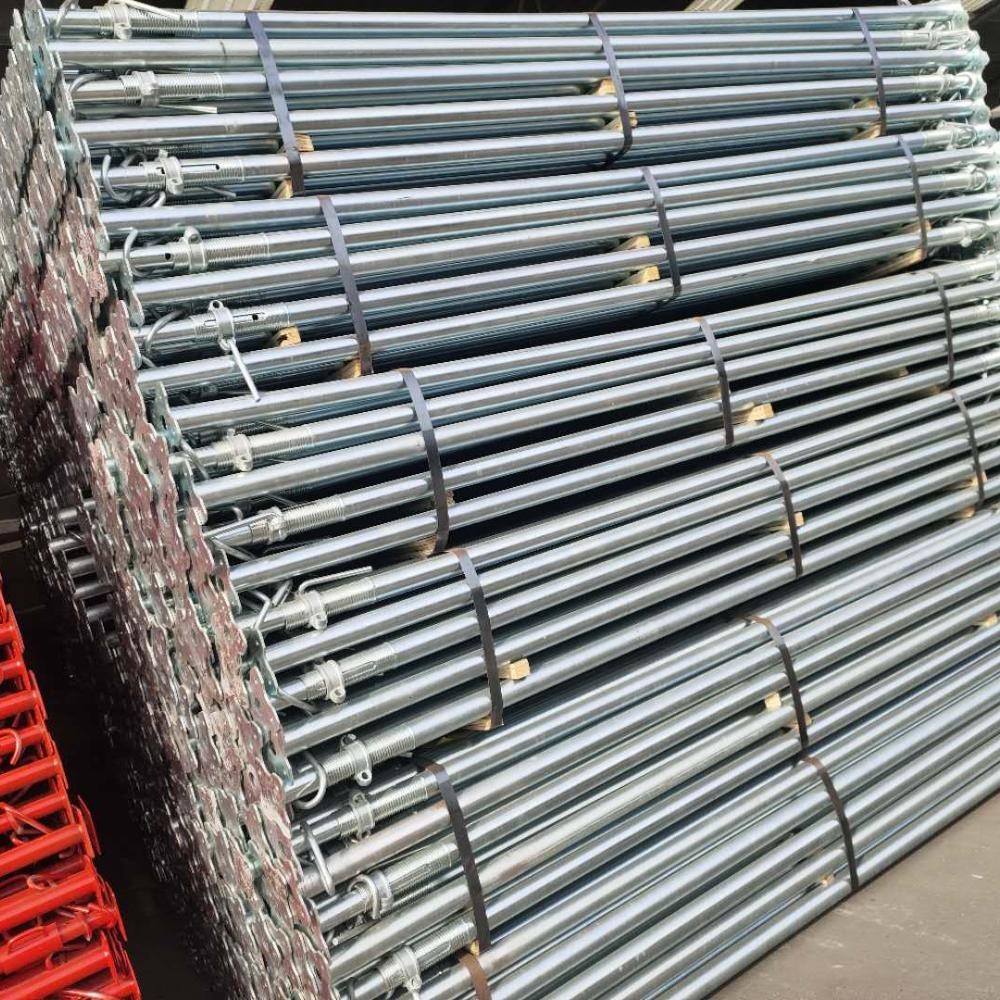

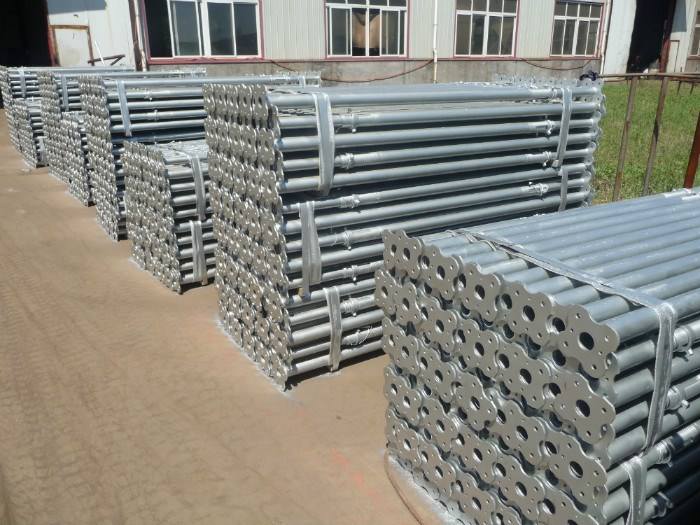

Packing | Bundle |
Certificate | SGS |
Prduction Capacity | 1500 tons per month |

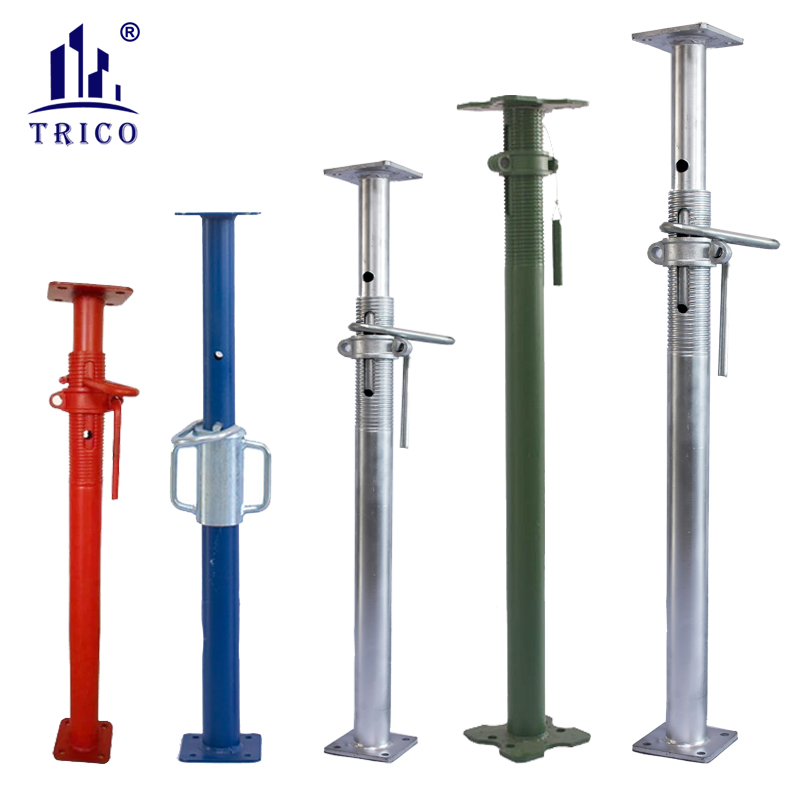

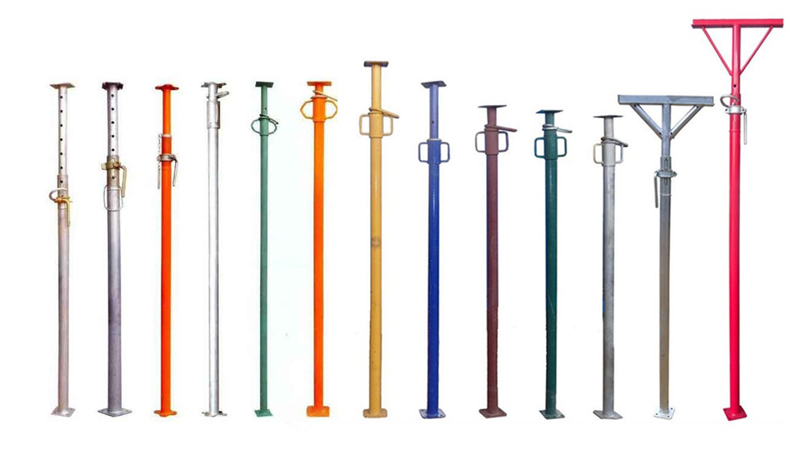

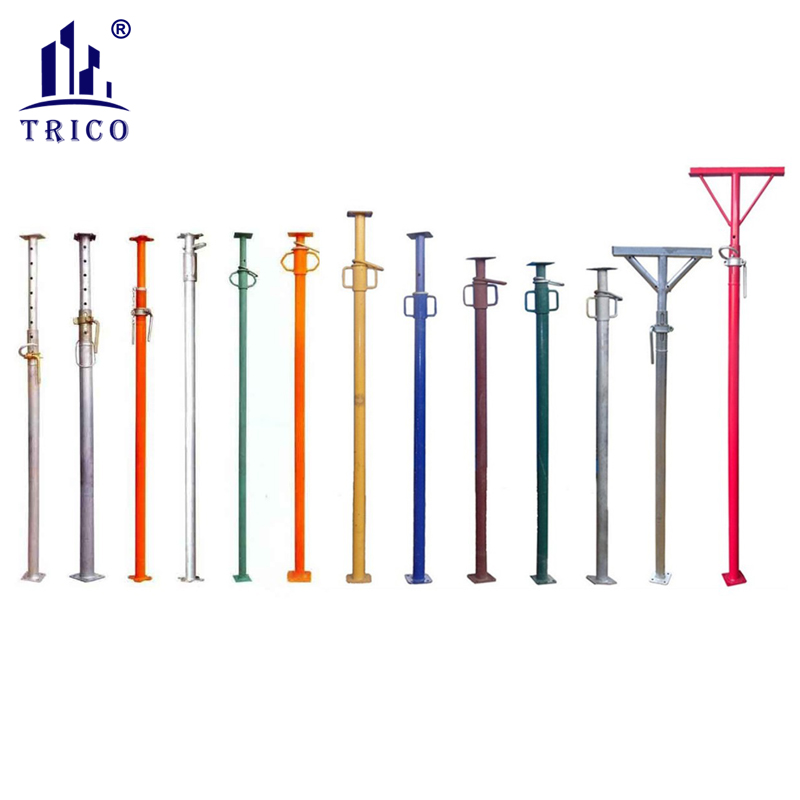

Trico is an adjustable steel prop manufacturer in China. You can find from us lightweight adjustable steel props, heavy-duty props and medium-duty props.
Trico manufactures adjustable steel props according to EN 1065 Standard. In Manufacturing, the adjustable steel props fabrication quality is controlled according to CE (ISO3834 & EN1065) and ISO 9001 Standard.
Send us your adjustable steel props requirement to get a competitive price by import directly from Trico.
Light duty prop - Spanish prop | ||||
Min Height | Max Height | Inner Tube | Outer Tube | Tube Thk |
0.6m | 1.1m | 40mm | 48mm | 1.6-2.5mm |
0.8m | 1.4m | 40mm | 48mm | 1.6-2.5mm |
1.6m | 2.9m | 40mm | 48mm | 1.6-2.5mm |
1.8m | 3.2m | 40mm | 48mm | 1.6-2.5mm |
2.0m | 3.6m | 40mm | 48mm | 1.6-2.5mm |
2.2m | 4.0m | 40mm | 48mm | 1.6-2.5mm |
Light duty prop - Italian prop | ||||
Min Height | Max Height | Inner Tube | Outer Tube | Tube Thk |
1.6m | 2.9m | 48mm | 56mm | 1.6-2.5mm |
1.8m | 3.2m | 48mm | 56mm | 1.6-2.5mm |
2.0m | 3.5m | 48mm | 56mm | 1.6-2.5mm |
2.0m | 3.6m | 48mm | 56mm | 1.6-2.5mm |
2.2m | 4.0m | 48mm | 56mm | 1.6-2.5mm |
Heavy duty prop - Middle east prop | ||||
Min Height | Max Height | Inner Tube | Outer Tube | Tube Thk |
1.6m | 2.9m | 48mm | 60mm | 1.6-4.0mm |
1.8m | 3.2m | 48mm | 60mm | 1.6-4.0mm |
2.0m | 3.5m | 48mm | 60mm | 1.6-4.0mm |
2.0m | 3.6m | 48mm | 60mm | 1.6-4.0mm |
2.2m | 4.0m | 48mm | 60mm | 1.6-4.0mm |
3.0m | 5.0m | 48mm | 60mm | 1.6-4.0mm |
3.5m | 6.0m | 48mm | 60mm | 1.6-4.0mm |

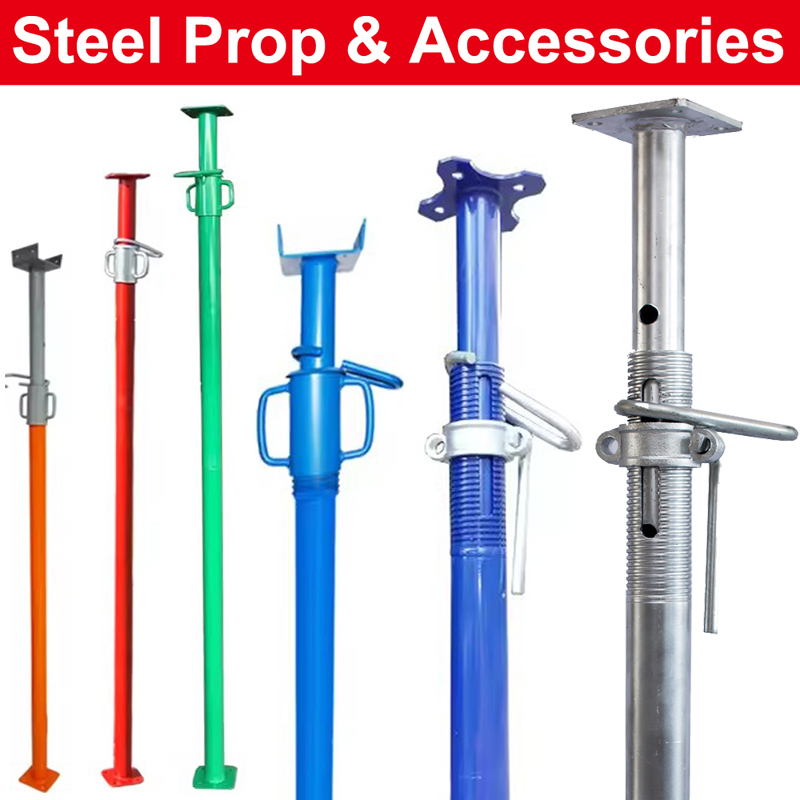

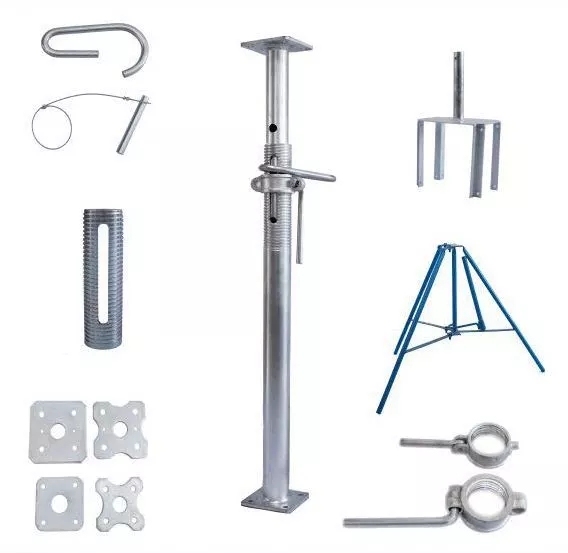

We also provide a complete set of steel prop accessories of Top Plate, Base Plate,Inner pipe,outer pipe, Prop etc.

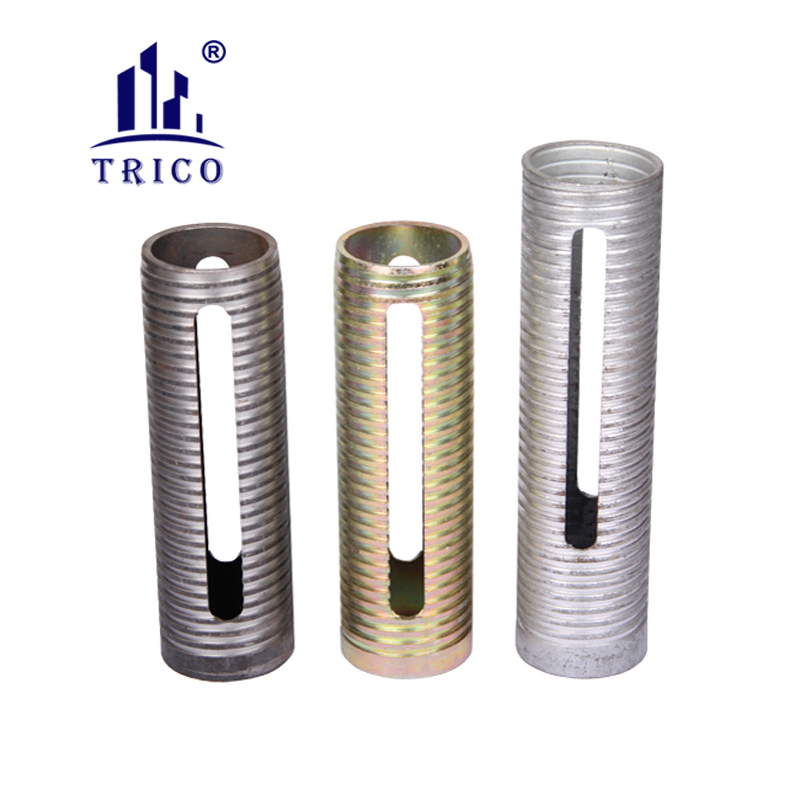

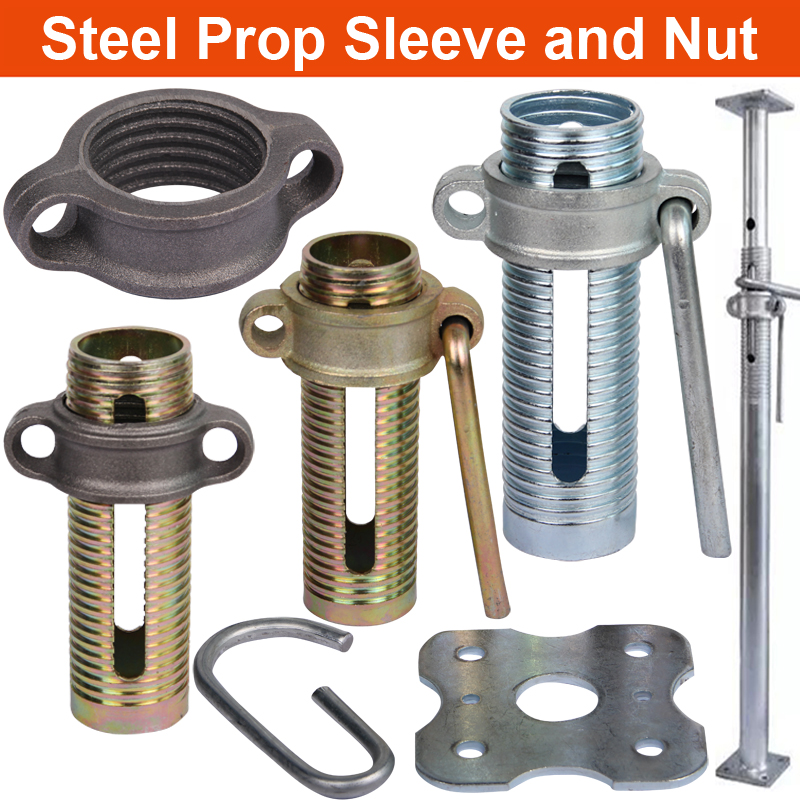

Adjustable Prop Sleeve | ||||
Diameter | 60mm/ 76mm | Material | Q235 | |
Length | 195-400mm | Surface Finish | Galvanized or black | |
Thickness | 2.5-4.0mm | Color | Gold, Silver or Black | |
Hole Size | 14*150mm 15*160mm | Application | Prop adjusting | |
Thread | 6.35mm | Related Items | Prop nut, Base plate, G pin,etc. | |
Thread Type | Threading or Rolling | Packing | Bags or Pallets |

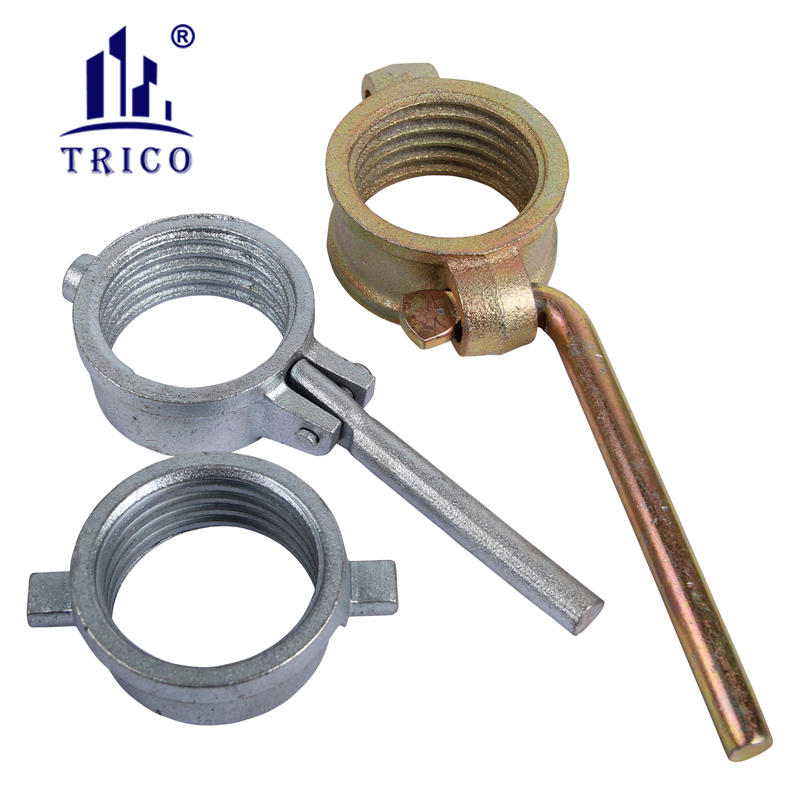

Adjustable Prop Sleeve Handle Nut | ||||
Diameter | 60mm, 76mm | Material | Ductile Iron Casting | |
Weight | 250g, 560g, 780g and etc. | Surface Finish | Galvanized or as Nature | |
Handle | with or not | Color | Silver, Gold or Black | |
Thread | 6.35mm | Packing | bags or pallet | |
Thread Type | Rolling or Casting | Related Products | Prop Sleeve, Prop Support Pin and etc. | |
OEM SIZE AND FEATURE IS AVAILABLE |

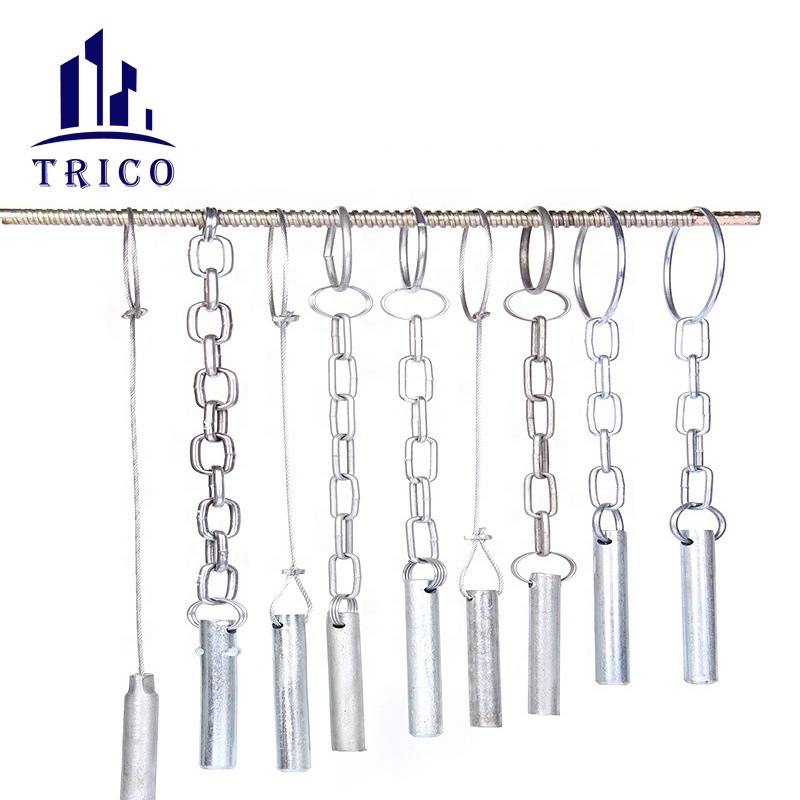

Adjustable Shoring Prop Support Pin | ||||
Type | Photo | Diameter | Material | Surface Finish |

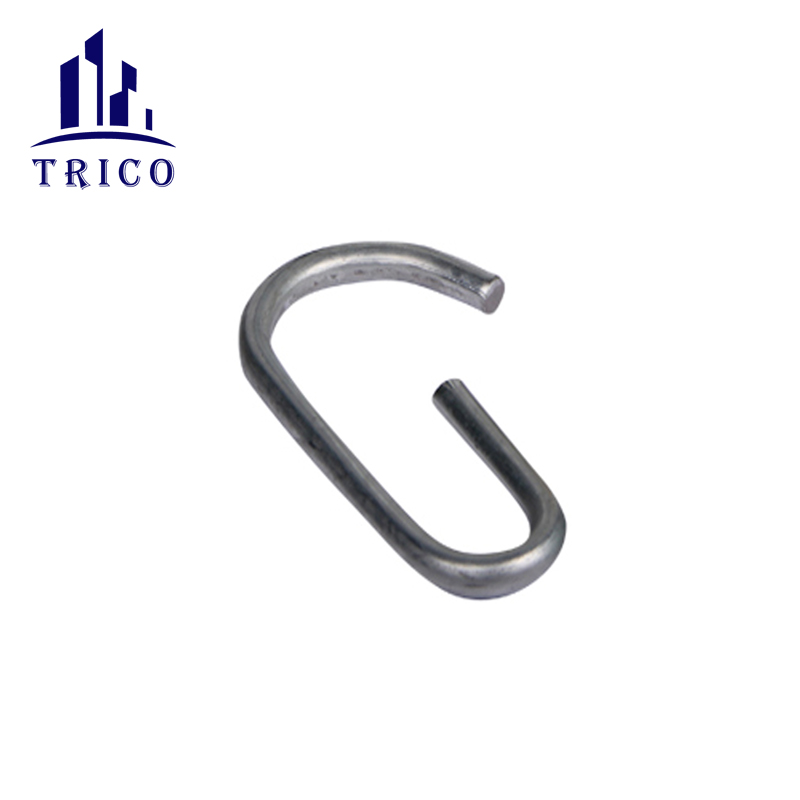

G Pin | 11mm, 12mm, 14mm, 16mm | Q235 or 45# Steel | Galvanied or as Nature | |
Chain Pin | 11mm, 12mm | |||
Wire Pin |
Other Supprt Parts | |||
Item Detail | Size | Surface Finish | |
Fork Head | 2.2kgs, 2.5kgs | Galvanized | |

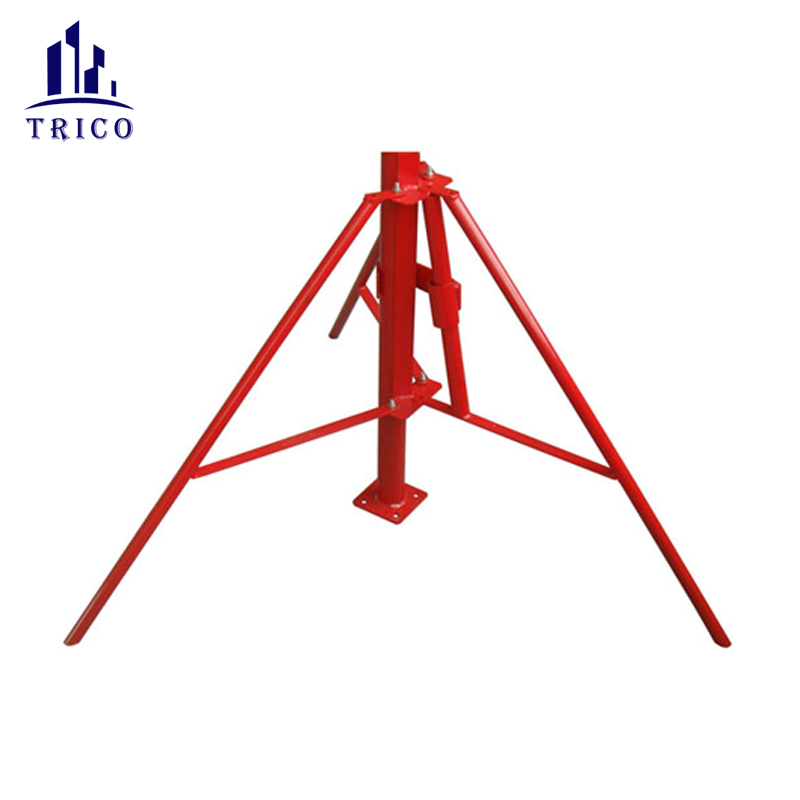

Tripod | 5.5kgs | Galvanized or Painted | |

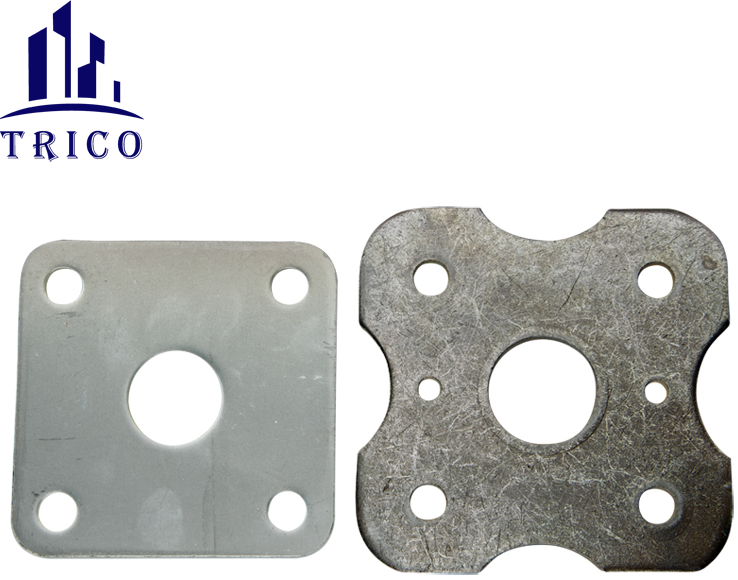

Base Plate | 120x120x5mm, 140x140x8mm, Flower Type and Square Type | Galvanized or as Nature | |
ALL THE PARTS ABOVE CAN BE OEN SIZE AND DESIGN |

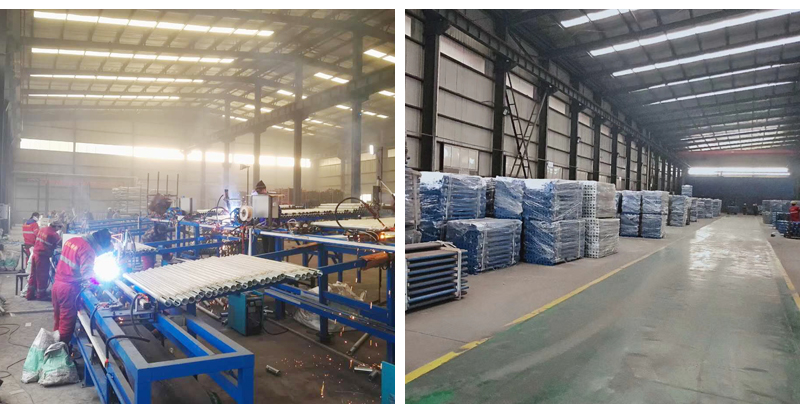

We, Hebei Trico Trade Co., Ltd, are engaged in manufacturing, exporting and supplying a supreme quality range of Scaffolding Systems & Fittings, since 2002. In our range, we offer Telescopic Steel Props, Scaffolding Props, Adjustable Beam Spans, Floorform Panels, Walkway Planks and Gratings. Moreover, we are engaged in offering APS Unit Scaffolding System, Cuplock Verticals/Standards, Vertical Scaffolding Pipes, Cross Bracing, Gho Gho Nuts, Pressed Sheet Metal Sleeve Couplers and others. The entire range of products is manufactured using high quality raw material, sourced from some of the trusted vendors of the industry. Moreover, we make sure to employ latest technology and advanced machinery for manufacturing and packaging these products. We also provide services related to maintenance, repairing and allied services.
