Aluminum Forming System Wall Tie Round Head Pin and Wedge for Full Tie Nominal Tie
  • Aluminum Forming System Wall Tie Round Head Pin and Wedge for Full Tie Nominal Tie
  • Aluminum Forming System Wall Tie Round Head Pin and Wedge for Full Tie Nominal Tie
  • Aluminum Forming System Wall Tie Round Head Pin and Wedge for Full Tie Nominal Tie
  • Aluminum Forming System Wall Tie Round Head Pin and Wedge for Full Tie Nominal Tie
  • Aluminum Forming System Wall Tie Round Head Pin and Wedge for Full Tie Nominal Tie
  • Aluminum Forming System Wall Tie Round Head Pin and Wedge for Full Tie Nominal Tie
Aluminum Forming System Wall Tie Round Head Pin and Wedge for Full Tie Nominal TieAluminum Forming System Wall Tie Round Head Pin and Wedge for Full Tie Nominal TieAluminum Forming System Wall Tie Round Head Pin and Wedge for Full Tie Nominal TieAluminum Forming System Wall Tie Round Head Pin and Wedge for Full Tie Nominal TieAluminum Forming System Wall Tie Round Head Pin and Wedge for Full Tie Nominal TieAluminum Forming System Wall Tie Round Head Pin and Wedge for Full Tie Nominal Tie

Aluminum Forming System Wall Tie Round Head Pin and Wedge for Full Tie Nominal Tie

Product Introduction:

Formwork Round Head Pin is used for Aluminum Formwork System. There are different size for choosing like Flat Head Pin, Round Head Pin and Comobo Filler Pin. With curved wedge or straight wedge and full tie&nominal tie to lock aluminum formwork panel during wall concrete formwork. American type and korea type are available.

Product Details



Aluminum Formwork is popular formwork system for construction. With Full Tie, Nominal Tie, AL Flat Tie and different wedge bolt to lock panels. Related accessories include AL Sepa Tie, Waler Bracket, Turnbuckle, Gang Form Bolts, One Touch Clamp and so on. Since 2002, we export those products to different countries. Welcome your inquiry.

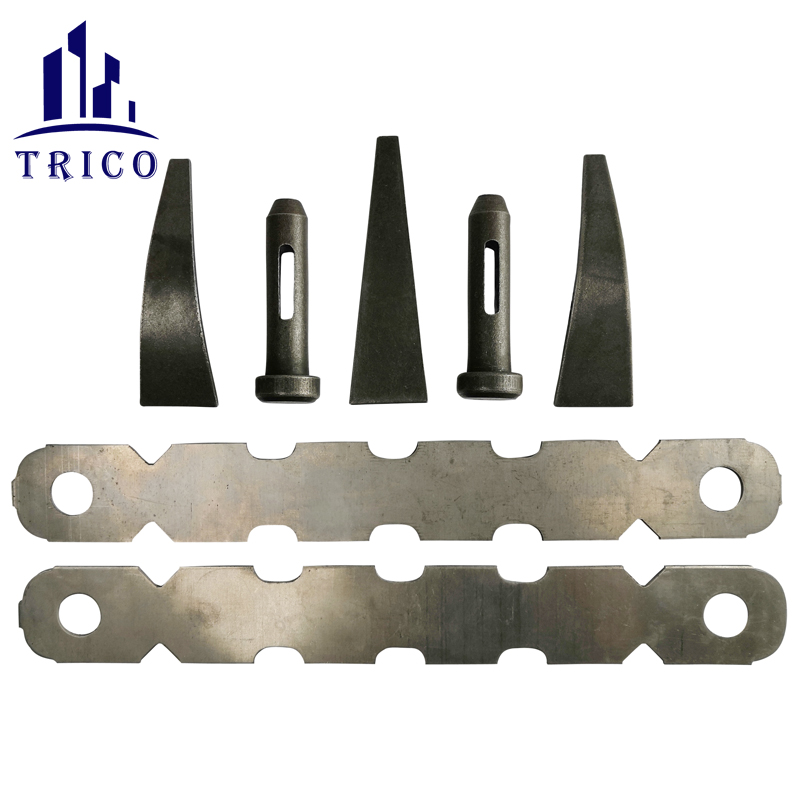

Aluminum Forming System Accessories
PictureItemSizeMaterialFeaturePacking
Wall Concrete Aluminum Formwork Full Tie Nominal Tie with Standard Bolt and Wedge Pin

Flat Head

 Pin

71g

Steel #45

Heat

Treatment

250pcs/pail

64pails/crate

Other packing

supporting


Wall Concrete Aluminum Formwork Full Tie Nominal Tie with Standard Bolt and Wedge Pin

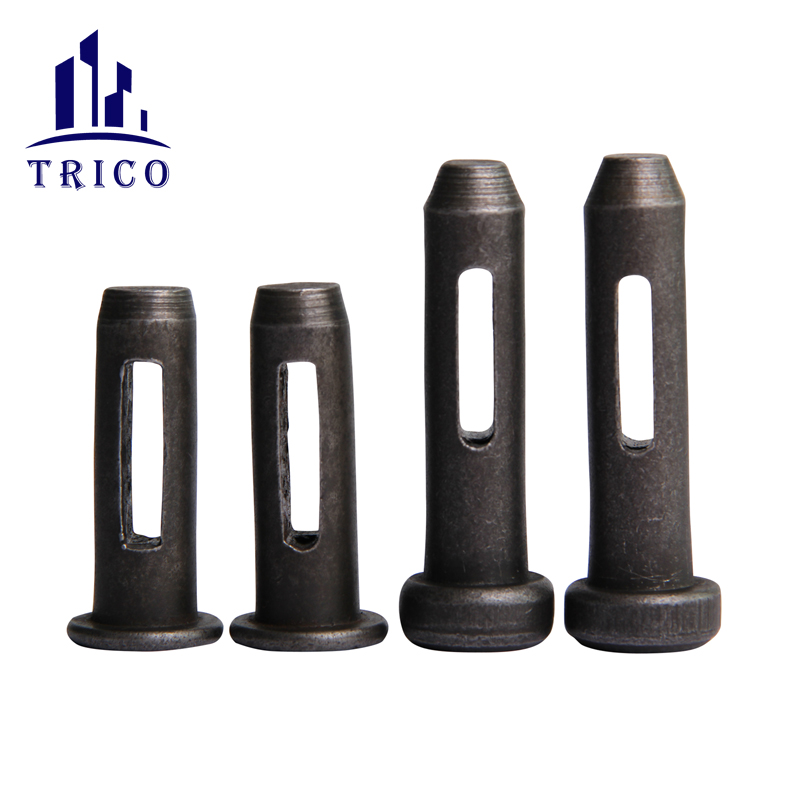

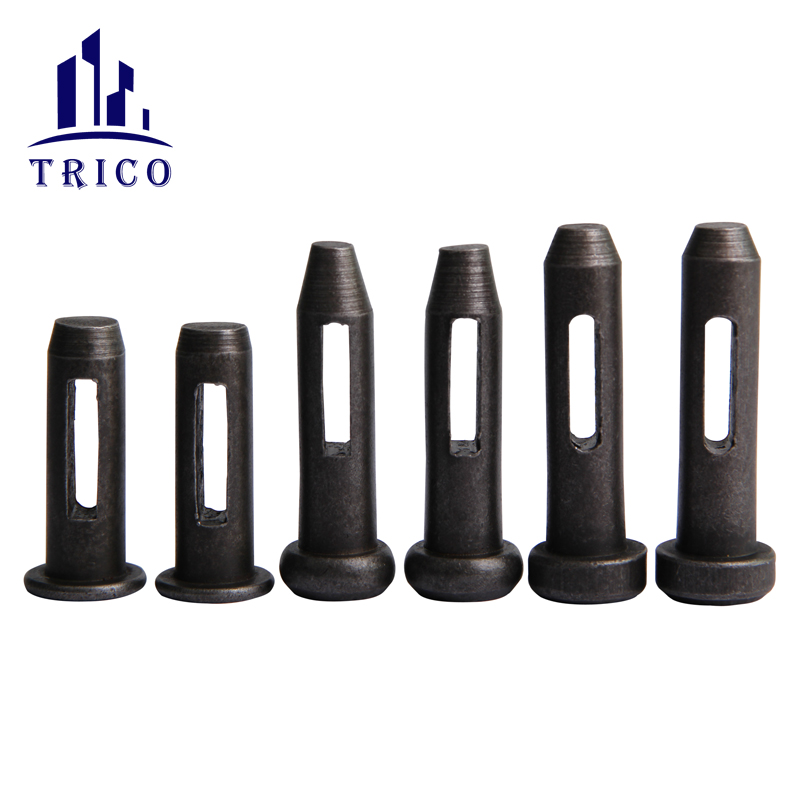

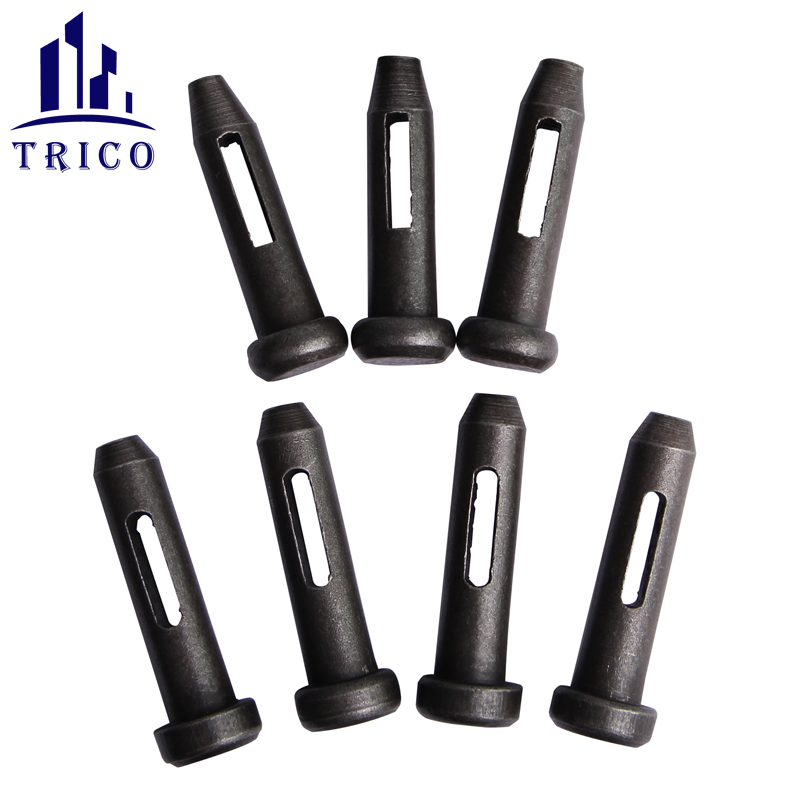

Round Head

Pin

103gSteel #45

Heat

Treatment


Comobo

Filler Pin

178gSteel #45

Heat

 Treatment

Other Sizes Support & Customized Support
Wall Concrete Aluminum Formwork Full Tie Nominal Tie with Standard Bolt and Wedge Pin

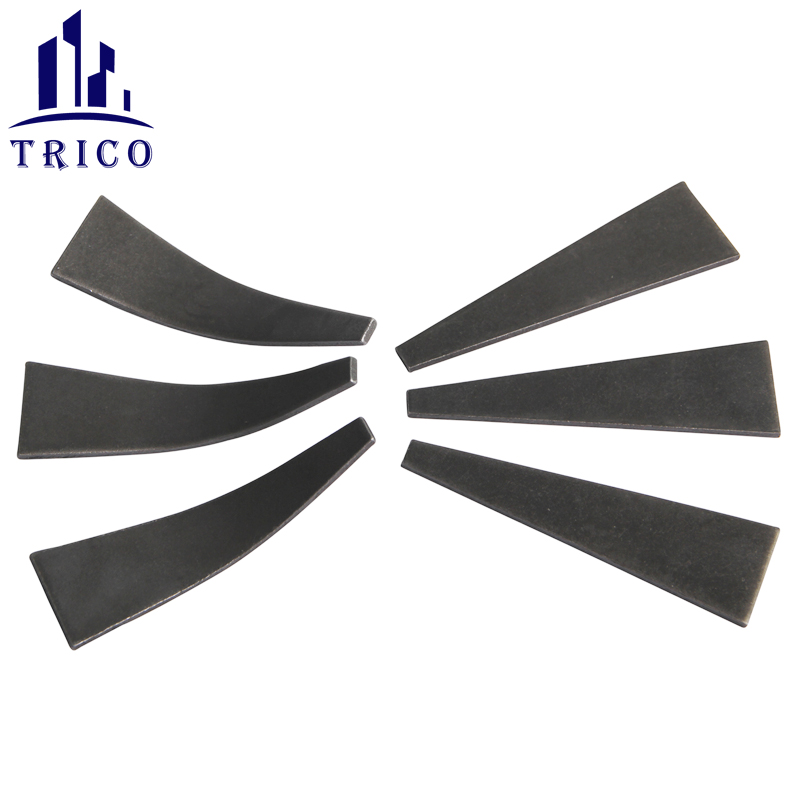

Straight

 Wedge

49.2g

Steel #45

Heat

Treatment

250pcs or 500pcs/pail

36pails or 64pails/crate



Wall Concrete Aluminum Formwork Full Tie Nominal Tie with Standard Bolt and Wedge Pin

Curved

 Wedge

49.4gSteel #45

Heat

 Treatment

Other Sizes Support & Customized Support
PictureItemWall SizeWeight

Ultimate

 Load

Packing

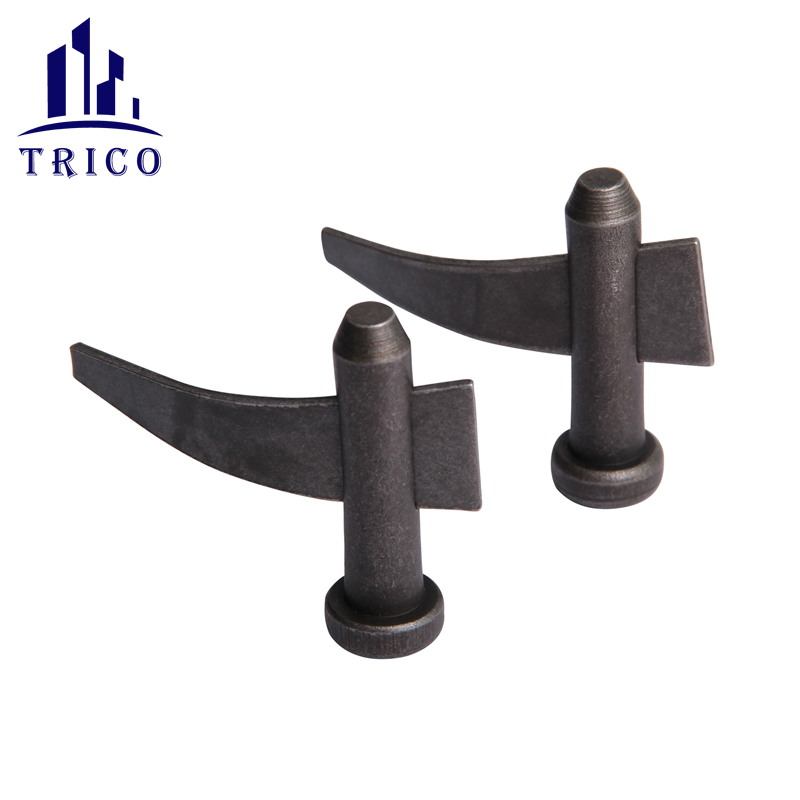

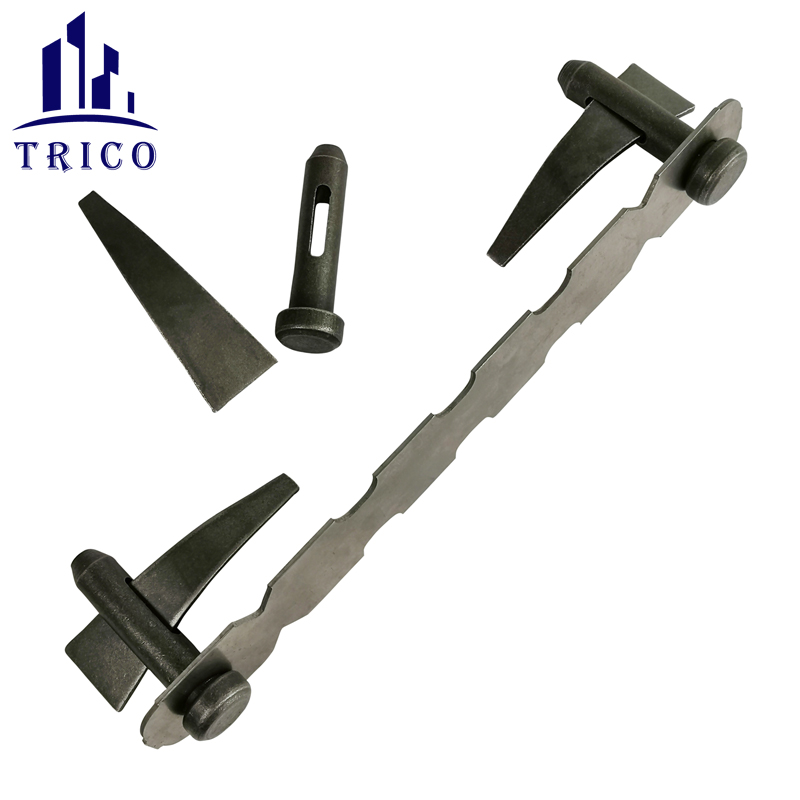

Aluminum Forming System Round Head Pin Long Pin and Wedge

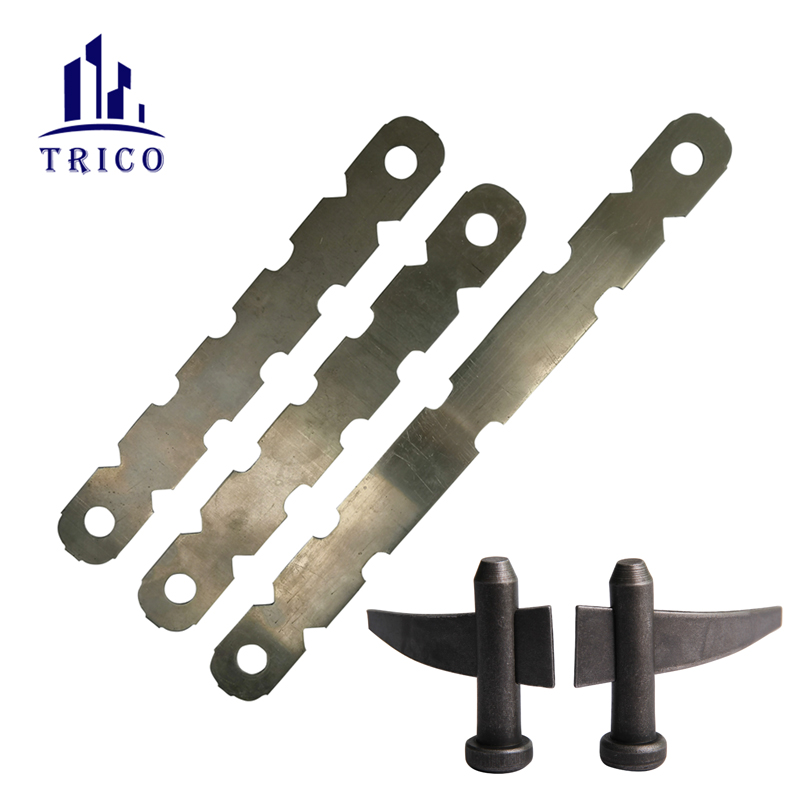

Full Wall

Tie

6"133g7,200lbs

100pcs/bundle

50bundles/pallet

Other packing support

8"155.1g
9"170.3g
10"185.5g
12"217.8g
Other Sizes Support
Aluminum Forming System Round Head Pin Long Pin and Wedge

Nominal

Wall Tie

6"127g7,200lbs

100pcs/bundle

50bundles/pallet

Other packing support


8"150.6g
10"181g
12"211.3g
Other Sizes Support
RelatedSnap Tie System, Steel Plywood Forming System

Aluminum Forming System Round Head Pin Long Pin and Wedge

Aluminum Forming System Round Head Pin Long Pin and Wedge


Wall Concrete Aluminum Formwork Full Tie Nominal Tie with Standard Bolt and Wedge Pin

Wall Concrete Aluminum Formwork Full Tie Nominal Tie with Standard Bolt and Wedge Pin

Application

Wall Concrete Aluminum Formwork Full Tie Nominal Tie with Standard Bolt and Wedge Pin

Packaging

Wall Concrete Aluminum Formwork Full Tie Nominal Tie with Standard Bolt and Wedge Pin
