Concrete Forming Snap Tie Wedge
  • Concrete Forming Snap Tie Wedge
  • Concrete Forming Snap Tie Wedge
  • Concrete Forming Snap Tie Wedge
  • Concrete Forming Snap Tie Wedge
  • Concrete Forming Snap Tie Wedge
  • Concrete Forming Snap Tie Wedge
Concrete Forming Snap Tie WedgeConcrete Forming Snap Tie WedgeConcrete Forming Snap Tie WedgeConcrete Forming Snap Tie WedgeConcrete Forming Snap Tie WedgeConcrete Forming Snap Tie Wedge

Concrete Forming Snap Tie Wedge

Product Introduction:

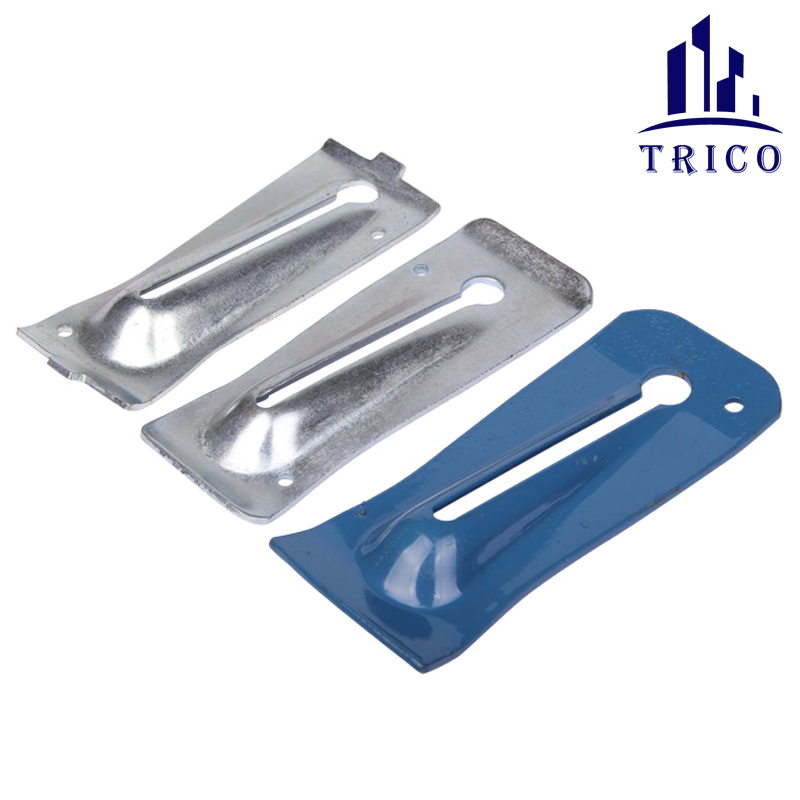

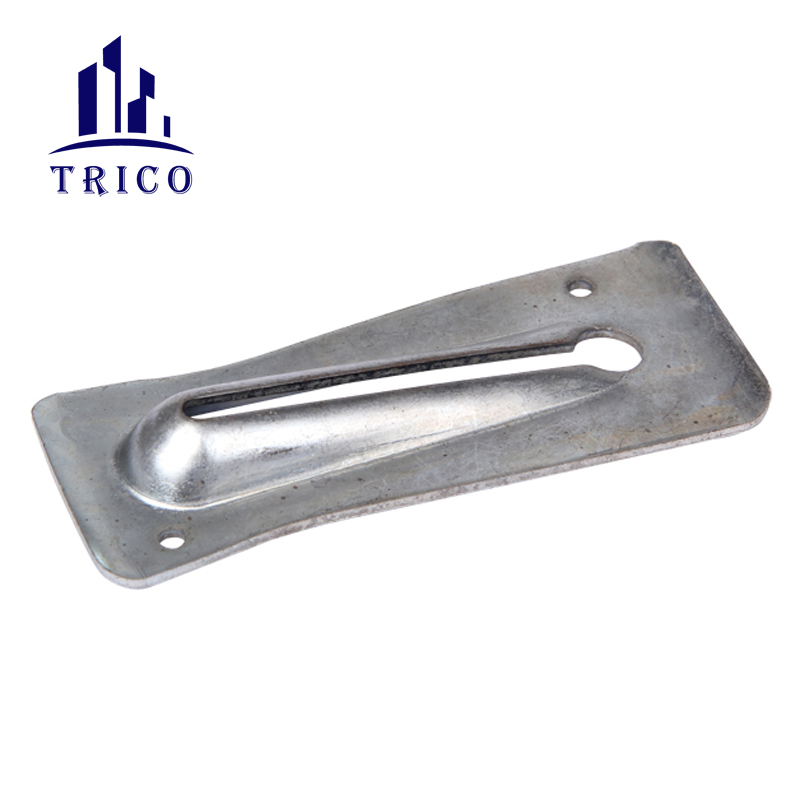

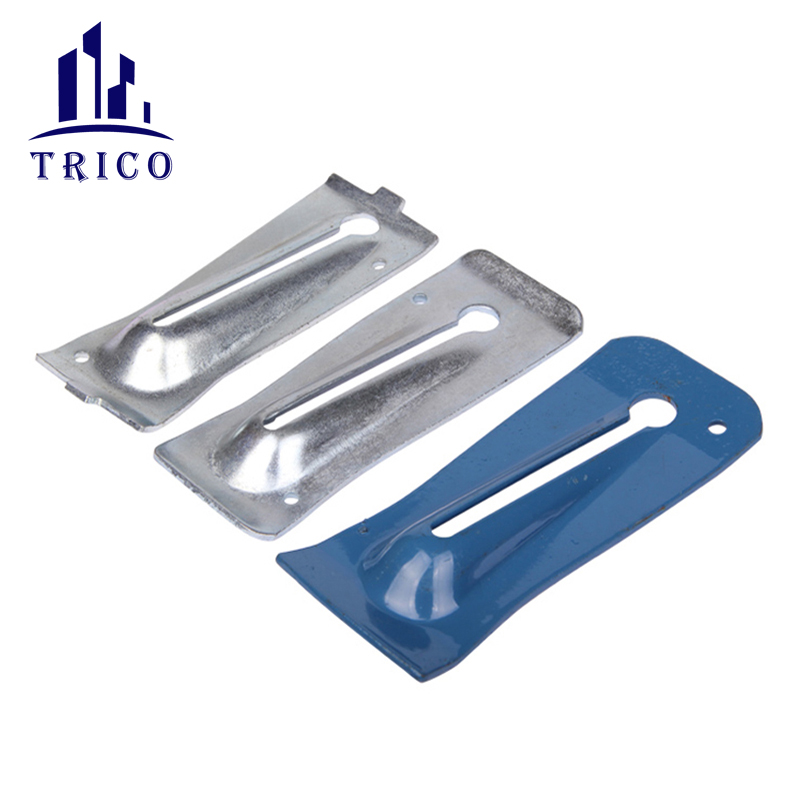

The snap tie wedge is a holding device that is fabricated from high strength galvanized steel that is used in a double waler or double strong back snap tie forming application to ensure proper load distribution when installed correctly.



Product Details

Plywood Forming Snap Tie Wedge

The snap tie wedge acts as a tie holder that slides vertically down the tie just inside the tie head drawing up all of the form components until snug. Horizontal double walers and/or vertical double strongbacks must be positioned within 5/8” – ¾” of either side of the Tie and the snap tie wedge must bear evenly. The tie end must end up at the midpoint of the wedge or slightly higher.

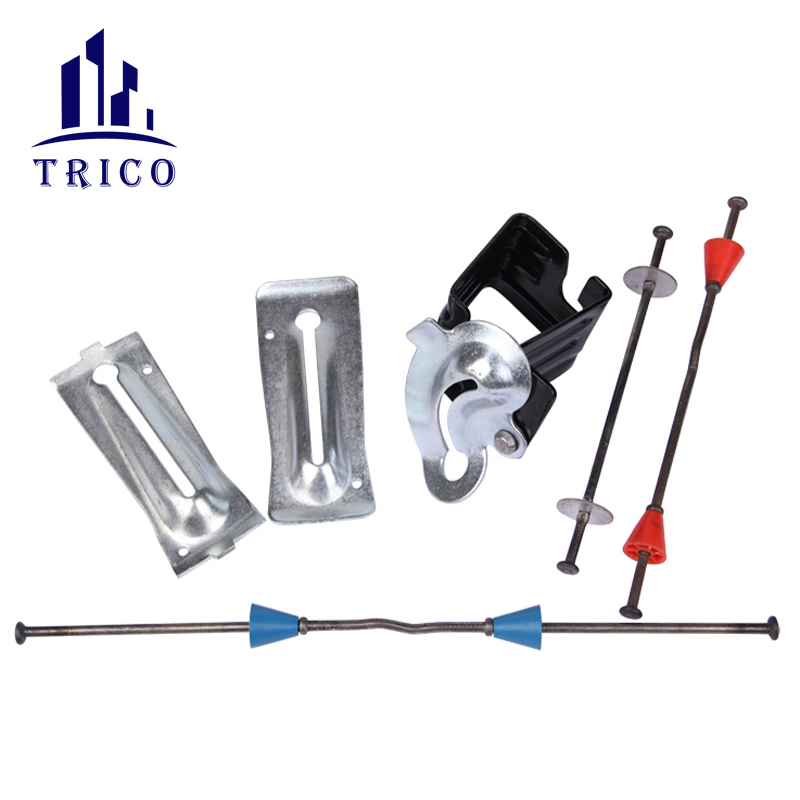

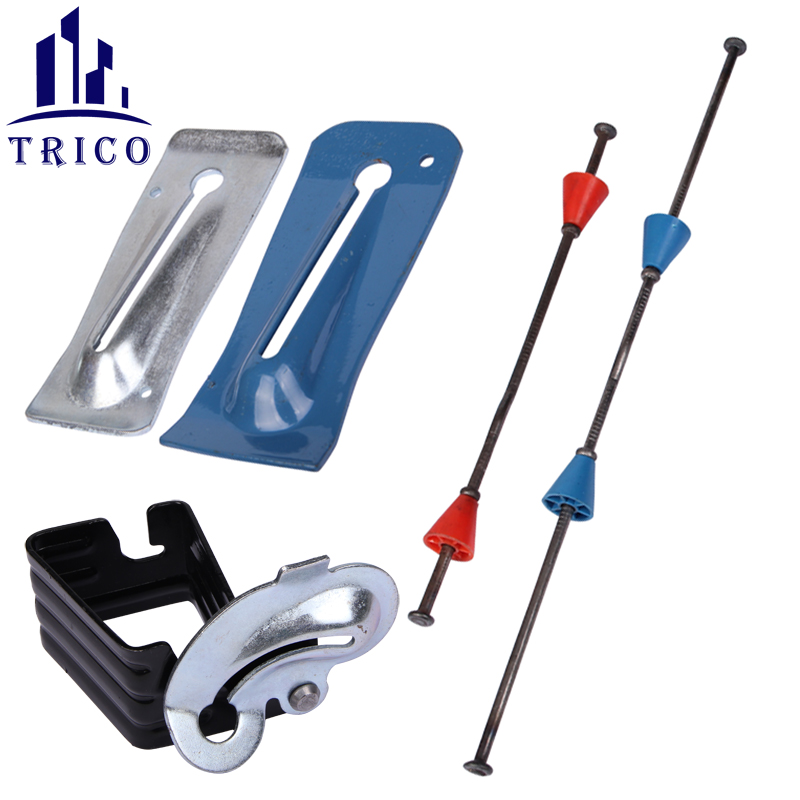

Except for the snap tie wedge , we also supply Jahn A & C  brackets, as well as the snap ties.

Snap Tie Wedge and Jahn A & C Brackets detail as follows:

PictureItem NameSurface TreatmentWeight(kg)Packing
Concrete Forming Snap TiesSnap Tie WedgeGalvanizing0.18100pcs/carton
Concrete Forming Snap TiesSnap Tie WedgeGalvanizing0.21100pcs/carton
Concrete Forming Snap TiesSnap Tie WedgeBlue Painting0.25100pcs/carton
Concrete Forming Snap TiesJahn A BracketPainting and Galvanizing0.5725pcs/carton
Concrete Forming Snap TiesJahn C BracketPainting and Galvanizing0.43725pcs/carton

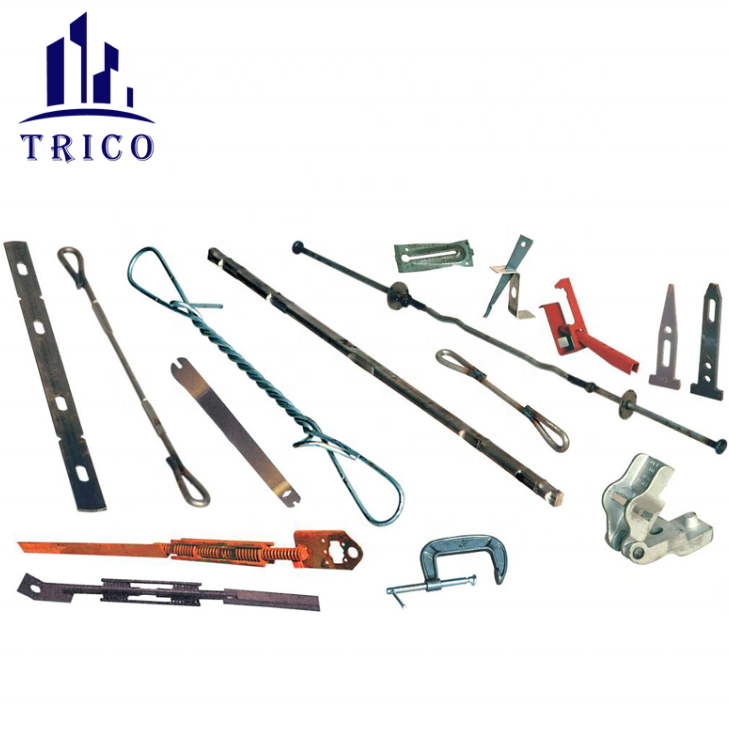

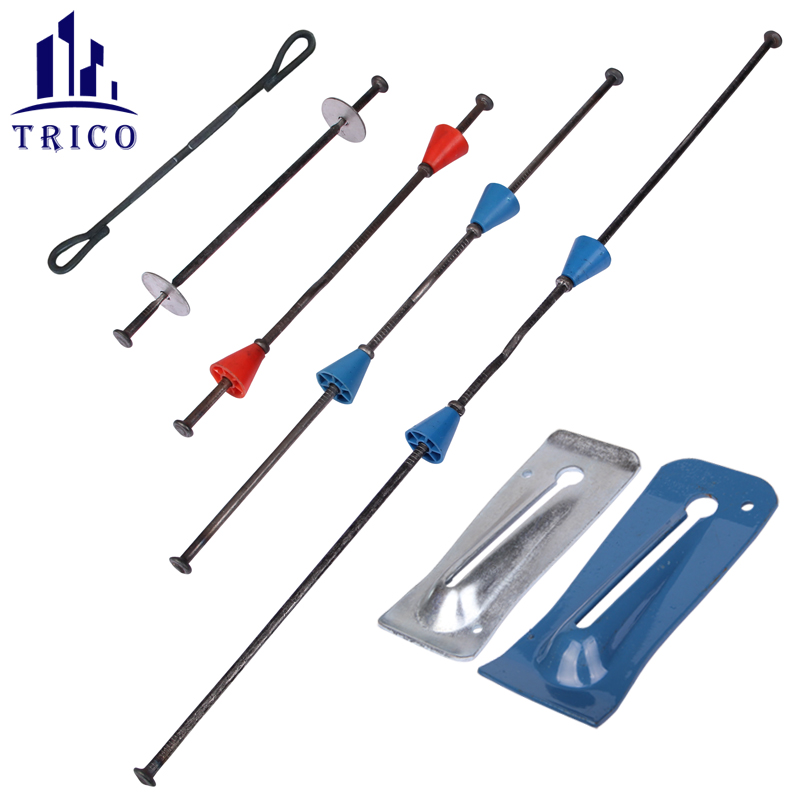

Snap Ties are manufactured with integral heads, and Metal or Plastic Form Spreaders. Snap Ties are designed to easily tie lumber forming systems. Snap Ties have a nominal 1" breakback. Each Tie incorporates an anti-turn device in order to properly break after use.

Snap tie and wedge together used to hold the wood panel then to form a concrete wall for poured in place concrete, after the concrete is cured the snap tie ends can be snapped off and the wedges can be easily removed to strip the forms.

Short End Snap Tie with wall thickness 6"-24":

PictureItem NameShort End

Wall Thickness

Safe Working Load

Weight(kg)

Packing

Concrete Forming Snap TiesSnap Tie
4 -3/4"

6"

2250lbs

0.093

100pcs/Carton

8"

2250lbs

0.103

100pcs/Carton

10"

2250lbs

0.113

100pcs/Carton

12"

2250lbs

0.123

100pcs/Carton

14"

2250lbs

0.133

100pcs/Carton

16“

2250lbs

0.143

100pcs/Carton

18”

2250lbs

0.153

100pcs/Carton

24“

2250lbs

0.183

100pcs/Carton

Long End Snap Tie with wall thickness 6"-24":

PictureItem NameLong End

Wall Thickness

Safe Working Load

Weight(kg)

Packing

Concrete Forming Snap TiesSnap Tie8-1/4"

6"

2250lbs

0.128

100pcs/Carton

8"

2250lbs

0.138

100pcs/Carton

10"

2250lbs

0.148

100pcs/Carton

12"

2250lbs

0.158

100pcs/Carton

14"

2250lbs

0.168

100pcs/Carton

16“

2250lbs

0.178

100pcs/Carton

18”

2250lbs

0.188

100pcs/Carton

24“

2250lbs

0.218

100pcs/Carton




Concrete Forming Snap Tie Wedge

Concrete Forming Snap Tie Wedge

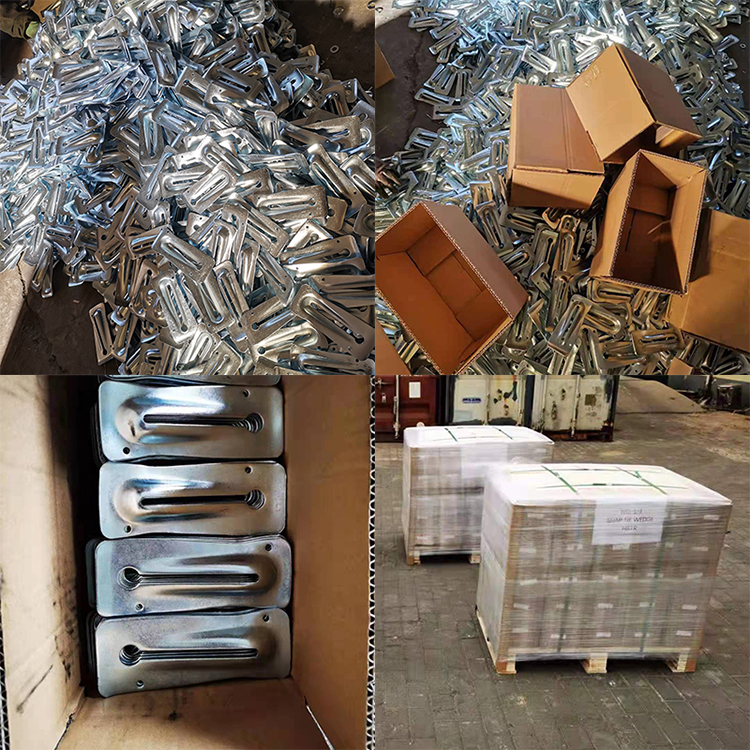

Snap Tie Wedge Packing:

Concrete Forming Snap Tie Wedge
