Snap Ties are manufactured with integral heads, and Metal or Plastic Form Spreaders. Snap Ties are designed to easily tie lumber forming systems. Snap Ties have a nominal 1" breakback. Each Tie incorporates an anti-turn device in order to properly break after use.Long End, Short End, and Odd End Snap Ties for plywood forming. Available with 1″ x 1″ cones (plastic), washers (metal) and water resistant seal options.
Concrete Forming Snap Ties

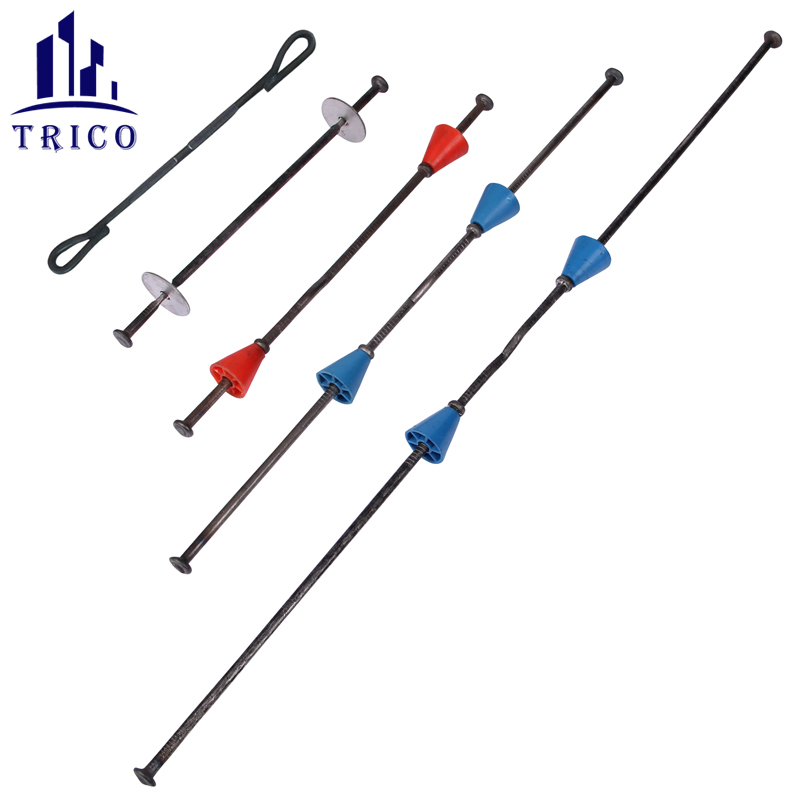

Long End, Short End, and Odd End Snap Ties for plywood forming. Available with 1″ x 1″ cones (plastic), washers (metal) and water resistant seal options.
Snap Ties are manufactured with integral heads, and Metal or Plastic Form Spreaders. Snap Ties are designed to easily tie lumber forming systems. Snap Ties have a nominal 1" breakback. Each Tie incorporates an anti-turn device in order to properly break after use.

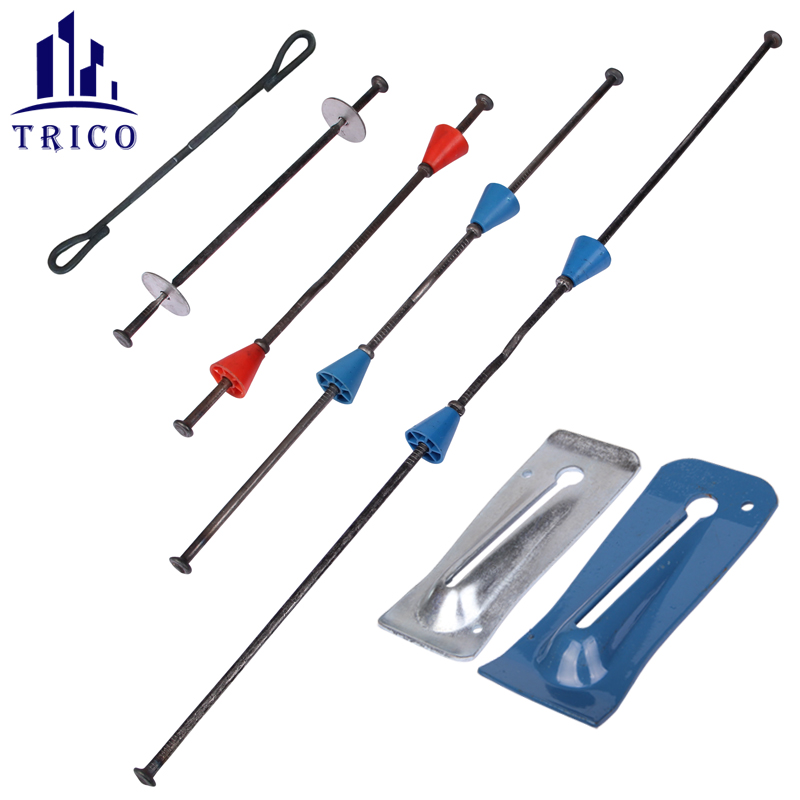

Snap tie and wedge together used to hold the wood panel then to form a concrete wall for poured in place concrete, after the concrete is cured the snap tie ends can be snapped off and the wedges can be easily removed to strip the forms.

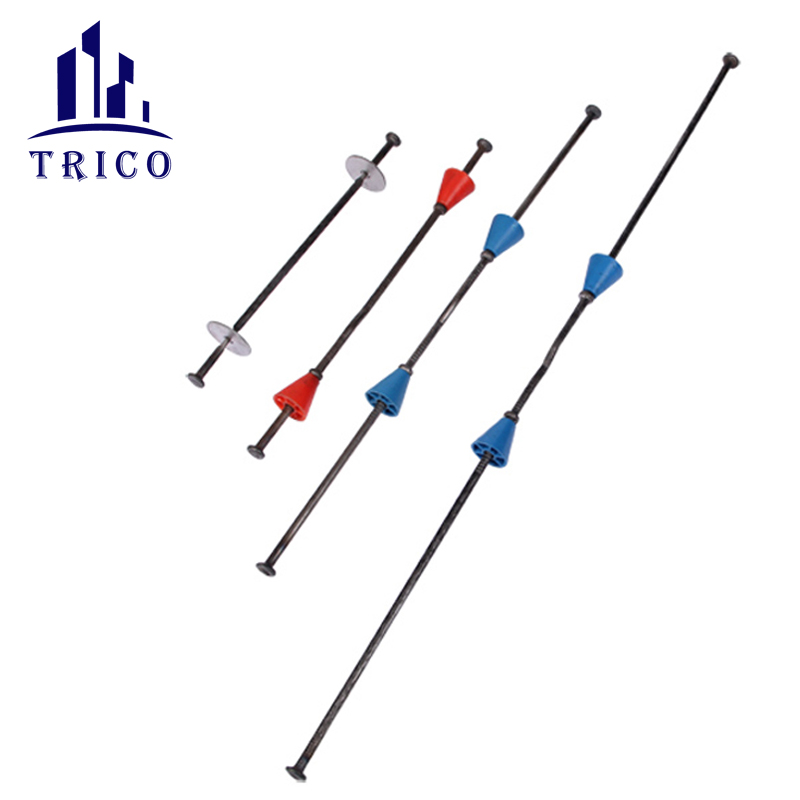

① 4-3/4” End with 1”x1”plastic cone and hex head * wall size 6” to 72” as your requirement.
② 8-1/4” End with 1”x1”plastic cone and hex head * wall size 6” to 72” as your requirement.
Short End Snap Tie with wall thickness 6"-24":
Picture | Item Name | Short End | Wall Thickness | Safe Working Load | Weight(kg) | Packing |
Snap Tie | 4 -3/4" | 6" | 2250lbs | 0.093 | 100pcs/Carton | |
8" | 2250lbs | 0.103 | 100pcs/Carton | |||
10" | 2250lbs | 0.113 | 100pcs/Carton | |||
12" | 2250lbs | 0.123 | 100pcs/Carton | |||
14" | 2250lbs | 0.133 | 100pcs/Carton | |||
16“ | 2250lbs | 0.143 | 100pcs/Carton | |||
18” | 2250lbs | 0.153 | 100pcs/Carton | |||
24“ | 2250lbs | 0.183 | 100pcs/Carton |
Long End Snap Tie with wall thickness 6"-24":
Picture | Item Name | Long End | Wall Thickness | Safe Working Load | Weight(kg) | Packing |
Snap Tie | 8-1/4" | 6" | 2250lbs | 0.128 | 100pcs/Carton | |
8" | 2250lbs | 0.138 | 100pcs/Carton | |||
10" | 2250lbs | 0.148 | 100pcs/Carton | |||
12" | 2250lbs | 0.158 | 100pcs/Carton | |||
14" | 2250lbs | 0.168 | 100pcs/Carton | |||
16“ | 2250lbs | 0.178 | 100pcs/Carton | |||
18” | 2250lbs | 0.188 | 100pcs/Carton | |||
24“ | 2250lbs | 0.218 | 100pcs/Carton |

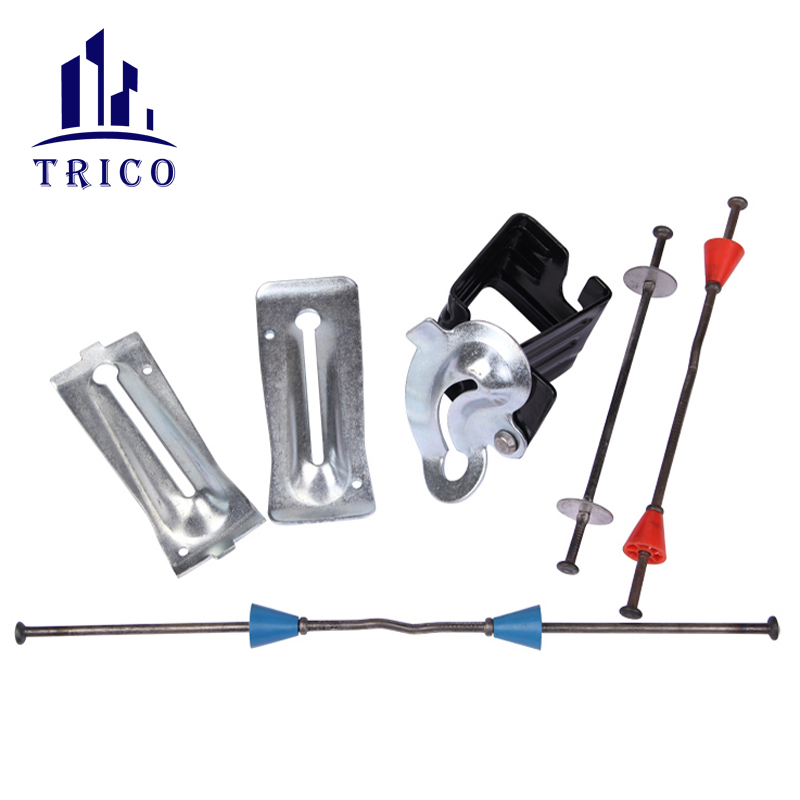

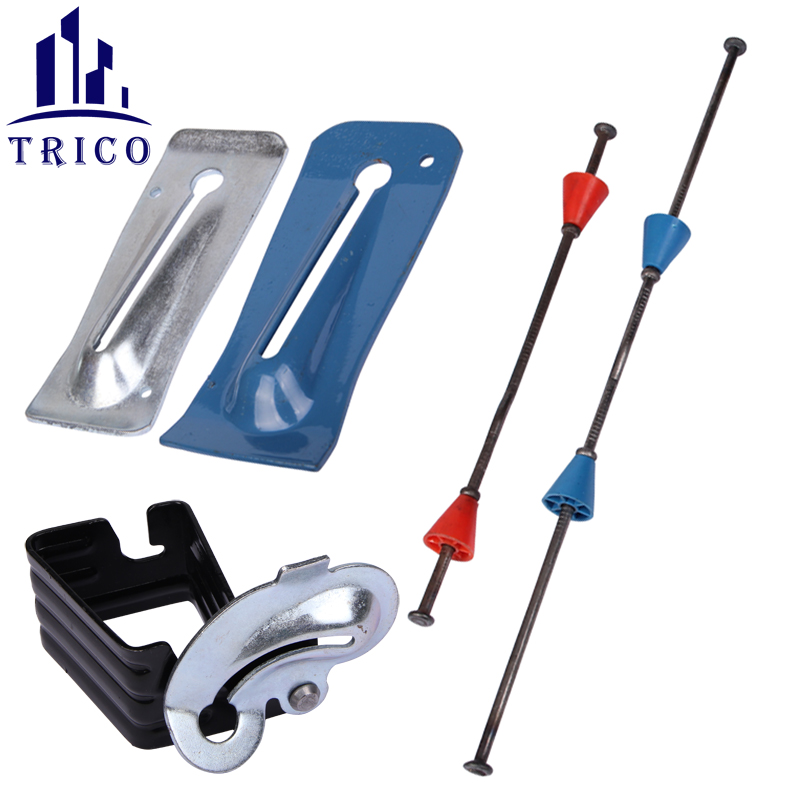

Except the snap ties, we also supply snap tie wedge and jahn A & C brackets.
Picture | Item Name | Surface Treatment | Weight(kg) | Packing |

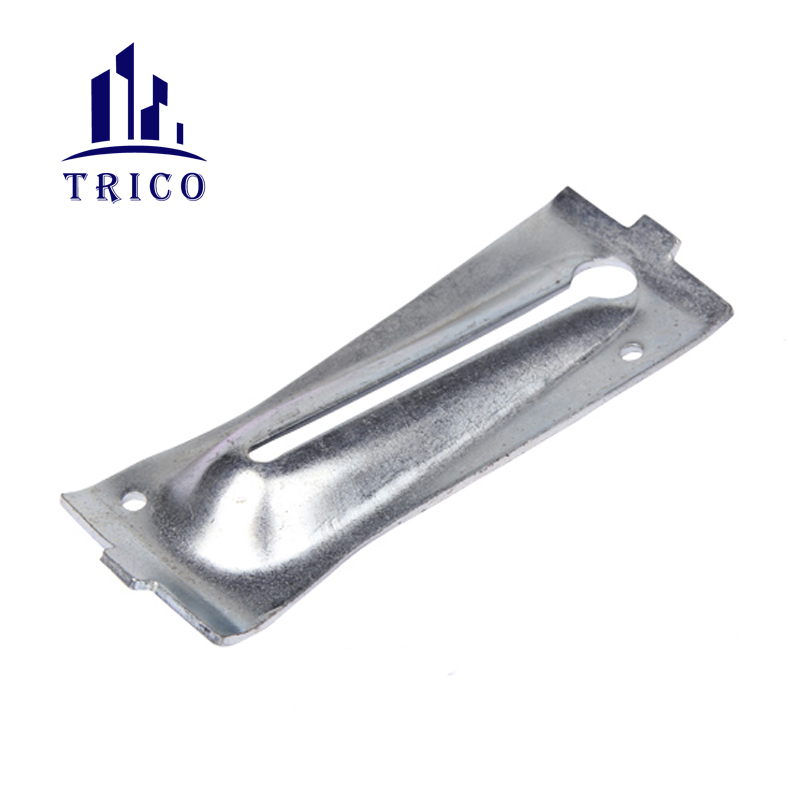

Snap Tie Wedge | Galvanizing | 0.18 | 100pcs/carton | |
Snap Tie Wedge | Galvanizing | 0.21 | 100pcs/carton | |
Snap Tie Wedge | Blue Painting | 0.25 | 100pcs/carton | |
Jahn A Bracket | Painting and Galvanizing | 0.57 | 25pcs/carton | |
Jahn C Bracket | Painting and Galvanizing | 0.437 | 25pcs/carton |

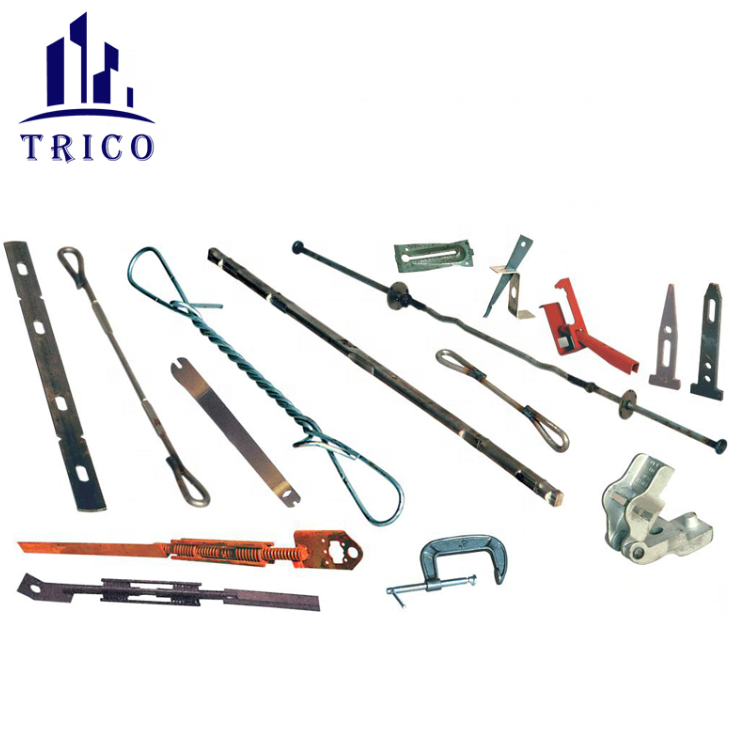

Snap Tie System Hardware used in Construction Site
Packing
