Aluminum Forming System Wall Ties Round Head Pin Curved Wedge and Straight Wedge
  • Aluminum Forming System Wall Ties Round Head Pin Curved Wedge and Straight Wedge
  • Aluminum Forming System Wall Ties Round Head Pin Curved Wedge and Straight Wedge
  • Aluminum Forming System Wall Ties Round Head Pin Curved Wedge and Straight Wedge
  • Aluminum Forming System Wall Ties Round Head Pin Curved Wedge and Straight Wedge
  • Aluminum Forming System Wall Ties Round Head Pin Curved Wedge and Straight Wedge
  • Aluminum Forming System Wall Ties Round Head Pin Curved Wedge and Straight Wedge
Aluminum Forming System Wall Ties Round Head Pin Curved Wedge and Straight WedgeAluminum Forming System Wall Ties Round Head Pin Curved Wedge and Straight WedgeAluminum Forming System Wall Ties Round Head Pin Curved Wedge and Straight WedgeAluminum Forming System Wall Ties Round Head Pin Curved Wedge and Straight WedgeAluminum Forming System Wall Ties Round Head Pin Curved Wedge and Straight WedgeAluminum Forming System Wall Ties Round Head Pin Curved Wedge and Straight Wedge

Aluminum Forming System Wall Ties Round Head Pin Curved Wedge and Straight Wedge

Product Introduction:

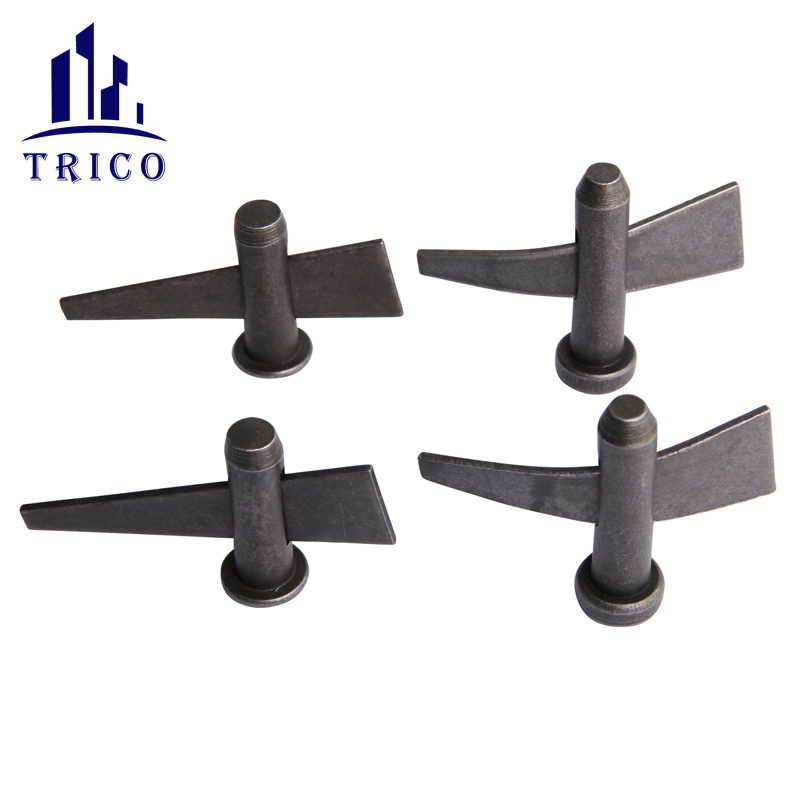

Formwork Wedge Pin is used for Aluminum Formwork System. There are different size for choosing like Straight Wedge and Curved Wedge. With Round Head Pin and Comobo Filler Pin and full tie&nominal tie , they can lock aluminum formwork panel during wall concrete formwork. American type and korea type are available.

Product Details



Aluminum Formwork is popular formwork system for construction. With Full Tie, Nominal Tie, AL Flat Tie and different wedge bolt to lock panels. Related accessories include AL Sepa Tie, Waler Bracket, Turnbuckle, Gang Form Bolts, One Touch Clamp and so on. Since 2002, we export those products to different countries. Welcome your inquiry.

Aluminum Forming System Accessories
PictureItemSizeMaterialFeaturePacking
Wall Concrete Aluminum Formwork Full Tie Nominal Tie with Standard Bolt and Wedge Pin

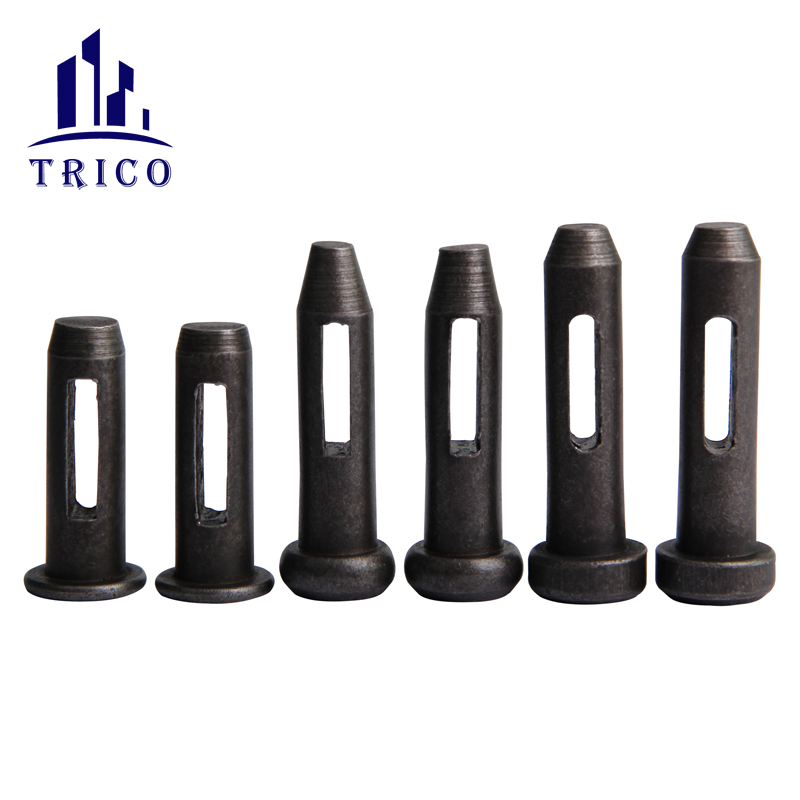

Flat Head

 Pin

71g

Steel #45

Heat

Treatment

250pcs/pail

64pails/crate

Other packing

supporting


Wall Concrete Aluminum Formwork Full Tie Nominal Tie with Standard Bolt and Wedge Pin

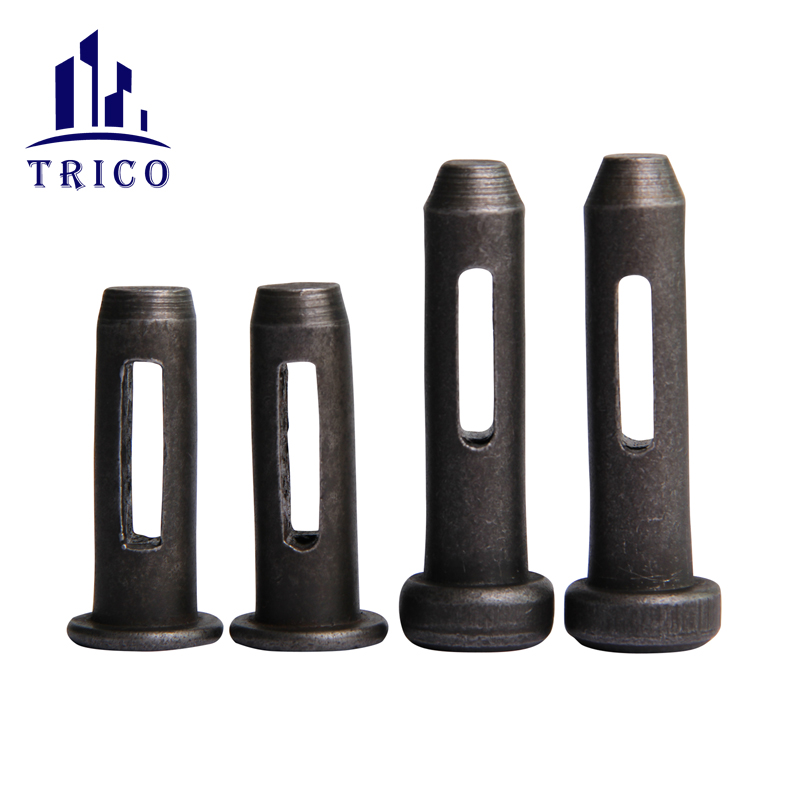

Round Head

Pin

103gSteel #45

Heat

Treatment


Comobo

Filler Pin

178gSteel #45

Heat

 Treatment

Other Sizes Support & Customized Support
Wall Concrete Aluminum Formwork Full Tie Nominal Tie with Standard Bolt and Wedge Pin

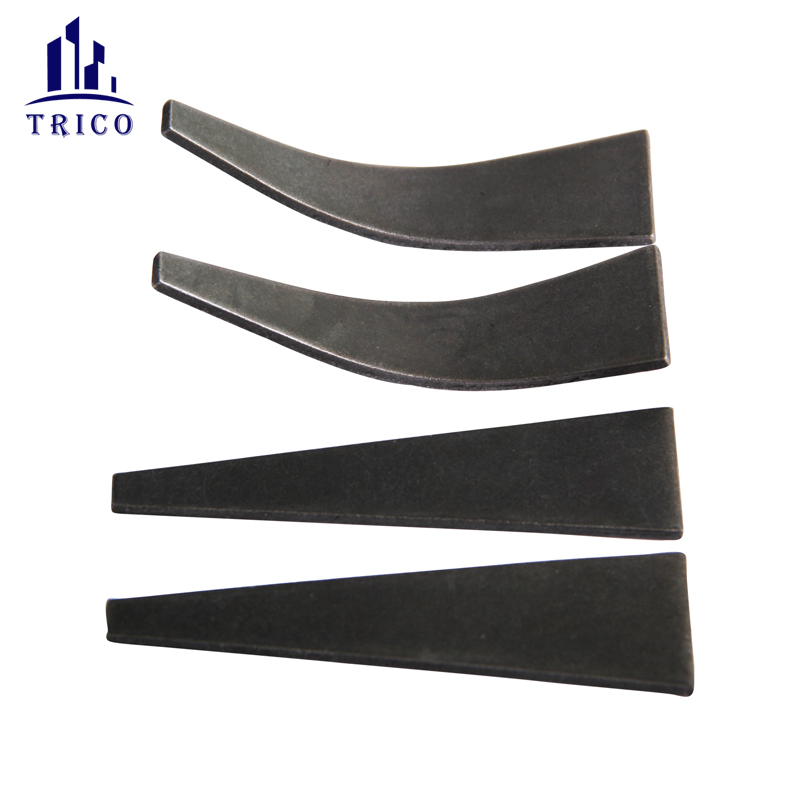

Straight

 Wedge

49.2g

Steel #45

Heat

Treatment

250pcs or 500pcs/pail

36pails or 64pails/crate



Wall Concrete Aluminum Formwork Full Tie Nominal Tie with Standard Bolt and Wedge Pin

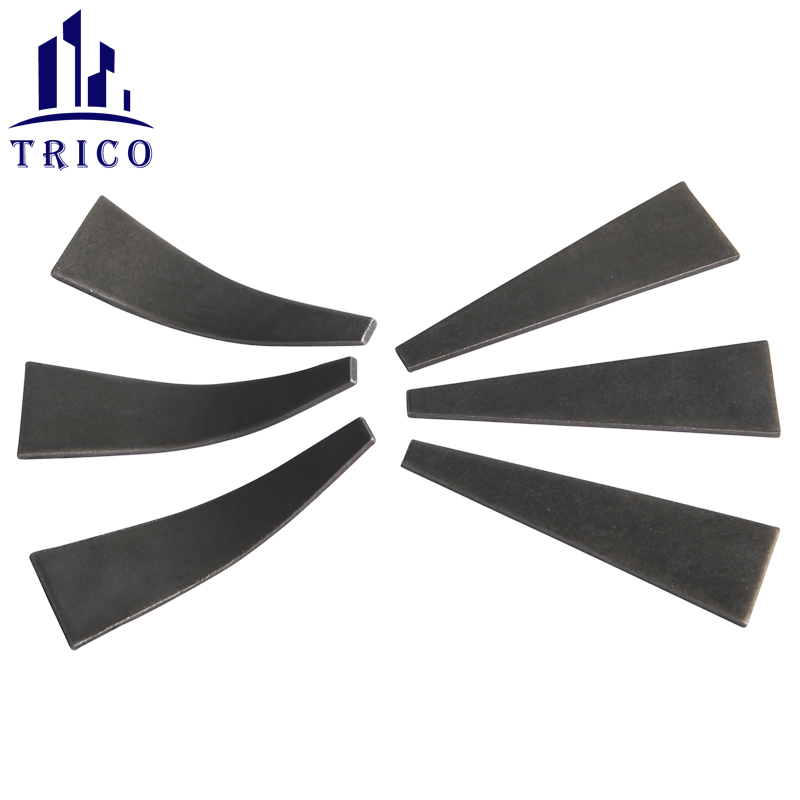

Curved

 Wedge

49.4gSteel #45

Heat

 Treatment

Other Sizes Support & Customized Support
PictureItemWall SizeWeightUltimate LoadPacking
Aluminum Forming System Round Head Pin Long Pin and Wedge

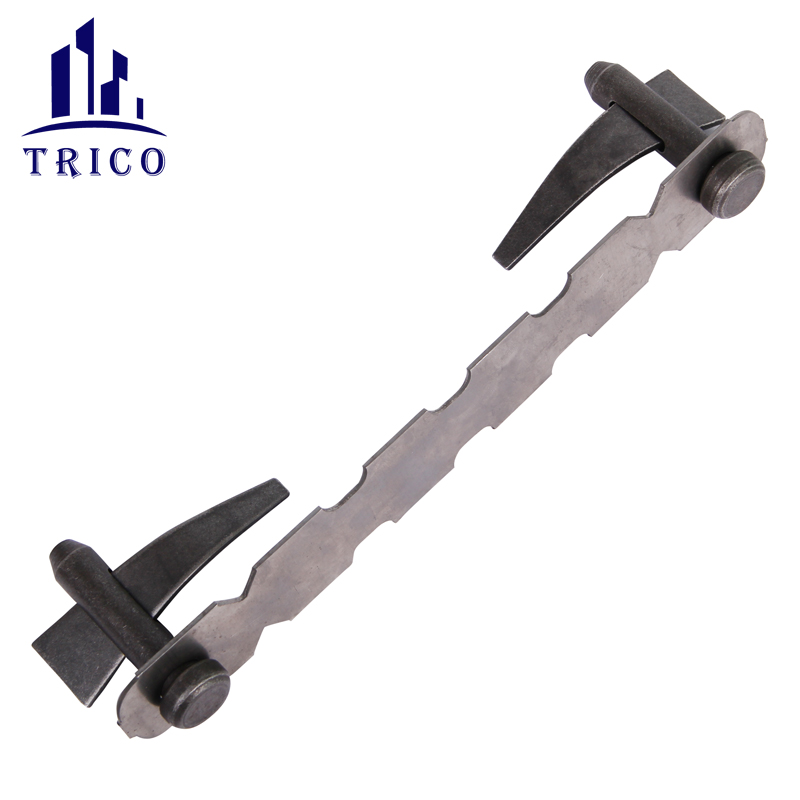

Full Wall

Tie

6"133g7,200lbs

100pcs/bundle

50bundles/pallet

Other packing support

8"155.1g
9"170.3g
10"185.5g
12"217.8g
Other Sizes Support
Aluminum Forming System Round Head Pin Long Pin and Wedge

Nominal

Wall Tie

6"127g7,200lbs

100pcs/bundle

50bundles/pallet

Other packing support


8"150.6g
10"181g
12"211.3g
Other Sizes Support
RelatedSnap Tie System, Steel Plywood Forming System

Aluminum Forming System Wall Ties Round Head Pin Curved Wedge and Straight Wedge

Aluminum Forming System Wall Ties Round Head Pin Curved Wedge and Straight Wedge


Wall Concrete Aluminum Formwork Full Tie Nominal Tie with Standard Bolt and Wedge Pin

Wall Concrete Aluminum Formwork Full Tie Nominal Tie with Standard Bolt and Wedge Pin

Application

Wall Concrete Aluminum Formwork Full Tie Nominal Tie with Standard Bolt and Wedge Pin

Packaging

Wall Concrete Aluminum Formwork Full Tie Nominal Tie with Standard Bolt and Wedge Pin
