Concrete wall ties and accessories are manufactured to meet the requirements of today's various pouring methods.
They are made of high quality steel with galvanized or black surface. With the continually perform quality control testing to ensure that all of our ties yield a minimun pull strength.

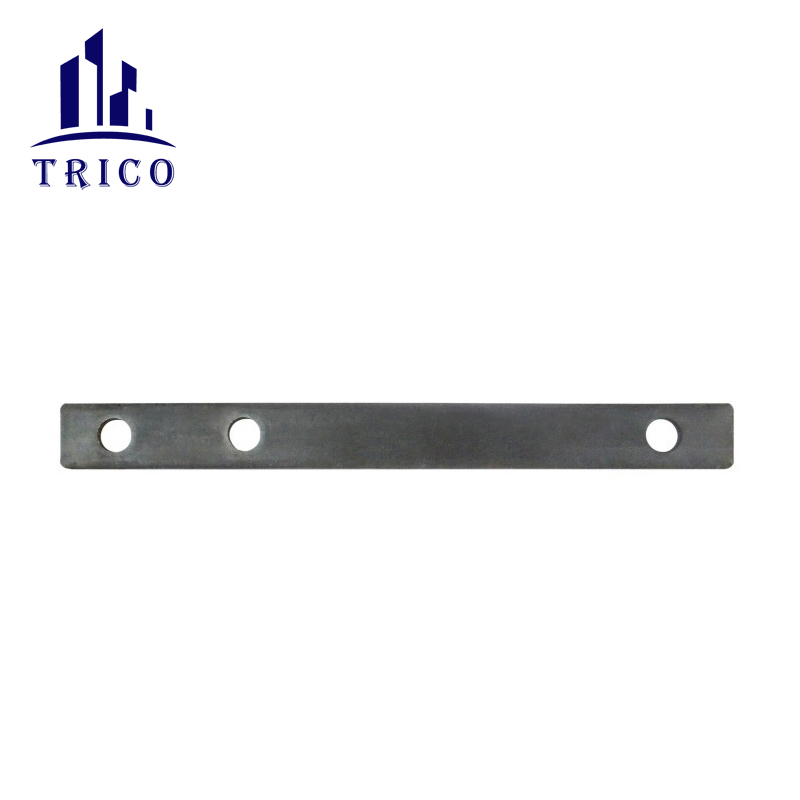

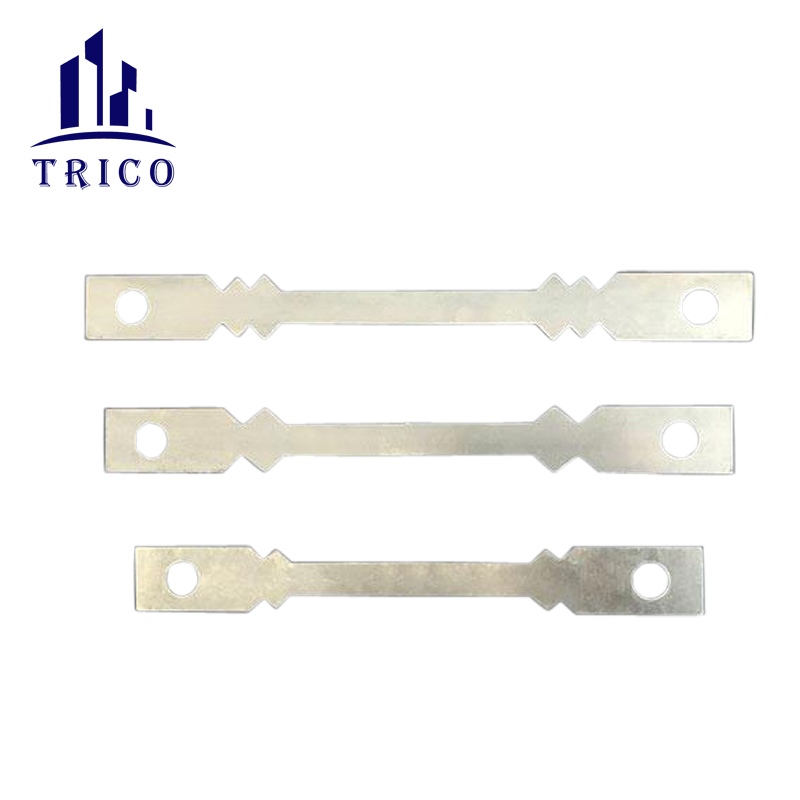

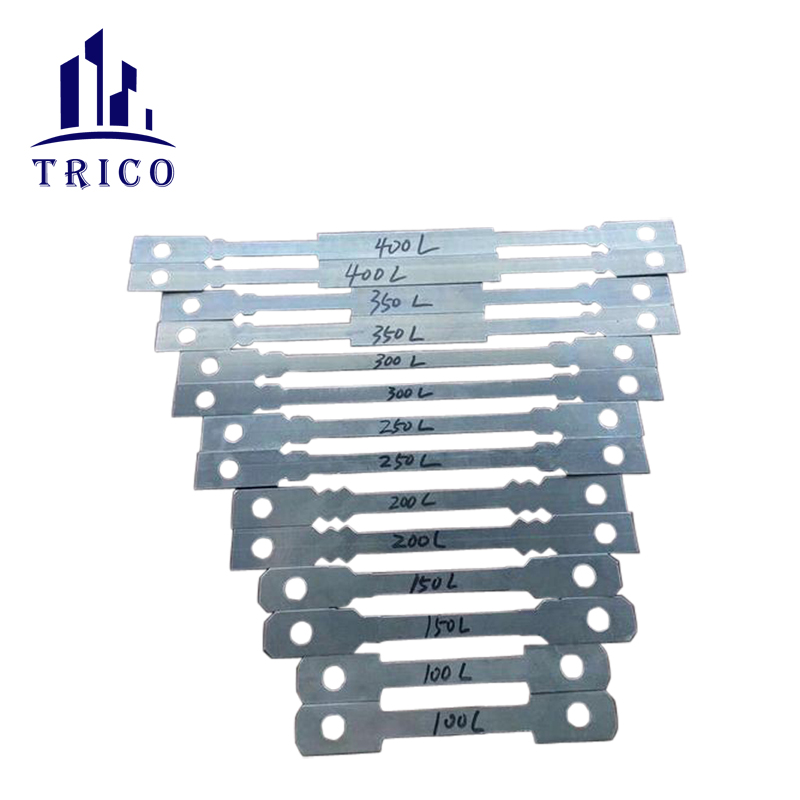

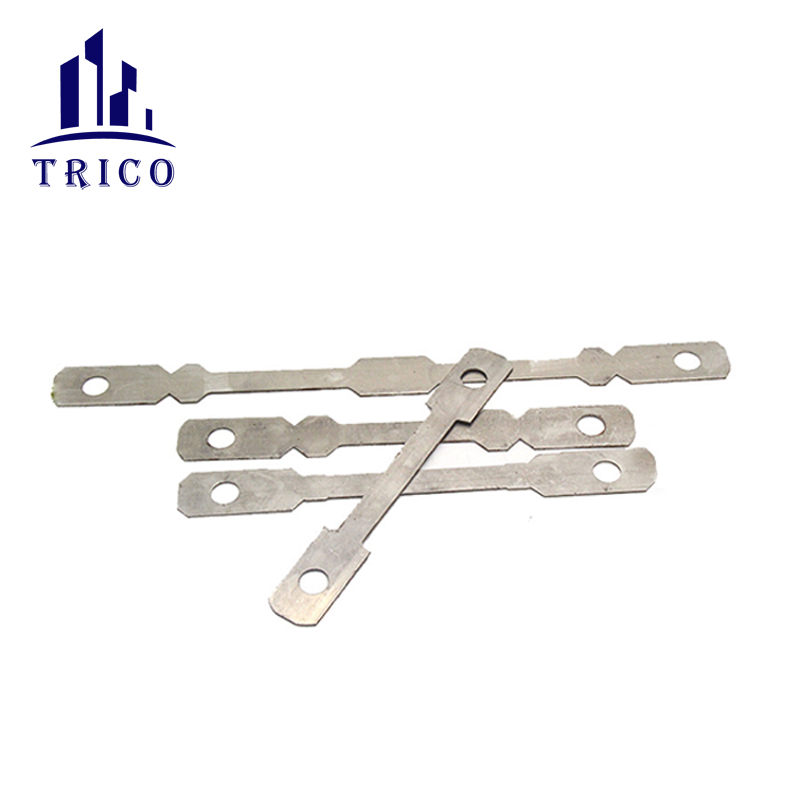

It is cold-drawn flat tie. we can supply 100L to 1200L flat tie.
Aluminum Formwork is popular formwork system for construction. With Full Tie, Nominal Tie, AL Flat Tie and different wedge bolt to lock panels. Related accessories include AL Sepa Tie, Waler Bracket, Turnbuckle, Gang Form Bolts, One Touch Clamp and so on. Since 2002, we export those products to different countries. Welcome your inquiry.
Name | Korean AL Flat Tie | Related Accessories | Picture | ||
Material | Carbon Steel | Stub Pin 50L/52L/195L | |||
Type | 100L-1500L | Wedge Pin 70mm/80mm | |||
Size | Length 225-1625mm; thickness 1.85-2.0mm | Waler Bracket | |||
Weight | 83g-642g | Anchor Bolts | |||
Color | Self Color | One Touch Unit | |||
Pakcing | 100L 26,000pcs/pallet 120L 24,000pcs/pallet 150L 21,000pcs/pallet 160L 20,000pcs/pallet 180L 19,000pcs/pallet200L 18,000pcs/pallet 250L 15,000pcs/pallet ................................... 1500L 3,500pcs/pallet | Turnbuckle | |||
Remarks | We can do as customer's drawing with good quality and competitive price. A :concrete formwork accessories B: concrete formwork flat tie x-flat tie/ wall ties C: aluminum form tie | Whole Set Accessory |
Packaging:
Related Formwork and Scaffolding Accessories
1) Aluminum Formwork System Accessories: AL Flat Tie, Full Tie, Nominal Tie, Standard Pin. Wedge Bolt, Waler Bracket,etc.
2) Steel Ply Forming System Accessories: X-Flat Tie, Wedge Bolt, Wedge Pin, SnapTie, Steel Wedge, Jahn Clamp, Turnbuckle, Z Tie Holder, etc.
3) Formwork Tie Rod System: Tie rod, Tie Nut, Swivel Wing Nut, Waller Plate, Formwork Clamp, Hex Nut
4) Form Tie System: B Form Tie, Plastic B Cone, Rib Washer, Hex Nut, Plastic D Cone, D Form Tie, D Inner Uint, etc.
5) Scaffolding System: Ringlock System, Cuplock System, Scaffolding Frame, Scaffodling Coupler, Scaffolding Safety Net, etc.
6) Plastic Accessories: Plastic Hollow Formwork, Plastic Spacers, etc.
7) Building Fasteners, etc.
