form tie system 3 shape rib washer flat rib washer
  • form tie system 3 shape rib washer flat rib washer
  • form tie system 3 shape rib washer flat rib washer
  • form tie system 3 shape rib washer flat rib washer
  • form tie system 3 shape rib washer flat rib washer
form tie system 3 shape rib washer flat rib washerform tie system 3 shape rib washer flat rib washerform tie system 3 shape rib washer flat rib washerform tie system 3 shape rib washer flat rib washer

form tie system 3 shape rib washer flat rib washer

Product Introduction:

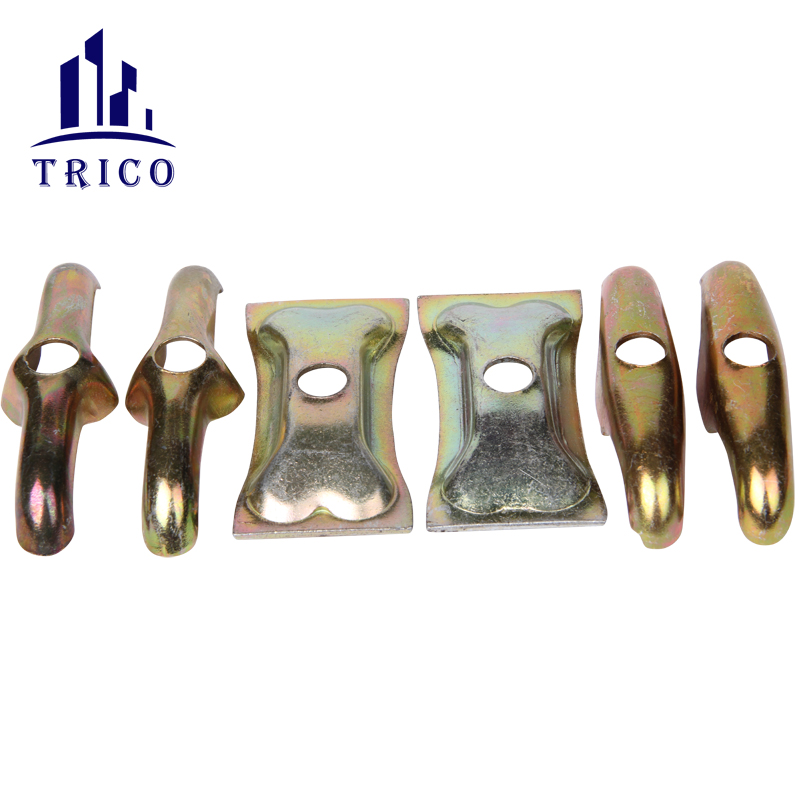

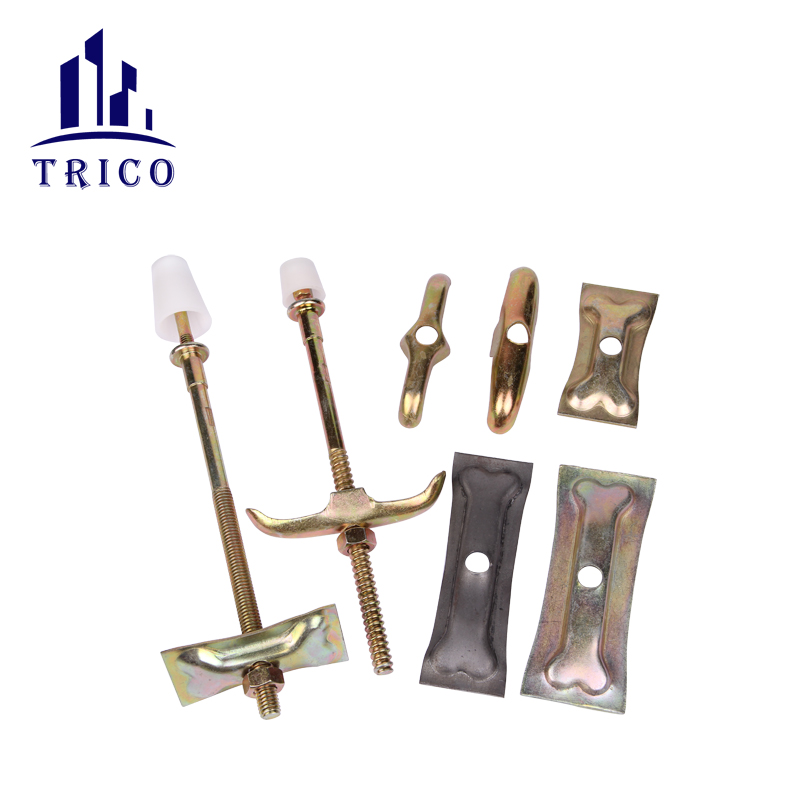

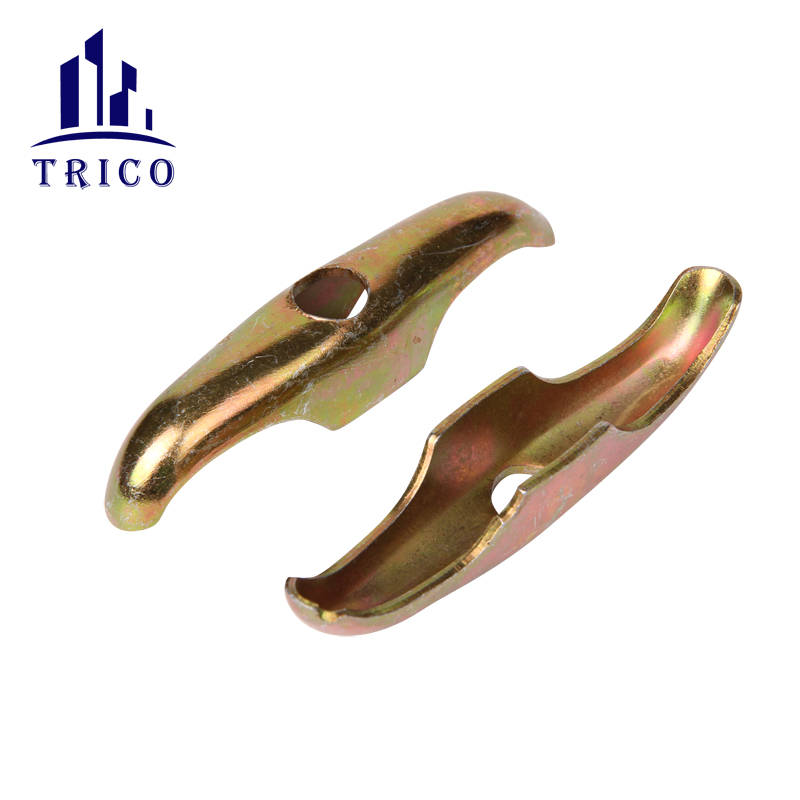

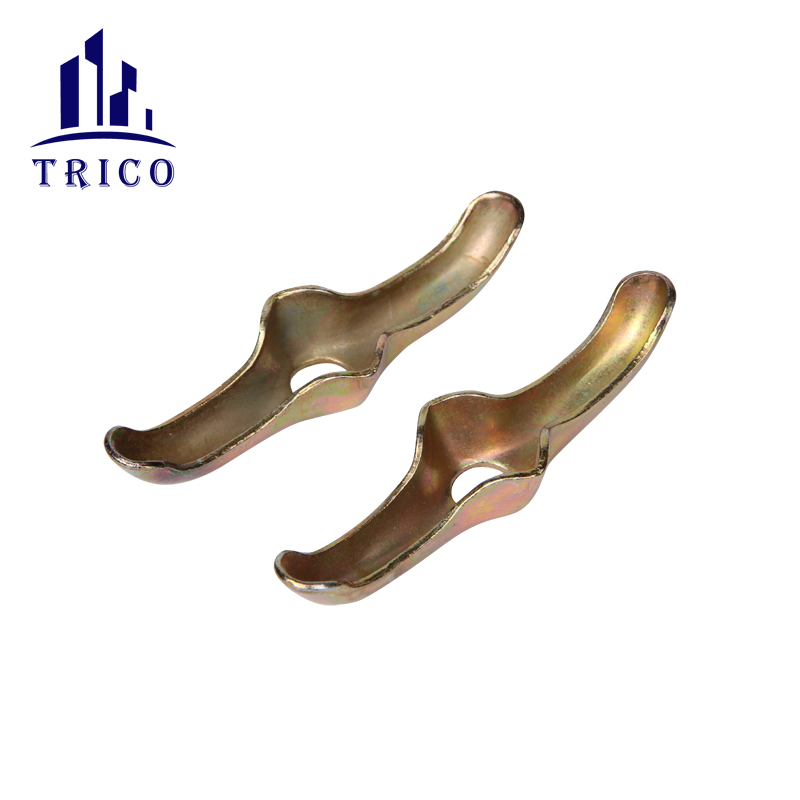

Form tie system 3 shape rib washer/ flat rib washer/ concrete pressed flat rib washer

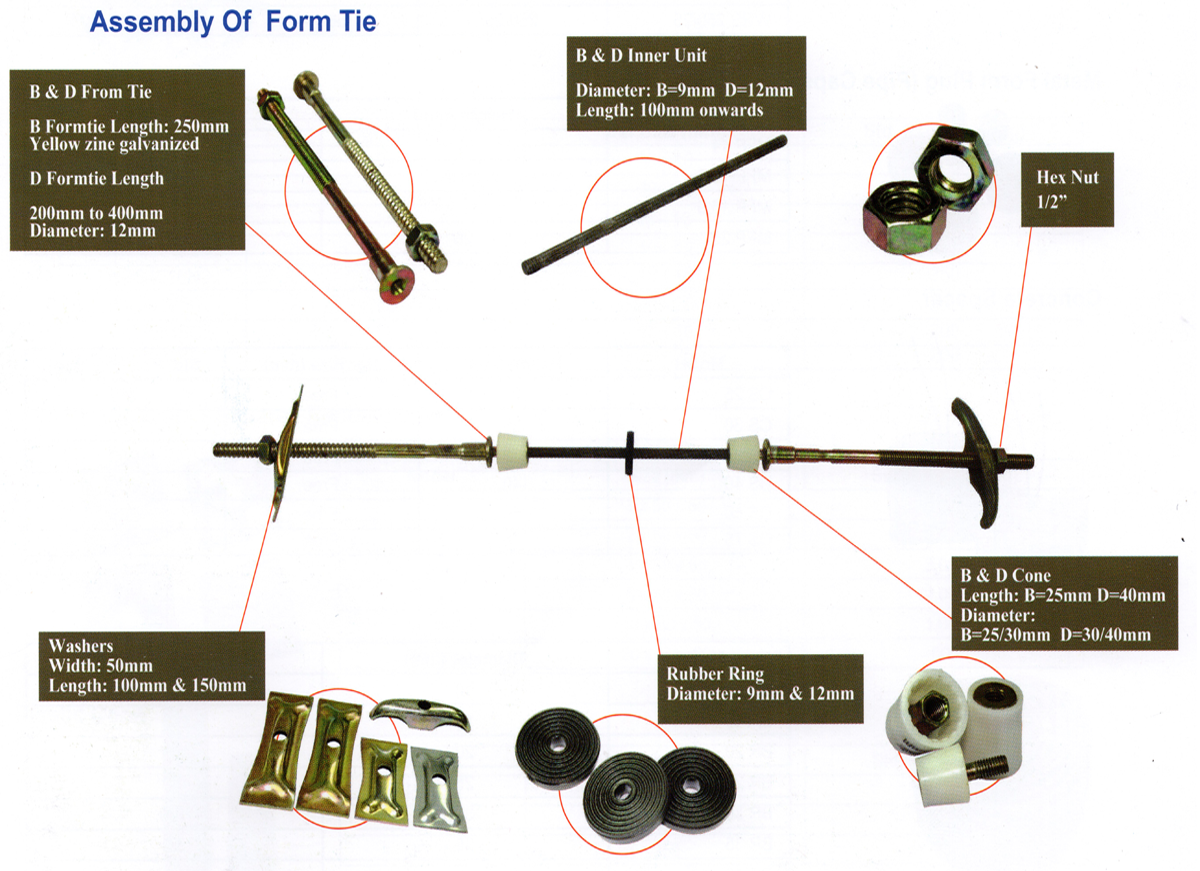

used with form tie ,hex nut to  connect and fix two formworks in building formwork




Product Details

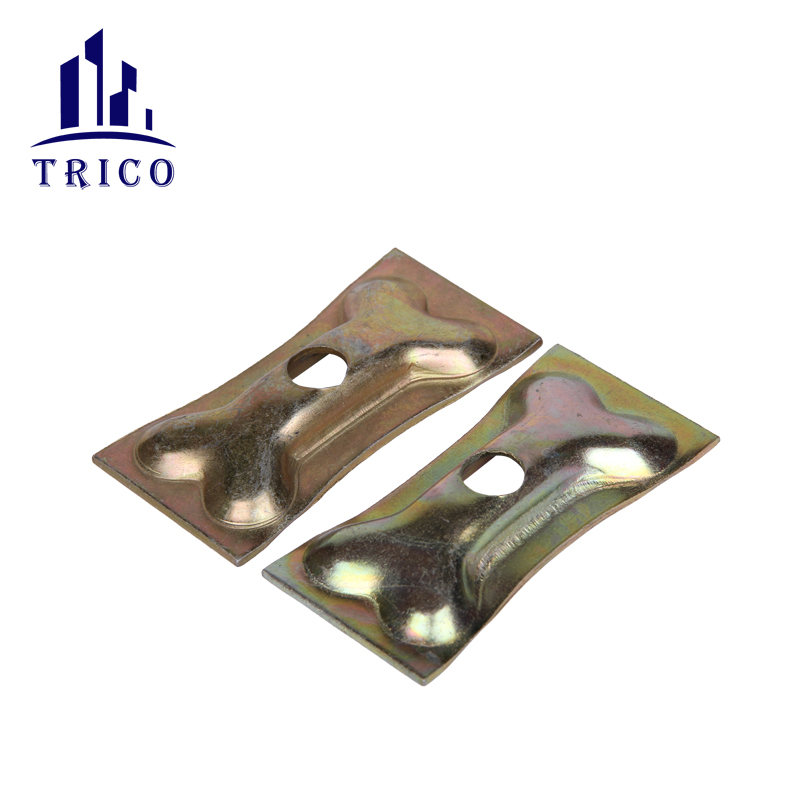

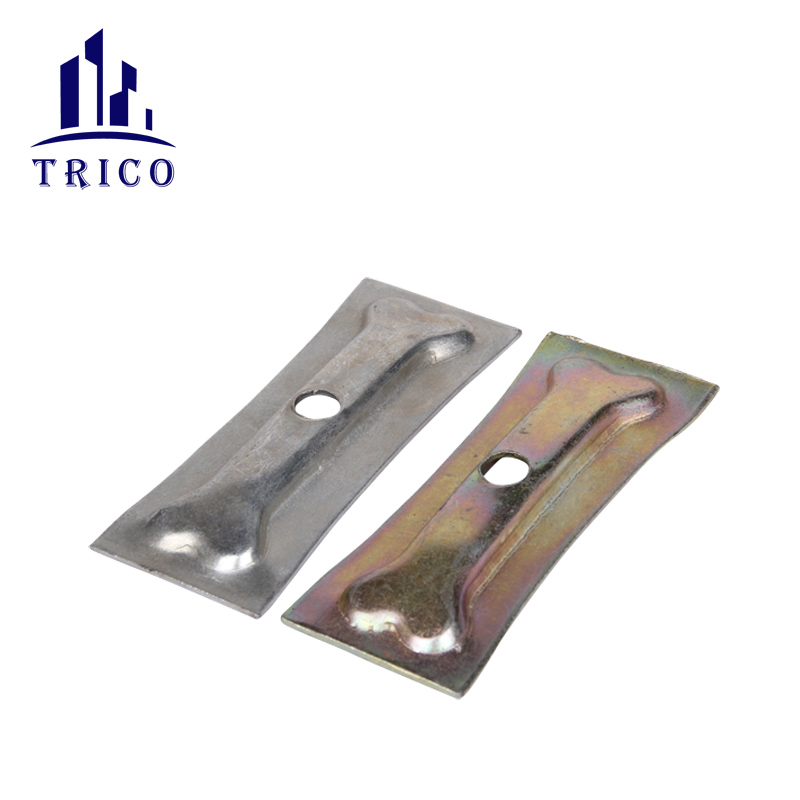

3 shape rib washer / concrete pressed flat rib washer

Specification

1. Name: Flat Rib Washers

2. Material: C1045# steel,C1050 cold rolled steel

3. Size: 150mm x 50mm, 100mm x 50mm

4. Thickness: 2.0-3.0mm

5. Surface: yellow or white galvanized or black

6. For Use With 15/17mm Tie Rod/Form tie

7.Packing: 100 pieces per bundle, 50 bundles/5000 pieces per pallet, plastic paper covered;

form tie system 3 shape rib washer flat rib washerform tie system 3 shape rib washer flat rib washer


form tie system 3 shape rib washer flat rib washerform tie system 3 shape rib washer flat rib washerform tie system 3 shape rib washer flat rib washer


form tie system 3 shape rib washer flat rib washer

Relate products

1) Form tie, Plastic cone, B cone, D cone,Inner unit, Flat rib washer, 3 rib washer, Water stopper

2) Pin, Wedge pin, Wedge

3) Full wall tie, X flat tie, Flat wall tie, Nominal wall tie, Spacer X flat tie

4) Nut, Wing nut , Swivel nut, Tie nut,Hex nut, Round coupling nut

5) J hook, L hook, U clip

6) L bolt,Wedge bolt

7) Scaffolding clamp, Rapid clamp, Spring clamp

Samples

We could supply the customer Samples Freely. Welcome to place the sample orders!
