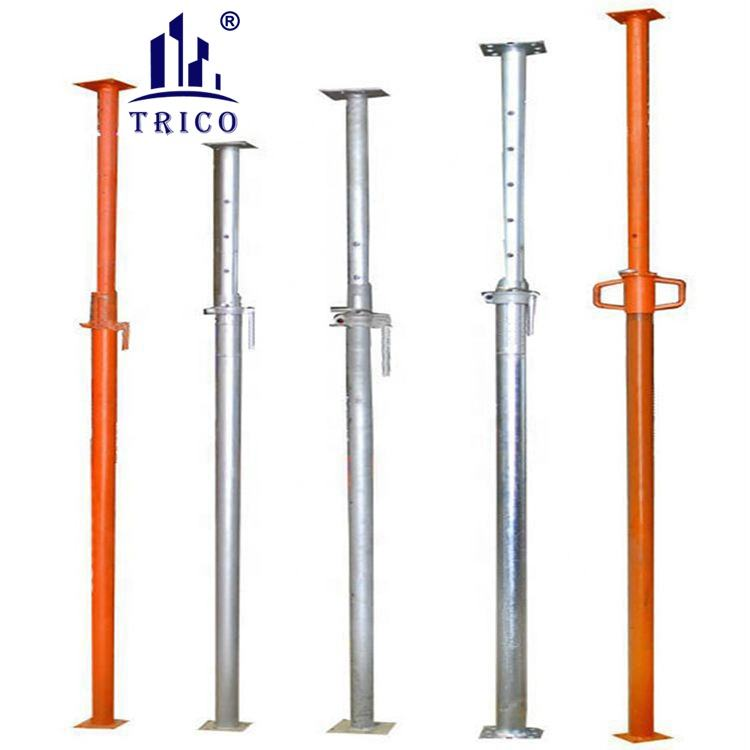

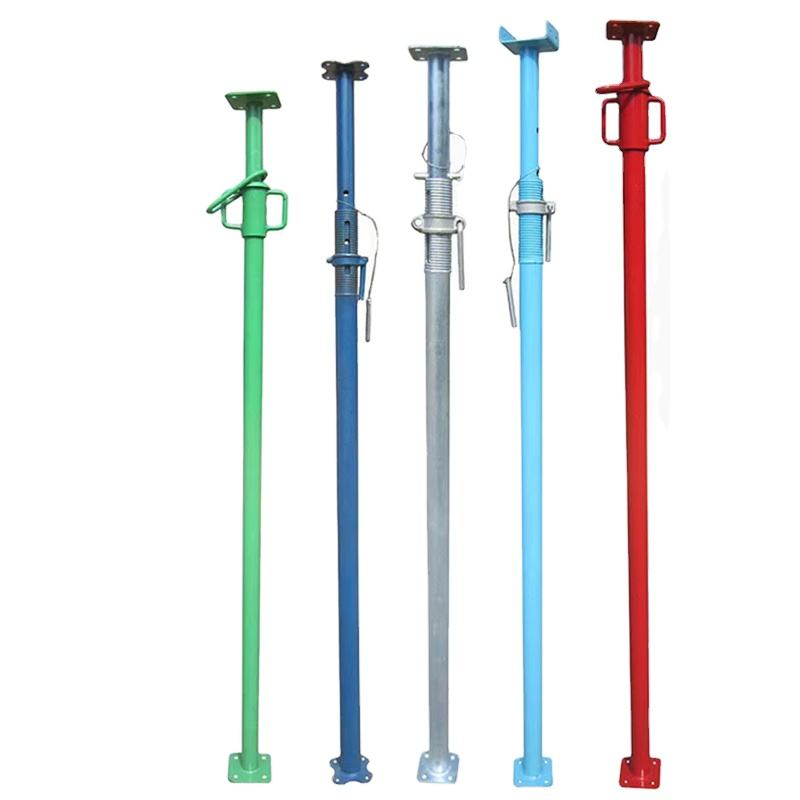

Construction Galvanized Q235 Steel Shoring Props Adjustable Steel Prop for Formwork
Steel Prop is a structural system used to support floor slabs, serving to provide support and bear loads during the concrete pouring and curing processes.
| Heavy Duty Steel Prop | |||
| Min | Max | Internal Tube | External Tube |
| 1.8m | 3.2m | 48*2.0mm | 60*2.0mm |
| 2.1m | 3.4m | 48*2.0mm | 60*2.0mm |
| 2.2m | 4.0m | 48*2.0mm | 60*2.0mm |
| 2.4m | 3.9m | 48*2.0mm | 60*2.0mm |
| 3.5m | 4.0m | 48*2.0mm | 60*2.0mm |
| 3.0m | 5.0m | 48*3.5mm | 60*3.5mm |
| Other Sizes are Available | |||
Prop’s loading capacity can be adjusted according to the pipe thickness, support pin diameter, base plate thickness and prop nut weight.
Surface of prop can be electric-galvanized, powder painted and hot-galvanized.
