The 3-Ply Formwork Panel is a revolutionary breakthrough in the construction sector.
Wood Material:European Imported Solid Pine/Spruce
Length:3000mm,2500mm,2000mm,1500mm,1000mm,etc.
Width:500mm
Thickness: 21mm/27mm
Gluing:Polyester fiber foaming glue
Surface protection:Water-resistance
Edges:Sealed by water-proof yellow paint.
Surface color:Yellow

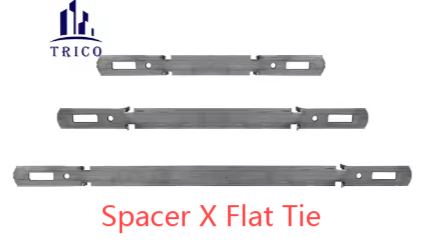

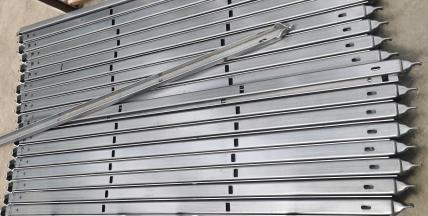

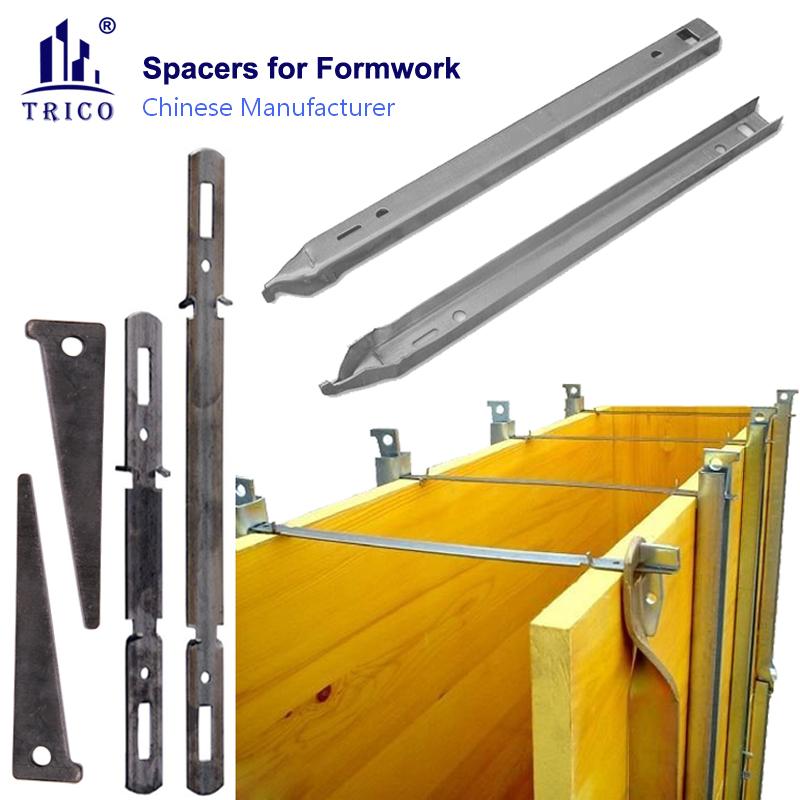

3 Ply Formwork Spacer with high strength is used to fix the plywood panel during concrete.
Trico supplies spacers for 27mm and 18mm plywood. Wall thickness can be 10cm, 15cm,20cm,25cm and 30cm and so on.
U-Shaped Posts are used to support the panel for concrete work. The sizes are 0.5m,1m and 1.5m.
Wedge will connect the spacers and U-Shaped Posts to make the structure stable.
