Concrete Formwork Accessories Tie Rod System D15/17 Tie Rod Wing Nut

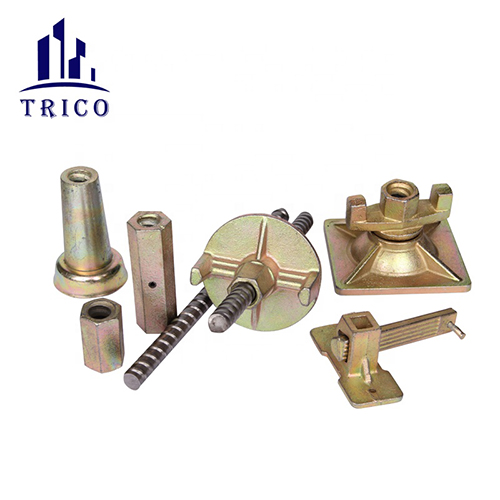

Various form tie rod system accessories available, such as steel tie rod, wing nut, water stopper, tie nut, washer plate, waller plate, hex nut, connection nut, etc.
Alll of these formwork accessories are popularly used for concrete formwork & shuttering systems, including wall formwork, column formwork, slab formwork, beam formwork, bridge formwork, etc.
Different kind of diameter tie rod and related wing nut, water stop, hex nut, connection nut, washer plates are available as requirement.
Alll of these formwork accessories are popularly used for concrete formwork & shuttering systems, including wall formwork, column formwork, slab formwork, beam formwork, bridge formwork, etc.

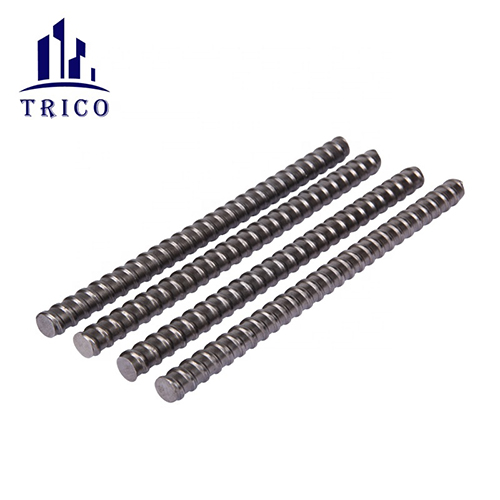

| Formwork Cold Rolled Tie Rod | ||
 | Material | Q235, 45# Steel, Special mixture Steel |
| Diameter | D12mm/ D15mm/ D20mm | |
| Weight | 0.75kg/meter (D12mm) 1.50kg/meter (D15mm) 2.32kg/meter (D20mm) | |
| Ultimate Load | 70kn-260kn | |
| Surface Treatment | Galvanized or as Nature | |
| Packing | Bundles | |
| Related Products | Tie Nut, Wing Nut, Water Stop, Climbing Cone Nut, Hex Nut and etc. | |
| Ductile Iron Casting Formwork Tie Nut Details | ||||
 | Material | Ductile Iron Casting | Packing | Bags or Pallets |
| Diameter | D12mm D15mm D20mm | Ultimate Load | Over 180kn | |
| Plate Size | D70mm D80mm D90mm D100mm D120mm | Color | Gold, Silver or Black | |
| Surface Treatment | Galvanized or as Nature | Capacity | 300tons per month | |
| Application | Formwork Tie Rod System | Related Products | Tie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc. | |
| OEM Design is Acceptable | ||||
