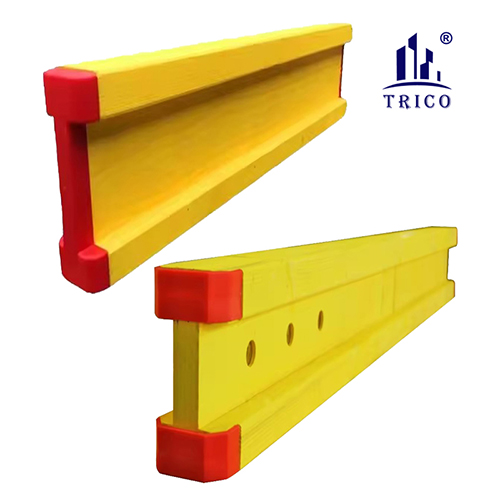

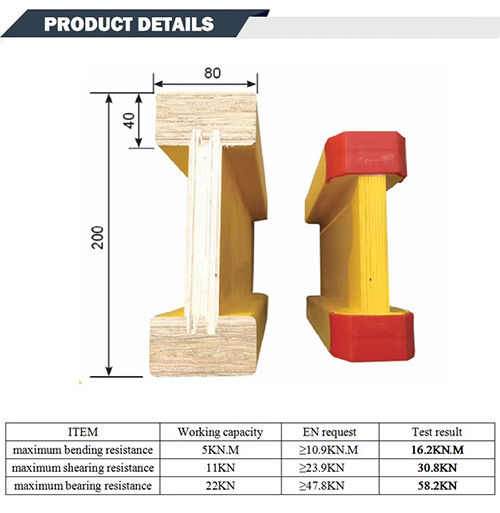

H20 Beams are used as primary and secondary beams in column formwork systems. They provide stability to the structure and support the weight of concrete during the casting process. Due to their slightly different cross-section shape, thicker central web and wider flanges, H beams can bear larger loads. At present we supply 200×80mm with 27mm thickness of web . Length can be chosen as your demand.
The flange is made of solid wood, but the web can be three solid wood or laminated plywood.
For long time usage, we also can help to make plastic cover for the end. Hall covering and full covering are with different cost.
H20 Beams give you higher strength and safety when using them on heavy-duty construction sites. lt possesses incredible dimension stability, Moreover, it has a higher recovery capacity after applying a heavy load.

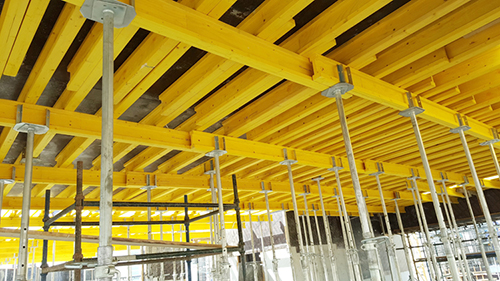

H20 timber beam is widely used in formwork systems, such as shear wall formwork, slab formwork, column formwork and etc. Except H20 Beam, Trico also supply three-layer board 21mm, H20 Clamp, Fork Head and Steel Prop.
