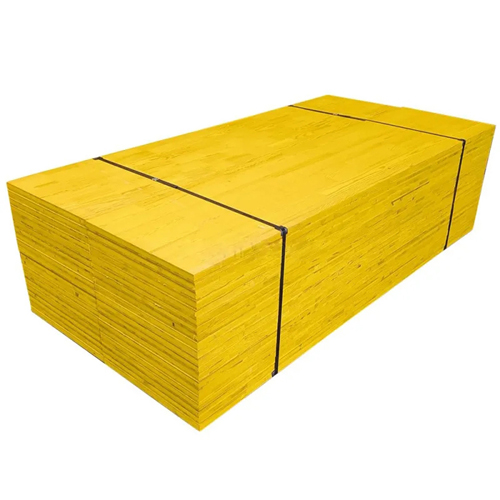

TRICO 3-PLY Panel for formwork
The 3-PLY Yellow formwork Panel is a revolutionary breakthrough in the construction sector. This panel offers enhanced rigidity and stability, making it superior to traditional formwork materials. Each 3-PLY Yellow Formwork Panel undergoes rigorous quality checks, ensuring it stands up to the demanding challenges of construction sites. With its sleek yellow finish, it not only provides structural integrity but also adds an aesthetic touch to any project. Choose the 3-PLY for a blend of strength and style.
Item | Value |
Type | 3 ply shuttering panel/Triply panel for construction |
Warranty | 3 years |
After-sale Service | Online technical support, Onsite Installation, Onsite Training |
Design Style | Traditional |
Place of Origin | Hebei, China |
Brand Name | TRICO |
Model Number | 3 ply shuttering panel/Triply panel |
Name | 3 ply shuttering panel/Triply panel |
Thickness | 27mm or 21mm |
Length | 2000mm or as you required |
Width | 500mm or as you required |
Material | Spruce(Europe),Chinese fir, or other species |
Surface treatment | Water-resistant melamine resin coated by hot-pressed |
Glue | MUF or Phenolic glue(E1 or E0 grade) |
Surface color | Yellow |
Density | 450-500 kgs/cbm |

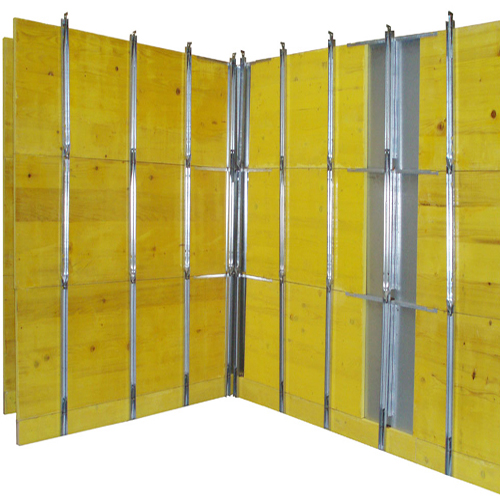

Application | Concrete form,formwork panels,platform or other uses |
TRICO Formwork 3ply panels are built with three layers of wood obtained from fir and spruce trees grown in sustainable forests.
• STRUCTURE:
Our panels are made with a 3-ply structure 9+9+9 mm, without frame.
This means that the mechanical post shoreerties of our panel are the same and unchanged even if you cut the panel.
The outer plies that are in touch with the concrete are thicker (9mm vs 6mm) and will allow the panel to last longer.
Lamellas of TRICO panels are prepared from a glulam monolitic beam having a smaller width which improves the resistance of the panel and automatically reduces the maximum dimension of accepted knots.
• SURFACE FINISH:
Our panels have a melamin finish, just like other panels, but having a greater quality of raw material we can provide it with natural color finish. Of course we can also provide with the classic yellow finish.
The reason why yellow is used is to cover possible aestethical defects of the wood, because yellow tends to uniform the view.
• EDGES:
We are introducing a polyuretane protection on the longitudinal edges as an optional. This option will allow a perfect smooth contact of the panels edges and it will improve the concrete finish.
• Dimensions & Specifications:
Aligning with the industry's demand for versatility, the FS panel offers varied thicknesses, widths, and lengths. This flexibility makes it adaptable for various construction scenarios.
