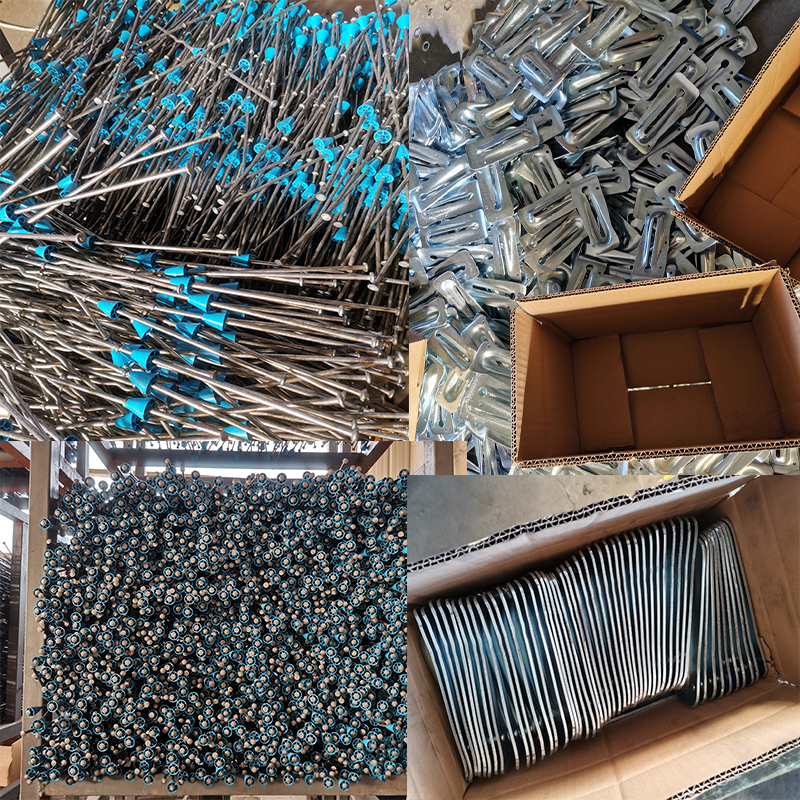

Concrete Snap Ties are manufactured with integral heads, and Metal or Plastic Form Spreaders. Snap Ties are designed to easily tie lumber forming systems. Snap Ties have a nominal 1" break back. Each Tie incorporates an anti-turn device in order to properly break after use. Long End, Short End, and Odd End Snap Ties for plywood forming. Available with 1″ x 1″ cones (plastic), washers (metal), and water-resistant seal options.
Snap tie and wedge together used to hold the wood panel then to form a concrete wall for poured in place concrete, after the concrete is cured the snap tie ends can be snapped off and the wedges can be easily removed to strip the forms.

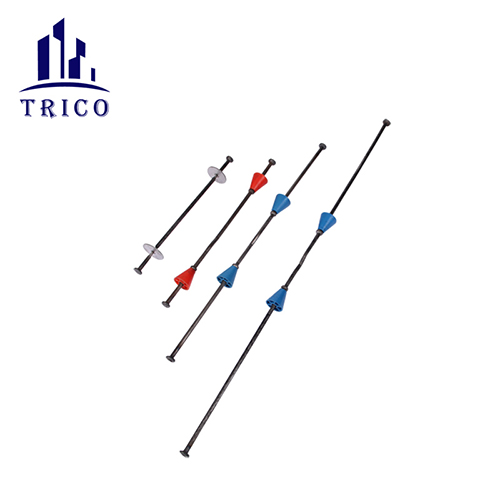

① 4-3/4” End with 1”x1” plastic cone and hex head * wall-size 6” to 39” as your requirement.
② 8-1/4” End with 1”x1” plastic cone and hex head * wall-size 6” to 40” as your requirement.

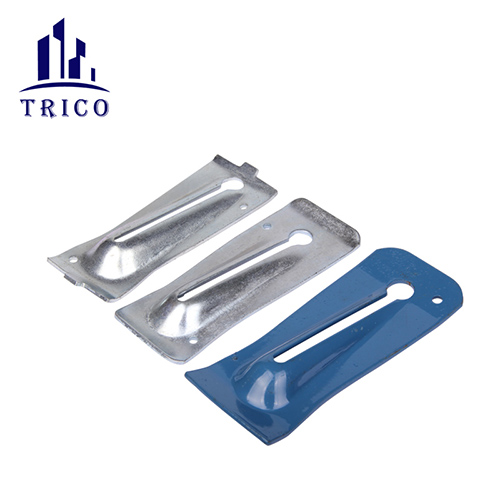

Snap Tie with Round head or Hex nut head, we also have the accessories such as snap tie wedge and A clamp.
