What Accessories Do You Need for Your Symons Form?
Symons form system accessories include X flat tie, standard wedge bolt, long bolt, short bolt, One Piece Waler Clamp, Z Tie Holder & Waler Ties.
Wedge Bolt connect panels and ties together,eliminating the need for special tools or equipment in the set up process.

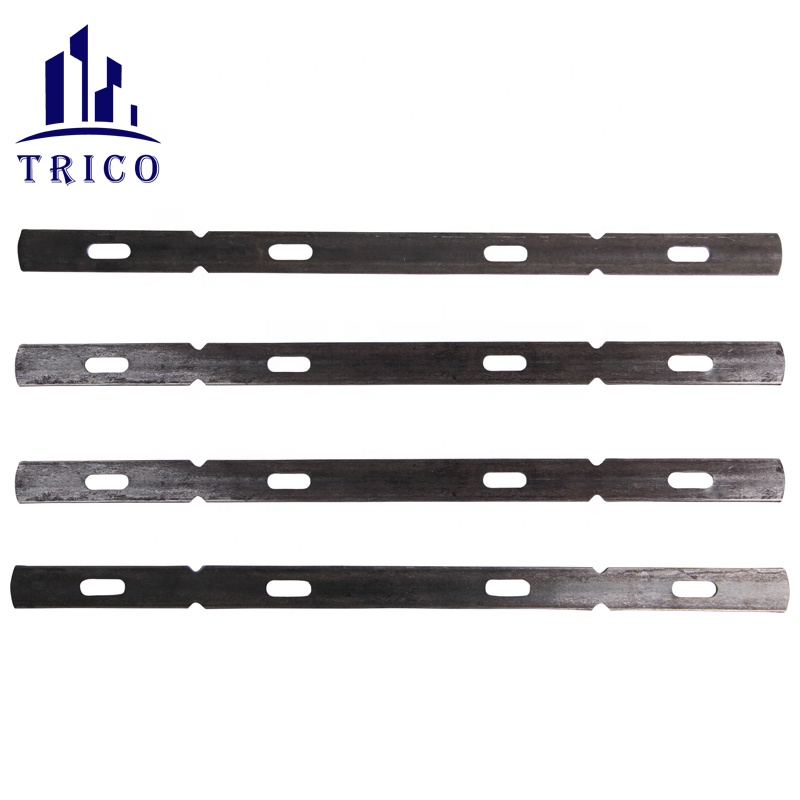

The most important point when you choose the X flat tie is the load capacity.
| American Type Formwork X-Flat Tie Forming System | ||||||
| Photo | Size | Ultimate Load | Qty/Bundle | Qty/Pallet | Unit Weight | |
| g | LBS | |||||
 | 4" | 6000LBS | 100pcs | 10000pcs | 103.97 | 0.2292 |
| 5" | 100pcs | 10000pcs | 111.90 | 0.2467 | ||
| 6" | 100pcs | 10000pcs | 119.81 | 0.2641 | ||
| 8" | 100pcs | 10000pcs | 141.21 | 0.3113 | ||
| 9" | 100pcs | 10000pcs | 151.91 | 0.3349 | ||
| 10" | 100pcs | 10000pcs | 162.61 | 0.3585 | ||
| 12" | 100pcs | 10000pcs | 184.01 | 0.4057 | ||
| 14" | 100pcs | 5000pcs | 205.41 | 0.4528 | ||
| 15" | 100pcs | 5000pcs | 216.11 | 0.4764 | ||
| 16" | 100pcs | 5000pcs | 226.81 | 0.5000 | ||
| 18" | 50pcs | 5000pcs | 248.21 | 0.5472 | ||
| 20" | 50pcs | 2500pcs | 269.61 | 0.5944 | ||
| 22" | 50pcs | 2500pcs | 291.01 | 0.6416 | ||
| 24" | 50pcs | 2500pcs | 312.42 | 0.6888 | ||
| Photo | Item | Weight | Material | Paking |
 | Short Wedge Bolt | 40g | 45# Steel | 250pcs/pail or 500pcs/pail |
| Standard Wedge Bolt | 52g | |||
| Long Wedge Bolt | 71g | |||
| Adjust Wedge Bolt | 81g | |||
| Both the X-Flat and Wedge Bolt can be OEM design | ||||
Let us know the sizes you need, contact [email protected]
