Popular Wall Ties Full Tie Nominal Tie for Aluminum Formwork System

Jul. 02, 2021

Aluminum Form Ties compatible with Wall-Ties, Western Forms, and Precise style concrete forming equipment.

Flat Wall Ties hold the forms at desired distance from each other. It is easy to break off with rod notches that reduce the risk of rebar movement during the pouring process. Also includes location notches for placing horizonal reinforing steel.

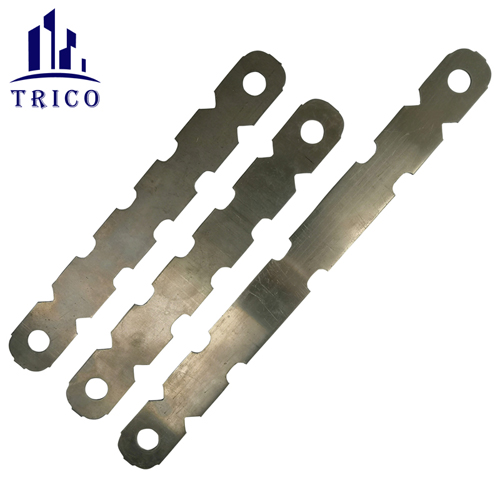

Popular Wall Ties Full Tie Nominal Tie for Aluminum Formwork System

Features of Flat Wall Ties

• Breaks horizontally flush with the wall

• Designed for easy break off

• Safe working (2:1) tensile load of 3,750 lbs.

• Available in Full and Nominal sizes

• Rod notches on ties to hold horizontal rebar in place

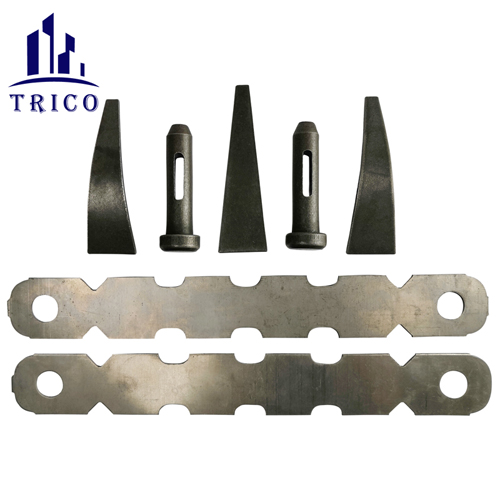

Popular Wall Ties Full Tie Nominal Tie for Aluminum Formwork System

What is the difference between the Nominal Tie and Full Tie?

They look almost the same from the feature, but with different lengths.For example, Wall ties used in the forming of cast-in-place concrete walls are made in nominal or full dimensions. An 8-inch nominal wall tie does not measure a full 8 inches in width and therefore, when used, will not result in an 8-inch thick concrete wall. An 8-inch full wall tie, as the name implies, does measure a full 8 inches and will result in an 8-inch thick concrete wall. Therefore, nominal size wall ties are not acceptable, full dimension wall ties are required.

When ordering, please make sure to specify standard(nominal) or full tie dimension.
