Triply Yellow Panel Shuttering Plywood System Panel Bracket Wedge Spacer X Flat Tie
The 3-Ply Formwork Panel is a revolutionary breakthrough in the construction sector. It offers enhanced rigidity and stability, making it superior to traditional formwork panels.Each 3-Ply Formwork Panel undergoes rigorous quality checks, ensuring it stands up to the demanding challenges of construction sites.
Details:
Wood Material:European Imported Solid Pine/Spruce
Length:3000mm,2500mm,2000mm,1500mm,1000mm,etc.
Width:500mm
Thickness: 21mm/27mm
Gluing:Polyester fiber foaming glue
Surface protection:Water-resistance
Edges:Sealed by water-proof yellow paint.
Surface color:Yellow
Application: Concrete form,formwork panels,platform or other uses.

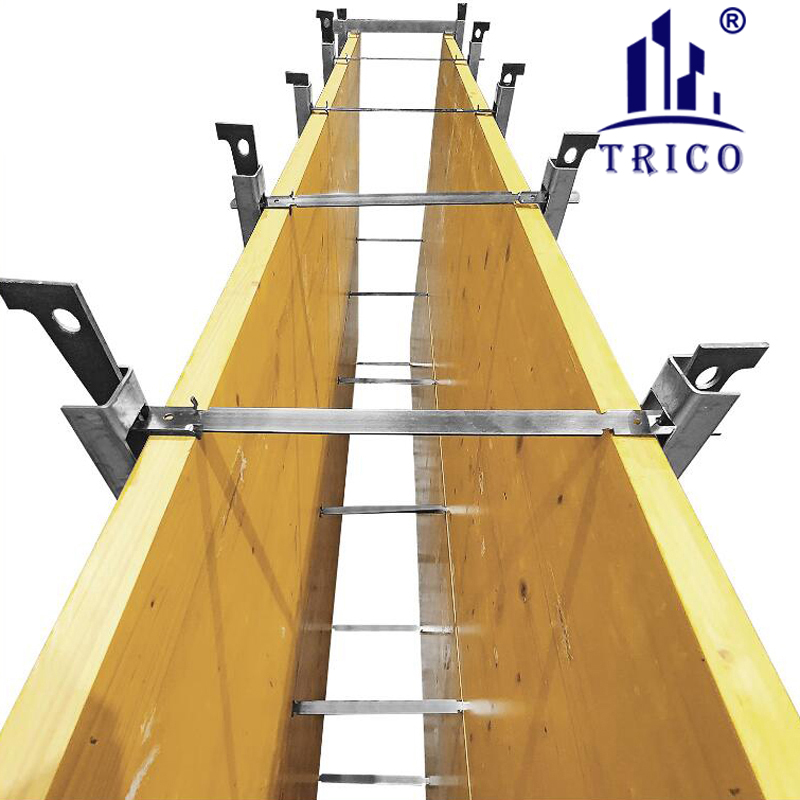

Accessories for Concrete 3Ply Panel

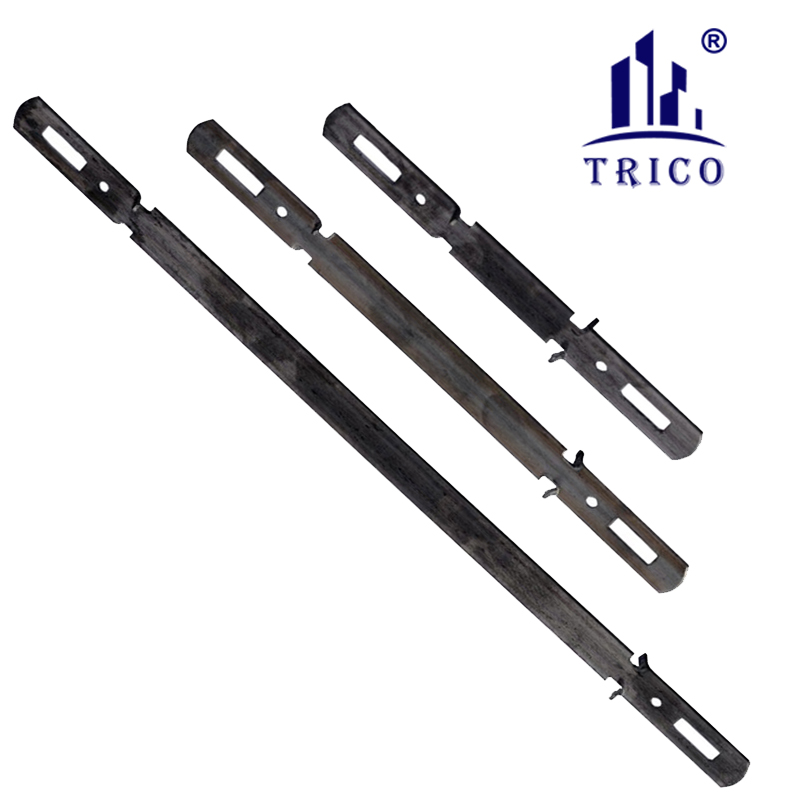

3 Ply Formwork Spacer with high strength is used to fix the plywood panel during concrete.
Trico supplies spacers for 27mm and 18mm plywood. Wall thickness can be 10cm, 15cm,20cm,
25cm and 30cm and so on.
Brackets are used to support the panel for concrete work. The sizes are 0.5m,1m and 1.5m

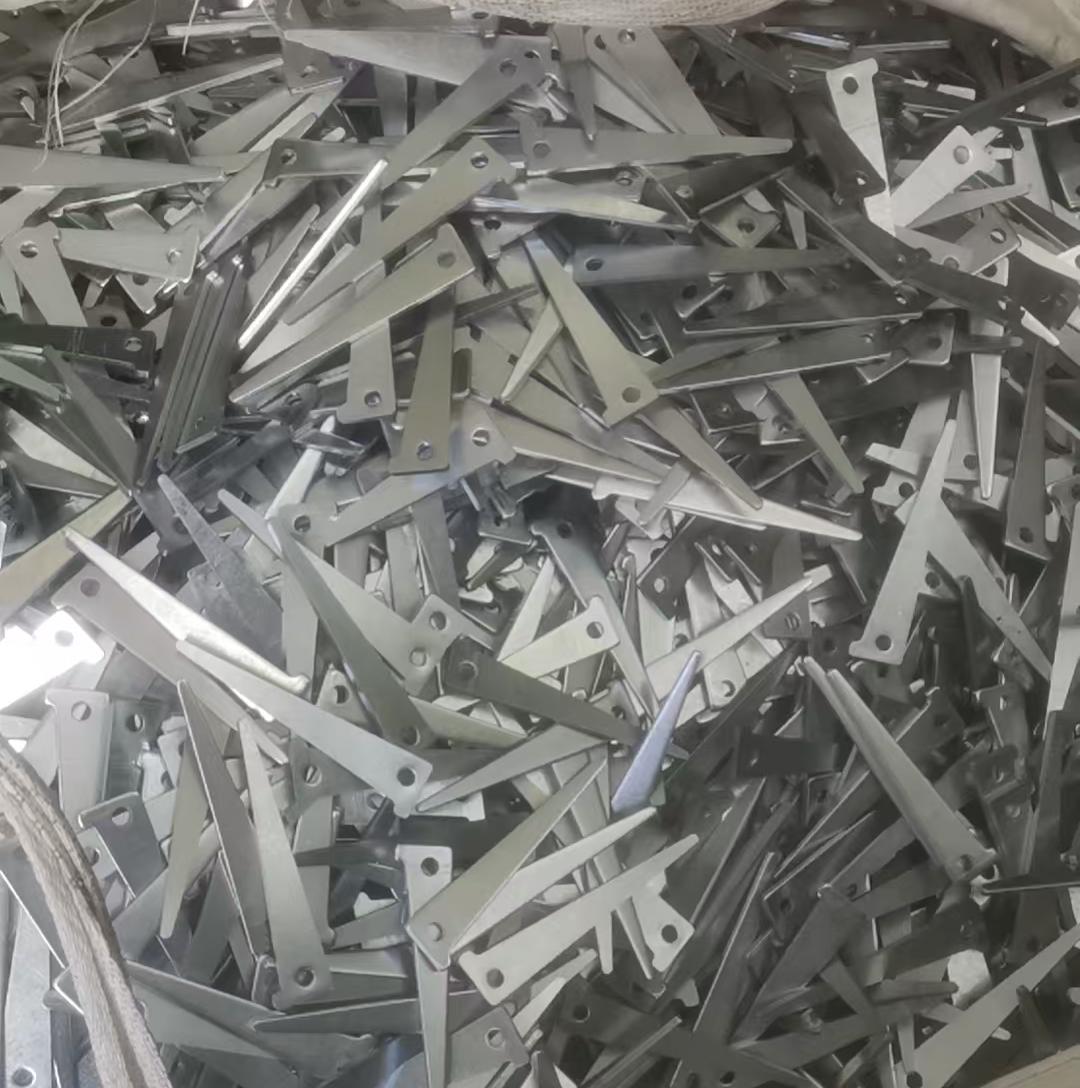

Wedge will connect the spacers and beam to make the structure stable.
