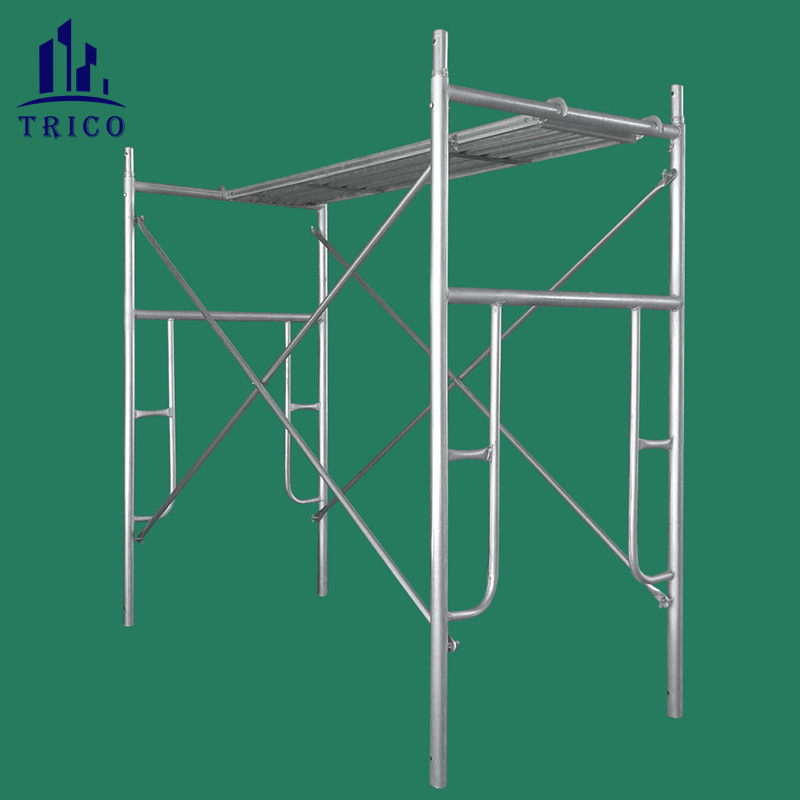

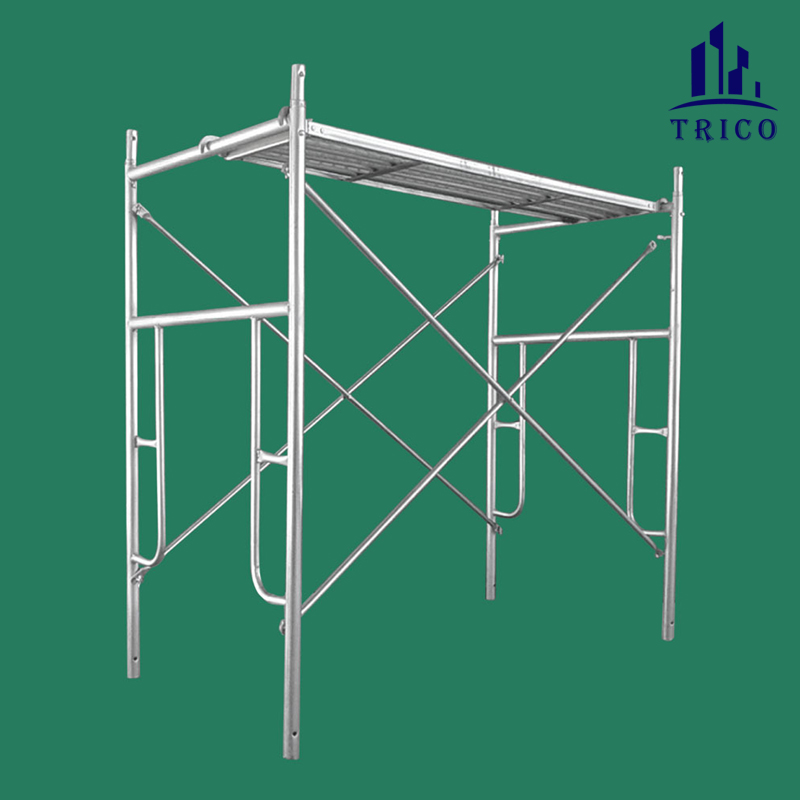

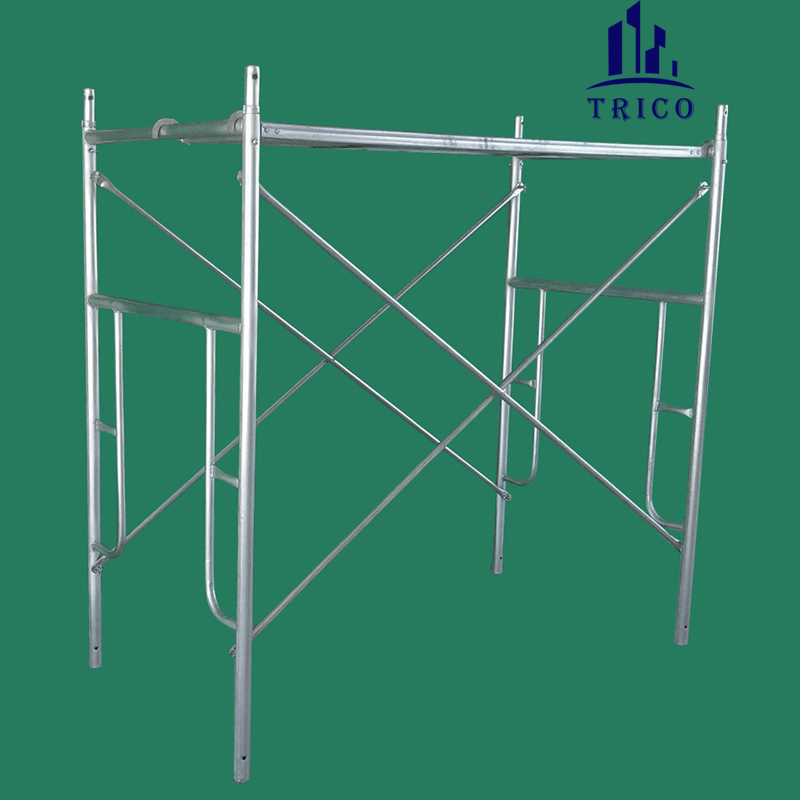

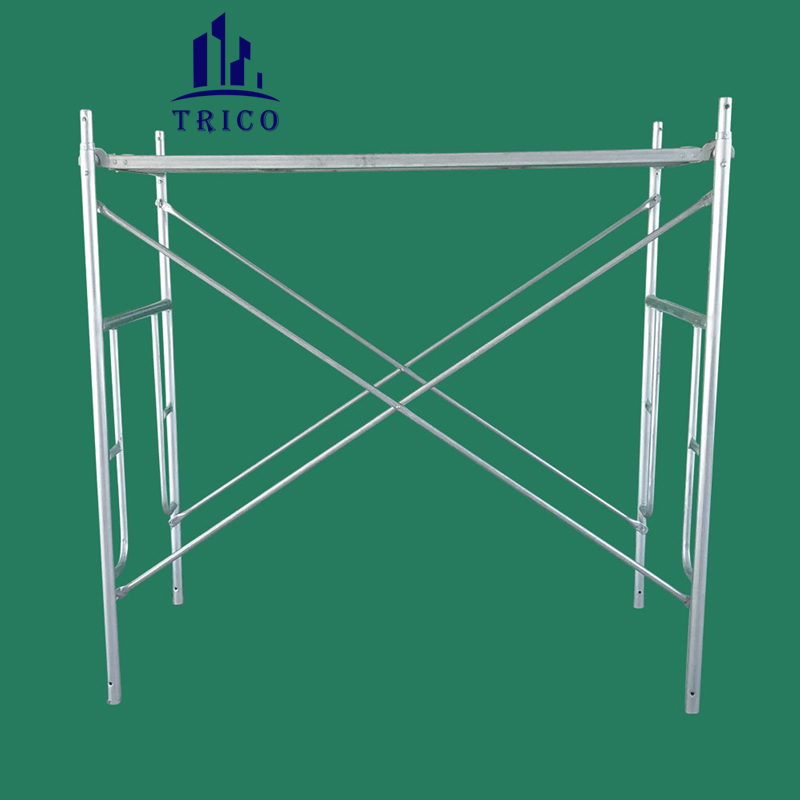

Frame Scaffolding is a kind of light duty scaffolding and easier for moving. And a standard set of Frame usually has 2 pieces of welded main frames, 2 pairs of cross braces, and 4 pieces of joint pins. The caster wheels can be installed at the bottom of the frame, so Frame is also a type of mobile scaffolding, which can be moved easily.
Scaffolding Frame
Type | Height*Width | Thickness | Surface | Picture |
Door Frame | 1000*950mm | 1.2-2.0mm | Painted/Pre-Galvanizing | |
1000*1250mm | 1.2-2.0mm | Painted/Pre-Galvanizing | ||
1700*950mm | 1.2-2.0mm | Painted/Pre-Galvanizing | ||
1700*1250mm | 1.2-2.0mm | Painted/Pre-Galvanizing | ||
1930*950mm | 1.2-2.0mm | Painted/Pre-Galvanizing | ||
1930*1250mm | 1.2-2.0mm | Painted/Pre-Galvanizing | ||
Accessories | Cross Brace, Joint Pin, Lock Pin, Steel Plank , Caster, Base Jack |
Frame Scaffold Advantages:
High-strength steel tubing
Safe, efficient and dependable
Large selection of frame lock types and tube sizes
Easily assembled, fast erection and dismantling
Frame scaffolding normally is made of 42.7×2.4 mm tubes and 25.4×1.65 mm tubes.
Material: Q345 / Q235
Surface: powder coated, painted, or hot dipgalvanized
Package: Free steel pallet or bulk packaging to save space and freight cost per piece
