Fast Lock Frame Scaffolding System
  • Fast Lock Frame Scaffolding System
  • Fast Lock Frame Scaffolding System
  • Fast Lock Frame Scaffolding System
  • Fast Lock Frame Scaffolding System
  • Fast Lock Frame Scaffolding System
Fast Lock Frame Scaffolding SystemFast Lock Frame Scaffolding SystemFast Lock Frame Scaffolding SystemFast Lock Frame Scaffolding SystemFast Lock Frame Scaffolding System

Fast Lock Frame Scaffolding System

Product Introduction:

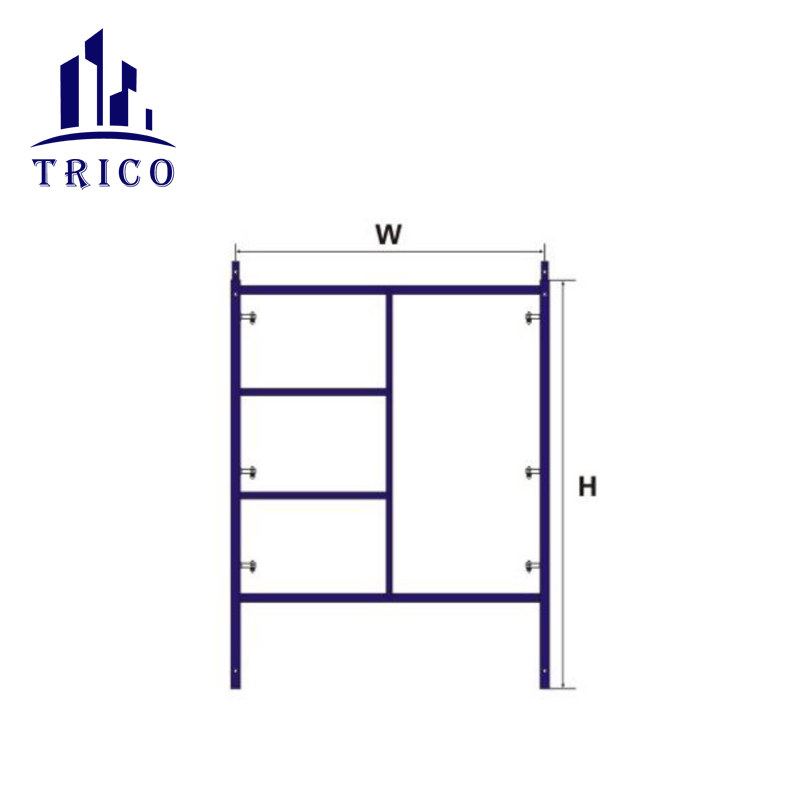

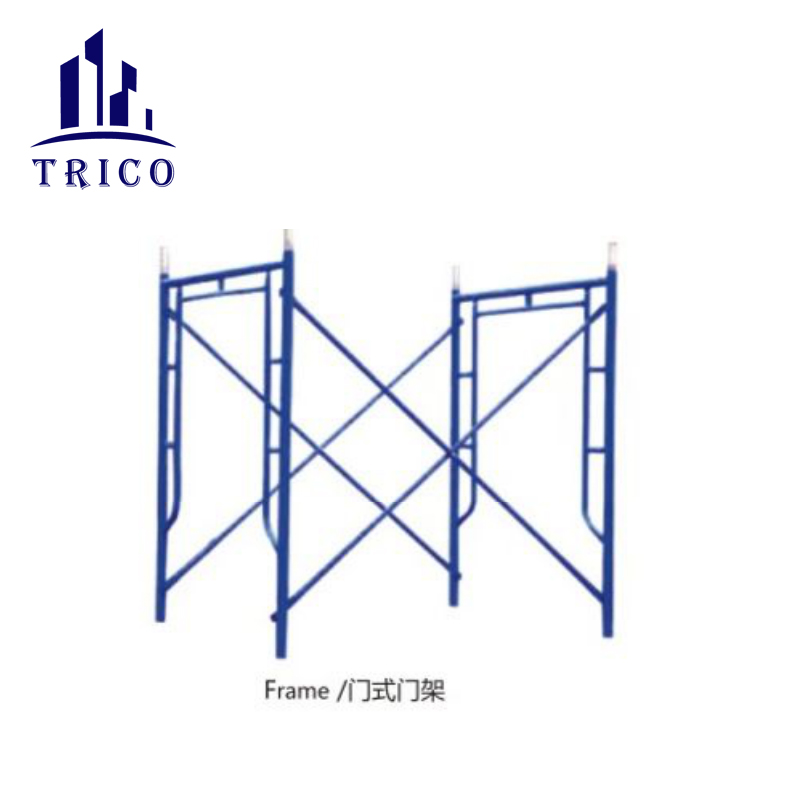

Frame Scaffolding is a kind of light duty scaffolding and easier for moving. And a standard set of Frame usually has 2 pieces of welded main frames, 2 pairs of cross braces, and 4 pieces of joint pins. The caster wheels can be installed at the bottom of the frame, so Frame is also a type of mobile scaffolding, which can be moved easily.

Product Details

Fast Lock Frame Scaffolding System

Fast Lock Frame Scaffolding System


Fast Lock Frame Scaffolding System

Frame Scaffold Advantages:

High-strength steel tubing

Safe, efficient and dependable

Large selection of frame lock types and tube sizes

Easily assembled, fast erection and dismantling

Frame scaffolding normally is made of 42.7×2.4 mm tubes and 25.4×1.65 mm tubes.

Material: Q345 / Q235

Surface: powder coated, painted, or hot dipgalvanized

Package: Free steel pallet or bulk packaging to save space and freight cost per piece
