Steel Plywood Forming System Wall Tie X Flat Tie and Wedge Bolt
  • Steel Plywood Forming System Wall Tie X Flat Tie and Wedge Bolt
  • Steel Plywood Forming System Wall Tie X Flat Tie and Wedge Bolt
  • Steel Plywood Forming System Wall Tie X Flat Tie and Wedge Bolt
  • Steel Plywood Forming System Wall Tie X Flat Tie and Wedge Bolt
  • Steel Plywood Forming System Wall Tie X Flat Tie and Wedge Bolt
  • Steel Plywood Forming System Wall Tie X Flat Tie and Wedge Bolt
Steel Plywood Forming System Wall Tie X Flat Tie and Wedge BoltSteel Plywood Forming System Wall Tie X Flat Tie and Wedge BoltSteel Plywood Forming System Wall Tie X Flat Tie and Wedge BoltSteel Plywood Forming System Wall Tie X Flat Tie and Wedge BoltSteel Plywood Forming System Wall Tie X Flat Tie and Wedge BoltSteel Plywood Forming System Wall Tie X Flat Tie and Wedge Bolt

Steel Plywood Forming System Wall Tie X Flat Tie and Wedge Bolt

Product Introduction:

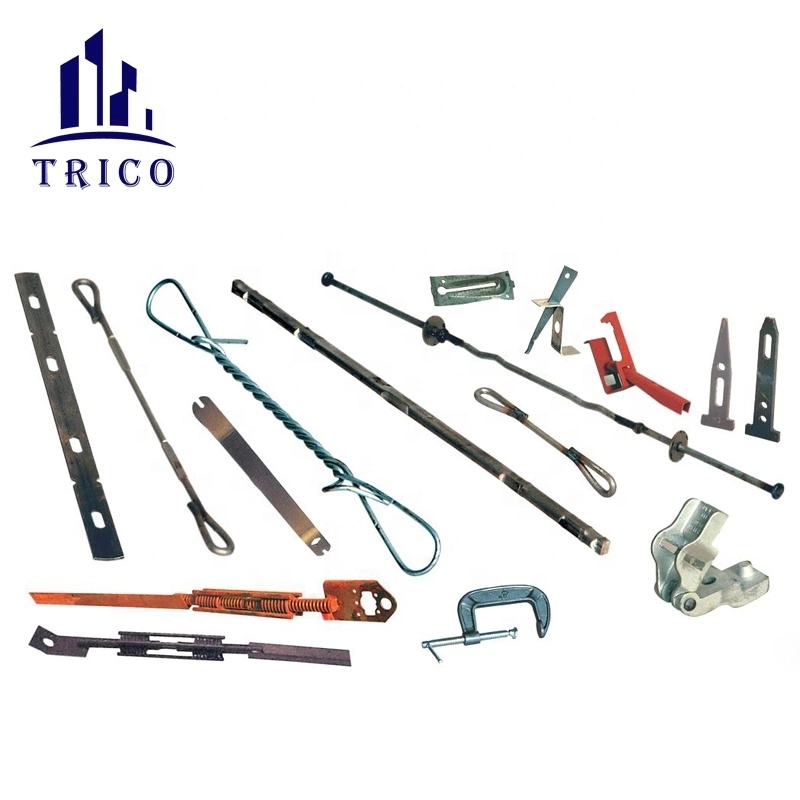

Wedge pins are used with flat tie to tighten adjoining concrete forms, securing the flat tie and concrete form in place. The full set of the Symons Formwork Accessories including the Wedge Bolt, Long Bolt, Short Bolt, X-Flat Tie, One Piece Waler Clamp, Z Tie Holders & Waler Tie, J-Strongback Hooks and Strongback Ties, Scaffold Brackets and Turnbuckles.

Product Details



Steel Plywood Forming Accessories X Flat Tie And Wedge Bolt


X Flat Tie


WALL SIZE

UNIT

PALLET

WEIGHT(KG)

g

lbs

4

100pcs/carton

10,000pcs/pallet

103.98

0.2292

5”

100pcs/carton

10,000pcs/pallet

111.9

0.2467

6”

100pcs/carton

10,000pcs/pallet

119.81

0.2641

8”

100pcs/carton

10,000pcs/pallet

141.21

0.3113

9”

100pcs/carton

10,000pcs/pallet

151.91

0.3349

10”

100pcs/carton

10,000pcs/pallet

162.61

0.3585

12”

100pcs/carton

10,000pcs/pallet

184.01

0.4057

14”

100pcs/carton

5,000pcs/pallet

205.41

0.4528

15”

100pcs/carton

5,000pcs/pallet

216.11

0.4764

16”

100pcs/carton

5,000pcs/pallet

226.81

0.5000

18”

100pcs/carton

5,000pcs/pallet

248.21

0.5472

20”

50pcs/bundle

2,500pcs/pallet

269.61

0.5944

22”

50pcs/bundle

2,500pcs/pallet

291.01

0.6416

24”

50pcs/bundle

2,500pcs/pallet

312.42

0.6888

26”

50pcs/bundle

2,500pcs/pallet

333.82

0.7359

28”

50pcs/bundle

2,500pcs/pallet

355.22

0.7831

30”

50pcs/bundle

2,500pcs/pallet

376.62

0.8303

32”

50pcs/bundle

2,500pcs/pallet

398.02

0.8775

34”

50pcs/bundle

2,500pcs/pallet

419.42

0.9246

36”

50pcs/bundle

2,500pcs/pallet

440.82

0.9781

38”

50pcs/bundle

2,500pcs/pallet

462.22

1.0190

40”

50pcs/bundle

2,500pcs/pallet

483.62

1.0662

42”

25pcs/bundle

2,500pcs/pallet

505.02

1.1134

44”

25pcs/bundle

2,500pcs/pallet

526.42

1.1605

46”

25pcs/bundle

2,500pcs/pallet

547.82

1.2077

48”

25pcs/bundle

2,500pcs/pallet

569.22

1.2549

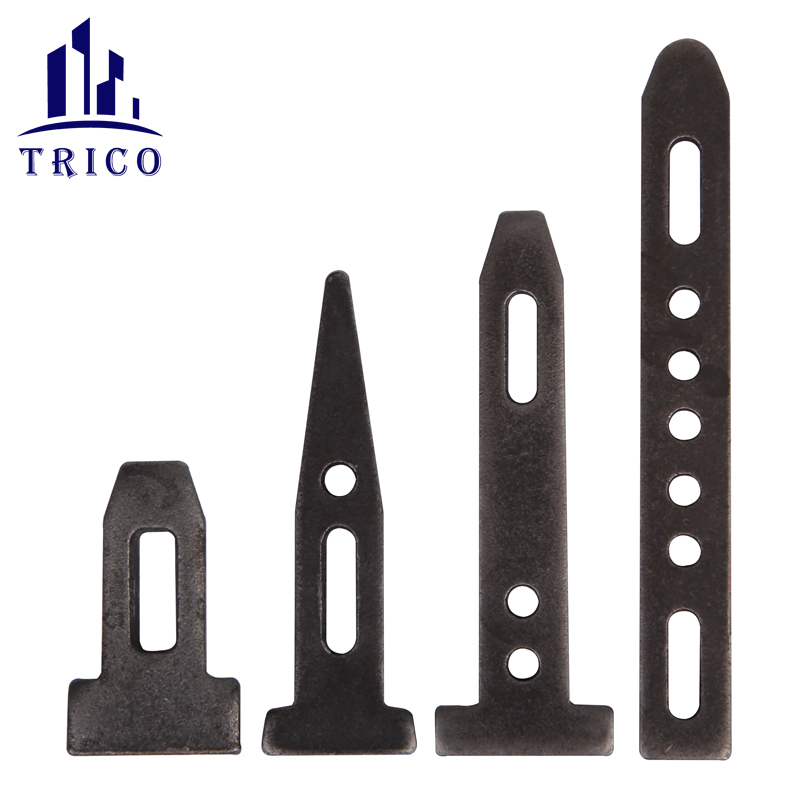

Wedge bolt we have different size: Short Wedge Bolt, Long wedge Bolt and Adjustable Wedge Bolt.

As a pre-engineered concrete forming systemSymons Forms have been used in some of the most iconic buildings around the world. These systems are factory built with impressive reusability, making it an ideal choice for the construction of a variety of structures.

As a complete solution for all your projects, the Symons Forming system can be used to quickly build concrete walls, haunches, stoops, and even pedestals. Available in a wide range of sizes, it can be combined to form a number of structures in any dimensions.

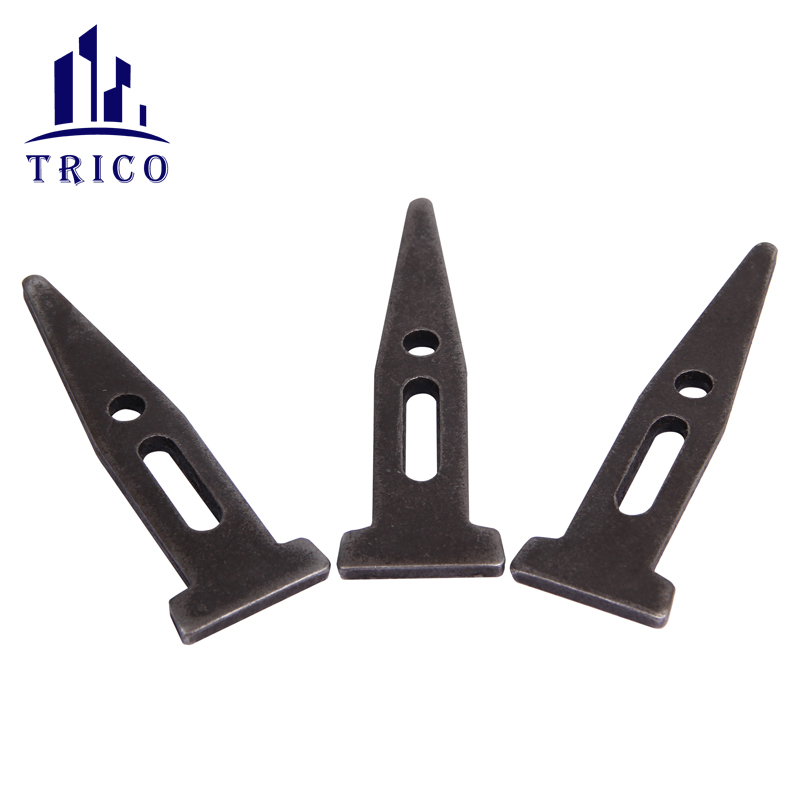

Steel Plywood Standard Wedge Bolt for X Flat Tie

Wedge Bolts

Wedge bolts connect panels and ties together, eliminating the need for special tools or equipment in the set up process. Two identical wedge bolts work as a single lock-bolt set, connecting and clamping together. However, additional bolts may be needed for walker attachments, scaffold brackets, etc.

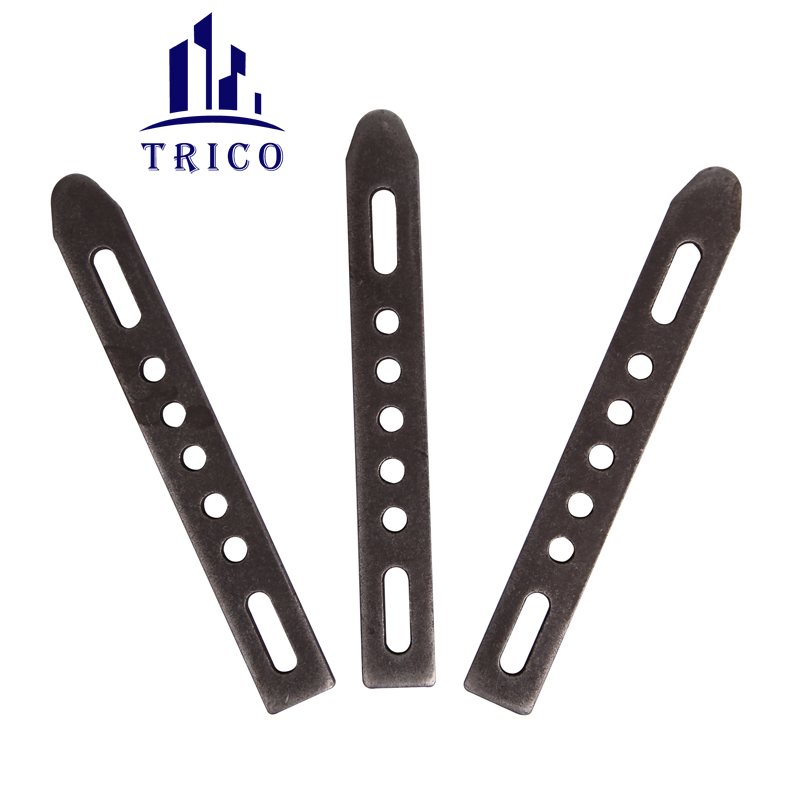

Long Bolts

imilar to a wedge bolt, these long bolts connect the 1, 1 ½, and 2-inch steel fillers, and are punched with two ¼ inch holes to make room for 16, or 20, D nails.

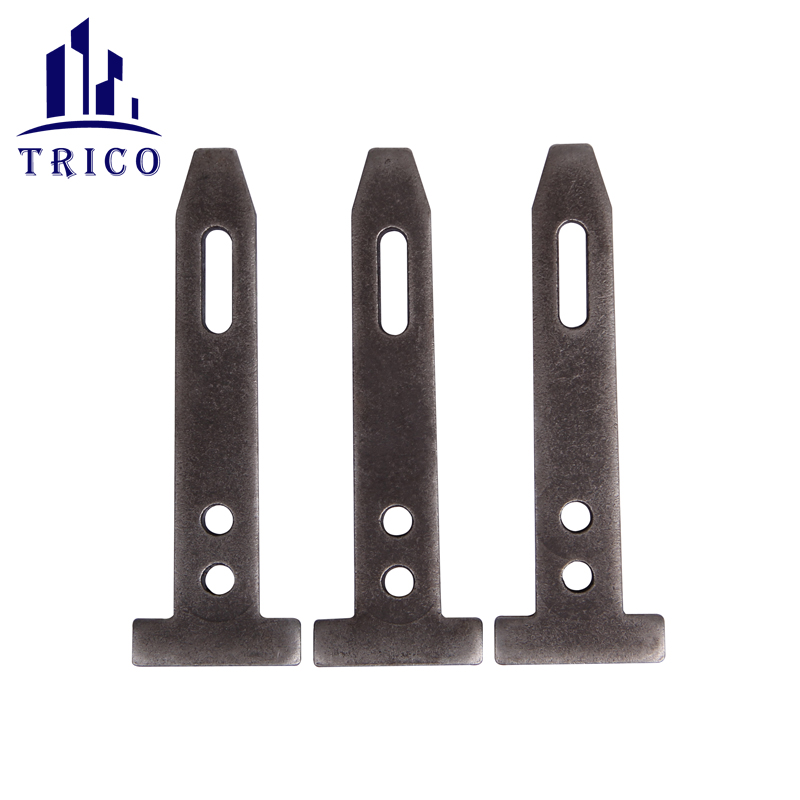

Short Bolts

Short Bolts are used to attach the pilaster form to a steel ply form. They eliminate the need for short stop wedge bolts and, upon proper installation, make stripping much easier.

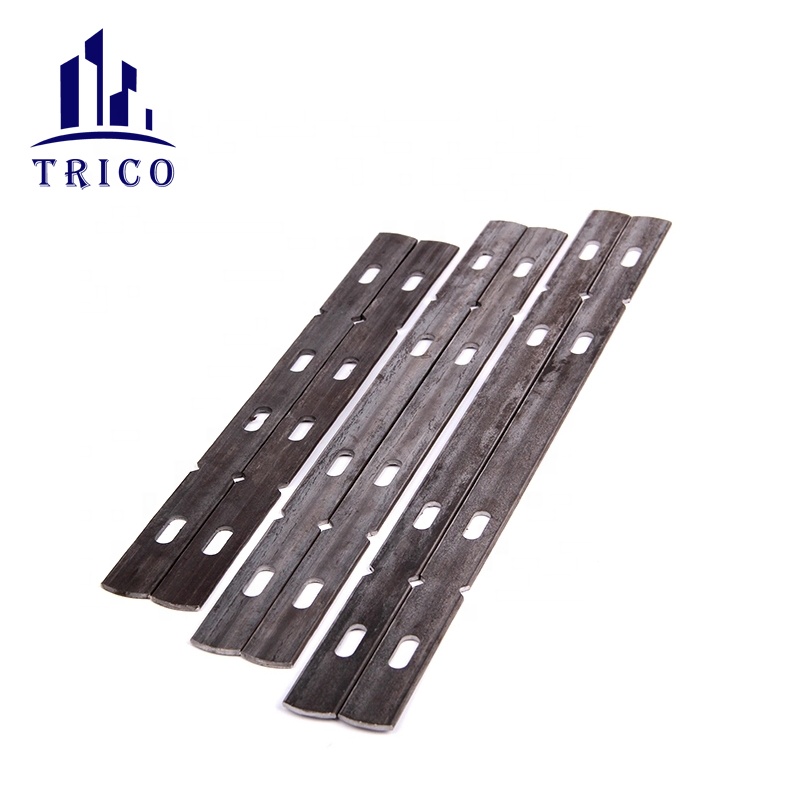

X Flat Ties

X Flat Ties are used with Wedge Bolts to secure and space modular forms.  X Flat ties are available in 6″ up to 84″ in 1/2″ increments. Standard breakback is 1/4″.

One Piece Waler Clamps

One Piece Waler Clamps attach through the wedge bolt slot of modular type forms to provide wedge action aligning with single or double lumber.

Z Tie Holders & Waler Ties

Z Tie Holders are used in conjunction with Waler Ties to secure double 2x lumber wales to modular type forms.  The Waler Tie is available in two sizes to accommodate 2 x 4 and 2 x 6 lumber.



Trico offers the full set of the Symon Formwork accessories with high quality and competitive price. Please contact us for more detals.
