Construction Concrete Formwork Accessory Steel Hook for Steel Plywood System
  • Construction Concrete Formwork Accessory Steel Hook for Steel Plywood System
  • Construction Concrete Formwork Accessory Steel Hook for Steel Plywood System
  • Construction Concrete Formwork Accessory Steel Hook for Steel Plywood System
  • Construction Concrete Formwork Accessory Steel Hook for Steel Plywood System
  • Construction Concrete Formwork Accessory Steel Hook for Steel Plywood System
  • Construction Concrete Formwork Accessory Steel Hook for Steel Plywood System
Construction Concrete Formwork Accessory Steel Hook for Steel Plywood SystemConstruction Concrete Formwork Accessory Steel Hook for Steel Plywood SystemConstruction Concrete Formwork Accessory Steel Hook for Steel Plywood SystemConstruction Concrete Formwork Accessory Steel Hook for Steel Plywood SystemConstruction Concrete Formwork Accessory Steel Hook for Steel Plywood SystemConstruction Concrete Formwork Accessory Steel Hook for Steel Plywood System

Construction Concrete Formwork Accessory Steel Hook for Steel Plywood System

Product Introduction:

Korea Steel Formwork System includes the Wedge Pin, Flat Tie, L Hook, Spa Tie and etc. Formwork for concrete structures is more important in order to get perfect dimensions of structural parts. Accessories used in formwork will also play a key role in it. Form ties are important accessories of formwork.

Product Details

Steel Ply Forming Euro Form/Steel Panel&Fillers and Related Accessories

Steel Ply Forming System Accessories
PictureNameSpecificationPackingMain Market
Construction Concrete Formwork Accessory Steel Hook for Steel Plywood System

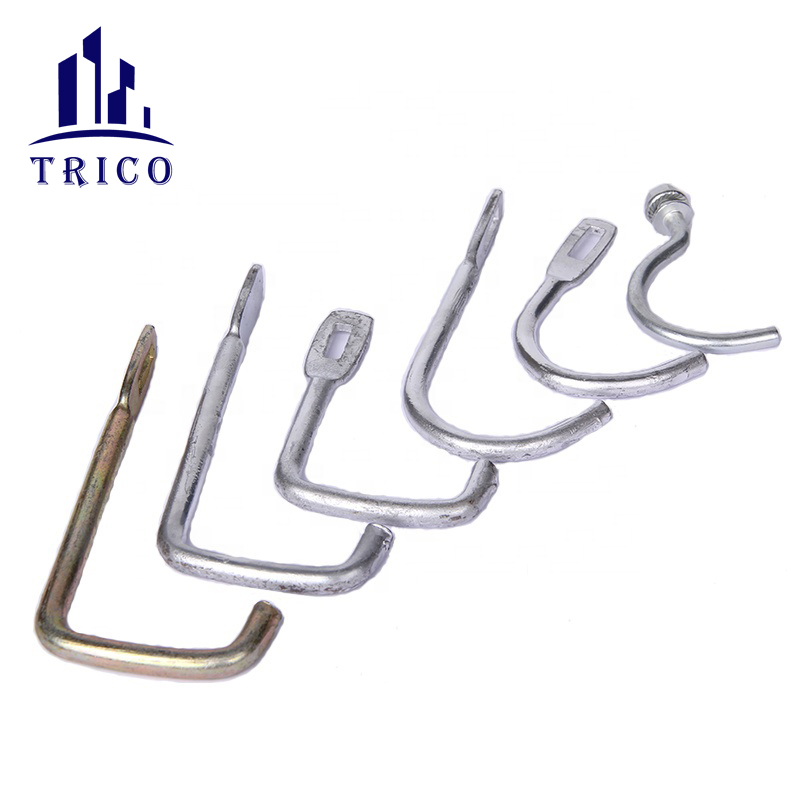

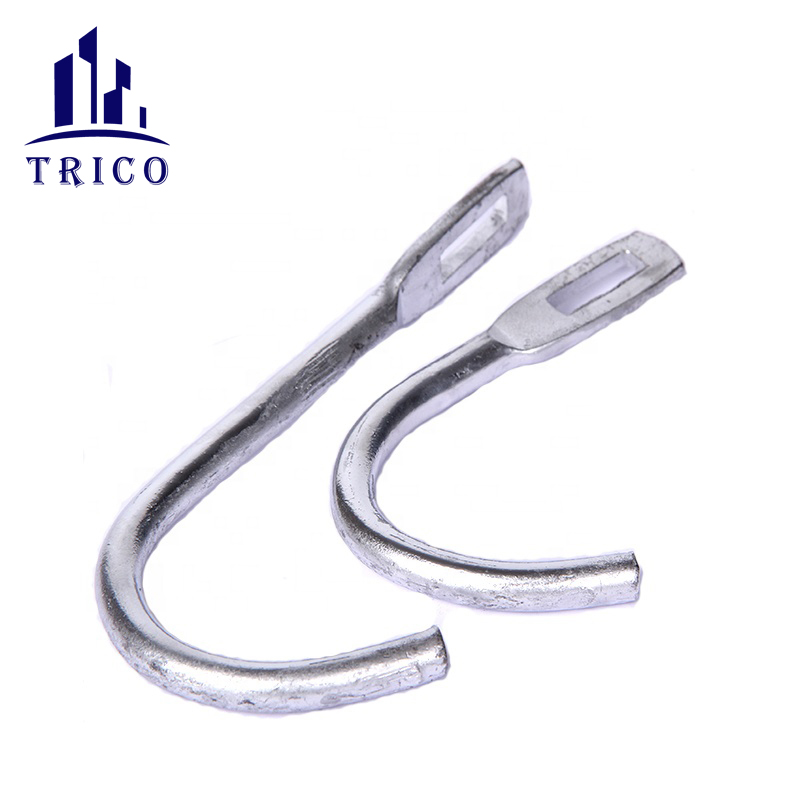

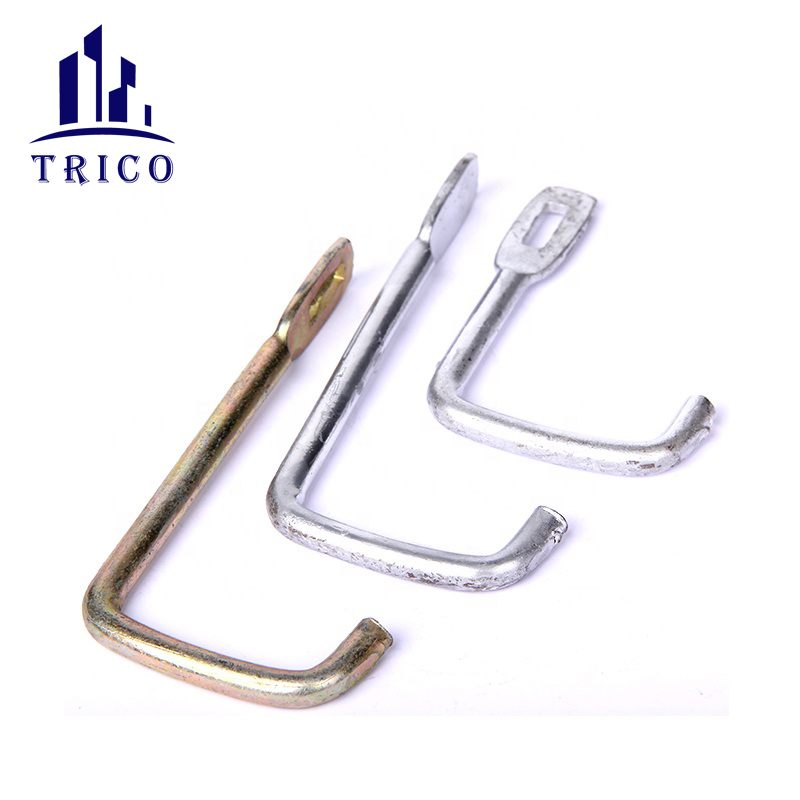

Hooks




  Round Type

Square Type



Small Bag+

Ton Bag



Widely

Using


Construction Concrete Formwork Accessory Steel Hook for Steel Plywood System

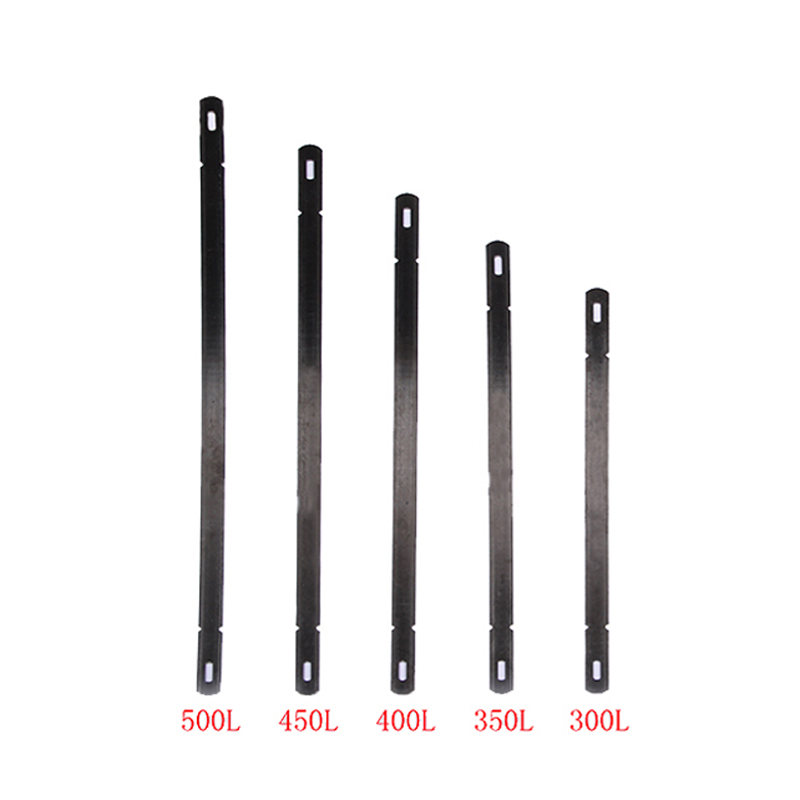

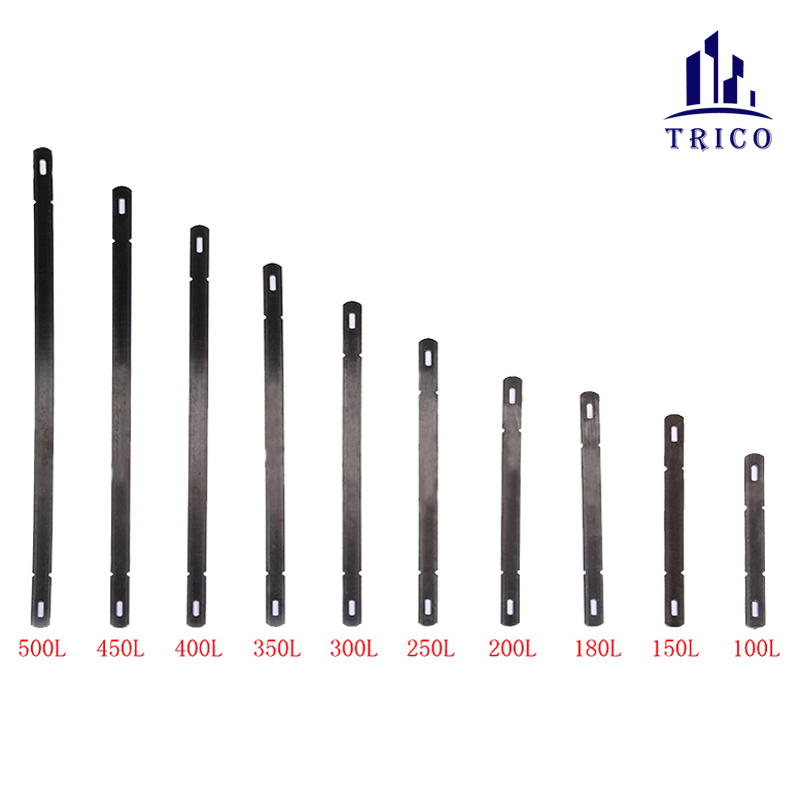

Flat Tie

Length:100L-1200L

Thickness:1.6mm-2.5mm

 Other Sizes Available




Bundle+Pallet




Korea/

Middle

Asia

Construction Concrete Formwork Accessory Steel Hook for Steel Plywood System

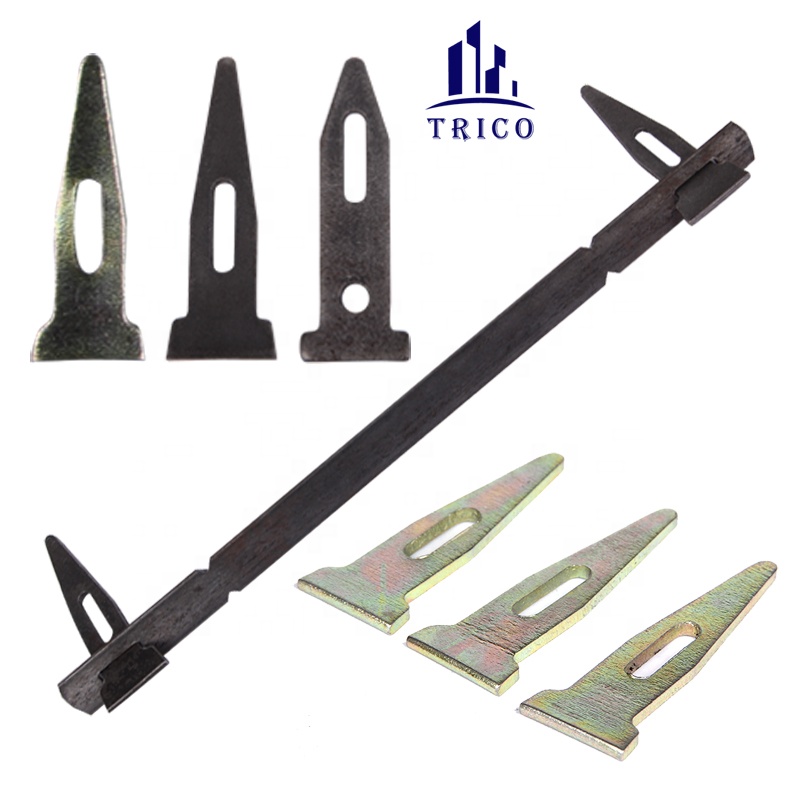

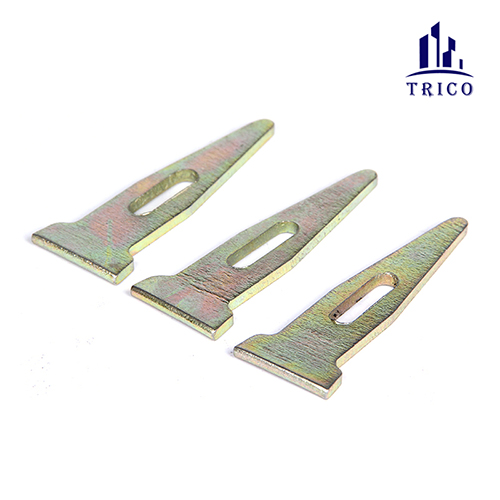

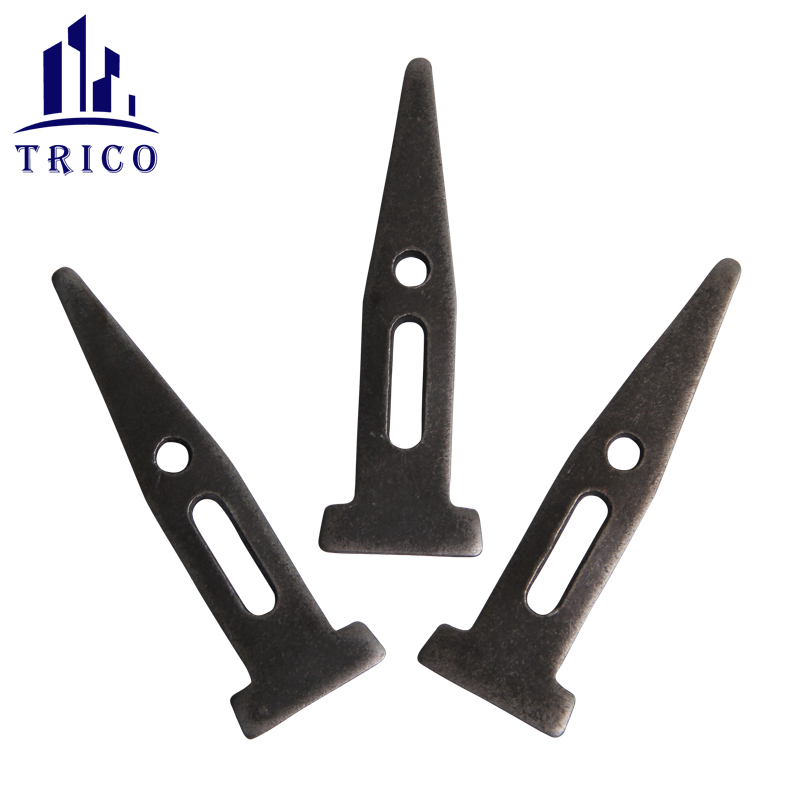

Wedge Pin



Length 76mm/79mm

Other Sizes

       Available



Small Bag+Ton Bag



Korea/

Middle Asia




Construction Concrete Formwork Accessory Steel Hook for Steel Plywood System

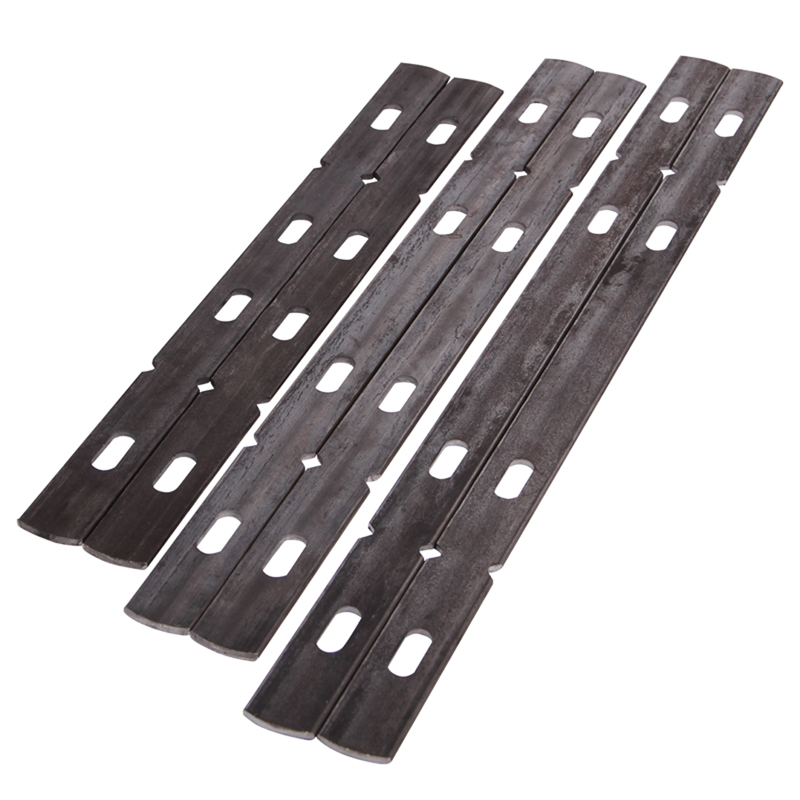

X Flat Tie

Standard Flat

     Tie 4"-48"

Ultimate 6000lbs

 Heavy Duty Flat  Tie 4"-48"

Ultimate 7000lbs

 Other Sizes Available





Bundle+Pallet





America/

Europe



Construction Concrete Formwork Accessory Steel Hook for Steel Plywood System




Wedge Pin

Short Wedge Bolt

Standard Wedge Bolt

Long Wedge Bolt

Adjustable Wedge Bolt




Pail+Pallet




America/

Europe

Related ProductsAluminum Formwork System, Plywood Snap Tie System

Steel Ply Forming System
ItemMaterialSpecificationSurface Treatment

F Profile

Punching Concrete Frame Formwork Accessores F Steel Profile for Steel Ply Forming System

Steel #45F100Self Color
F200
F250
F300
F350
F400
F500
F600
F1200
F1500
F1800

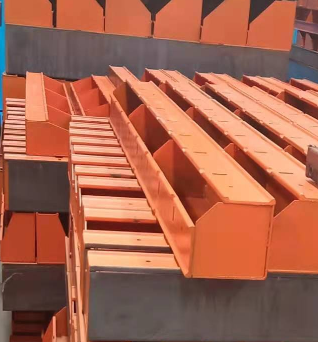

Euro Form

(Korean Type or American Type)

Punching Concrete Frame Formwork Accessores F Steel Profile for Steel Ply Forming System

Steel #45600*1200mm & 1800mmPainted
550*1200mm & 1800mm
500*1200mm & 1800mm
450*1200mm & 1800mm
400*1200mm & 1800mm
350*1200mm & 1800mm
300*1200mm & 1800mm
250*1200mm & 1800mm
200*1200mm & 1800mm
600*900mm & 1500mm
550*900mm & 1500mm
500*900mm & 1500mm
450*900mm & 1500mm
400*900mm & 1500mm
350*900mm & 1500mm
300*900mm & 1500mm
250*900mm & 1500mm
200*900mm & 1500mm

Inside Corner

Steel Formwork System Euro Form F Steel Profile

Steel #45100*100*900mmPainted
100*100*1200mm
100*100*1500mm
100*150*1200mm
100*150*1500mm
100*200*900mm
100*200*1200mm
100*200*1500mm
150*150*900mm
150*150*1200mm
150*200*900mm
150*200*1200mm
150*200*1500mm
200*200*900mm
200*200*1200mm
200*200*1500mm

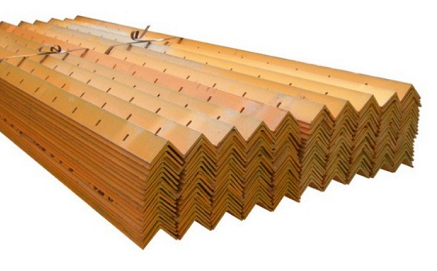

Outside Corner

Steel Formwork System Euro Form F Steel Profile


Steel #4563*63*900mmPainted
63*63*1200mm
63*63*1500mm
63*63*1800mm
63*63*2400mm
63*63*3000mm

HEBEI TRICO is euro form formwork manufacturer in China. You can find all parts & accessories of the euro form formwork system in our factory.

Construction Concrete Formwork Accessory Steel Hook for Steel Plywood SystemConstruction Concrete Formwork Accessory Steel Hook for Steel Plywood SystemConstruction Concrete Formwork Accessory Steel Hook for Steel Plywood System

Korea Steel Formwork System includes the Wedge Pin, Flat Tie, L Hook, Spa Tie and etc. Formwork for concrete structures is more important in order to get perfect dimensions of structural parts. Accessories used in formwork will also play a key role in it. Form ties are important accessories of formwork.

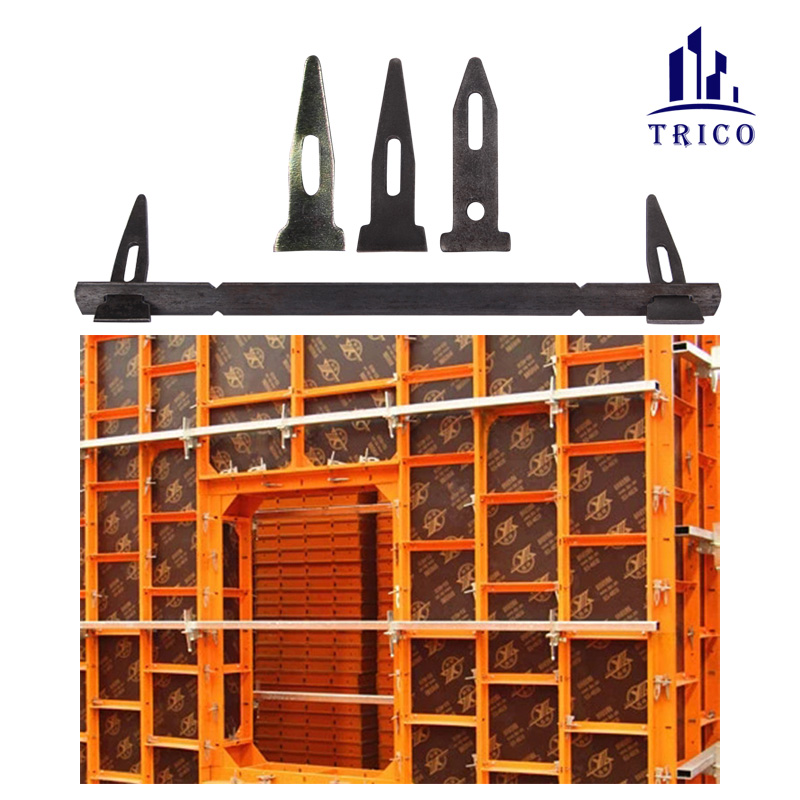

American X Flat Tie Steel plywood Formwork Accessories - Wall Ties and Wedge Bolt Wedge pins are used with flat tie to tighten adjoining concrete forms, securing the flat tie and concrete form in place. The full set of the Symons Formwork Accessories including the Wedge Bolt, Long Bolt, Short Bolt, X-Flat Tie, One Piece Waler Clamp, Z Tie Holders & Waler Tie, J-Strongback Hooks and Strongback Ties, Scaffold Brackets and Turnbuckles.

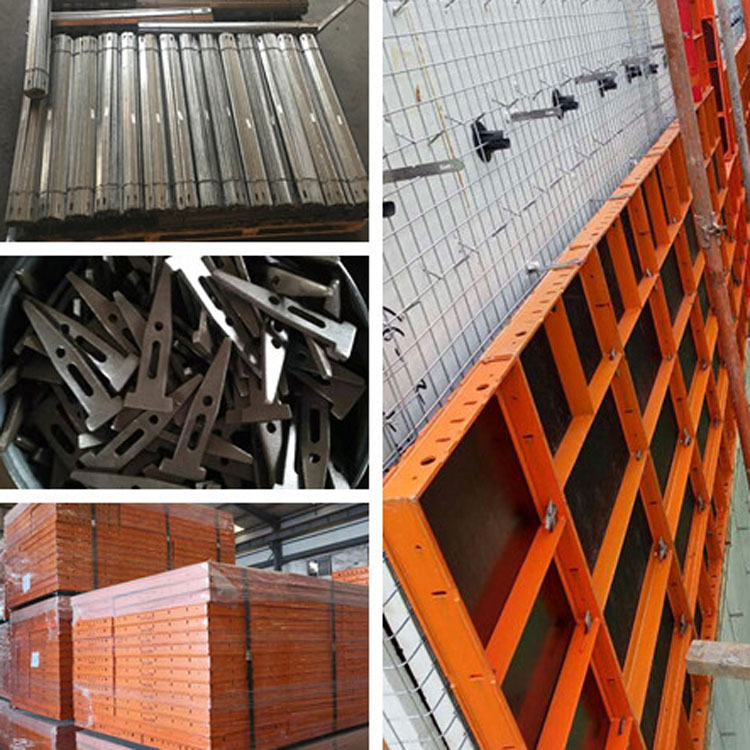

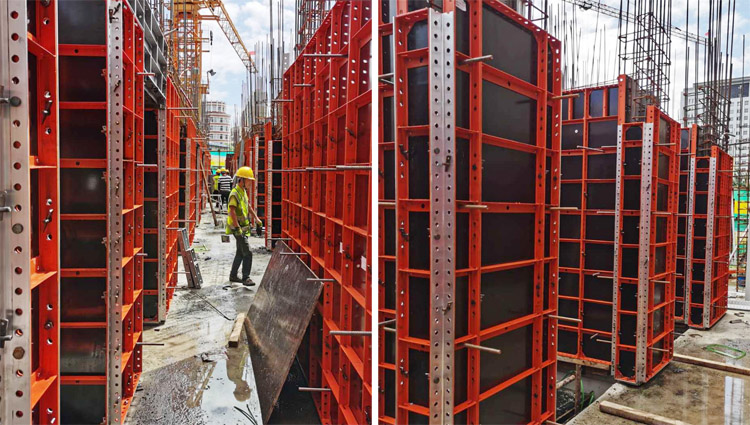

We are offering steel framed formwork system. the full name of 63 steel frame formwork system is 63 steel frame plywood build-up formwork system, its stiffness is high and the surface is smooth, could be braced and dismantle wholly or separately. 63 steel frame formwork system is made up by steel frame, reinforcing rib and waterproof plywood. Frame is the f steel with retainer rib of surface, there are holes at the edges. The reinforcing rib uses the angle iron, the material of steel frame and reinforcing rib is 45# steel. The corner oblique iron and reinforcing place joint with the surface panel by plow bolts. Surface panel uses the 12mm thickness waterproof plywood. Lateral pressure coefficient is 50kn/m2.
