Steel Formwork System Flat Tie with Wedge Pin for Wall Concrete
  • Steel Formwork System Flat Tie with Wedge Pin for Wall Concrete
  • Steel Formwork System Flat Tie with Wedge Pin for Wall Concrete
  • Steel Formwork System Flat Tie with Wedge Pin for Wall Concrete
  • Steel Formwork System Flat Tie with Wedge Pin for Wall Concrete
  • Steel Formwork System Flat Tie with Wedge Pin for Wall Concrete
  • Steel Formwork System Flat Tie with Wedge Pin for Wall Concrete
Steel Formwork System Flat Tie with Wedge Pin for Wall ConcreteSteel Formwork System Flat Tie with Wedge Pin for Wall ConcreteSteel Formwork System Flat Tie with Wedge Pin for Wall ConcreteSteel Formwork System Flat Tie with Wedge Pin for Wall ConcreteSteel Formwork System Flat Tie with Wedge Pin for Wall ConcreteSteel Formwork System Flat Tie with Wedge Pin for Wall Concrete

Steel Formwork System Flat Tie with Wedge Pin for Wall Concrete

Product Introduction:

Flat tie is used for steel forming system. It has different length from 100L-1200L and different thickness from 1.7mm-2.0mm. With the continually perform quality control testing to ensure that all of our ties yield a minimun pull strength. And we can supply you the ties of 100L to 1200L with best quality and competitive price. Related Accessories include wedge pin and pipe hooks.

Product Details



Steel Ply Forming Euro Form/Steel Panel&Fillers and Related Accessories

Steel Plywood Forming System Accessories
CommdityTypeSpecification

Usage

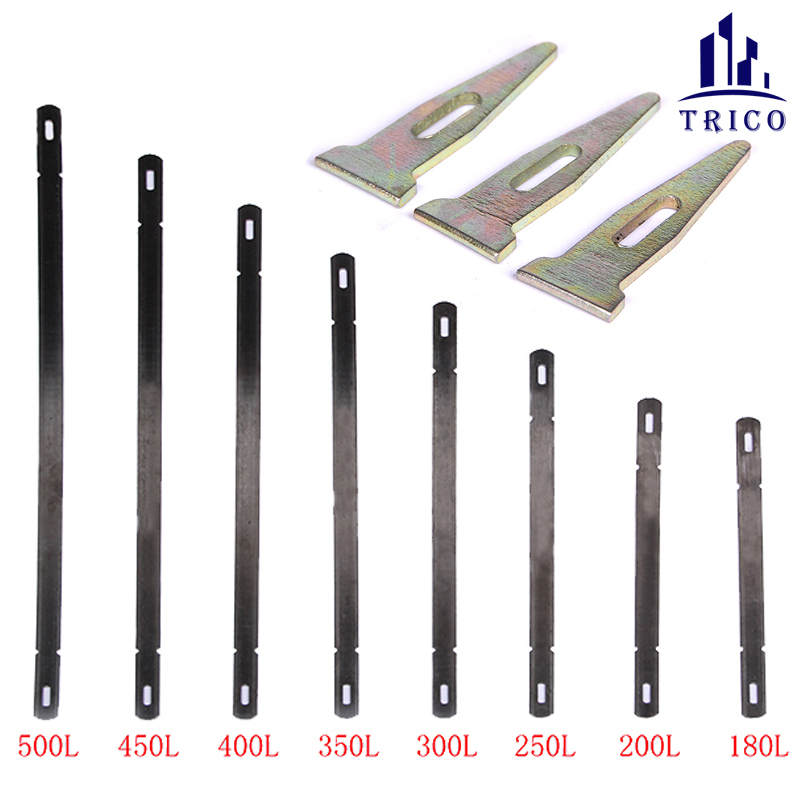

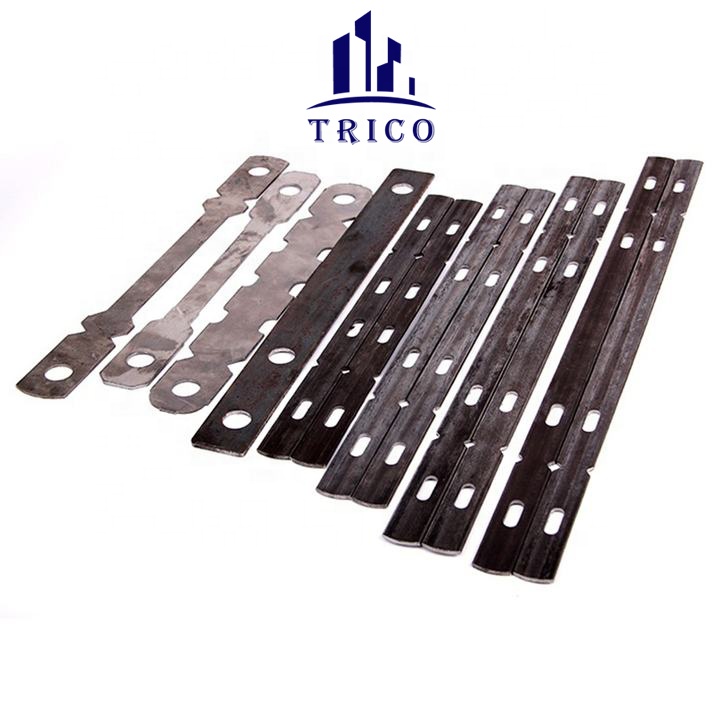

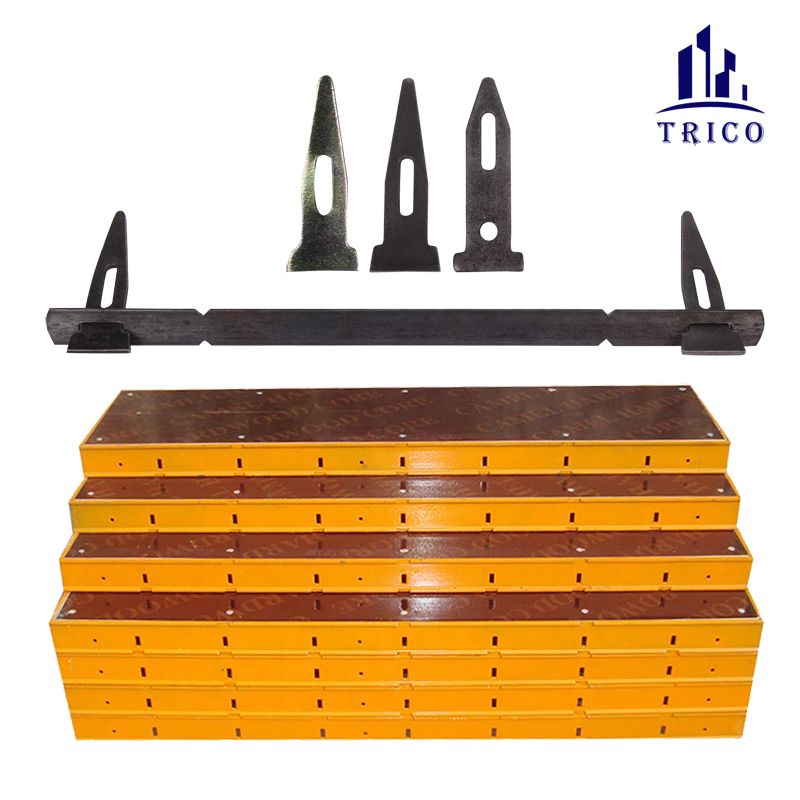

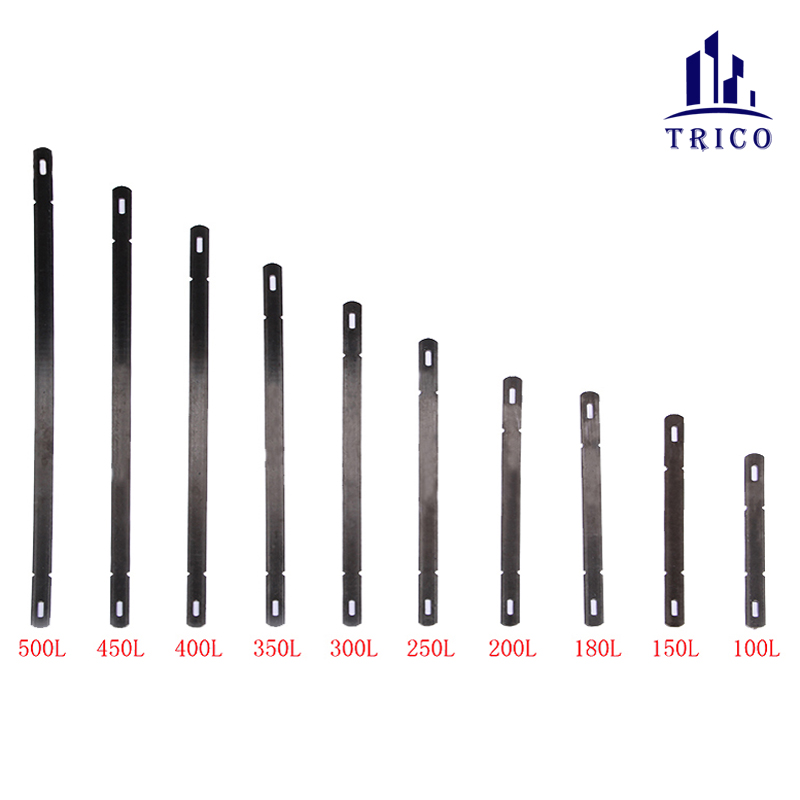

 Flat Tie

Steel Formwork System Flat Tie with Wedge Pin for Wall Concrete

Korea Type

100L-1200L

Longer Available

Flat Tie is used to lock korea steel panel for

 wall concrete

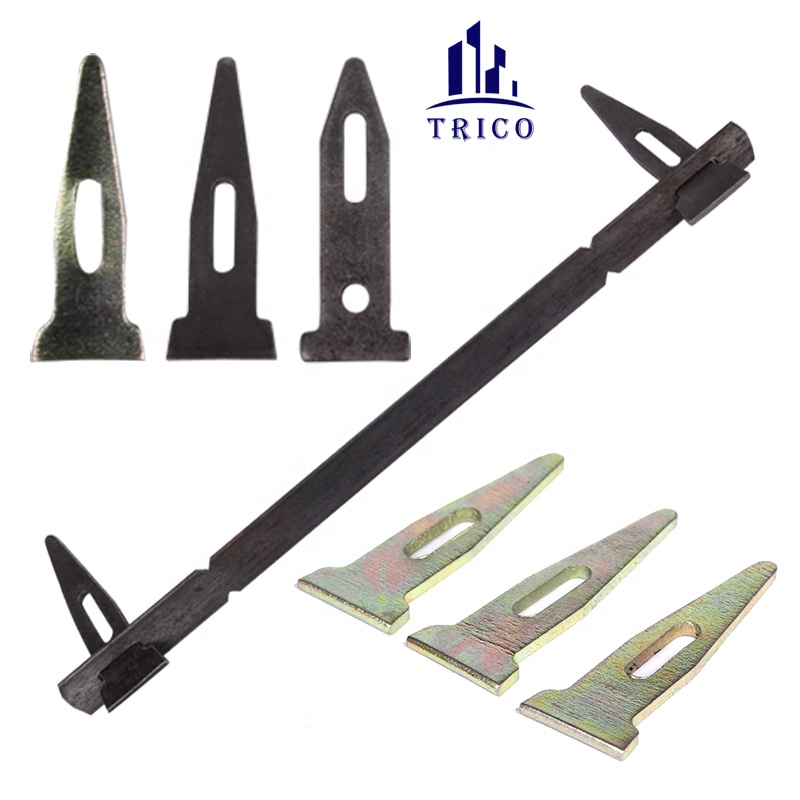

Wedge Pin

Steel Formwork System Flat Tie with Wedge Pin for Wall Concrete

Wedge Pin/

Filler Pin

79mm/85mmWedge Pin is used to lock

korea steel

 panel for

 wall concrete

Hooks

Steel Formwork System Flat Tie with Wedge Pin for Wall Concrete

Round Hook/

Square Hook

Large Tyep/

Small Type

Hooks are used to lock

korea steel panel for

 wall concrete

Turnbuckle Form

Anliger

Turnbuckle Form Aligner for Plywood Forming

Flat PlateRed Painted

Turnbuckles allow for 6 inches of

adjustment. The Turnbuckle is attached

with nails or screws to lumber.

Anchor before final adjustments aremade.

The end of theturnbuckle contains a slot

to accommodate a steel nail stake.

Bent PlateRed Painted
Attachment PlateRed Painted

Open Face 1PC

Waler Bracket

Turnbuckle Form Aligner for Plywood Forming

Open Face 2 x 4

837.3g

Red Painted/

Galvanized

/

Z Tie Holder

Turnbuckle Form Aligner for Plywood Forming

/Red Painted

The Z-Tie Holder is another method for

attaching walers and can also be used for

strongbacks. The Z-Tie Holder is used in

combination with waler ties which come in

two lengths to accommodate double 2"x4"

 and double 2"x6" lumber walers.

Plylag Gang

Waler Rod

Turnbuckle Form Aligner for Plywood Forming

/

6-1/4"

6-3/4"

9-3/4"

14-3/4"

17-3/4"

Plylag / Gang Waler Rod are used for

horizontal waling and vertical strong backs

when gang forming. Gang Waler Rods are

used with Gang waler plates and 1/2'

coil rod nuts. Plylag Gang Waler Rod

also are used with coil ties.

Shore Clamp

Turnbuckle Form Aligner for Plywood Forming

4*4

1.25kgs

Red Painted

/

Ply Spacer

Turnbuckle Form Aligner for Plywood Forming

3/4"

1-1/8"

6"-12"/

Wedge Bolt

Steel Plywood Forming System Standard Wedge Bolt

Short Wedge Bolt
24g

The short bolt eliminates the need to

short stop standard wedge bolts.

Can be used to attach inside corners

and pilaster forms to Steel/Plywood forms.

Standard Wedge

Bolt

28g

The Standard Wedge Bolt is the most

common wedge bolt used to assemble

forms.

Long Wedge Bolt37g

The Long Wedge Bolt is used when

attaching steel fillers to panels and fillers.

Adjustable Wedge Bolt 81g

Adjustable Wedge Bolt is used to attach

steel fillers to panels and fillers. Works

well when 2 steel fillers are next to each

other.

X Flat Tie

Steel Plywood Forming System Standard Wedge Bolt

Standard Flat Tie

4-48"

Other Size Available

Ultimate 6000lbs

X Flat Tie is used to lock steel panel and

fillers during wall concrete

Heavy Duty Flat Tie

4-48"

Other Size Available

Ultimate 7000lbs

Steel Ply Panels

&Fillers

Steel Plywood Forming System Standard Wedge Bolt

Euro Form

Korea Steel Panel


Height: 2"-10"

Width:  4"-24"

Inner Corner and

Outer Corner

Available

Rugged steel frames are robotically

welded for consistent strength and fit

across all panels, fillers and corners.

Exclusive DuraCoat powder coating

helps keep the frame rust-free under

the harshest conditions.

Steel Ply Forming System is very popular for wall concrete construction.

Conveniently located handles make set up, stripping and handling easier.With proper care contractors can expect that forms will be able to be reused up to 200 times before plywood needs to be replaced.Compatible with all other industry standard modular handset systems.All sizes of heavy duty loop ties, x-flat ties, wedge bolts, and accessories to offer the complete system.

Steel Plywood Forming System Standard Wedge Bolt Steel Plywood Forming System Standard Wedge Bolt
