Z Tie Holder is manufactured from high strength steel. It is used for wall forming system. Steel plywood forming system include snap tie, loop tie, steel wedge, jahn bracket, flat tie,wedge bolt, turnbuckle. We have all those products and keep exporting to different market.

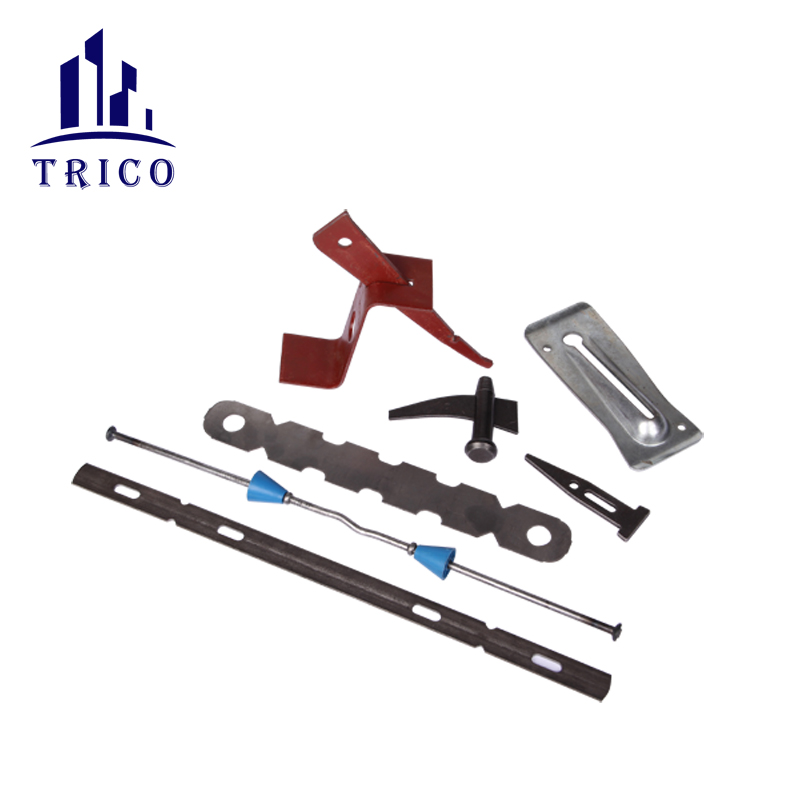

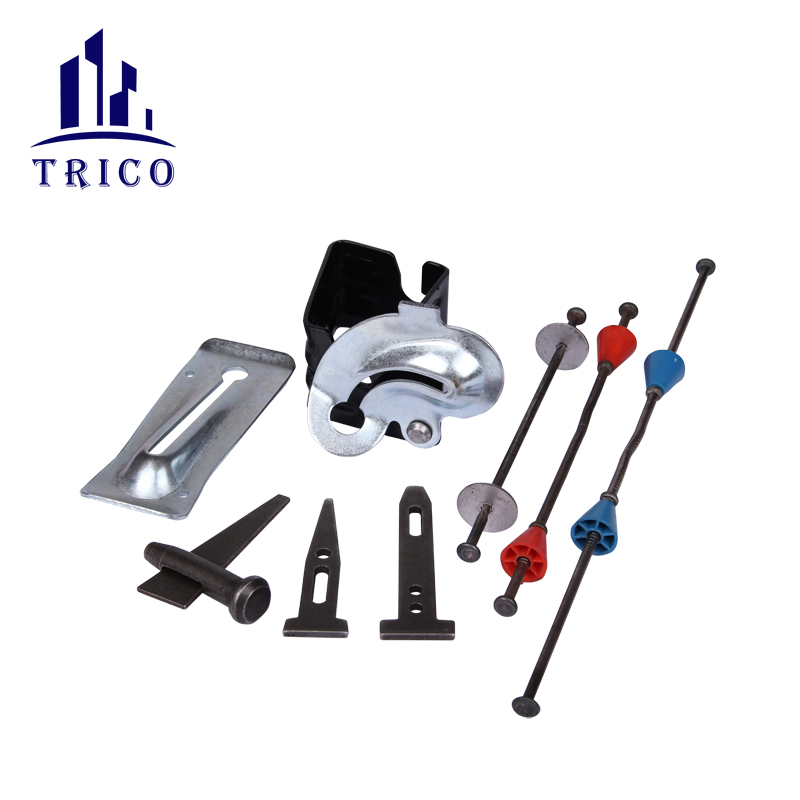

|Steel Plywood Forming System Accessories|
|Flat Plate||Red Painted|
Turnbuckles allow for 6 inches of
adjustment. The Turnbuckle is attached
with nails or screws to lumber. Anchor
before final adjustments aremade. The
end of the turnbuckle
contains a slot to accommodate a steel
|Bent Plate||Red Painted|
|Attachment Plate||Red Painted|
Open Face 1PC
|Open Face 2 x 4|

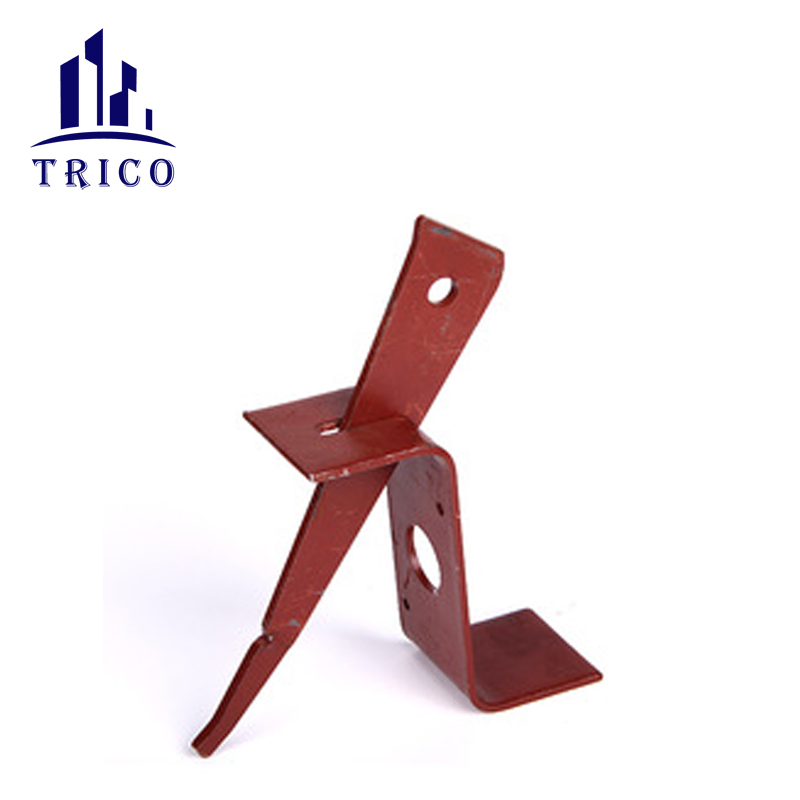

Z Tie Holder
The Z-Tie Holder is another method for
attaching walers and can also be used
for strongbacks. The Z-Tie Holder is
used in combination with waler ties
which come in two lengths to
accommodate double 2"x4" and double
2"x6" lumber walers.
Plylag Gang Waler Rod
Plylag / Gang Waler Rod are used for
horizontal waling and vertical strong
backs when gang forming. Gang Waler
Rods are used with Gang waler plates
and 1/2' coil rod nuts. Plylag Gang Waler
Rod also are used with coil ties.
|Short Wedge Bolt ||24g|
The short bolt eliminates the need to
short stop standard wedge bolts.
Can be used to attach inside corners and
pilaster forms to Steel/Plywood forms.
|Standard Wedge Bolt||28g|
The Standard Wedge Bolt is the most
common wedge bolt used to assemble
|Long Wedge Bolt||37g|
The Long Wedge Bolt is used when
attaching steel fillers to panels and fillers.
|Adjustable Wedge Bolt||81g|
Adjustable Wedge Bolt is used to attach
steel fillers to panels and fillers. Works
well when 2 steel fillers are next to each other.
X Flat Tie
|Standard Flat Tie|
Other Size Available
X Flat Tie is used to lock steel panel and
fillers during wall concrete
|Heavy Duty Flat Tie|
Other Size Available

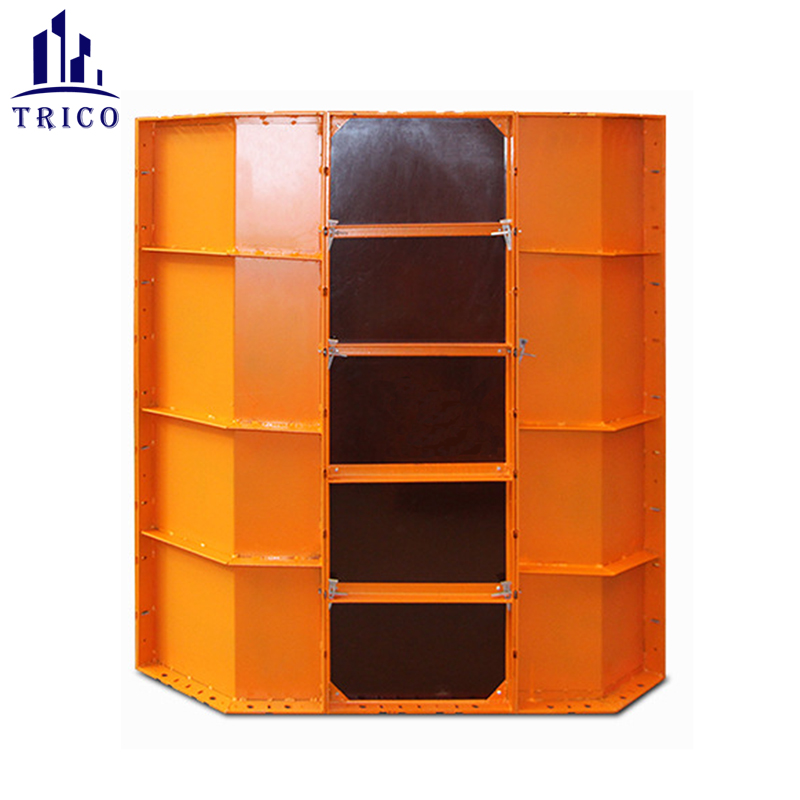

Steel Ply Panels
Korea Steel Panel
Inner Corner and
Rugged steel frames are robotically
welded for consistent strength and fit
across all panels, fillers and corners.
Exclusive DuraCoat powder coating
helps keep the frame rust-free under
the harshest conditions.
Steel Ply Forming System is very popular for wall concrete construction.
Conveniently located handles make set up, stripping and handling easier.With proper care contractors can expect that forms will be able to be reused up to 200 times before plywood needs to be replaced.Compatible with all other industry standard modular handset systems.All sizes of heavy duty loop ties, x-flat ties, wedge bolts, and accessories to offer the complete system.
1.Quality: Strictly control the quality through three levels. First level, quality test on the producing line. Second level, quality test during warehousing. Third level, quality test before loading.
2.Timeliness: 24 hours online.Provide consulting and quotation services for customers all the time.
3.Veracity: Strictly follow the customer standard to ensure the tolerance range and meet customer's requirement.
4.Integrity: If The customer complains about the quality of the products, our company will actively cooperate with them to solve the problem. If it is the responsibility of our company, we will bear the corresponding responsibility and compensation.
5.Longevity: Establish good long-term relationship with customers.
