Steel Plywood Forming System Shore Clamp
  • Steel Plywood Forming System Shore Clamp
  • Steel Plywood Forming System Shore Clamp
  • Steel Plywood Forming System Shore Clamp
  • Steel Plywood Forming System Shore Clamp
Steel Plywood Forming System Shore ClampSteel Plywood Forming System Shore ClampSteel Plywood Forming System Shore ClampSteel Plywood Forming System Shore Clamp

Steel Plywood Forming System Shore Clamp

Product Introduction:

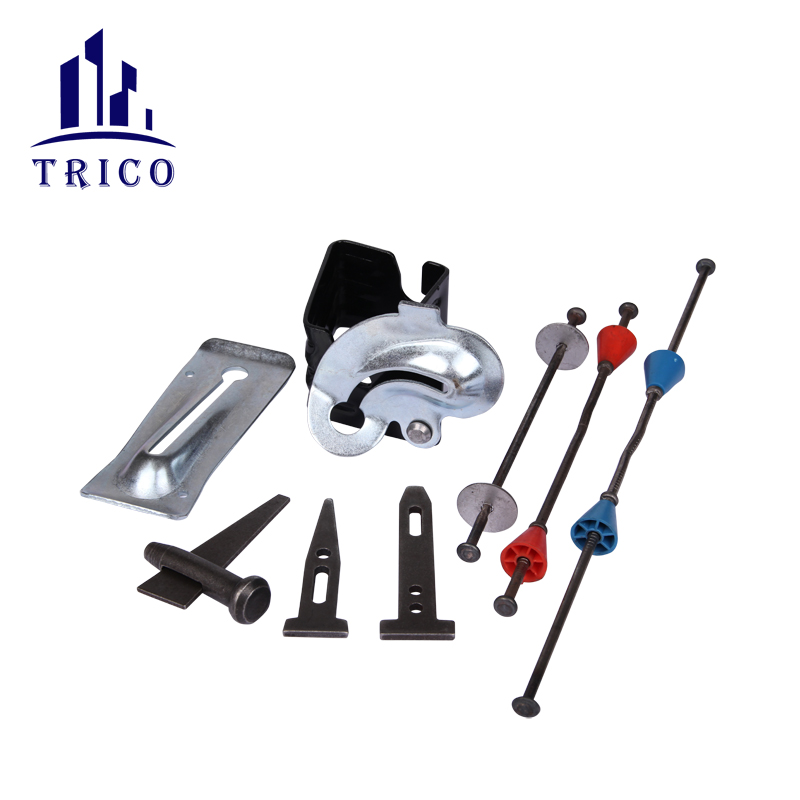

Shore Clamp is a quick and Easy way to create a totally adjustable support system with two pieces of your nominal lumber.  Erection and dismantling of this concrete shoring system goes up and down fastest. Steel plywood forming system include snap tie, loop tie, steel wedge, jahn bracket, flat tie,wedge bolt, turnbuckle. We have all those products and keep exporting to different market.

Product Details

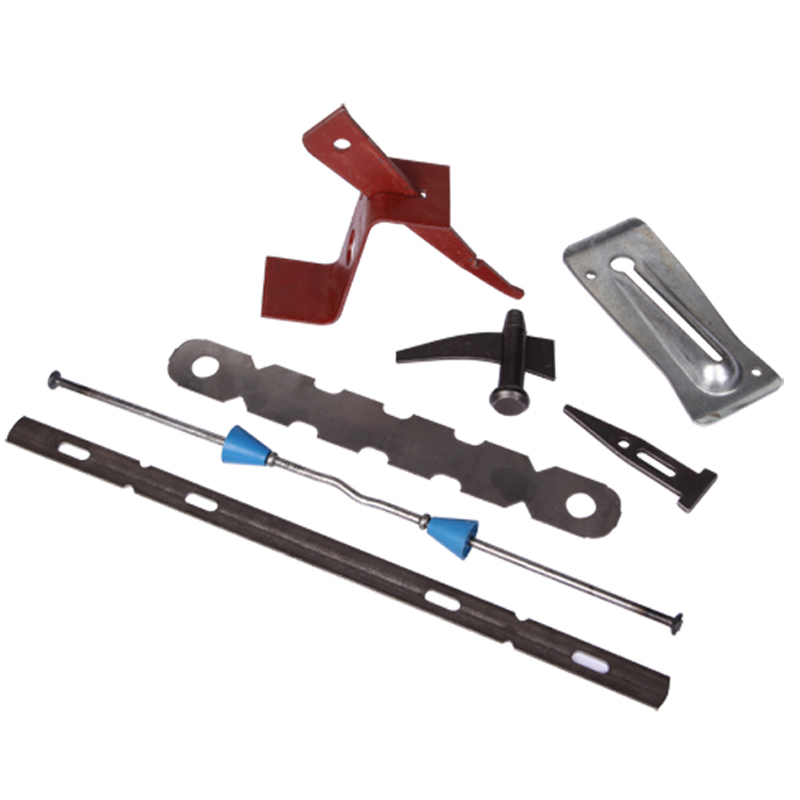

Steel Plywood Forming System Accessories
CommdityTypeSpecificationUsage

Turnbuckle Form

Anliger

Turnbuckle Form Aligner for Plywood Forming

Flat PlateRed Painted

Turnbuckles allow for 6 inches of

adjustment. The Turnbuckle is attached

with nails or screws to lumber. Anchor

before final adjustments aremade. The

end of the turnbuckle

contains a slot to accommodate a steel

nail stake.

Bent PlateRed Painted
Attachment PlateRed Painted

Open Face 1PC

 Waler

Bracket

Turnbuckle Form Aligner for Plywood Forming

Open Face 2 x 4

837.3g

Red Painted/

Galvanized

/

Z Tie Holder

Turnbuckle Form Aligner for Plywood Forming

/Red Painted

The Z-Tie Holder is another method for

attaching walers and can also be used

for strongbacks. The Z-Tie Holder is

used in combination with waler ties

which come in two lengths to

accommodate double 2"x4" and double

2"x6" lumber walers.

Plylag Gang Waler Rod

Turnbuckle Form Aligner for Plywood Forming

/

6-1/4"

6-3/4"

9-3/4"

14-3/4"

17-3/4"

Plylag / Gang Waler Rod are used for

horizontal waling and vertical strong

backs when gang forming. Gang Waler

Rods are used with Gang waler plates

and 1/2' coil rod nuts. Plylag Gang Waler

Rod also are used with coil ties.

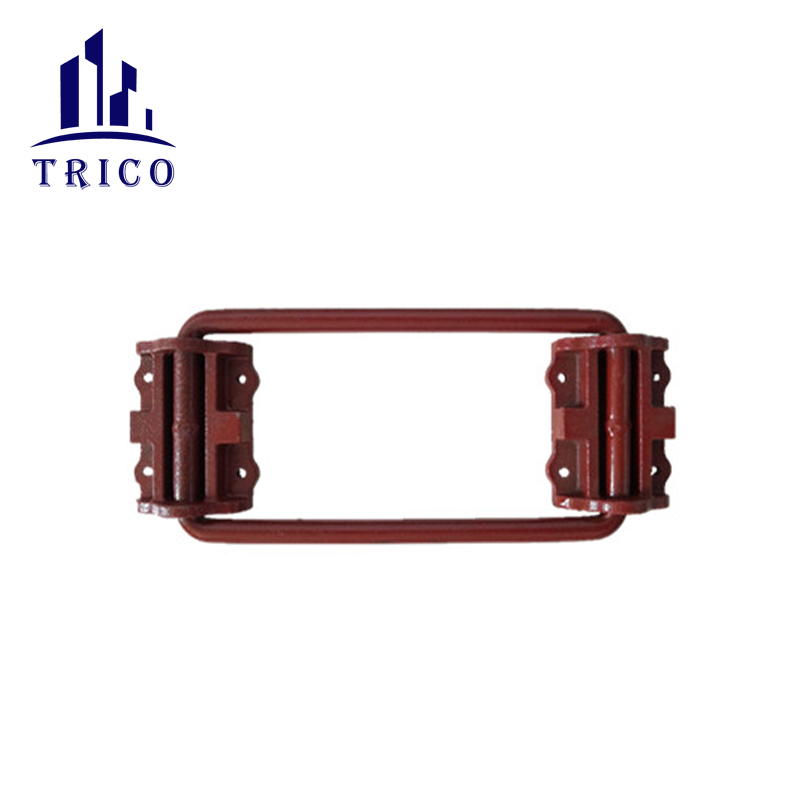

Shore Clamp

Turnbuckle Form Aligner for Plywood Forming

4*4

1.25kgs

Red Painted

/

Ply Spacer

Turnbuckle Form Aligner for Plywood Forming

3/4"

1-1/8"

6"-12"/

Wedge Bolt

Steel Plywood Forming System Standard Wedge Bolt

Short Wedge Bolt
24g

The short bolt eliminates the need to

short stop standard wedge bolts.

Can be used to attach inside corners and

pilaster forms to Steel/Plywood forms.

Standard Wedge Bolt
28g

The Standard Wedge Bolt is the most

common wedge bolt used to assemble

forms.

Long Wedge Bolt37g

The Long Wedge Bolt is used when

attaching steel fillers to panels and fillers.

Adjustable Wedge Bolt 81g

Adjustable Wedge Bolt is used to attach

steel fillers to panels and fillers. Works

well when 2 steel fillers are next to each other.

X Flat Tie

Steel Plywood Forming System Standard Wedge Bolt

Standard Flat Tie

4-48"

Other Size Available

Ultimate 6000lbs

X Flat Tie is used to lock steel panel and

fillers during wall concrete

Heavy Duty Flat Tie

4-48"

Other Size Available

Ultimate 7000lbs

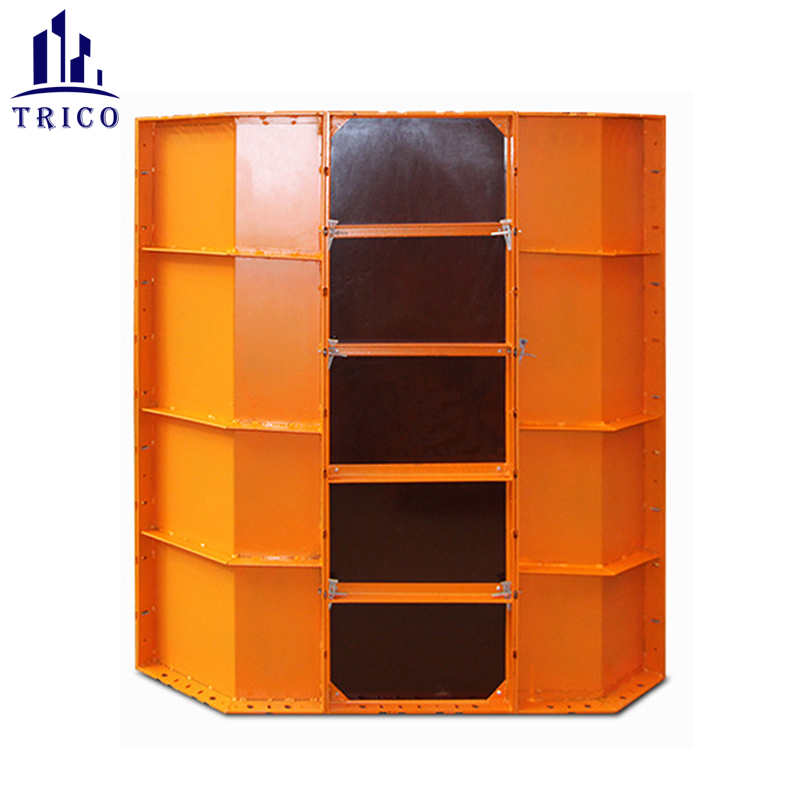

Steel Ply Panels

&Fillers

Steel Plywood Forming System Standard Wedge Bolt

Euro Form

Korea Steel Panel


Height: 2"-10"

Width:  4"-24"

Inner Corner and

Outer Corner

Available

Rugged steel frames are robotically

welded for consistent strength and fit

across all panels, fillers and corners.

Exclusive DuraCoat powder coating

helps keep the frame rust-free under

the harshest conditions.

Steel Ply Forming System is very popular for wall concrete construction.

Conveniently located handles make set up, stripping and handling easier.With proper care contractors can expect that forms will be able to be reused up to 200 times before plywood needs to be replaced.Compatible with all other industry standard modular handset systems.All sizes of heavy duty loop ties, x-flat ties, wedge bolts, and accessories to offer the complete system.
