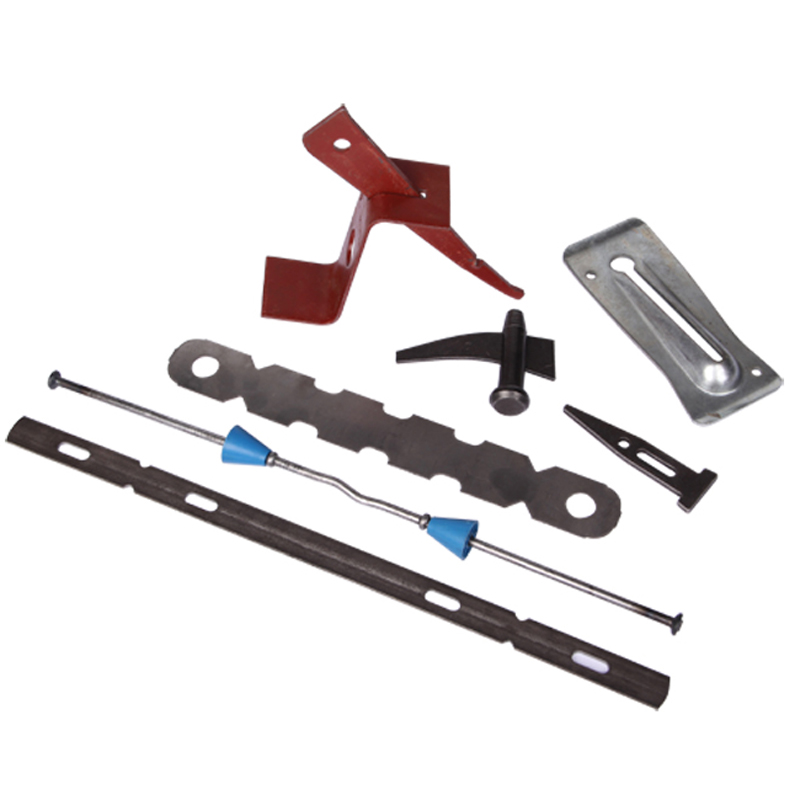

Ply Spacer for Steel Plywood Forming System.Different Sizes are available like 3/4", 1-1/8", 1-5/8". Additional Size can supply also. Steel plywood forming system include snap tie, loop tie, steel wedge, jahn bracket, flat tie,wedge bolt, turnbuckle.We have all those products and keep exporting to different markets.

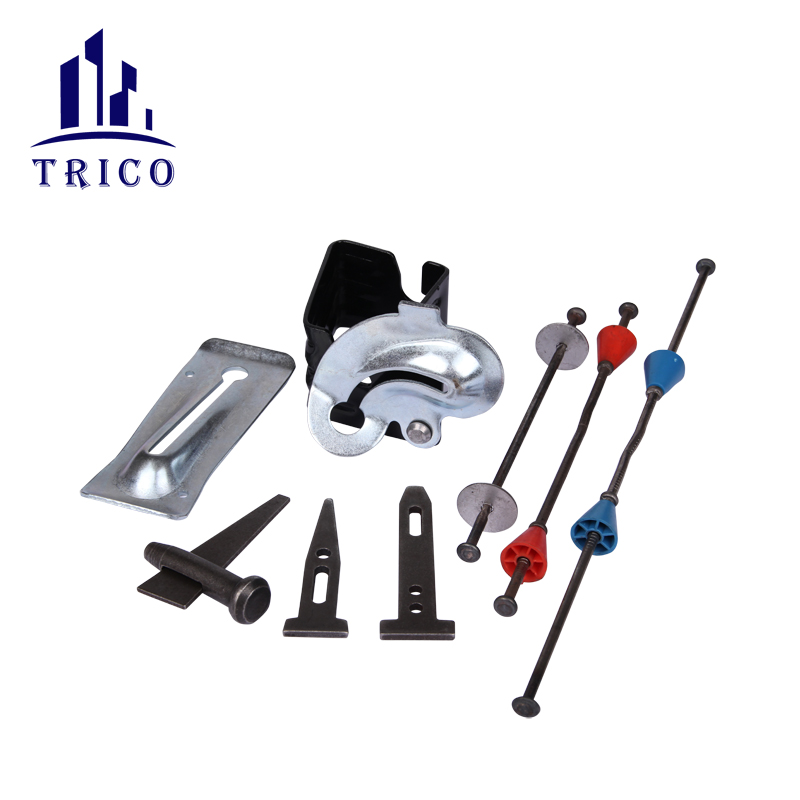

Steel Plywood Forming System Accessories | |||
Commdity | Type | Specification | Usage |
Turnbuckle Form Anliger | Flat Plate | Red Painted | Turnbuckles allow for 6 inches of adjustment. The Turnbuckle is attached with nails or screws to lumber. Anchor before final adjustments aremade. The end of the turnbuckle contains a slot to accommodate a steel nail stake. |
Bent Plate | Red Painted | ||
Attachment Plate | Red Painted | ||
Open Face 1PC Waler Bracket | Open Face 2 x 4 | 837.3g Red Painted/ Galvanized | / |
Z Tie Holder | / | Red Painted | The Z-Tie Holder is another method for attaching walers and can also be used for strongbacks. The Z-Tie Holder is used in combination with waler ties which come in two lengths to accommodate double 2"x4" and double 2"x6" lumber walers. |
Plylag Gang Waler Rod | / | 6-1/4" 6-3/4" 9-3/4" 14-3/4" 17-3/4" | Plylag / Gang Waler Rod are used for horizontal waling and vertical strong backs when gang forming. Gang Waler Rods are used with Gang waler plates and 1/2' coil rod nuts. Plylag Gang Waler Rod also are used with coil ties. |
Shore Clamp | 4*4 | 1.25kgs Red Painted | / |
Ply Spacer | 3/4" 1-1/8" | 6"-12" | / |
Wedge Bolt | Short Wedge Bolt | 24g | The short bolt eliminates the need to short stop standard wedge bolts. Can be used to attach inside corners and pilaster forms to Steel/Plywood forms. |
Standard Wedge Bolt | 28g | The Standard Wedge Bolt is the most common wedge bolt used to assemble forms. | |
Long Wedge Bolt | 37g | The Long Wedge Bolt is used when attaching steel fillers to panels and fillers. | |
Adjustable Wedge Bolt | 81g | Adjustable Wedge Bolt is used to attach steel fillers to panels and fillers. Works well when 2 steel fillers are next to each other. | |
X Flat Tie | Standard Flat Tie | 4-48" Other Size Available Ultimate 6000lbs | X Flat Tie is used to lock steel panel and fillers during wall concrete |
Heavy Duty Flat Tie | 4-48" Other Size Available Ultimate 7000lbs | ||

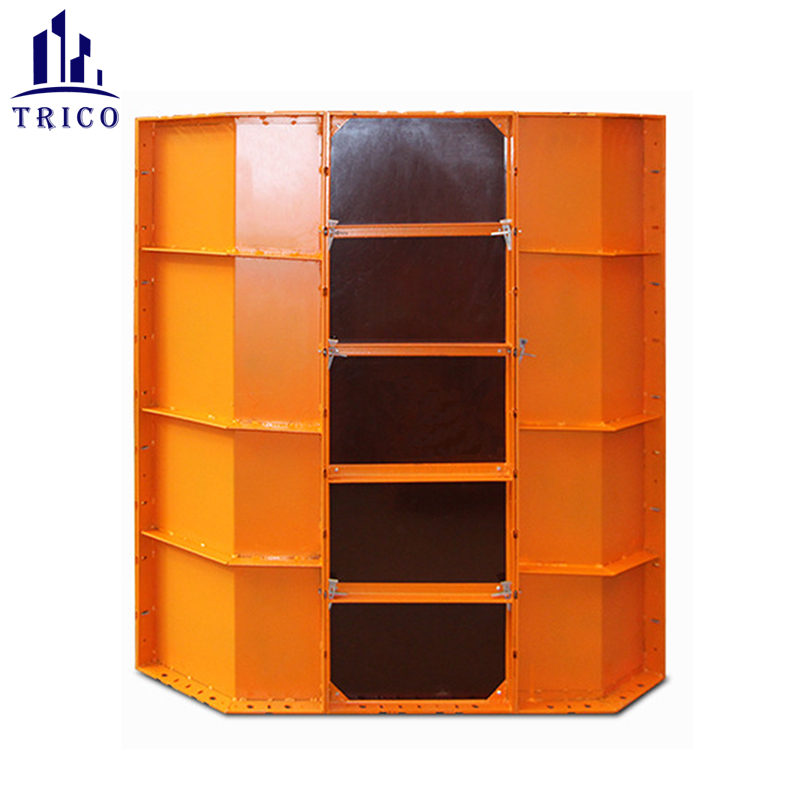

Steel Ply Panels &Fillers | Euro Form Korea Steel Panel | Height: 2"-10" Width: 4"-24" Inner Corner and Outer Corner Available | Rugged steel frames are robotically welded for consistent strength and fit across all panels, fillers and corners. Exclusive DuraCoat powder coating helps keep the frame rust-free under the harshest conditions. |
Steel Ply Forming System is very popular for wall concrete construction.
Conveniently located handles make set up, stripping and handling easier.With proper care contractors can expect that forms will be able to be reused up to 200 times before plywood needs to be replaced.Compatible with all other industry standard modular handset systems.All sizes of heavy duty loop ties, x-flat ties, wedge bolts, and accessories to offer the complete system.
Five Promises:
1.Quality: Strictly control the quality through three levels. First level, quality test on the producing line. Second level, quality test during warehousing. Third level, quality test before loading.
2.Timeliness: 24 hours online.Provide consulting and quotation services for customers all the time.
3.Veracity: Strictly follow the customer standard to ensure the tolerance range and meet customer's requirement.
4.Integrity: If The customer complains about the quality of the products, our company will actively cooperate with them to solve the problem. If it is the responsibility of our company, we will bear the corresponding responsibility and compensation.
5.Longevity: Establish good long-term relationship with customers.
