Flange clamp and hook clamp are used for fastening timber beam H20 anywhere on the steel waling. First , Push the Flange clamps onto the timber beam H20.Second, Before tightening them to the steel waling, make sure that they are centrically positioned.Third, Gently tighten on one side. Tap the stirrup with a hammer to ensure that the clamp is sitting correctly.Forth,Tighten the clamp on the other side and tap the stirrup with the hammer. Fifth, Tighten the first side of the clamp completely.
|Product name||H20 beam flange clamp|
|L x W x H||as per request|
|Color||silver or as per request|
|Surface tratement||powder coated|
|Usage||H20 timber beam formwork|
H20 timber beam formwok is widely used in concrete project construction.
Flange Clamp is used in H20 timber beam system to connect timber beam onto steel waler.
We are specialized supplier, we have our own fty and can assure good quality and competitive

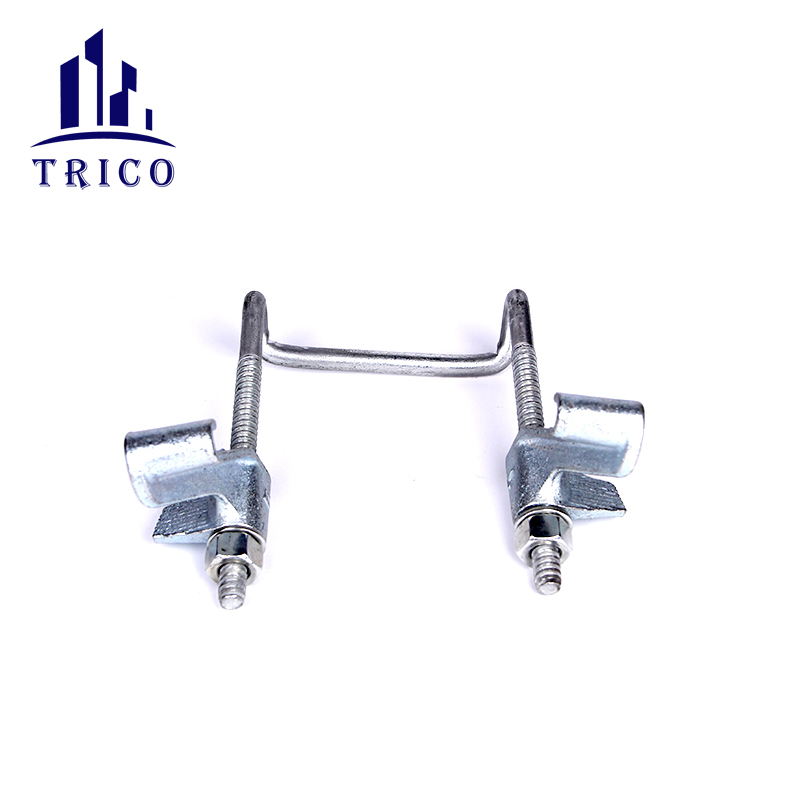

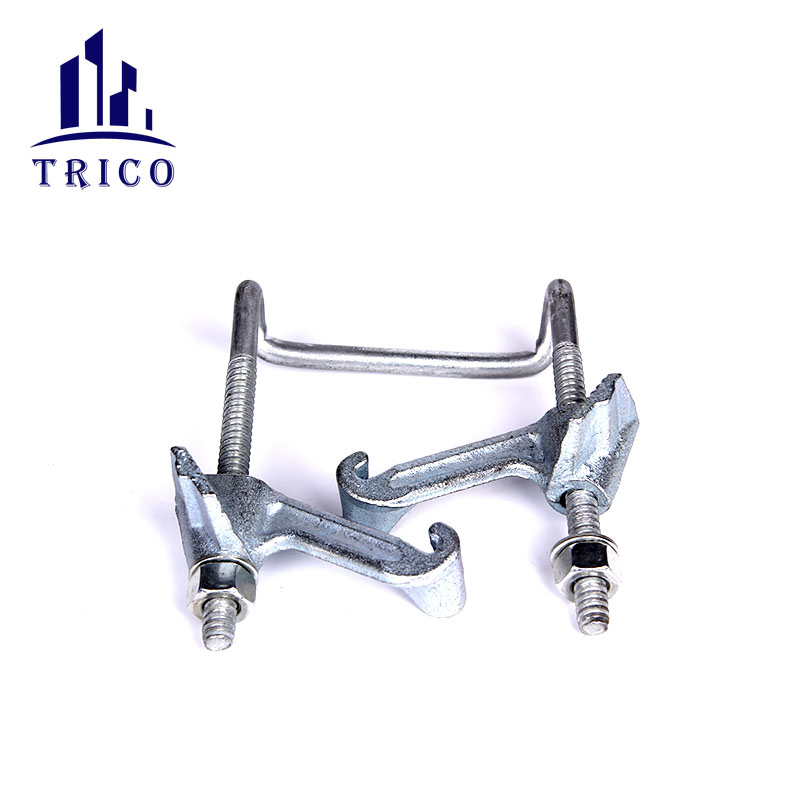

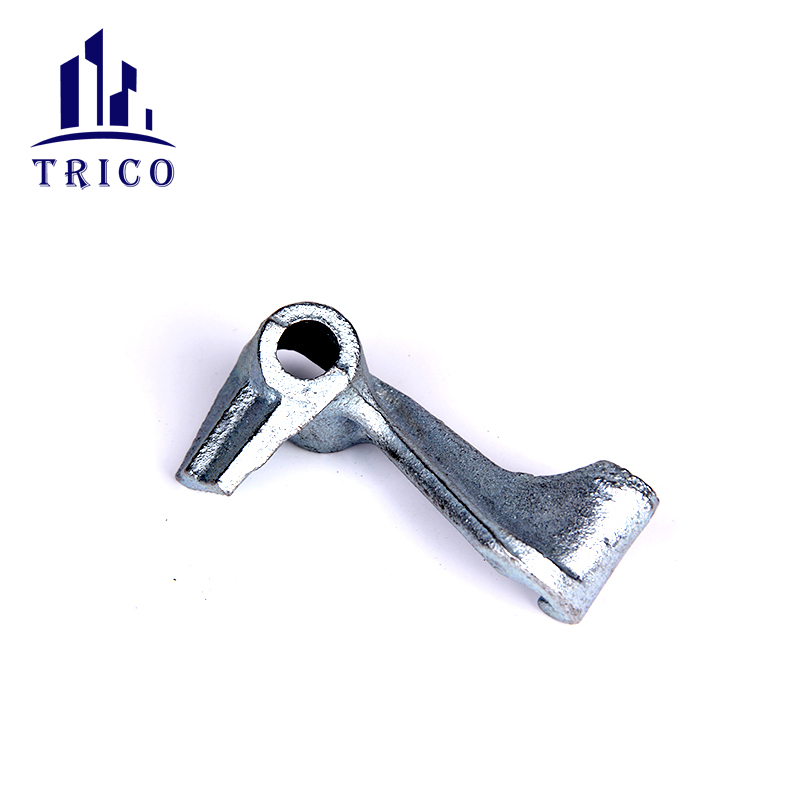

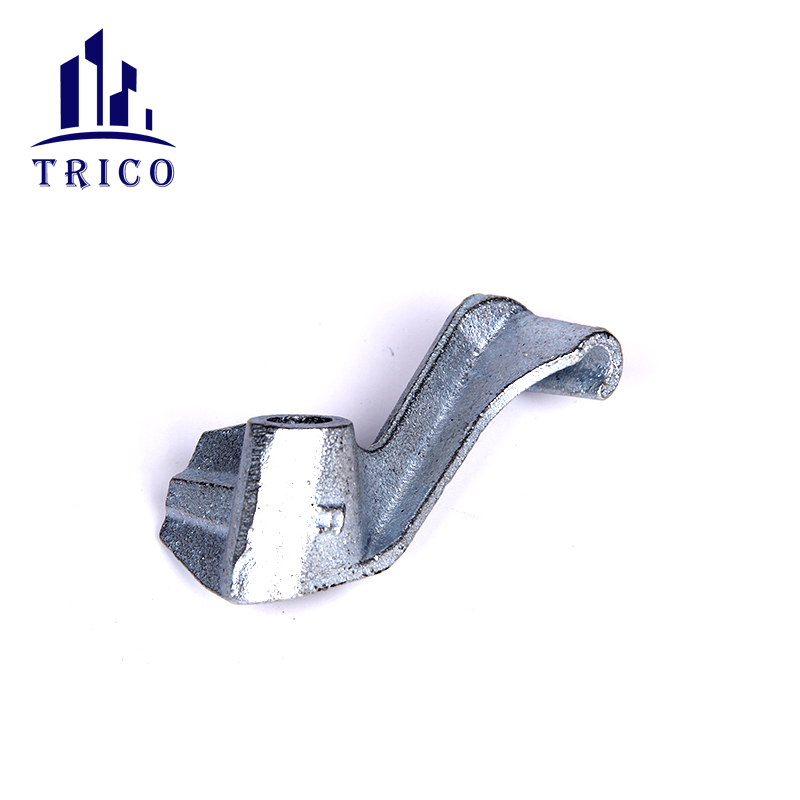

The formwork U beam clamp consists of u clamp and L&R hook or hex nuts. The U clamp is made of Q235 steel, the L&R hook is made of cast iron QT450-10.
It is used to hold and secure fastening of timber beam and steel walings, and help to save time and cost.
Meantime, if needed, we could also produce as per the customers' samples or drawing.
