Steel Plywood Forming System Standard Wedge Bolt
  • Steel Plywood Forming System Standard Wedge Bolt
  • Steel Plywood Forming System Standard Wedge Bolt
  • Steel Plywood Forming System Standard Wedge Bolt
  • Steel Plywood Forming System Standard Wedge Bolt
  • Steel Plywood Forming System Standard Wedge Bolt
  • Steel Plywood Forming System Standard Wedge Bolt
Steel Plywood Forming System Standard Wedge BoltSteel Plywood Forming System Standard Wedge BoltSteel Plywood Forming System Standard Wedge BoltSteel Plywood Forming System Standard Wedge BoltSteel Plywood Forming System Standard Wedge BoltSteel Plywood Forming System Standard Wedge Bolt

Steel Plywood Forming System Standard Wedge Bolt

Product Introduction:

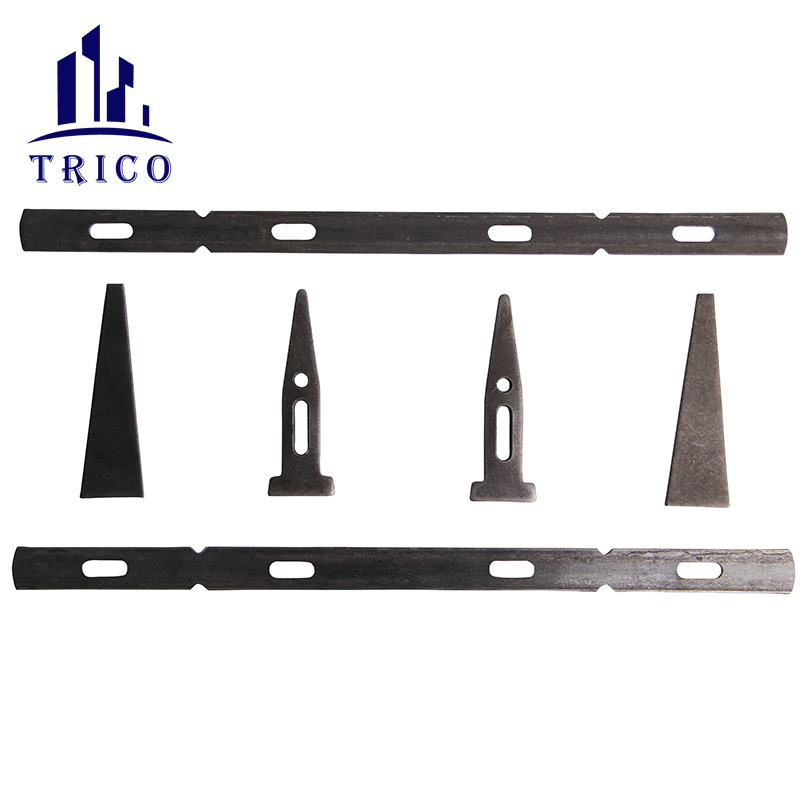

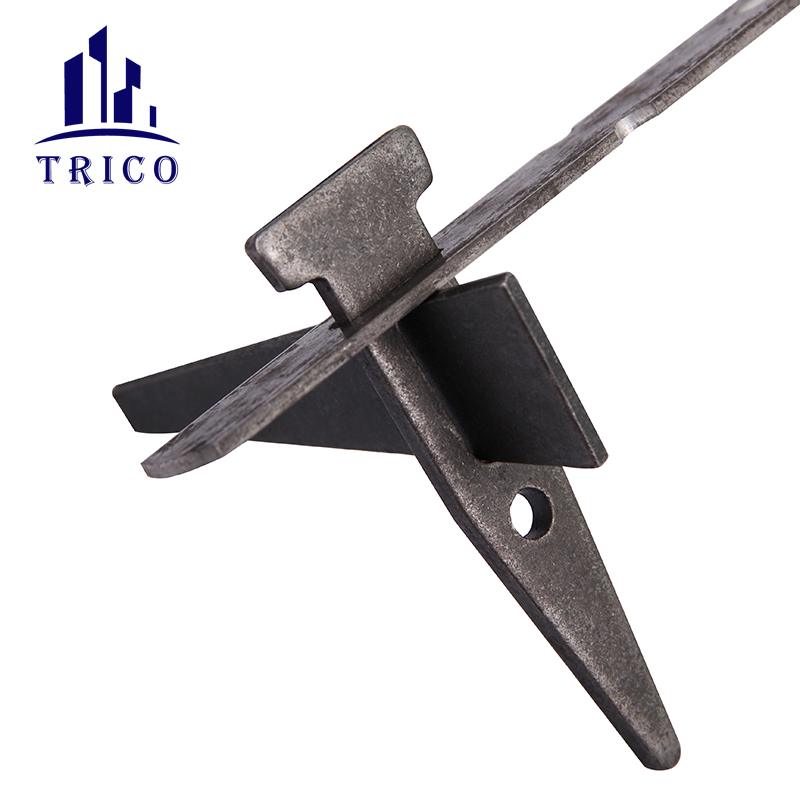

Wedge Bolt is used for Steel Plywood Froming System. Most widely used wedge bolt to connect loop ties and x-flat ties to concrete handset forms and fillers. There are different size for choosing for example Short Wedge Bolt, Standard Wedge Bolt, Long Wedge Bolt and Adjustable Wedge Bolt. Using with X Flat Tie/Loop Tie and Euro Panel, it will help your construction. The most versatile wedge bolt, it is used for many applications.


Product Details

Steel Plywood Forming System Accessories
CommdityTypeSpecificationUsage

Wedge Bolt

Steel Plywood Forming System Standard Wedge Bolt

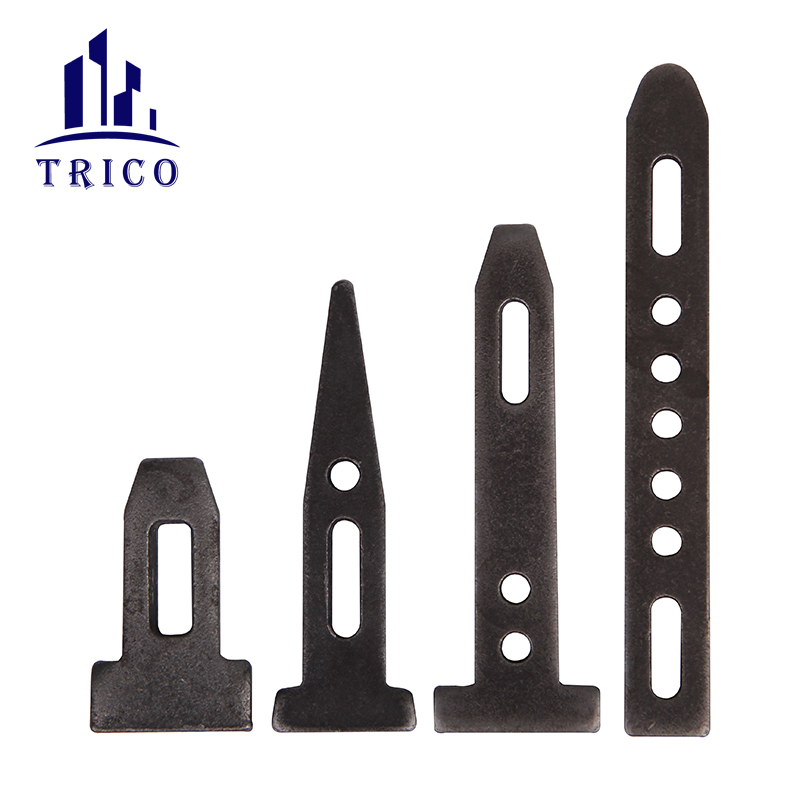

Short Wedge Bolt
24g

The short bolt eliminates the need to

short stop standard wedge bolts.

Can be used to attach inside corners and

pilaster forms to Steel/Plywood forms.

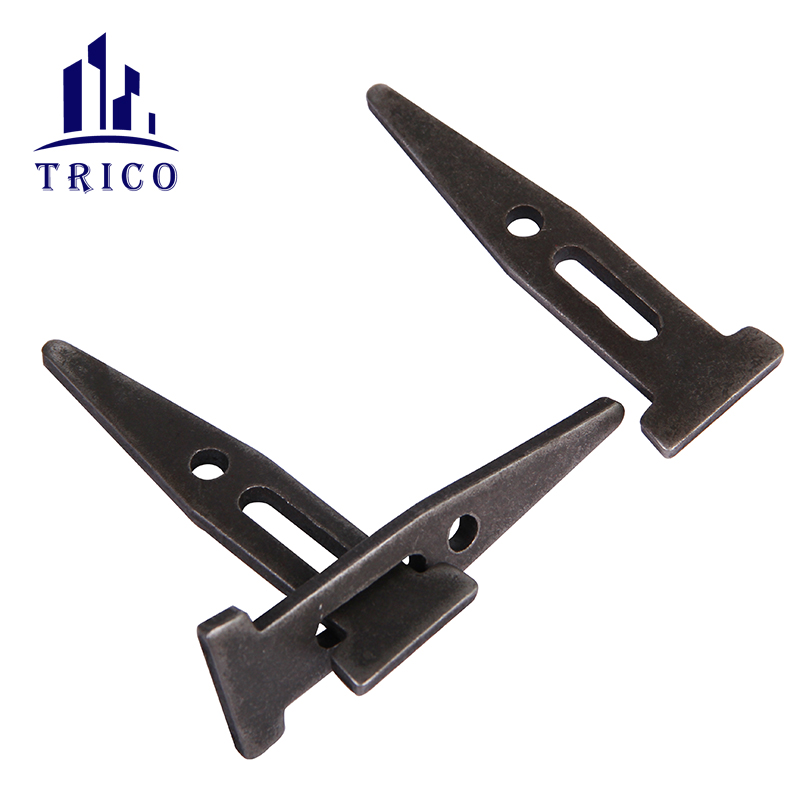

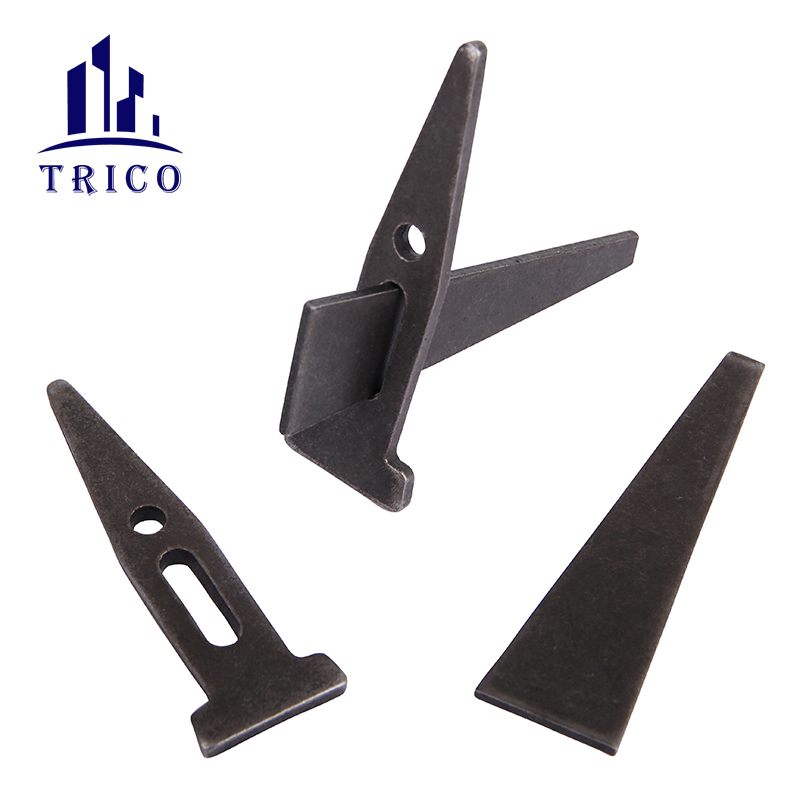

Standard Wedge Bolt
28g

The Standard Wedge Bolt is the most

common wedge bolt used to assemble

forms.

Long Wedge Bolt37g

The Long Wedge Bolt is used when

attaching steel fillers to panels and fillers.

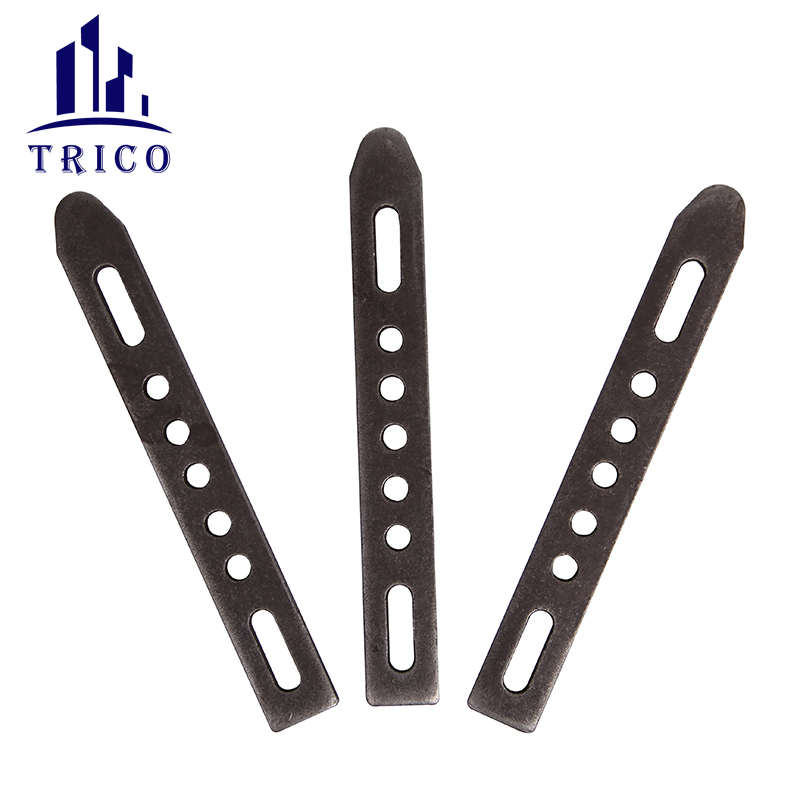

Adjustable Wedge Bolt 81g

Adjustable Wedge Bolt is used to attach

steel fillers to panels and fillers. Works well

when 2 steel fillers are next to each other.

X Flat Tie

Steel Plywood Forming System Standard Wedge Bolt

Standard Flat Tie

4-48"

Other Size

Available

Ultimate 6000lbs

X Flat Tie is used to lock steel panel and

fillers during wall concrete

Heavy Duty Flat Tie

4-48"

Other Size

Available

Ultimate 7000lbs

Steel Ply Panels&

Fillers

Steel Plywood Forming System Standard Wedge Bolt

Euro Form

Korea Steel Panel


Height: 2"-10"

Width:  4"-24"

Inner Corner and

Outer Corner

Available

Rugged steel frames are robotically

welded for consistent strength and fit

across all panels, fillers and corners.

Exclusive DuraCoat powder coating

helps keep the frame rust-free under

the harshest conditions.

Related Accessories Open Face 1pc Waler Bracket, Z Tie Holder, Plylag Gang Waler Rod, J Hook, Loop Tie, etc.

Steel Ply Forming System is very popular for wall concrete construction.

Conveniently located handles make set up, stripping and handling easier.With proper care contractors can expect that forms will be able to be reused up to 200 times before plywood needs to be replaced.Compatible with all other industry standard modular handset systems.

All sizes of heavy duty loop ties, x-flat ties, wedge bolts, and accessories to offer the complete system.
