Hy-Rib Mesh for Concrete Permanent Stopend Formwork
  • Hy-Rib Mesh for Concrete Permanent Stopend Formwork
  • Hy-Rib Mesh for Concrete Permanent Stopend Formwork
  • Hy-Rib Mesh for Concrete Permanent Stopend Formwork
  • Hy-Rib Mesh for Concrete Permanent Stopend Formwork
  • Hy-Rib Mesh for Concrete Permanent Stopend Formwork
  • Hy-Rib Mesh for Concrete Permanent Stopend Formwork
Hy-Rib Mesh for Concrete Permanent Stopend FormworkHy-Rib Mesh for Concrete Permanent Stopend FormworkHy-Rib Mesh for Concrete Permanent Stopend FormworkHy-Rib Mesh for Concrete Permanent Stopend FormworkHy-Rib Mesh for Concrete Permanent Stopend FormworkHy-Rib Mesh for Concrete Permanent Stopend Formwork

Hy-Rib Mesh for Concrete Permanent Stopend Formwork

Product Introduction:

Hy-rib stop end Formwork is manufactured form hot-dipped galvanized steel sheets. Because its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal latch. This product has excellent engineering quality and construction security in the following applications as concrete permanent assembly-free formwork.

Product Details

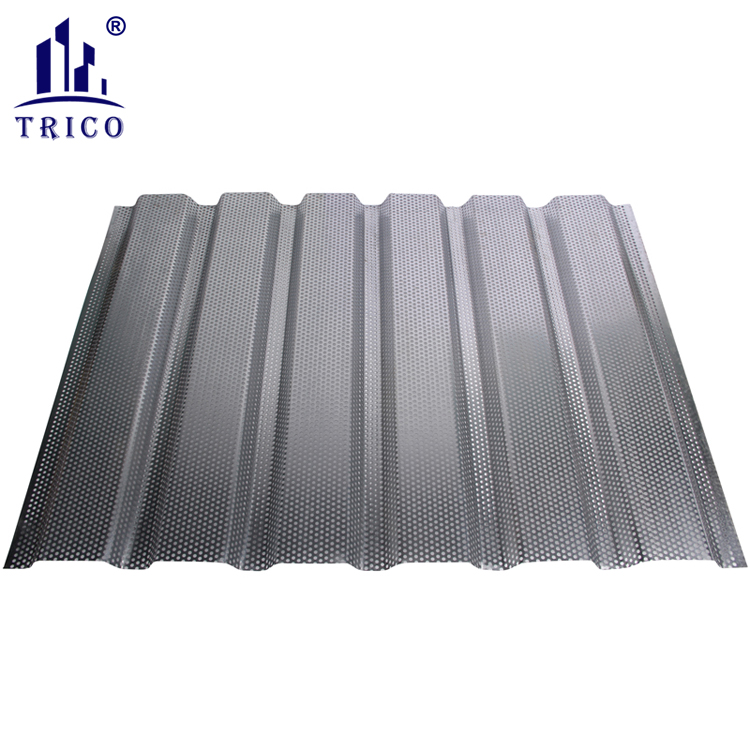

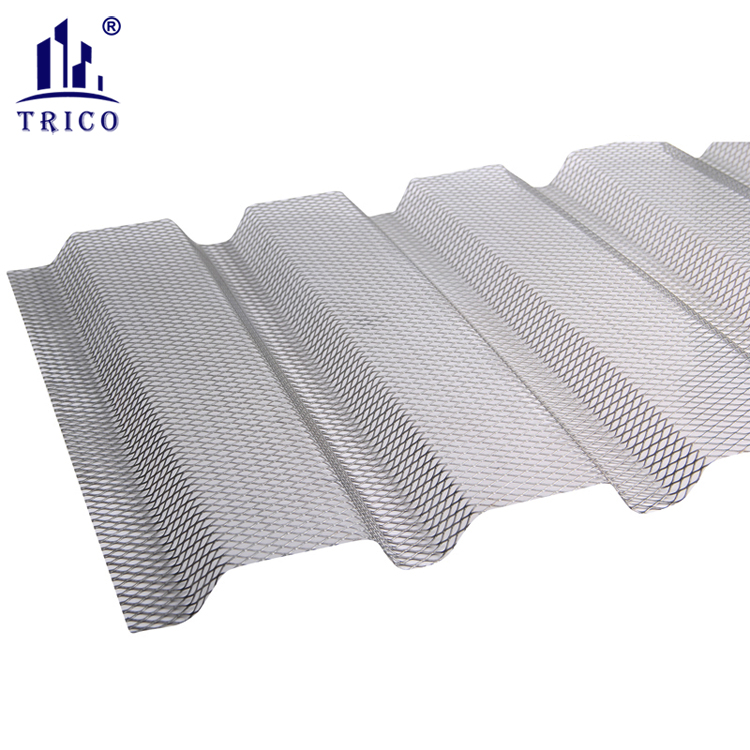

Hy-Rib Mesh for Concrete Permanent Stopend Formwork

Hy-rib stop end Formwork is manufactured from hot-dipped galvanized steel sheets. Because its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality and construction security in the following applications as concrete permanent assembly-free formwork.

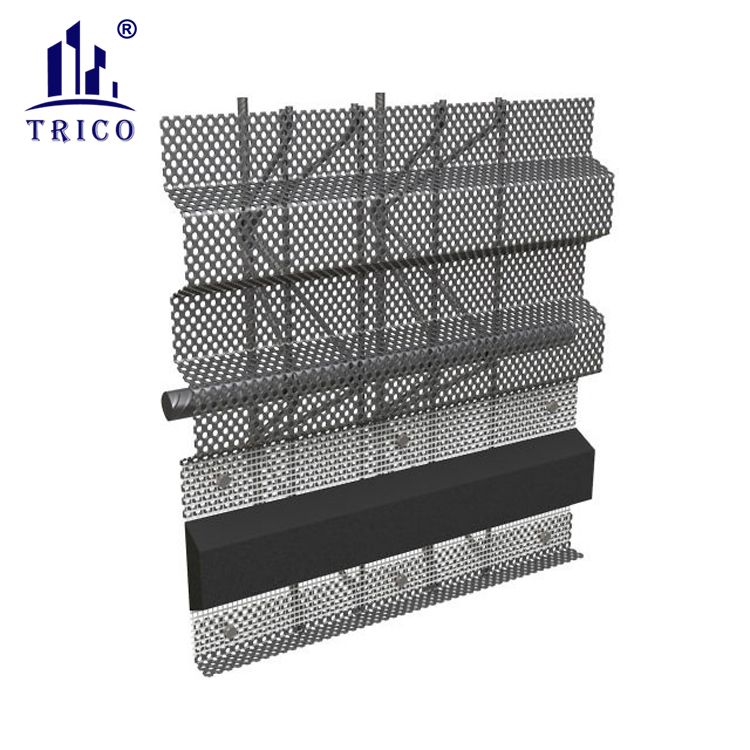

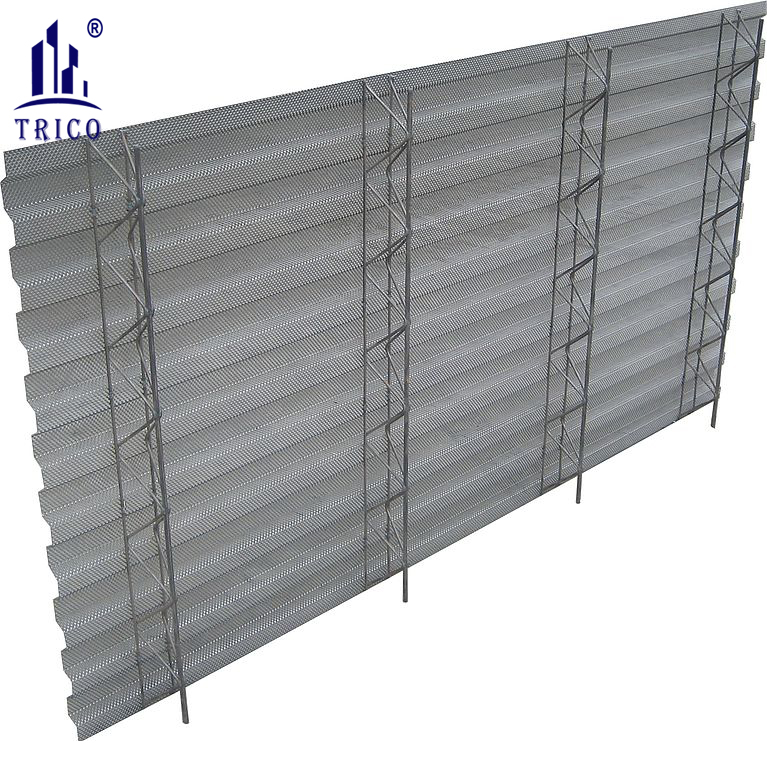

Shuttering units comprised of finely meshed, trapezoidally-profiled, expanded metal, designed for creating construction joints in concrete base slabs. Units are supplied to specific project-heights on site.

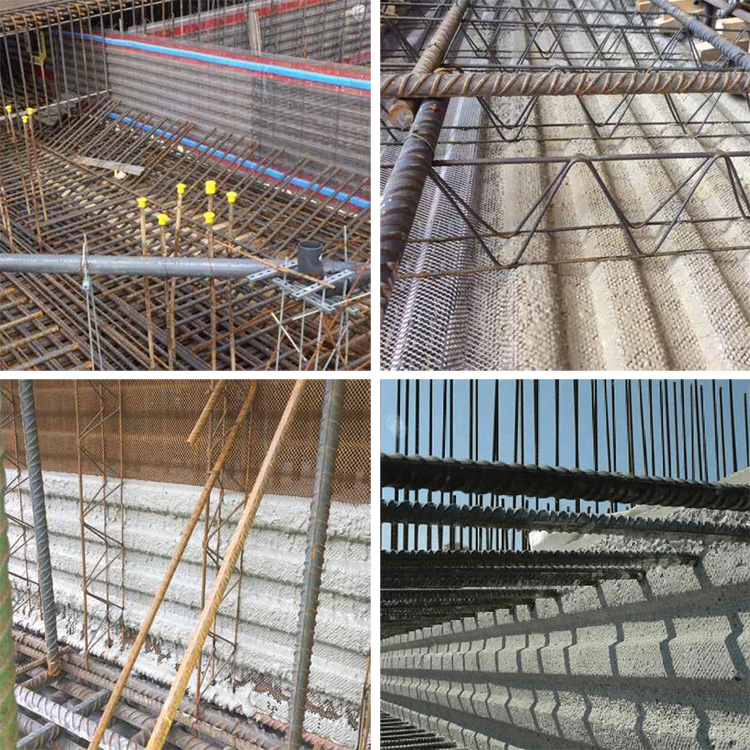

Applications:

• Widely used in tunnels bridges

• Valve basement systems

• Sewage systems

• Subways

• Retaining walls

• Nuclear power plants

• Shipyards

• Water pools

• Marine engineering works

• High rise building projects

• Non-regular or bending pattern

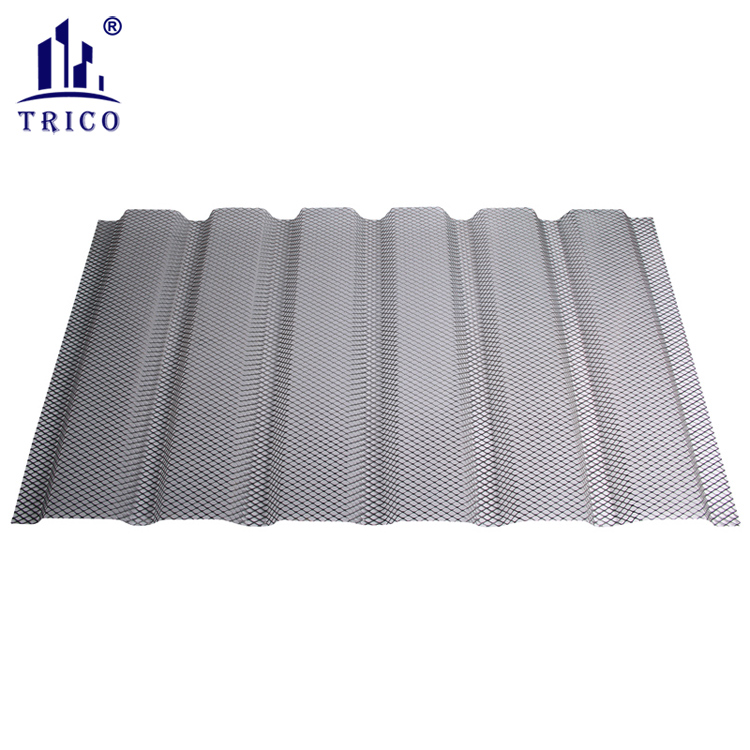

Hy-Rib Permanent Stopend Formwork

IMG_3587.jpgMaterialMild Steel
Width880mm or as demand
Length2200mm, 2500mm or as demand
Thickness0.7mm
Surface TreatmentHot Dip Galvanized

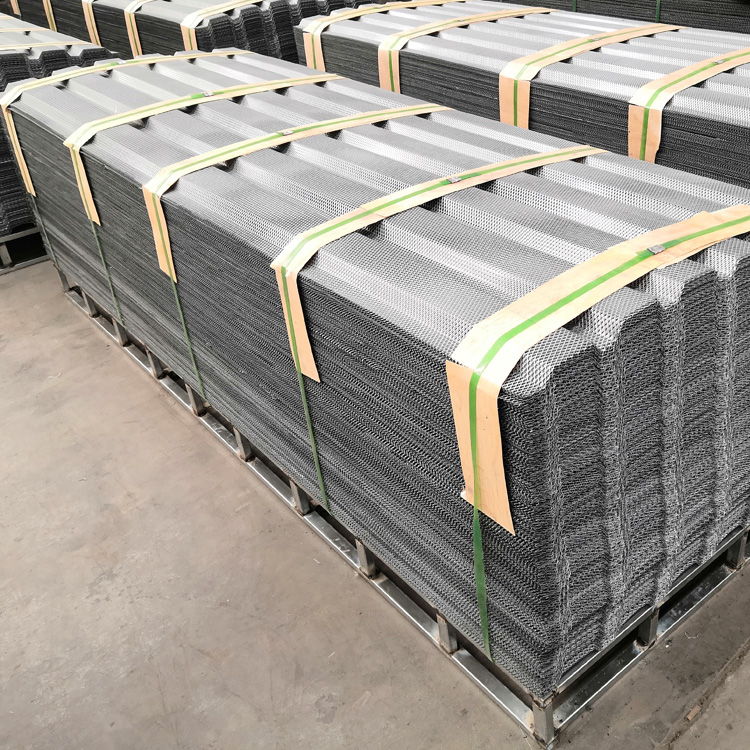

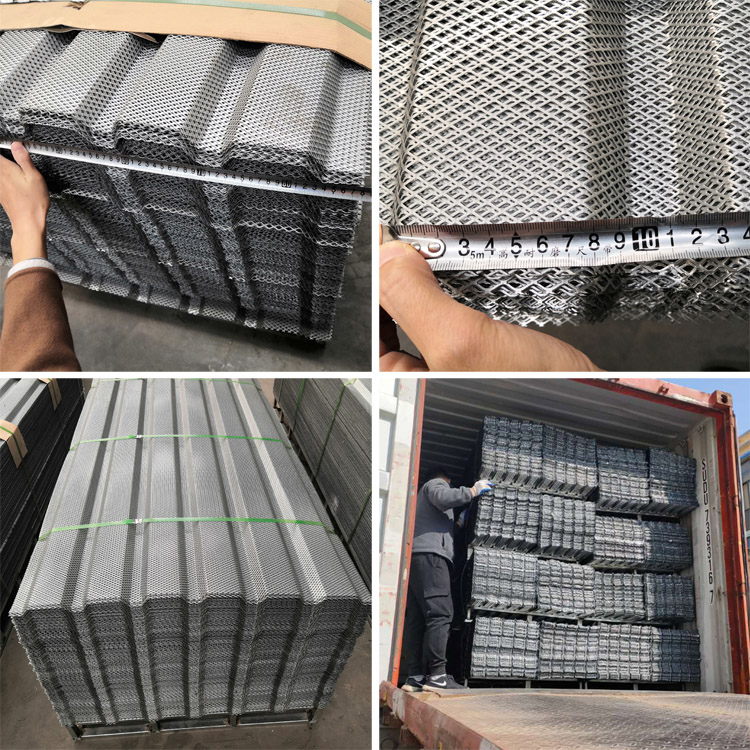

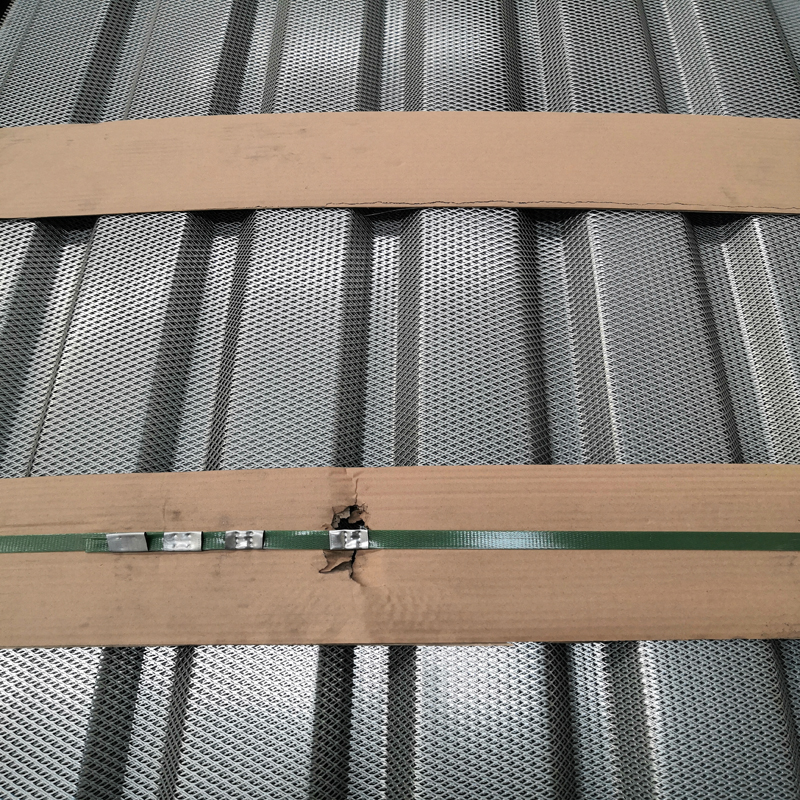

Packing250pcs/pallet or as demand

Similar Products:

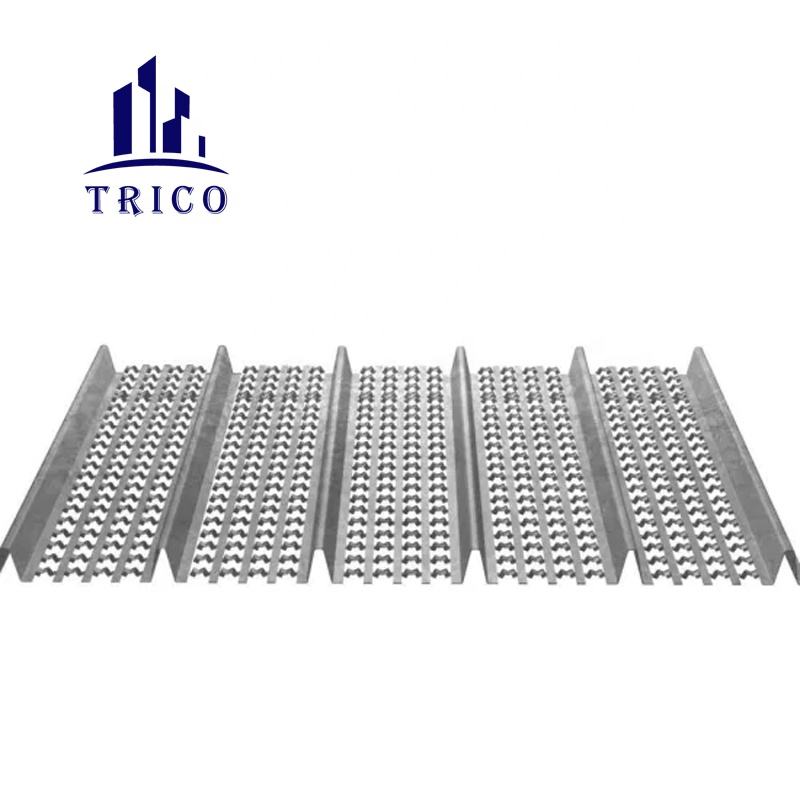

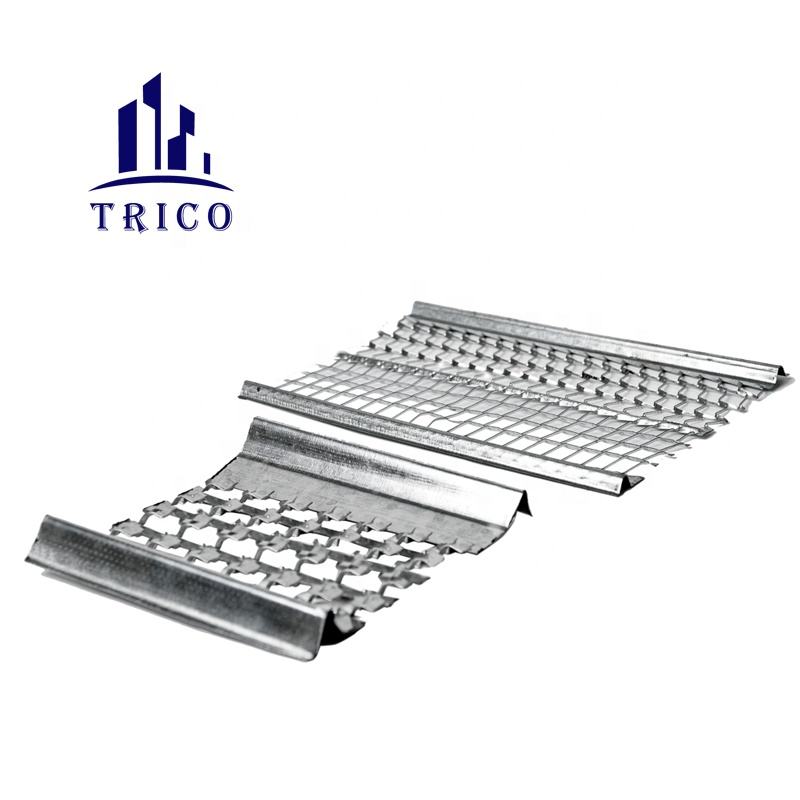

Hy Rib Mesh

H92a21e4b08fc45268ea823a8269ff98dC.jpg_960x960.jpgSize2000x445mm;3000x445mm
Thickness0.25mm, 0.30mm, 0.35mm, 0.40mm, 0.45mm
ColorSilver
Surface TreatmentHot Dip Galvanized
Packing250pcs/pallet or as demand
Other Size Acceptable

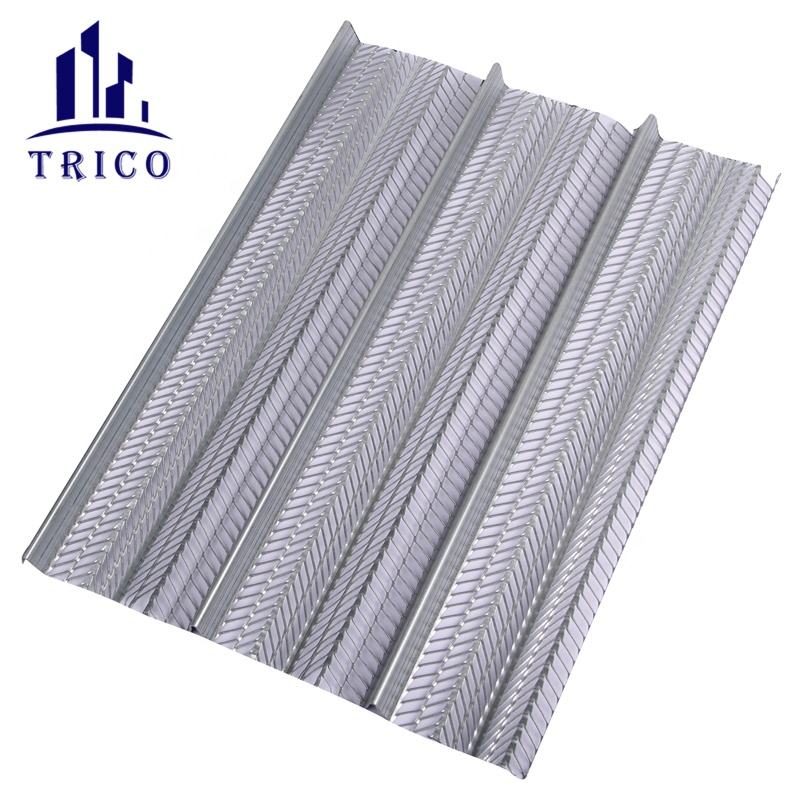

Rib Lath Mesh

rib-lath.jpgMaterialMild Steel
Width200mm, 300mm, 400mm, 500mm,600mm,700mm or as demand
Length2000mm,3000mm or as demand
Thickness0.25mm,0.30mm,0.40mm,0.45mm,0.50mm
Rib Distance10mm,15mm or as demand
Packing250pcs/pallet or as demand
Other Sizes Available






Smilar Products:

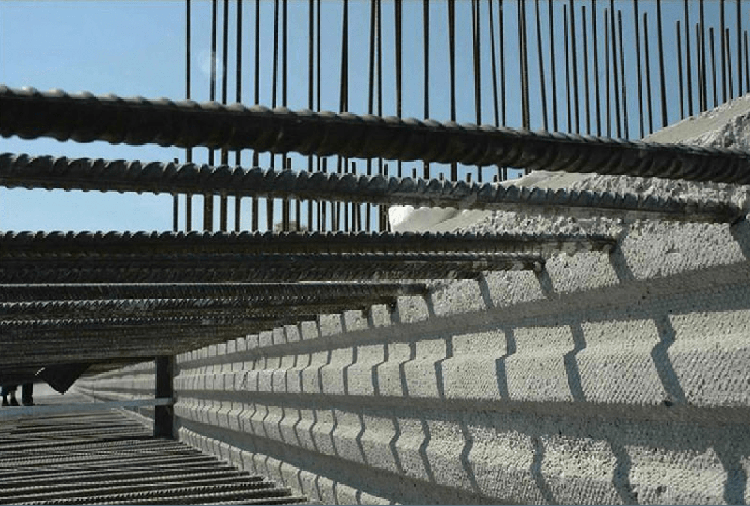

Hy Rib Mesh for Concrete Permanent Formwork & construction joints

Hy rib mesh, also known as fast-ez high ribbed formwork, is manufactured by punching and profiling galvanized steel sheet or stainless steel sheet.It is a jointless steel mesh stiffened by integral ribs. The continuous parallel V ribs are the main source of the hy rib mesh. Meanwhile, the steel mesh can be curved along the direction of V ribs. The profile of the steel mesh, in combination with the hy-rib tangs, allow the hy rib mesh can be widely used as the carrier of plaster, stucco and fireproofing material and served as a permanent formwork for concrete.




Benefits

• Allow steel bars passing through easily and binding continuously. Hy rib mesh is a special kind of steel mesh with a large number of openings. It allows steel bars with a diameter of 12 mm and below pass through the mesh easily. For steel bars with a diameter of 12 mm above, cut through the mesh opening to allow the steel bar passing though and then make sure the cut part of the opening return to its original position. It can also be installed before binding steel bars and then make sure steel bars pass through the mesh opening.

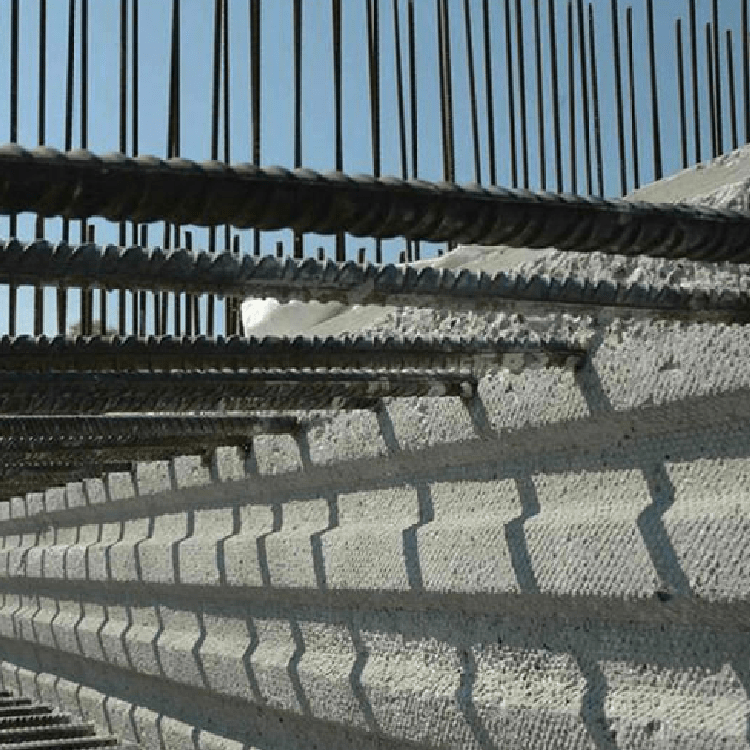

• Observe the concreting process directly. Due to its unique opening structure, it allows you observing the concreting process with your naked eyes, thereby reducing the risk of porosity and honeycomb.

• Lightweight, easy to handle and install. It weights only one tenth of the set-shaped steel formwork, which makes it easy to transport and can be installed quickly.

• Optimize the concreting process and increase the shear resistant interface. The mortar penetrates the interface through the mesh opening during concreting to form a coarse-grained interface with ideal shear resistance.

• Adapt to segmental concrete pouring. No dismantle is required before the next concrete pouring, thereby simplifying the interface preparation.

• Easy to connect and shear. Multi-performance, easy to cut, and can be bent and folded according to the required support shape.

• Good mechanical properties, low lateral pressure. The hollow-carved mesh opening design allows the concrete pressure being reduced to half of its original value, thus significantly reducing formwork support.

• No peeling off, no deformation. Hy rib mesh will neither peel off or deform even under extreme weather conditions (extreme hot or cold).

• Great concrete gripping capacity. Hy rib mesh is specially designed to retain the poured concrete.

Rib Lath Mesh/Expanded Ribbed Lath for Wall Plastering

Rib lath is manufactured by punching and profiling galvanized steel sheet or stainless steel sheet.

Rib lath, also known as expanded ribbed lath, has V-ribs to offer an increased tensile strength and give a uniform plastering depth over a large coating area. Compared with common metal lath, V ribs provide added support capacity and its unique structure offers better permeability, thereby delivering greater plaster bonding and fixing properties.

It is extensively used in plastering works on walls and suspended ceilings and serves as plaster base for building construction.


Benefits

• It offers great stiffness, high tensile strength and is not easy to break.

• It provides ample keying for plastering.

• Flexible structure can be bent and shaped at will.

• Easy construction, it allow you save your time greatly while offering an even plastering surface.

• Lightweight, easy to cut, bind and nail onto the keel light steel frame for easy and fast construction.
