Product Introduction:

Ribbed Formwork has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. as concrete permanent assembly-free formwork.

Product Details



Building Materials Hy-rib Mesh Formwork

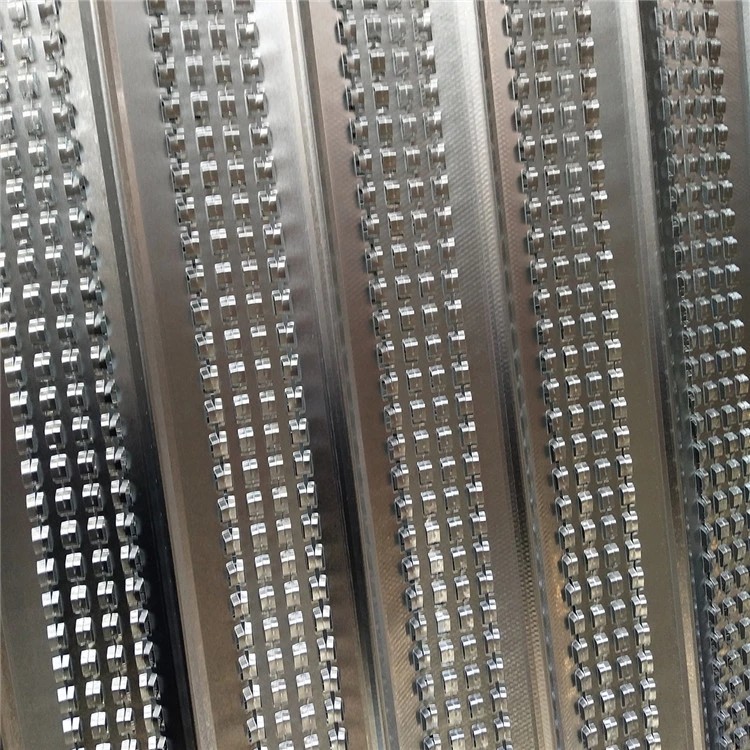

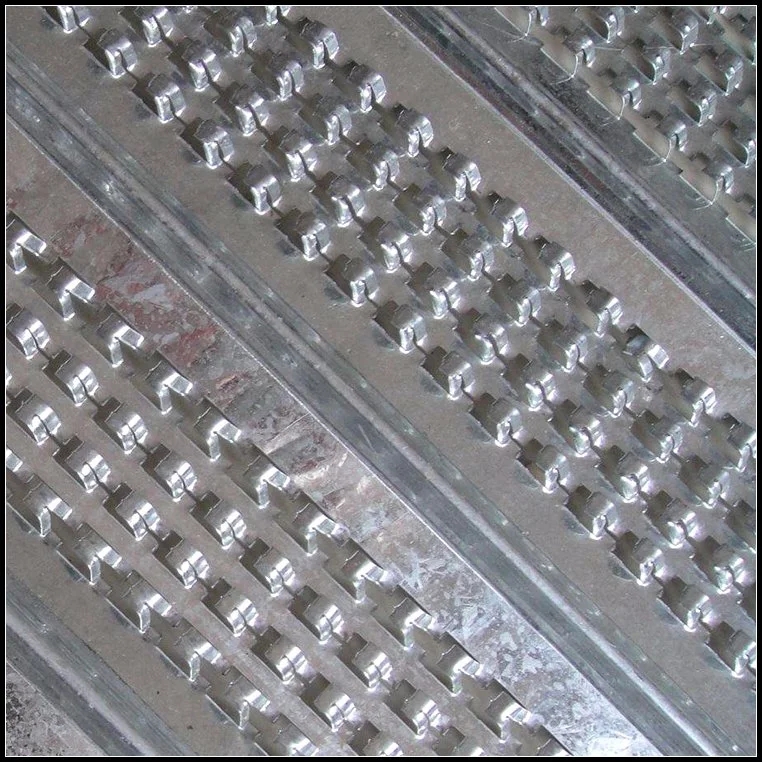

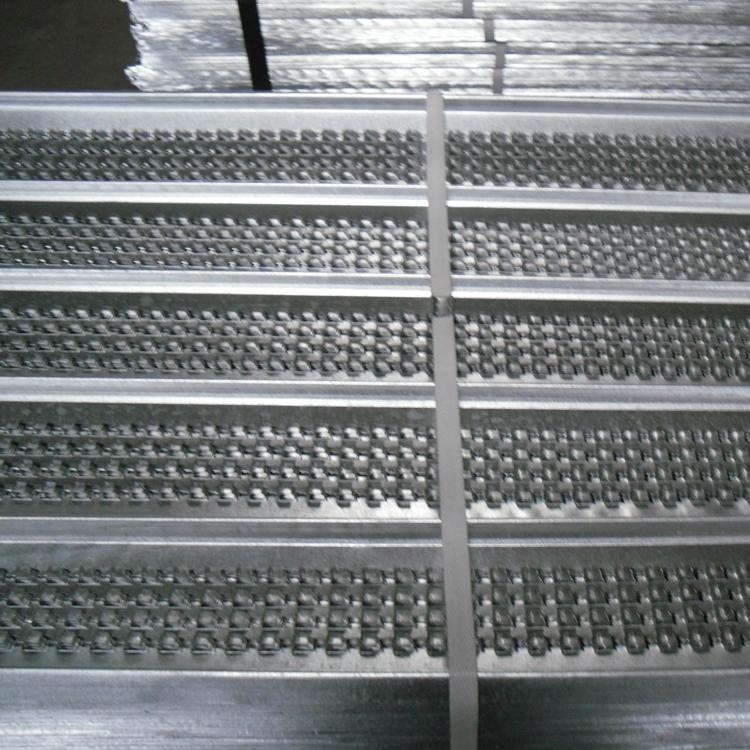

HY-RIBBED FORMWORK METAL SHEET



  Building Materials Hy-rib Mesh Formwork

Size

2000x445x0.35mm



Weight

2.48kg

Tolerance

±0.3kg

Color

White Zinc Color



Finishing

Method: Hotdip Galvanized


Requirement: Coating weight:60g/m2 min.


Coating thickness:30um min.

Remarks

1.Thickness Tolerance: +0.05mm



2.Length Tolerance: ±10mm



3.Width Tolerance: ±5mm











Material

Description

Q195







Chemical


C

≤0.12


Si

≤0.3

Q195

Mn

≤0.5


P

≤0.035


S

≤0.04



Mechanical

Tensile Strength

315~430Mpa


Lower Yield Stress

≥195Mpa


Elogation

≥33%

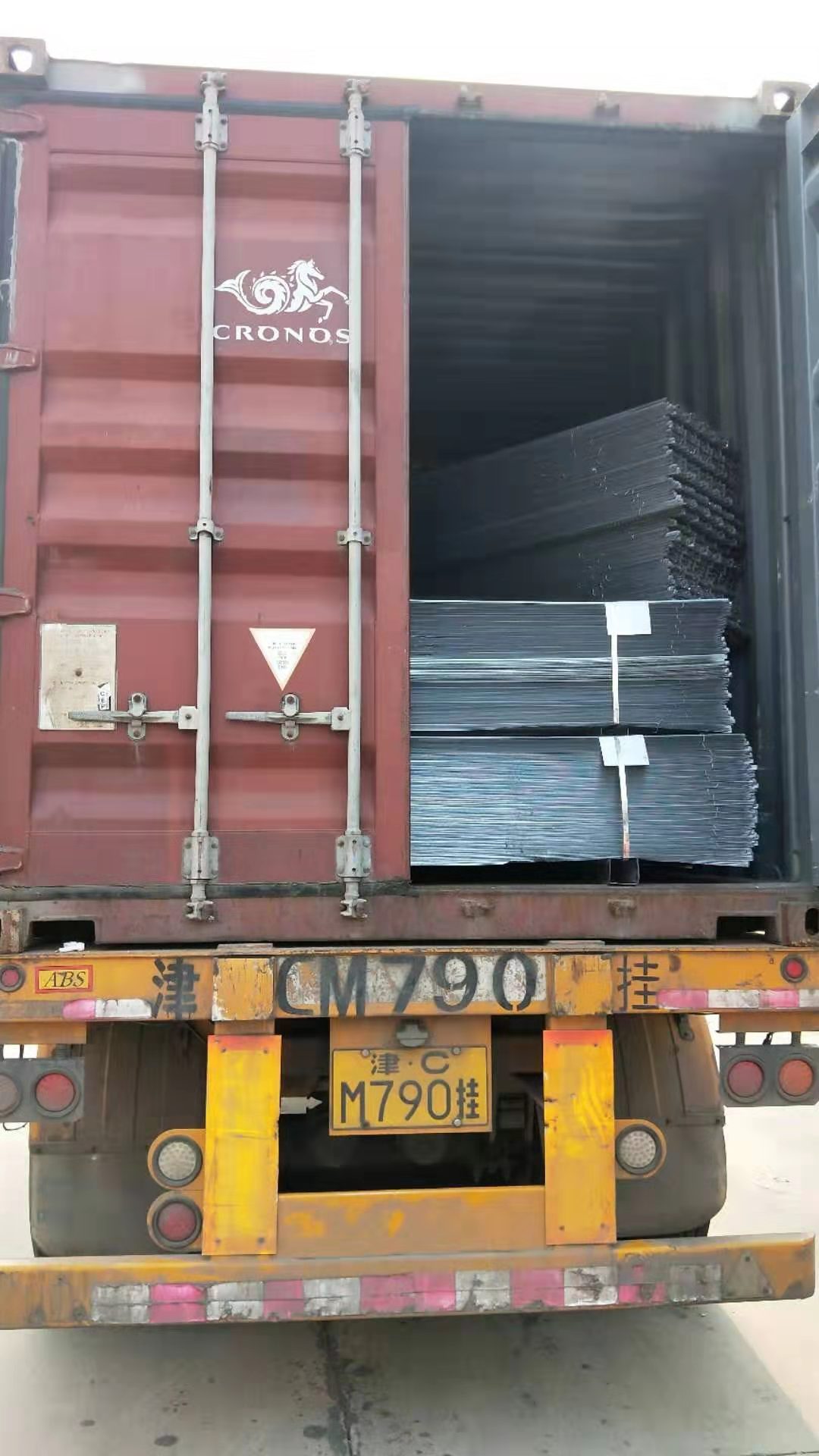

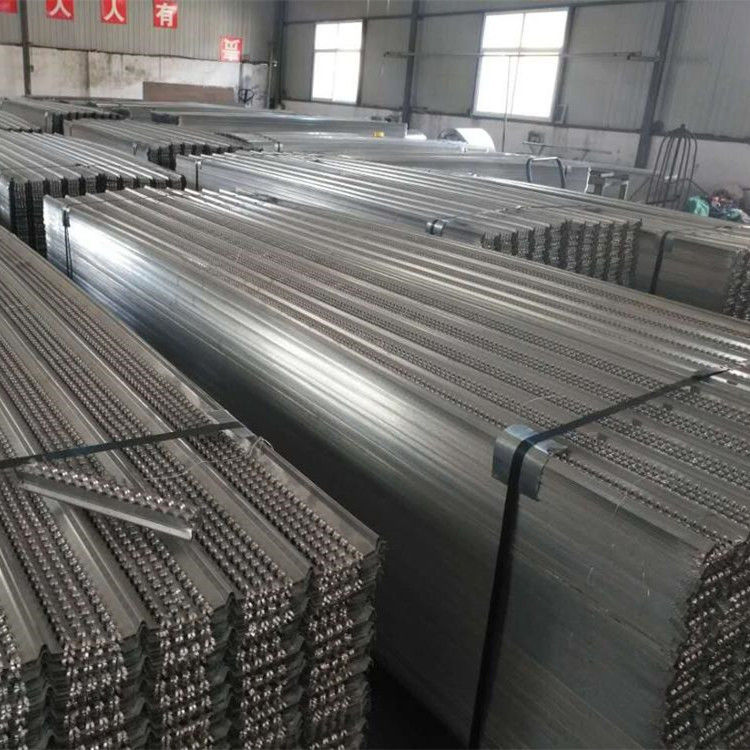

Packing

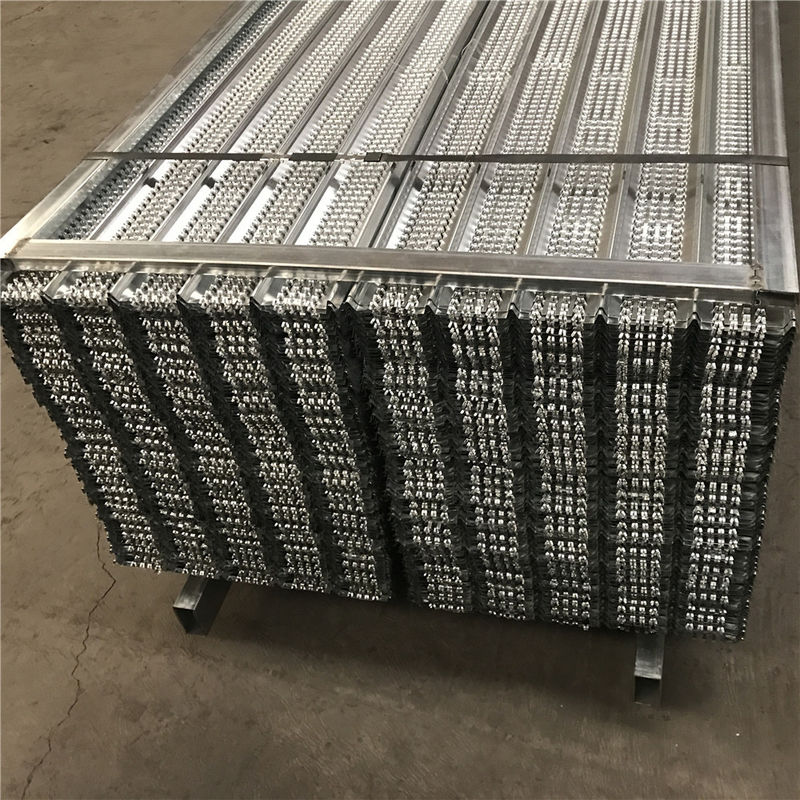

packed in bundles of 20pcs

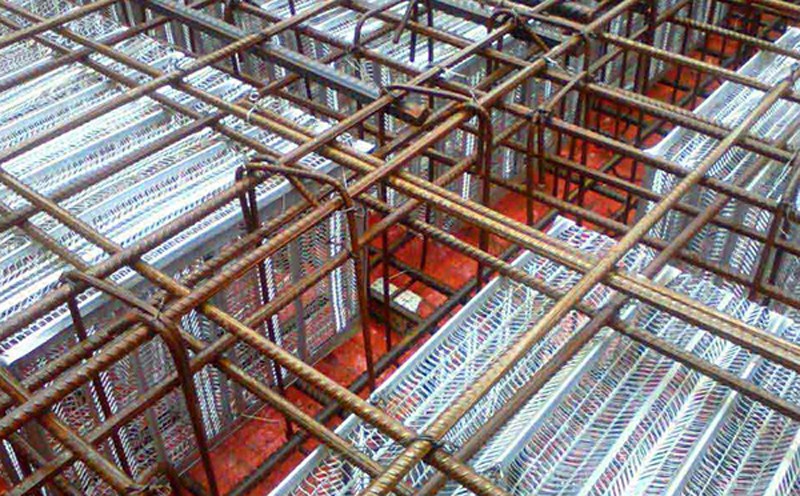

 Application:

1). Construction formwork mesh has very good engineering quality and construction security;

 2). Construction formwork mesh as the concrete permanent assembly free sheet is much convenient for engineering design and processing;

 3). Construction formwork mesh is widely used in tunnels, bridges and valve system and so on to make the process of construction much more fast and stable.

Hy-Rib Lath Galvanized Hy Rib Permanent Formwork

Hy-Rib Lath Galvanized Hy Rib Permanent Formwork

Hy-Rib Lath Galvanized Hy Rib Permanent Formwork
