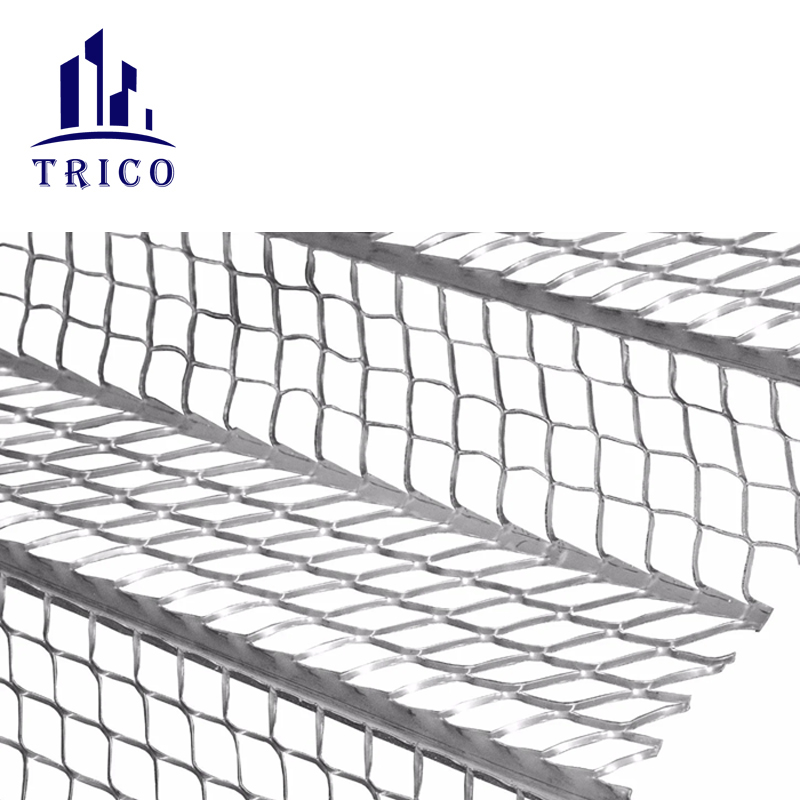

Formwork High Ribbed Metal Rib Lath
  • Formwork High Ribbed Metal Rib Lath
  • Formwork High Ribbed Metal Rib Lath
  • Formwork High Ribbed Metal Rib Lath
  • Formwork High Ribbed Metal Rib Lath
  • Formwork High Ribbed Metal Rib Lath
  • Formwork High Ribbed Metal Rib Lath
Formwork High Ribbed Metal Rib LathFormwork High Ribbed Metal Rib LathFormwork High Ribbed Metal Rib LathFormwork High Ribbed Metal Rib LathFormwork High Ribbed Metal Rib LathFormwork High Ribbed Metal Rib Lath

Formwork High Ribbed Metal Rib Lath

Product Introduction:

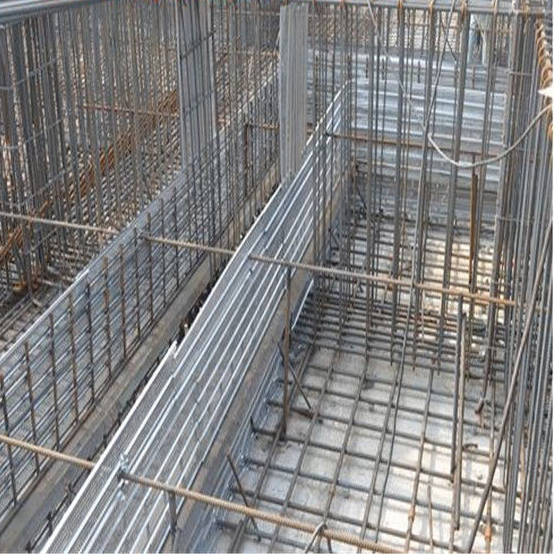

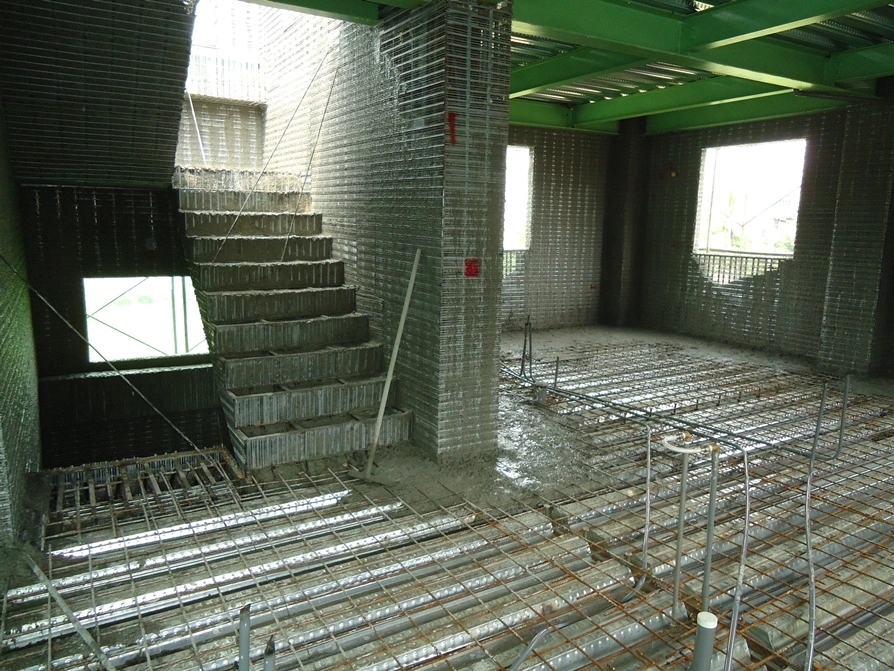

Hy-Ribbed Formwork has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards,water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. as concrete permanent assembly-free formwork.


Product Details



FORMWORK HIGH RIBBED METAL RIB LATH

7 RIB 8 OPENNING

Formwork High Ribbed Metal Rib Lath

Thickness(mm)

Rib Distance(mm)

Weight (KG)

Width X length(mm)

0.30

100

1.79

610 X 2440

0.35

100

2.09

610 X 2440

0.40

100

2.38

610 X 2440

0.45

100

2.68

610 X 2440

0.5

100

2.98

610 X 2440


FORMWORK HIGH RIBBED METAL RIB LATH

5 RIB 8 OPENNING

Formwork High Ribbed Metal Rib Lath

Thickness(mm)

Rib Distance(mm)

Weight (KG)

Width X length(mm)

0.30

150

1.31

610 X 2440

0.35

150

1.53

610 X 2440

0.40

150

1.75

610 X 2440

0.45

150

1.96

610 X 2440

0.5

150

2.17

610 X 2440


FORMWORK HIGH RIBBED METAL RIB LATH

9 RIB 4 OPENNING

Formwork High Ribbed Metal Rib Lath

Thickness(mm)

Rib Distance(mm)

Weight (KG)

Width X length(mm)

0.30

75

1.89

610 X 2440

0.35

75

2.28

610 X 2440

0.40

75

2.53

610 X 2440

0.45

75

2.84

610 X 2440

0.5

75

3.15

610 X 2440

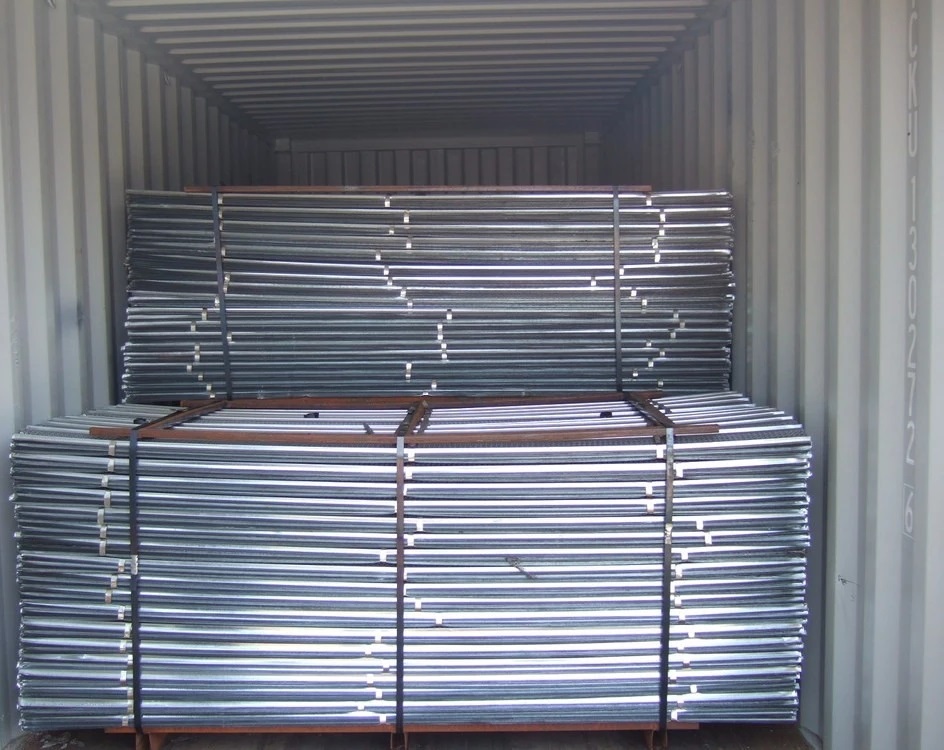

Packaging:

Formwork High Ribbed Metal Rib Lath
